Alteryx

Connectivity Summary

An out of the box connector is available for Alteryx. It provides support for crawling datasets i.e. dataflows, datasets, and lineage building.

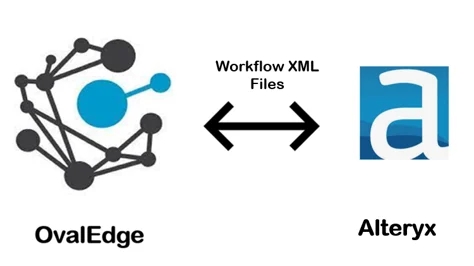

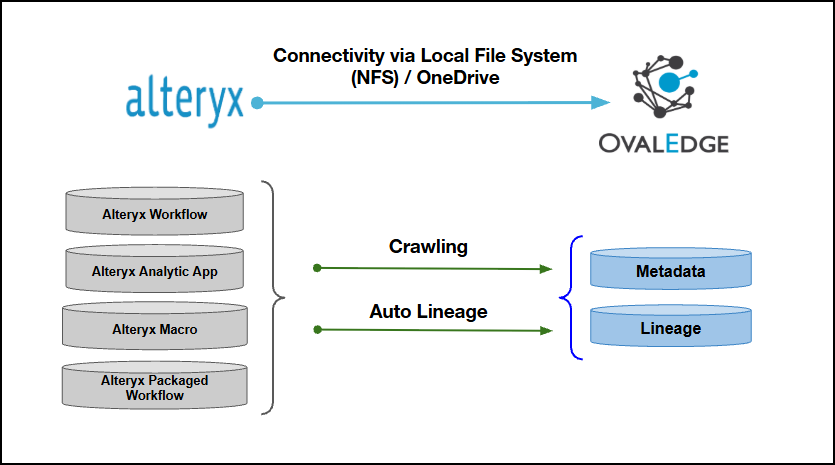

The connectivity to Alteryx is via Created Workflow Files from Alteryx Studio, which is included in the platform. Alteryx Studio is a windows application.

Windows Machine Requirements

Machine Requirements	Minimum: 64-bit	High Performance: 64-bit
OS Requirements	Microsoft Windows 8 (64-bit)	Microsoft Windows 8 (64-bit)
Chip	Quad Core (single chip)	Quad Core (single chip)
Processor	2.5GHz or Faster	2.5GHz or Faster
RAM	8GB	16GB
Disk Size	500GB - 1TB	500GB - 1TB

The connector currently supports the following versions of Alteryx:

Edition: Alteryx Version

Version: Default version supported

Connector Capabilities

The connector capabilities are shown below:

Crawling

Supported objects for Crawling are:

Supported Objects	Remarks
Kept Alteryx as static Schema. Get the workflow files from specified path	Providing the files as datasets and source code

Please see this article Crawling Data for more details on crawling.

Lineage Building

Lineage Entities	Details
Table-File Lineage	Supported
File - Table Lineage	Supported
Column lineage- File Column Lineage	Supported

Pre-requisites

To use the connector, the following need to be available:

• Connection details as specified in the following section should be available.

• A service account, for crawling . The minimum privileges required are:

Operation	Access Permission
Connection validate	Should have permission for the specified path
Crawl Files(only with extension of .yxdb) with source code as data sets	Should have permission for the specified folder

Connection Details

The following connection settings should be added for connecting to an Alteryx:

• Database Type: Alteryx

• License Type: Standard or Auto Lineage

• Connection Name: Select a Connection name for the Alteryx. The name that you specify is a reference name to easily identify the Alteryx connection in OvalEdge. Example: Alteryx_dev

• Type of Path: Specify the local directory path

• File Path: Specify the local directory path(where ovaledge application is deployed) workflows are located.

• Server: IP address of an instance

Points to note

• Only with the extension of file with .yxdb will get crawled.

• Every node in the source code represents one component either source or target component (in OvalEdge, treating them as datasets)

• Providing lineage (considering target and source components) for the following components:

  • AlteryxDbFileInput

  • AlteryxDbFileOutput

  • AlteryxAmazonS3Download

  • AlteryxAmazonS3Upload

  • AlteryxLockInInput

  • AlteryxMongoOutput

  • AlteryxMongoInput

  • TableInputTool

  • CubeInputTool

  • PublishToTableauServer

We will extend to more components based on the client requirements.

---
