# Talend

This article outlines the integration with the Talend connector, enabling metadata management through crawling and lineage building (automatic and manual). The connector crawls Talend .item files and maps the extracted metadata to the Data Catalog.

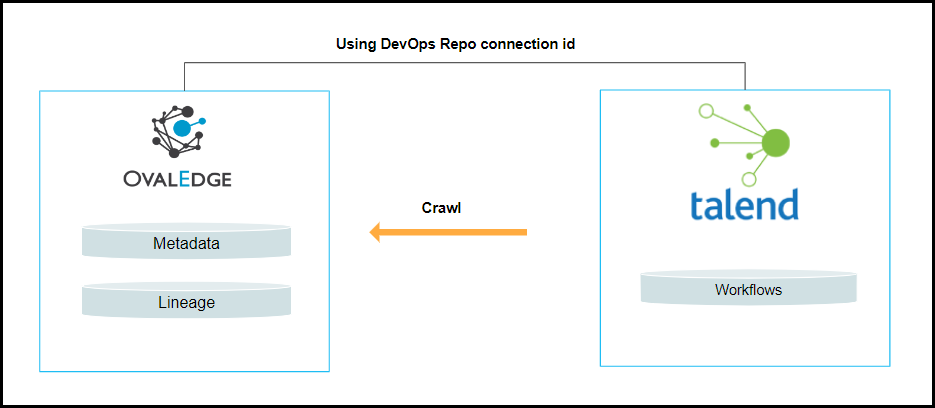

The connector establishes connectivity to Talend through an External Workspace, including Azure DevOps Repo, NFS, and GitHub Files. Connection configuration requires a Workspace Connection ID, an optional Context Params File Path, and read access to .item files for crawling.

<figure><img src="/files/PsGuJKW8c8SqJw9sZsLE" alt=""><figcaption></figcaption></figure>

## Overview

### Connector Details

| Connector Category                                                         | ETL Tool                                                    |
| -------------------------------------------------------------------------- | ----------------------------------------------------------- |
| OvalEdge Release Supported                                                 | Release6.3.x and later                                      |
| <p>Connectivity</p><p>\[How the connection is established with Talend]</p> | External Workspace (Azure DevOps Repo / NFS / GitHub Files) |

### Connector Features

<table data-search="false"><thead><tr><th>Feature</th><th align="center">Availability</th></tr></thead><tbody><tr><td>Crawling</td><td align="center">✅</td></tr><tr><td>Delta Crawling</td><td align="center">❌</td></tr><tr><td>Data Preview</td><td align="center">❌</td></tr><tr><td>Auto Lineage</td><td align="center">✅</td></tr><tr><td>Manual Lineage</td><td align="center">✅</td></tr><tr><td>Secure Authentication via Credential Manager</td><td align="center">✅</td></tr><tr><td>Data Quality</td><td align="center">NA</td></tr><tr><td>DAM (Data Access Management)</td><td align="center">NA</td></tr><tr><td>Bridge</td><td align="center">✅</td></tr></tbody></table>

{% hint style="info" %}
'NA' indicates that the respective feature is 'Not Applicable’.
{% endhint %}

### Metadata Mapping

The following objects are crawled from Talend and mapped to the corresponding UI assets.

<table><thead><tr><th width="142.6666259765625">Talend Object</th><th width="164">Talend Attribute</th><th width="170">OvalEdge Attribute</th><th width="170">OvaEdge Category</th><th width="158">OvalEdge Type</th></tr></thead><tbody><tr><td>.item File</td><td>.item File name</td><td>Code Name</td><td>Codes</td><td>TALEND_ITEMS</td></tr></tbody></table>

## Set up a Connection

### Prerequisites

The following are the prerequisites to establish a connection:

#### **Service Account User Permissions**

{% hint style="warning" %}
It is recommended to use a dedicated service Token to establish the connection to the data source, configured with the following minimum set of permissions.
{% endhint %}

{% hint style="info" %}
👨‍💻 **Who can provide these permissions?** These permissions are typically granted by the Talend administrator, as users may not have the required access to assign them independently.
{% endhint %}

<table><thead><tr><th width="152">Operations</th><th width="194">Objects</th><th>Access Permission</th></tr></thead><tbody><tr><td>Crawling</td><td>Datasets</td><td>READ permission for .item files</td></tr></tbody></table>

### Connection Configuration Steps

{% hint style="warning" %}
Users are required to have the Connector Creator role in order to configure a new connection.
{% endhint %}

1. Log into OvalEdge, go to **Administration > Connectors**, click **+ (New Connector)**, search for **Talend**, and complete the required parameters.

{% hint style="info" %}
Fields marked with an asterisk (\*) are mandatory for establishing a connection.
{% endhint %}

<table data-search="false"><thead><tr><th width="226.666748046875">Field Name</th><th>Description</th></tr></thead><tbody><tr><td>Connector Type</td><td>By default, "Talend" is displayed as the selected connector type.</td></tr><tr><td>Credential Manager*</td><td><p>Select the desired credentials manager from the drop-down list. Relevant parameters will be displayed based on the selection.</p><p>Supported Credential Managers:</p><ul><li>OE Credential Manager</li><li>AWS Secrets Manager</li><li>HashiCorp</li><li>Azure Key Vault</li></ul><p>For more details, click <a href="https://docs.ovaledge.com/connectors/additional-requirements/credential-manager-configuration">here</a>.</p></td></tr><tr><td>License Add Ons</td><td>Select the checkbox for the Auto Lineage Add-On to build data lineage automatically.<br>For more details, click <a href="https://docs.ovaledge.com/connectors/introduction-to-connectors/setup-and-connectivity/license-types-and-add-ons">here</a>.</td></tr><tr><td>Connector Name*</td><td><p>Enter a unique name for the Talend connection              </p><p>(Example: "Talend_ETL").</p></td></tr><tr><td>Connector Environment</td><td>Select the environment (Example: PROD, STG) configured for the connector.<br>For more details, click <a href="https://docs.ovaledge.com/connectors/introduction-to-connectors/setup-and-connectivity/prerequisites#connector-environment">here</a>.</td></tr><tr><td>Connector Description</td><td>Enter a brief description of the connector.</td></tr><tr><td>Workspace Connection Id*</td><td>Enter the connection ID of the Talend workspace to be accessed by the connector. The workspace connection ID identifies the workspace from which the Talend <code>.item</code> files are accessed for metadata crawling and automated lineage.</td></tr><tr><td>Context Params File Path</td><td>Enter the path to the context parameters file used by the Talend workspace connection. The file provides the context parameters required to access and process the Talend workspace resources.</td></tr></tbody></table>

**Admin Roles**

<table data-header-hidden><thead><tr><th width="220.666748046875"></th><th></th></tr></thead><tbody><tr><td>Admin Roles*</td><td>Select one or more users from the drop-down list for Integration Admin and Security &#x26; Governance Admin. All users configured in the security settings are available for selection.</td></tr></tbody></table>

**Bridge**

<table data-header-hidden><thead><tr><th width="220.6666259765625"></th><th></th></tr></thead><tbody><tr><td>Select Bridge*</td><td><p>If applicable, select the bridge from the drop-down list.</p><p>The drop-down list displays all active bridges that have been configured. These bridges facilitate communication between data sources and the system without requiring changes to firewall rules.</p></td></tr></tbody></table>

2. After entering all connection details, the following actions can be performed:
   1. Click **Validate** to verify the connection.
   2. Click **Save** to store the connection for future use.
   3. Click **Save & Configure** to apply additional settings before saving.
3. The saved connection will appear on the Connectors home page.

## Manage Connector Operations

### Crawl

{% hint style="warning" %}
To perform crawl operations, users must be assigned the Integration Admin role.
{% endhint %}

The **Crawl/Profile** button allows users to select one or more datasets for crawling.&#x20;

1. Navigate to the Connectors page and click **Crawl/Profile**.
2. Select the datasets to crawl.
3. The **Crawl** option is selected by default.
4. Click **Run** to collect metadata from the connected source and load it into the **Data Catalog**.
5. After a successful crawl, the information appears in the **Data Catalog** > **Databases/<>Codes** tab.

The **Schedule** checkbox allows automated crawling at defined intervals, from a minute to a year.

1. Click the **Schedule** checkbox to enable the **Select** Period drop-down.
2. Select a time period for the operation from the drop-down menu.
3. Click **Schedule** to initiate metadata collection from the connected source.
4. The system will automatically execute the **crawl** operation at the scheduled time.

### Other Operations

The **Connectors** page provides a centralized view of all configured connectors, along with the health status.

**Managing connectors includes:**

* **Connector Health**: Displays the current status of each connector using a **green** icon for active connections and a **red** icon for inactive connections, helping to monitor connectivity with data sources.
* **Viewing**: Click the **Eye** icon next to the connector name to view connector details.

**Nine Dots Menu Options:**

To view, edit, validate, build lineage, configure, or delete connectors, click on the **Nine Dots** menu.

* **Edit Connector**: Update and revalidate the data source.
* **Validate Connector**: Check the connection's integrity.
* **Settings**: Modify connector settings.
  * **Lineage**: Configure Server Dialects for source code parsing and Connector Priority for table lineage connection.
* **Build Lineage**: Automatically build data lineage using source code parsing.
* **Delete Connector**: Remove a connector with confirmation.

For more details on connector settings, click [here](https://docs.ovaledge.com/connectors/introduction-to-connectors/setup-and-connectivity/connector-settings).

***
