Sigma

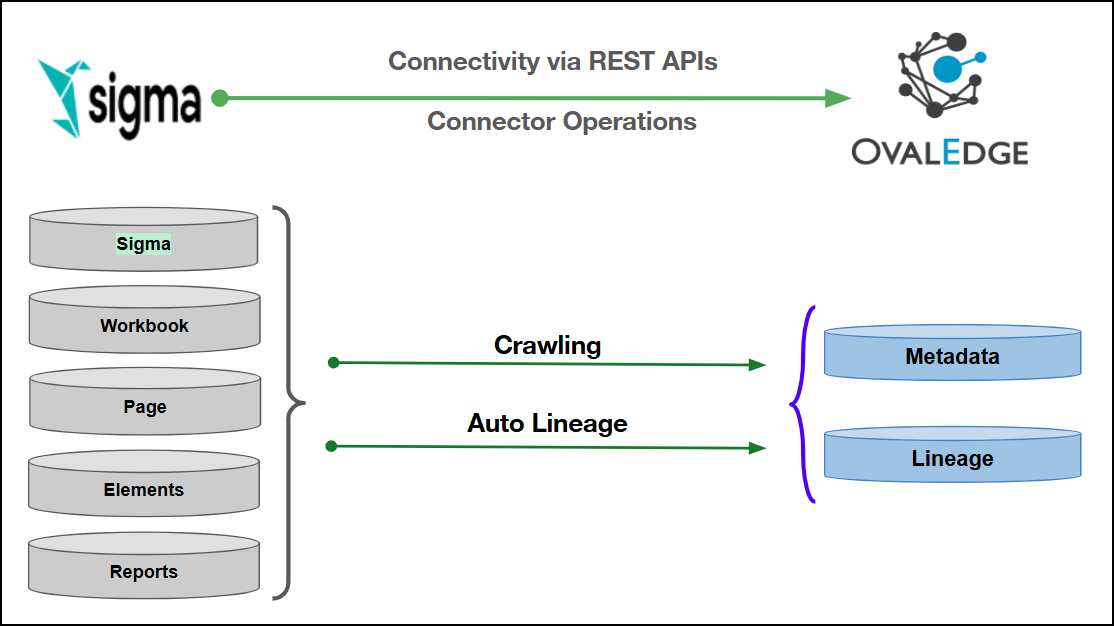

This document outlines the integration with the Sigma Computing connector, enabling streamlined metadata management through features such as crawling, report preview, and lineage building (both automatic and manual). It also ensures secure authentication via Credential Manager.

Overview

Connector Details

Connector Category	Reporting Tools
Connector Version	Release6.3.4
Releases Supported (Available from)	Release6.1
Connectivity [How the connection is established with Sigma]	REST APIs
Verified Sigma Version	V2(API)

The Sigma connector has been validated with the mentioned "Verified Sigma Versions" and is expected to be compatible with other supported Sigma versions. If there are any issues with validation or metadata crawling, please submit a support ticket for investigation and feedback.

Connector Features

Feature	Availability
Crawling	✅
Delta Crawling	❌
Profiling	NA
Query Sheet	❌
Report Preview	✅
Auto Lineage	✅
Manual Lineage	✅
Secure Authentication via Credential Manager	✅
Data Quality	❌
DAM (Data Access Management)	❌
Bridge	❌

Metadata Mapping

The following objects are crawled from Sigma and mapped to the corresponding UI assets.

Sigma Object	Sigma Property	OvalEdge Attribute	OvalEdge Category	OvalEdge Type
Sigma	Default	Report Group	Report Group	Report Group
Workbooks	Name	Report	Report	Report Name
Workbooks	Type	Report Type	Report	Workbook
Workbooks	Desc	Source Description	Report	Source Description
Page	Name	Report	Report	Report Name
Page	Type	Report Type	Report	Page
Elements	Element Name	Report	Report	Report Name
Elements	Type	Report Type	Report	Element

Set up a Connection

Prerequisites

The following are the prerequisites to establish a connection.

Service Account User Permissions

It is recommended to use a separate service account to establish the connection to the data source, configured with the following minimum set of permissions.

👨‍💻Who can provide these permissions? These permissions are typically granted by the Sigma Computing administrator, as users may not have the required access to assign them independently.

Objects	Access Permission
Connector Validation	Read only
Crawling	Read only
Lineage	Read only
Delta Crawl	Read only
Workbooks	Read only
Pages	Read only
Datasets	Read only

Connection Configuration Steps

Users are required to have the Connector Creator role in order to configure a new connection.

1. Log into OvalEdge, go to Administration > Connectors, click + (New Connector), search for Sigma, and complete the required parameters.

Fields marked with an asterisk (*) are mandatory for establishing a connection.

Field Name	Description
Connector Type	By default, "Sigma Computing" is displayed as the selected connector type.
Connector Settings
Credential Manager*	Select the desired credentials manager from the drop-down list. Relevant parameters will be displayed based on the selected option. Supported Credential Managers: OE Credential Manager AWS Secrets Manager HashiCorp Azure Key Vault
License Add Ons	Auto Lineage Supported Data Quality Not Supported Data Access Not Supported Select the checkbox for Auto Lineage Add-On to build data lineage automatically.
Connector Name*	Enter a unique name for the Sigma Computing connection (Example: "Sigmacomputingdb").
Connector Environment	Select the environment (Example: PROD, STG) configured for the connector.
Connector Description	Enter a brief description of the connector.
Host Name*	Enter the Sigma IP address or hostname of the source system to establish a connection.
Connection String	Configure the connection string for the Azure Devops Repo database: Automatic mode: The system generates a connection string based on the provided credentials. Manual mode: Enter a valid connection string manually. Replace placeholders with actual database details. {sid} refers to the database name.
Client Id*	Enter the client ID generated for the service account that has been granted catalog access permissions.
Client Secret*	Enter the client secret associated with the specified client ID to authenticate the connection.
Proxy Enabled*	Select Yes to route API calls through a proxy server. Select No to bypass the proxy and connect directly.

Default Governance Roles

Default Governance Roles*	Select the appropriate users or teams for each governance role from the drop-down list. All users configured in the security settings are available for selection.

Admin Roles

Admin Roles*	Select one or more users from the dropdown list for Integration Admin and Security & Governance Admin. All users configured in the security settings are available for selection.

No of Archive Objects

No Of Archive Objects*	This shows the number of recent metadata changes to a dataset at the source. By default, it is off. To enable it, toggle the Archive button and specify the number of objects to archive. Example: Setting it to 4 retrieves the last four changes, displayed in the 'Version' column of the 'Metadata Changes' module.

Bridge

Select Bridge*	If applicable, select the bridge from the drop-down list. The drop-down list displays all active bridges that have been configured. These bridges facilitate communication between data sources and the system without requiring changes to firewall rules.

1. The saved connection will appear on the Connectors home page.

   1. Click Validate to verify the connection.

   2. Click Save to store the connection for future use.

   3. Click Save & Configure to apply additional settings before saving.

2. After entering all connection details, the following actions can be performed:

Manage Connector Operations

Crawl

To perform crawl operations, users must be assigned the Integration Admin role.

The Crawl/Profile button allows users to select one or more schemas for crawling.

1. Navigate to the Connectors page and click Crawl/Profile.

2. Select the schemas to crawl.

3. The Crawl option is selected by default.

4. Click Run to collect metadata from the connected source and load it into the Data Catalog.

5. After a successful crawl, the information appears in the Data Catalog > Report / Report Column tab.

Other Operations

The Connectors page provides a centralized view of all configured connectors, along with their health status.

Managing connectors includes:

• Connectors Health: Displays the current status of each connector using a green icon for active connections and a red icon for inactive connections, helping to monitor the connectivity with data sources.

• Viewing: Click the Eye icon next to the connector name to view connector details, including databases, tables, columns, and codes.

Nine Dots Menu Options:

To view, edit, validate, build lineage, configure, or delete connectors, click on the Nine Dots menu.

• Edit Connector: Update and revalidate the data source.

• Validate Connector: Check the connection's integrity.

• Settings: Modify connector settings.

  • Crawler: Configure data extraction.

  • Business Glossary Settings: Manage term associations at the connector level.

  • Others: Configure notification recipients for metadata changes.

• Build Lineage: Automatically build data lineage using source code parsing.

• Delete Connector: Remove a connector with confirmation.

---
