Microsoft Access
An out of the box connector is available for <MS Access> databases. It provides support for crawling database objects, profiling of sample data.
Connectivity Summary

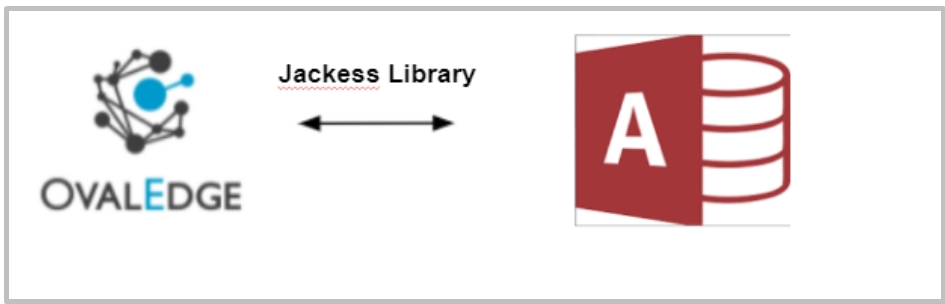

The connectivity to <MS Access> is via <Jackess Library>, which is included in the platform.
The connector currently supports the following versions of MS Access:
Professional
11.0.X
Supported
Standard
11.0.X
Supported
Professional Enterprise
11.0.X
Supported
The drivers used by the connector are given below:
UCanAccess Driver
4.0.4
Is JDBC 4.2 compliant, uses JDK 8.0
Technical Specifications
The connector capabilities are shown below:
Crawling
Crawling
Tables
Crawling
Table columns
Supported Data types:
STRING, TIMESTAMP, BIGINT
Crawling
Views
Profiling
Table Profiling
Row count, Columns count, View sample data
View Profiling
Row count, Columns count, View sample data
View is treated as a table for profiling purposes
Column Profiling
Min, Max, Null count, distinct, top 50 values
Full Profiling
Supported
Sample Profiling
Supported
Lineage Building
Table lineage
Not Supported
Column lineage
Not Supported
Querying
Select
Supported
Insert
Not supported, by default.
Update
Not supported, by default.
Delete
Not supported, by default.
Joins within database
Supported
Joins outside database
Not supported
Aggregations
Supported
Group By
Supported
Order By
Supported
By default the service account provided for the connector will be used for any query operations. If the service account has write privileges, then Insert / Update / Delete queries can be executed.
Pre-requisites
To use the connector, the following need to be available:
Connection details as specified in the following section should be available.
An admin / service account with read privileges.
JDBC driver is provided by default. In case it needs to be changed, add MS Access client drivers into the OvalEdge Jar path to communicate to the MS Access database.
Check the Configuration section for further details on how to add the drivers to the jar path.
Connection Details
The following connection settings should be added for connecting to a MS Access database:
Database Type
MS Access
Connection Name
Select a Connection name for the MS Access database. The name that you specify is a reference name to easily identify your MS Access database connection in OvalEdge. Example: MS Access Connection DB1
File System
Which type of file system where files are located
File Path
Location of the .accdb or .mdb files
Username
User account login credential MS Access Authentication
Password
Password (only for <MS Access> Authentication)
Once connectivity is established, additional configurations for crawling and profiling can be specified:
FAQs
1. What should I know when upgrading my driver?
The Microsoft JDBC Driver 7.4 supports the JDBC 4.2, and 4.3 (partially) specifications and includes three JAR class libraries in the installation package as follows:
UCanAccess.jar
JDBC 4.2
JDK 8.0
2. How much does the driver cost?
The Microsoft JDBC Driver for MS Access is available at no additional charge.
3. Can I use the driver to access MS Access from a Linux computer?
Yes! You can use the driver to access MS Access from Linux, Unix, and other non-Windows platforms.
4. Which authentication types are supported by the MS Access JDBC Driver for MS Access? The table below lists available authentication options.
Any Platform
Authentication By Password/Token
