ClickHouse
Click House is a column-oriented Database Management System for Online Analytics Processing of Queries (OAPL).

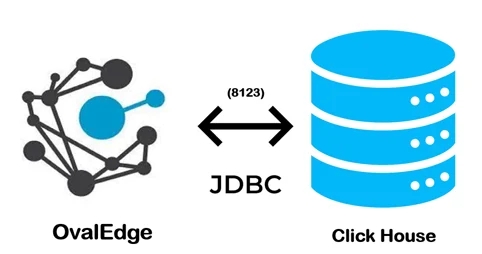

The connectivity to Click House is via JDBC driver, which is included in the platform.
The drivers used by the connector are given below:
Driver / API: ClickHouse JDBC driver
Version: 1.0 (latest version is 0.31)
Details: Is JDBC 0.2.4
https://mvnrepository.com/artifact/ru.yandex.clickhouse/clickhouse-jdbc/0.2.4
Connector Capabilities
The connector capabilities are shown below:
Crawling
Supported objects for Crawling are:
Tables, Table Columns, Views, Stored Procedures, Functions, Roles, Users, Permissions, Usage Statistics
LONGBLOB, LONGTEXT, TINYTEXT, TEXT, VARCHAR, MEDIUMBLOB, BLOB, TINYBLOB, CHAR, MEDIUMTEX
Please see this article Crawling Data for more details on crawling.
Profiling
Table Profiling
Row count, Columns count, View sample data
View Profiling
Row count, Columns count, View sample data
View is treated as a table for profiling purposes
Column Profiling
Min, Max, Null count, distinct, top 50 values
Full Profiling
Supported
Sample Profiling
Supported
Please see Profiling Data for more details on profiling.
Lineage Building
Table lineage
Supported
Column lineage
Supported
Lineage Sources
Stored procedures, functions, views, query logs
Querying
Select
Supported
Insert
Supported provided its service account have the permission
Update
Supported provided its service account have the permission
Delete
Supported provided its service account have the permission
Joins within database
Supported
Joins outside database
Not supported
Aggregations
Supported
Group By
Supported
Order By
Supported
By default the service account provided for the connector will be used for any query operations. If the service account has write privileges, then Insert / Update / Delete queries can be executed.
Pre-requisites
To use the connector, the following need to be available:
Connection details as specified in the following section should be available.
A service account with read privileges.
JDBC driver is provided by default.
Connection Details
The following connection settings should be added for connecting to a ClickHouse:
Database Type: Click House
License Type: Standard
Connection Name: Select a Connection name for the ClickHouse database. The name that you specify is a reference name to easily identify your ClickHouse database connection in OvalEdge. Example: ClickHouse Connection
Hostname / IP Address: Database instance URL (on-premises/cloud-based) Example: ip
Port number: 8123 (Default)
Sid / Database: Name of the database to connect to.
Username: Default (based upon your connection)
Password: 0valEdge! (based upon your connection)
Driver Name: JDBC driver name for ClickHouse. Need to add in pom.xml. Need not to download external drivers. Example: https://mvnrepository.com/artifact/ru.yandex.clickhouse/clickhouse-jdbc/0.2.4
Connection String: ClickHouse has a connection string. Set the Connection string toggle button to automatic, to get the details automatically from the credentials provided. Alternatively, you can manually enter the string. Format: jdbc:clickhouse://3.84.239.121:8123/test
Once connectivity is established, additional configurations for Crawling and Profiling can be specified.
Crawler configurations
Tables, Views, Columns
By default it is selected true
Crawler rules
Default include tables regex has regex = (.*) , which can crawl all the tables
Profile Settings
Tables and columns
By default it is selected true
Views and columns
By default it is selected true
Profile Rules
Default include tables regex has regex = (.*) , which can profile all the tables
Query Log Setting
