# Azure DevOps Server

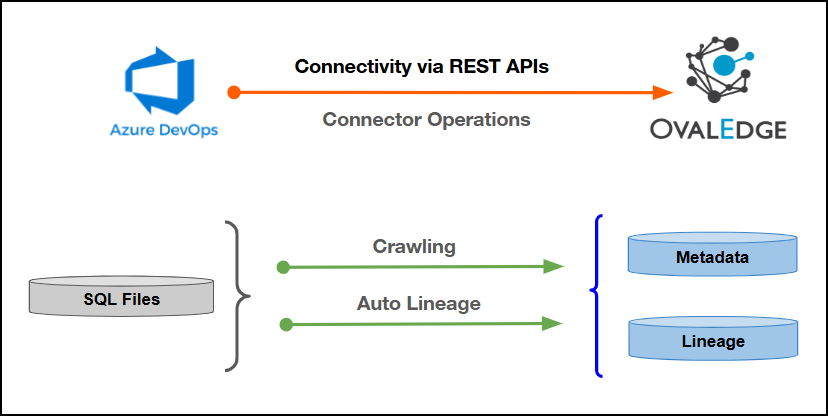

This document outlines the integration with the Azure Devops connector, enabling streamlined metadata management through features such as crawling and lineage building (both automatic and manual). It also ensures secure authentication via Credential Manager.

<figure><img src="https://1813356899-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhTnkoJQml0pok9awFDhx%2Fuploads%2FSEpFquCxBxEsBrEkhjS2%2Fimage.png?alt=media&#x26;token=e3ae8398-61b4-4a77-bab0-905a03acec64" alt=""><figcaption></figcaption></figure>

## Overview

### Connector Details

<table data-header-hidden><thead><tr><th width="491.5"></th><th></th></tr></thead><tbody><tr><td>Connector Category</td><td>Application</td></tr><tr><td>Connector Version</td><td>Release6.3.4</td></tr><tr><td>Releases Supported (Available from)</td><td>Release5</td></tr><tr><td><p>Connectivity</p><p>[How the connection is established with Azure DevOps Server]</p></td><td>REST APIs</td></tr><tr><td>Verified Azure Devops Version</td><td>5.1 and later</td></tr></tbody></table>

{% hint style="info" %}
The Azure Devops connector has been validated with the mentioned "Verified Azure Devops Versions" and is expected to be compatible with other supported Azure Devops versions. If there are any issues with validation or metadata crawling, please submit a support ticket for investigation and feedback.
{% endhint %}

### Connector Features

| Feature                                      | Availability |
| -------------------------------------------- | :----------: |
| Crawling                                     |       ✅      |
| Delta Crawling                               |      NA      |
| Profiling                                    |      NA      |
| Query Sheet                                  |      NA      |
| Data Preview                                 |      NA      |
| Auto Lineage                                 |       ✅      |
| Manual Lineage                               |       ✅      |
| Secure Authentication via Credential Manager |       ✅      |
| Data Quality                                 |      NA      |
| DAM (Data Access Management)                 |      NA      |
| Bridge                                       |       ✅      |

### Metadata Mapping

The following objects are crawled from Azure Devops and mapped to the corresponding UI assets.

<table><thead><tr><th width="140.25">Azure Devops Object</th><th width="137.5">Azure Devops Attribute</th><th width="144.25">OvalEdge Attribute</th><th width="172.5">OvalEdge Category</th><th>OvalEdge Type</th></tr></thead><tbody><tr><td>SQL File</td><td>.sql File</td><td>Code Name</td><td>Codes</td><td>ADB_SQL</td></tr></tbody></table>

## Set up a Connection

### Prerequisites

The following are the prerequisites to establish a connection:

#### **Service Account User Permissions**

{% hint style="warning" %}
It is recommended to use a separate service account to establish the connection to the data source, configured with the following minimum set of permissions.
{% endhint %}

{% hint style="info" %}
👨‍💻 Who can provide these permissions? These permissions are typically granted by the Azure Devops administrator, as users may not have the required access to assign them independently.
{% endhint %}

| Operations | Objects    | Access Permission |
| ---------- | ---------- | ----------------- |
| Crawling   | .sql files | Read only         |

### Connection Configuration Steps

{% hint style="warning" %}
Users are required to have the Connector Creator role in order to configure a new connection.
{% endhint %}

1. Log into **OvalEdge**, go to **Administration > Connectors**, click **+ (New Connector)**, search for **Azure Devops Server**, and complete the required parameters.

{% hint style="info" %}
Fields marked with an asterisk (\*) are mandatory for establishing a connection.
{% endhint %}

<table><thead><tr><th width="220.25">Field Name</th><th>Description</th></tr></thead><tbody><tr><td>Connector Type</td><td>By default, "Azure Devops" is displayed as the selected connector type.</td></tr><tr><td>Credential Manager*</td><td><p>Select the desired credentials manager from the drop-down list. Relevant parameters will be displayed based on the selection.</p><p>Supported Credential Managers:</p><ul><li>OE Credential Manager</li><li>AWS Secrets Manager</li><li>HashiCorp</li><li>Azure Key Vault</li></ul></td></tr><tr><td>License Add Ons</td><td><p></p><ul><li>Select the checkbox for Auto Lineage Add-On to build data lineage automatically.</li></ul></td></tr><tr><td>Connector Name*</td><td><p>Enter a unique name for the Azure Devops connection              </p><p>(Example: "AzureDevops").</p></td></tr><tr><td>Connector Environment</td><td>Select the environment (Example: PROD, STG) configured for the connector.</td></tr><tr><td>Connector description</td><td>Enter a brief description of the connector.</td></tr><tr><td>Host Name*</td><td>Enter the IP address or base URL of the Azure DevOps instance.</td></tr><tr><td>Organisation*</td><td>Enter the Organization ID of the Azure DevOps server.</td></tr><tr><td>Token*</td><td>Enter the Personal Access Token (PAT) for authentication with the Azure DevOps server.</td></tr><tr><td>Connection String</td><td><p>Configure the connection string for the SQL Server database:</p><ul><li>Automatic Mode: The system generates a connection string based on the provided credentials.</li><li>Manual Mode: Enter a valid connection string manually.</li></ul><p>Replace placeholders with actual database details.</p><p>{sid} refers to Database Name.</p></td></tr><tr><td>Proxy Enabled*</td><td>Select Yes to route API calls through a proxy server. Select No to bypass the proxy and connect directly.</td></tr></tbody></table>

**Default Governance Roles**

<table data-header-hidden><thead><tr><th width="219"></th><th></th></tr></thead><tbody><tr><td>Default Governance Roles*</td><td>Select the appropriate users or teams for each governance role from the drop-down list. All users configured in the security settings are available for selection.</td></tr></tbody></table>

**Admin Roles**

<table data-header-hidden><thead><tr><th width="220.25"></th><th></th></tr></thead><tbody><tr><td>Admin Roles*</td><td>Select one or more users from the drop-down list for Integration Admin and Security &#x26; Governance Admin. All users configured in the security settings are available for selection.</td></tr></tbody></table>

**Bridge**

<table data-header-hidden><thead><tr><th width="220.25"></th><th></th></tr></thead><tbody><tr><td>Select Bridge*</td><td><p>If applicable, select the bridge from the drop-down list.</p><p>The drop-down list displays all active bridges that have been configured. These bridges facilitate communication between data sources and the system without requiring changes to firewall rules.</p></td></tr></tbody></table>

2. After entering all connection details, the following actions can be performed:
   1. Click **Validate** to verify the connection.
   2. Click **Save** to store the connection for future use.
   3. Click **Save & Configure** to apply additional settings before saving.
3. The saved connection will appear on the Connectors home page.

## Manage Connector Operations

### Crawl

{% hint style="warning" %}
To perform crawl operations, users must be assigned the Integration Admin role.
{% endhint %}

The **Crawl/Profile** button allows users to select one or more schemas for crawling.&#x20;

1. Navigate to the Connectors page and click **Crawl/Profile**.
2. Select the schemas to crawl.
3. The **Crawl** option is selected by default.
4. Click **Run** to collect metadata from the connected source and load it into the **Data Catalog**.
5. After a successful crawl, the information appears in the **Data Catalog > Databases/<>Codes** tab.

The **Schedule** checkbox allows automated crawling at defined intervals, from a minute to a year.

1. Click the **Schedule** checkbox to enable the Select Period drop-down.
2. Select a time period for the operation from the drop-down menu.
3. Click **Schedule** to initiate metadata collection from the connected source.
4. The system will automatically execute the **crawl** operation at the scheduled time.

#### Other Operations

The **Connectors** page provides a centralized view of all configured connectors, along with their health status.

**Managing connectors includes:**

* **Connector Health**: Displays the current status of each connector using a **green** icon for active connections and a **red** icon for inactive connections, helping to monitor the connectivity with data sources.
* **Viewing**: Click the **Eye icon** next to the connector name to view connector details, including databases, tables, columns, and codes.

**Nine Dots Menu Options:**

To view, edit, validate, build lineage, configure, or delete connectors, click on the **Nine Dots** menu.

* **Edit Connector**: Update and revalidate the data source.
* **Validate Connector:** Check the connection's integrity.
* **Settings**: Modify connector settings.
  * **Crawler**: Configure data extraction.
  * **Access Instructions:** Add notes on how data can be accessed.
  * **Business Glossary Settings:** Manage term associations at the connector level.
  * **Others**: Configure notification recipients for metadata changes.
* **Build Lineage:** Automatically build data lineage using source code parsing.
* **Delete Connector:** Remove a connector with confirmation.

***
