# Allscripts

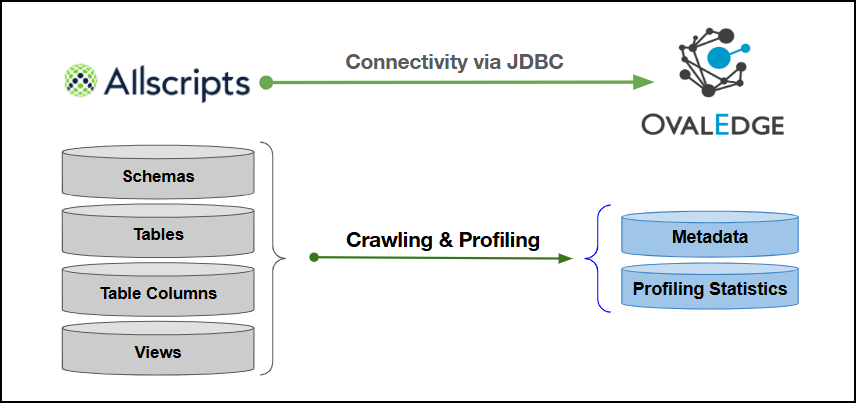

This article describes the integration with the Allscripts connector, enabling streamlined metadata management through crawling, profiling, data preview, and manual lineage. It also secures authentication via Credential Manager.

<figure><img src="https://1813356899-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhTnkoJQml0pok9awFDhx%2Fuploads%2Fg6UP5kSigREuQq59aN7V%2Funknown.png?alt=media&#x26;token=52e5d036-3a06-4957-b017-16c8e641134d" alt=""><figcaption></figcaption></figure>

## Overview

### Connector Details

| Connector Category                                                             | Application              |
| ------------------------------------------------------------------------------ | ------------------------ |
| OvalEdge Release Supported                                                     | Release6.3 to Release7.2 |
| <p>Connectivity</p><p>\[How the connection is established with Allscripts]</p> | JDBC                     |
| Verified Allscripts Versions                                                   | Cache 2018.x             |

{% hint style="info" %}
The Allscripts connector has been validated with the mentioned "Verified Allscripts Versions" and is expected to be compatible with other supported Allscripts versions. If there are any issues with validation or metadata crawling, please submit a support ticket for investigation and feedback.
{% endhint %}

### Connector Features

| Feature                                      | Availability |
| -------------------------------------------- | :----------: |
| Crawling                                     |       ✅      |
| Delta Crawling                               |       ❌      |
| Profiling                                    |       ✅      |
| Query Sheet                                  |       ❌      |
| Data Preview                                 |       ✅      |
| Auto Lineage                                 |       ❌      |
| Manual Lineage                               |       ✅      |
| Secure Authentication via Credential Manager |       ✅      |
| Data Quality                                 |       ❌      |
| DAM (Data Access Management)                 |       ❌      |
| Bridge                                       |       ✅      |

### Metadata Mapping

The following objects are crawled from the Allscripts and mapped to the corresponding UI assets.

<table><thead><tr><th width="158.333251953125">Allscripts Object</th><th width="171">Allscripts Attribute</th><th width="173.6666259765625">OvalEdge Attribute</th><th width="176">OvalEdge Category</th><th width="145.3333740234375">OvalEdge Type</th></tr></thead><tbody><tr><td>Schema</td><td>Schema_Name</td><td>Schema</td><td>Schemas</td><td>Schema</td></tr><tr><td>Table</td><td>Table_Name</td><td>Table</td><td>Tables</td><td>Table</td></tr><tr><td>Table</td><td>Description</td><td>Description</td><td>Tables</td><td>Description</td></tr><tr><td>Table</td><td>Table_Type</td><td>Table Type</td><td>Tables</td><td>Table_Type</td></tr><tr><td>Column</td><td>Column_Name</td><td>Column</td><td>Columns</td><td>Column</td></tr><tr><td>Column</td><td>Data_Type</td><td>Data Type</td><td>Columns</td><td>Data_Type</td></tr><tr><td>Column</td><td>Character_Maximum_Length</td><td>Length</td><td>Columns</td><td>Length</td></tr><tr><td>Column</td><td>Ordinal_Position</td><td>Position</td><td>Columns</td><td>Position</td></tr><tr><td>Column</td><td>Description</td><td>Description</td><td>Columns</td><td>Description</td></tr><tr><td>View</td><td>Table_Name</td><td>View Name</td><td>Views</td><td>View_Name</td></tr><tr><td>View</td><td>View_Definition</td><td>View Definition</td><td>Views</td><td>View_Definition</td></tr><tr><td>View</td><td>Description</td><td>Description</td><td>Views</td><td>Description</td></tr></tbody></table>

## Set up a Connection

### Prerequisites

The prerequisites to establish a connection:

### **Whitelisting Ports**

Whitelist the inbound port to allow OvalEdge to connect to the Allscripts Server database.

{% hint style="warning" %}
When any port is configured, specify the port number during connection setup, whitelist the port, and establish proper communication between the system and the Allscripts Server.
{% endhint %}

### Service Account User Permissions

{% hint style="warning" %}
Use a dedicated service account to establish the connection to the data source, configured with the following minimum set of permissions.
{% endhint %}

{% hint style="info" %}
**👨‍💻 Who can provide these permissions?** The Allscripts administrator grants these permissions, as standard accounts may not have the required access to assign them independently.
{% endhint %}

<table><thead><tr><th>Objects</th><th width="273.888916015625">System Tables</th><th>Access Permission</th></tr></thead><tbody><tr><td>Schema</td><td>Information_Schema.Schemata</td><td>Select</td></tr><tr><td>Tables</td><td>Information_Schema.Tables</td><td>Select</td></tr><tr><td>Columns</td><td>Information_Schema.Columns</td><td>Select</td></tr><tr><td>Views</td><td>Information_Schema.Views</td><td>Select</td></tr></tbody></table>

### Connection Configuration Steps

{% hint style="warning" %}
Users must have the Connector Creator role to configure a new connection.
{% endhint %}

1. Log in to OvalEdge, go to Administration > Connectors, click + **(New Connector)**, search for **Allscripts**, and complete the required parameters.

{% hint style="info" %}
Fields marked with an asterisk (\*) are mandatory for establishing a connection.
{% endhint %}

<table><thead><tr><th width="220.6666259765625">Field Name</th><th>Description</th></tr></thead><tbody><tr><td>Connector Type</td><td>By default, "Allscripts" is displayed as the selected connector type.</td></tr><tr><td>Credential Manager*</td><td><p>Select the desired credentials manager from the drop-down list. Relevant parameters will be displayed based on the selection.</p><p>Supported Credential Managers:</p><ul><li>Database</li><li>HashiCorp</li><li>AWS Secrets Manager</li><li>Azure Key Vault</li></ul></td></tr><tr><td>Connector Name*</td><td><p>Enter a unique name for the Allscripts connection              </p><p>(Example: "Allscripts_Prod").</p></td></tr><tr><td>Connector Environment</td><td>Select the environment (Example: PROD, STG) configured for the connector.</td></tr><tr><td>Connector Description</td><td>Enter the description related to the connector.</td></tr><tr><td>Server*</td><td>Enter the IP address of the server where Allscripts is hosted.</td></tr><tr><td>Port*</td><td>Enter the required port number.</td></tr><tr><td>Name Space*</td><td>Enter the namespace associated with the Allscripts FHIR API environment. This value identifies the specific API domain or tenant used for data access and validation.</td></tr><tr><td>Driver*</td><td>By default, Allscripts uses ‘com.intersys.jdbc.CacheDriver.’ This field is not editable.</td></tr><tr><td>Username* </td><td>Enter the Username for the  Allscripts server.</td></tr><tr><td>Password* </td><td>Enter the Password associated with the Allscripts Username.</td></tr><tr><td>Connection String</td><td><p>Configure the connection string for the Allscripts server:</p><ul><li>Automatic Mode: The system generates a connection string based on the provided credentials.</li><li>Manual Mode: Enter a valid connection string manually.</li></ul><p>Replace placeholders with actual server details:</p><ul><li>{server} refers to the Impala host or IP address.</li><li>{sid} refers to the database name (schema).</li></ul><p>Authentication Plugins:<br>jdbc:Cache://{server}:{port}/{sid}</p><p>This is the default authentication string used for connecting to the Allscripts database. </p></td></tr><tr><td>Plugin Server</td><td>Enter the server name when running as a plugin server.</td></tr><tr><td>Plugin Port</td><td>Enter the port number on which the plugin is running.</td></tr></tbody></table>

**Default Governance Roles**

<table data-header-hidden><thead><tr><th width="220.6666259765625"></th><th></th></tr></thead><tbody><tr><td>Default Governance Roles*</td><td>Select the appropriate users or teams for each governance role from the drop-down list. All users and teams configured in OvalEdge Security are displayed for selection.</td></tr></tbody></table>

**Admin Roles**

<table data-header-hidden><thead><tr><th width="220.666748046875"></th><th></th></tr></thead><tbody><tr><td>Admin Roles*</td><td>Select one or more users from the dropdown list for Integration Admin and Security &#x26; Governance Admin. All users configured in OvalEdge Security are available for selection.</td></tr></tbody></table>

**No of Archive Objects**

<table data-header-hidden><thead><tr><th width="220.6666259765625"></th><th></th></tr></thead><tbody><tr><td>No Of Archive Objects*</td><td><p>This shows the number of recent metadata changes to a dataset at the source. By default, it is off. To enable it, toggle the Archive button and specify the number of objects to archive.</p><p>Example: Setting it to 4 retrieves the last four changes, displayed in the 'Version' column of the 'Metadata Changes' module.</p></td></tr></tbody></table>

**Bridge**

<table data-header-hidden><thead><tr><th width="220.6666259765625"></th><th></th></tr></thead><tbody><tr><td>Select Bridge*</td><td><p>If applicable, select the bridge from the drop-down list.</p><p>The drop-down list displays all active bridges configured in OvalEdge. These bridges enable communication between data sources and OvalEdge without altering firewall rules.</p></td></tr></tbody></table>

2. After entering all connection details, the following actions can be performed:
   * Click **Validate** to verify the connection.
   * Click **Save** to store the connection for future use.
   * Click **Save & Configure** to apply additional settings before saving.
3. The saved connection will appear on the Connectors home page.

## Manage Connector Operations

### Crawl/Profile

{% hint style="info" %}
To perform crawl and profile operations, users must be assigned the Integration Admin role.
{% endhint %}

The **Crawl/Profile** button allows users to select one or more schemas for crawling and profiling.&#x20;

1. Navigate to the Connectors page and click **Crawl/Profile**.
2. Select the schemas to crawl.
3. The **Crawl** option is selected by default. Click the **Crawl & Profile** radio button to enable both operations.
4. Click **Run** to collect metadata from the connected source and load it into the **Data Catalog**.
5. After a successful crawl, the information appears in the **Data Catalog > Databases** tab.

The **Schedule** checkbox allows automated crawling and profiling at defined intervals, from a minute to a year.

1. Click the **Schedule** checkbox to enable the **Select Period** drop-down.
2. Select a time period for the operation from the drop-down menu.
3. Click **Schedule** to initiate metadata collection from the connected source.
4. The system will automatically execute the selected operation (**Crawl** or **Crawl & Profile**) at the scheduled time.

### Other Operations

The **Connectors page** in OvalEdge provides a centralized view of all configured connectors, including their health status.

**Managing connectors includes:**

* **Connectors Health**: Displays the current status of each connector, with a green icon for active connections and a red icon for inactive connections, helping monitor connectivity to data sources.
* **Viewing**: Click the **Eye** icon next to the connector name to view connector details, including Tables, Views, and Columns.&#x20;

**Nine Dots Menu Options:**

To view, edit, validate, configure, or delete connectors, click on the Nine Dots menu.

* **Edit Connector**: Update and revalidate the data source.
* **Validate Connector**: Check the integrity of the connection.
* **Settings**: Modify connector settings.
  * **Crawler**: Configure data extraction.
  * **Profiler**: Customize data profiling rules and methods.
  * **Access Instructions**: Add notes on how data can be accessed.
  * **Business Glossary Settings**: Manage term associations at the connector level.
  * **Others**: Configure notification recipients for metadata changes.
* **Delete Connector**: Remove a connector with confirmation.

### Connectivity Troubleshooting

If incorrect parameters are entered, error messages may appear. Ensure all inputs are accurate to resolve these issues. If issues persist, contact the assigned support team.

<table><thead><tr><th width="83.66668701171875">S.No.</th><th>Error Message(s)</th><th>Error Description &#x26; Resolution</th></tr></thead><tbody><tr><td>1</td><td>Error while saving Database Connection : Cannot invoke "java.util.Map.get(Object)" because "types" is null</td><td><p>Error Description: The system failed to save the database connection because the internal parameter map (types) was not initialized during the connection setup.</p><p>Resolution: Verify the connector configuration to ensure all required fields are populated and retry saving. If the issue persists, restart the service and check the logs for missing parameter initialization.</p></td></tr></tbody></table>

***
