# Azure DevOps Repo

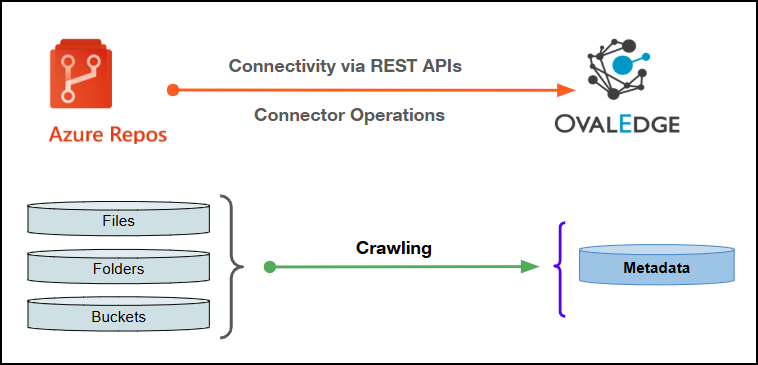

This article outlines the integration with the Azure DevOps Repo connector, enabling streamlined metadata management through features such as crawling and data preview. It also ensures secure authentication via Credential Manager.

<figure><img src="https://1813356899-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhTnkoJQml0pok9awFDhx%2Fuploads%2F3O2oG3iHsD5pYssPmn04%2Fimage.png?alt=media&#x26;token=03400a95-514e-4bac-ba59-541a27b68cb2" alt=""><figcaption></figcaption></figure>

## Overview

### Connector Details

<table data-header-hidden><thead><tr><th width="469"></th><th></th></tr></thead><tbody><tr><td>Connector Category</td><td>File Connectors</td></tr><tr><td>Connector Version</td><td>Release7.2</td></tr><tr><td>Releases Supported (Available from)</td><td>Release6.0</td></tr><tr><td><p>Connectivity</p><p>[How the connection is established with Azure DevOps Repo]</p></td><td>REST APIs</td></tr></tbody></table>

### Connector Features

| Feature                                      | Availability |
| -------------------------------------------- | :----------: |
| Crawling                                     |       ✅      |
| Delta Crawling                               |       ❌      |
| Profiling                                    |       ❌      |
| Query Sheet                                  |      NA      |
| Data Preview                                 |       ✅      |
| Auto Lineage                                 |      NA      |
| Manual Lineage                               |       ✅      |
| Secure Authentication via Credential Manager |       ✅      |
| Data Quality                                 |       ❌      |
| DAM (Data Access Management)                 |       ❌      |
| Bridge                                       |       ✅      |

### Metadata Mapping

The following objects are crawled from the Azure DevOps Repo and mapped to the corresponding UI assets.

<table><thead><tr><th width="169.25">Azure DevOps Repo Object</th><th width="175">Azure DevOps Repo Attribute</th><th width="122.75">OvalEdge Attribute</th><th width="114.25">OvalEdge Category</th><th width="116.75">OvalEdge Type</th></tr></thead><tbody><tr><td>Bucket</td><td>Bucket</td><td>Bucket</td><td>Bucket</td><td>Bucket</td></tr><tr><td>Folder</td><td>Folder</td><td>Folder</td><td>Folder</td><td>Folder</td></tr><tr><td>File</td><td>File</td><td>File</td><td>File</td><td>File</td></tr><tr><td>XLSX</td><td>File</td><td>File</td><td>File</td><td>XLSX</td></tr><tr><td>XLS</td><td>File</td><td>File</td><td>File</td><td>XLS</td></tr><tr><td>CSV</td><td>File</td><td>File</td><td>File</td><td>CSV</td></tr><tr><td>TXT</td><td>File</td><td>File</td><td>File</td><td>TXT</td></tr><tr><td>PARQUET</td><td>File</td><td>File</td><td>File</td><td>PARQUET</td></tr><tr><td>ORC</td><td>File</td><td>File</td><td>File</td><td>ORC</td></tr><tr><td>JSON</td><td>File</td><td>File</td><td>File</td><td>JSON</td></tr><tr><td>YAML</td><td>File</td><td>File</td><td>File</td><td>YAML</td></tr><tr><td>PIP</td><td>File</td><td>File</td><td>File</td><td>PIP</td></tr></tbody></table>

## Set up a Connection

### Prerequisites

The following are the prerequisites to establish a connection.

Ensure that the CSV files follow the required formatting standards for proper data processing and visibility. Refer to [CSV Format Requirements](https://docs.ovaledge.com/connectors/additional-requirements/csv-format-requirements-for-file-connectors)**.**

#### **Service Account User Permissions**

{% hint style="warning" %}
It is recommended to use a separate service account to establish the connection to the data source, configured with the following minimum set of permissions.
{% endhint %}

{% hint style="info" %}
👨‍💻Who can provide these permissions? These permissions are typically granted by the Box administrator, as users may not have the required access to assign them independently.
{% endhint %}

| Objects              | Access Permission |
| -------------------- | ----------------- |
| Connector Validation | Read-only         |
| Crawling             | Read-only         |
| Folder               | Read-only         |
| Files                | Read-only         |

### Connection Configuration Steps

{% hint style="warning" %}
Users are required to have the Connector Creator role in order to configure a new connection.
{% endhint %}

1. Log into **OvalEdge**, go to **Administration > Connectors**, click **+ (New Connector)**, search for **Azure DevOps Repo**, and complete the required parameters.

{% hint style="info" %}
Fields marked with an asterisk (\*) are mandatory for establishing a connection.
{% endhint %}

<table><thead><tr><th width="219.8333740234375">Field Name</th><th>Description</th></tr></thead><tbody><tr><td>Connector Type</td><td>By default, "Azure DevOps Repo" is displayed as the selected connector type.</td></tr><tr><td>Credential Manager*</td><td><p>Select the desired credentials manager from the drop-down list. Relevant parameters will be displayed based on the selected option.</p><p>Supported Credential Managers:</p><ul><li>OE Credential Manager</li><li>AWS Secrets Manager</li><li>HashiCorp</li><li>Azure Key Vault</li></ul></td></tr><tr><td>Connector Environment</td><td>Select the environment (Example: PROD, STG) configured for the connector.</td></tr><tr><td>Connector Name*</td><td><p>Enter a unique name for the Azure Devops Repo connection              </p><p>(Example: "AzureDevopsRepodb").</p></td></tr><tr><td>Connector Description</td><td>Enter a brief description of the connector.</td></tr><tr><td>Organisation*</td><td>Enter the organization name from the source system.</td></tr><tr><td>Project*</td><td>Enter the name of the project for the connection.</td></tr><tr><td>Repository*</td><td>Enter the repository name within the selected project.</td></tr><tr><td>Token*</td><td>Enter the access token required for authentication.</td></tr><tr><td>Connection String</td><td><p>Configure the connection string for the Azure Devops Repo database:</p><ul><li>Automatic mode: The system generates a connection string based on the provided credentials.</li><li>Manual mode: Enter a valid connection string manually.</li></ul><p>Replace placeholders with actual database details.</p><p>{sid} refers to the database name.</p></td></tr><tr><td>Proxy Enabled*</td><td>Select Yes to route API calls through a proxy server. Select No to bypass the proxy and connect directly.</td></tr></tbody></table>

**Default Governance Roles**

<table data-header-hidden><thead><tr><th width="220.666748046875"></th><th></th></tr></thead><tbody><tr><td>Default Governance Roles*</td><td>Select the appropriate users or teams for each governance role from the drop-down list. All users configured in the security settings are available for selection.</td></tr></tbody></table>

**Admin Roles**

<table data-header-hidden><thead><tr><th width="219.8333740234375"></th><th></th></tr></thead><tbody><tr><td>Admin Roles*</td><td><p>Select one or more users from the dropdown list for Integration Admin and Security &#x26; Governance Admin. All users configured</p><p>in the security settings are available for selection.</p></td></tr></tbody></table>

**No of Archive Objects**

<table data-header-hidden><thead><tr><th width="219.00006103515625"></th><th></th></tr></thead><tbody><tr><td>No Of Archive Objects*</td><td><p>This shows the number of recent metadata changes to a dataset at the source. By default, it is off. To enable it, toggle the Archive button and specify the number of objects to archive.</p><p>Example: Setting it to 4 retrieves the last four changes, displayed in the 'Version' column of the 'Metadata Changes' module.</p></td></tr></tbody></table>

**Bridge**

<table data-header-hidden><thead><tr><th width="219"></th><th></th></tr></thead><tbody><tr><td>Select Bridge*</td><td><p>If applicable, select the bridge from the drop-down list.</p><p>The drop-down list displays all active bridges that have been configured. These bridges facilitate communication between data sources and the system without requiring changes to firewall rules.</p></td></tr></tbody></table>

2. After entering all connection details, the following actions can be performed:
   1. Click **Validate** to verify the connection.
   2. Click **Save** to store the connection for future use.
   3. Click **Save & Configure** to apply additional settings before saving.
3. The saved connection will appear on the Connectors home page.

## Manage Connector Operations

### Crawl

{% hint style="warning" %}
To perform crawl operations, users must be assigned the Integration Admin role.
{% endhint %}

1. Navigate to the **Connectors** page and click **Crawl/Profile**.
2. This action initiates the metadata collection process from the data source and loads the retrieved metadata into the **File Manager**.
3. In the **File Manager**, select the specific folder(s) or file(s), then click **Catalog Files/Folders** from the **Nine Dots menu**.
4. The selected files or folders will be added to the **Data Catalog> Databases/Files/File Columns** tab.

#### Other Operations

The **Connectors** page provides a centralized view of all configured connectors, along with their health status.

**Managing connectors includes:**

* **Connectors Health**: Displays the current status of each connector using a **green** icon for active connections and a **red** icon for inactive connections, helping to monitor the connectivity with data sources.
* **Viewing**: Click the **Eye icon** next to the connector name to view connector details, including databases, tables, columns, and codes.

**Nine Dots Menu Options:**

To view, edit, validate, build lineage, configure, or delete connectors, click on the **Nine Dots** menu.

* **Edit Connector**: Update and revalidate the data source.
* **Validate Connector**: Check the connection's integrity.
* **Settings**: Modify connector settings.
  * **Crawler**: Configure data extraction.
  * **Business Glossary Settings**: Manage term associations at the connector level.
  * **Others**: Configure notification recipients for metadata changes.
* **Delete Connector**: Remove a connector with confirmation.

## Connectivity Troubleshooting

If incorrect parameters are entered, error messages may appear. Ensure all inputs are accurate to resolve these issues. If issues persist, contact the **assigned support team**.

<table><thead><tr><th width="85.25">S.No.</th><th width="299.75">Error Message(s)</th><th>Error Description &#x26; Resolution</th></tr></thead><tbody><tr><td>1</td><td><p>Error while validating connection: Exception occured while validating in Azure Repo Connection : A JSONObject text must</p><p> begin with '{' at 5 [character 1 line 3]</p></td><td><p><strong>Description</strong>: Invalid response format – expected JSON object (Error parsing at line 3).</p><p><strong>Resolution</strong>: Enter valid project, repository, organization, and token details in the correct format.</p></td></tr></tbody></table>

***
