OneLogin

This article provides a detailed process to configure Single Sign-On (SSO) for the OvalEdge application using OneLogin. It covers the complete setup, including logging in to OneLogin, creating a SAML application, configuring SSO parameters, setting up roles and groups, adding users, obtaining SAML metadata, and finalizing the configuration in OvalEdge. This ensures a secure and seamless login experience, managed centrally via OneLogin.

Prerequisites

• Access to the OneLogin Admin Portal with administrator rights

• DNS or IP address for the OvalEdge application

Process to Configure SSO

Log in to OneLogin

• Log in to the OneLogin portal.

• Enter valid credentials, and click Continue.


• Select Administrator to access the admin console.


• Now, the following page displays.



Create a SAML Application

• Navigate to Applications > Add App.


• Search and select SAML Custom Connector (Advanced).

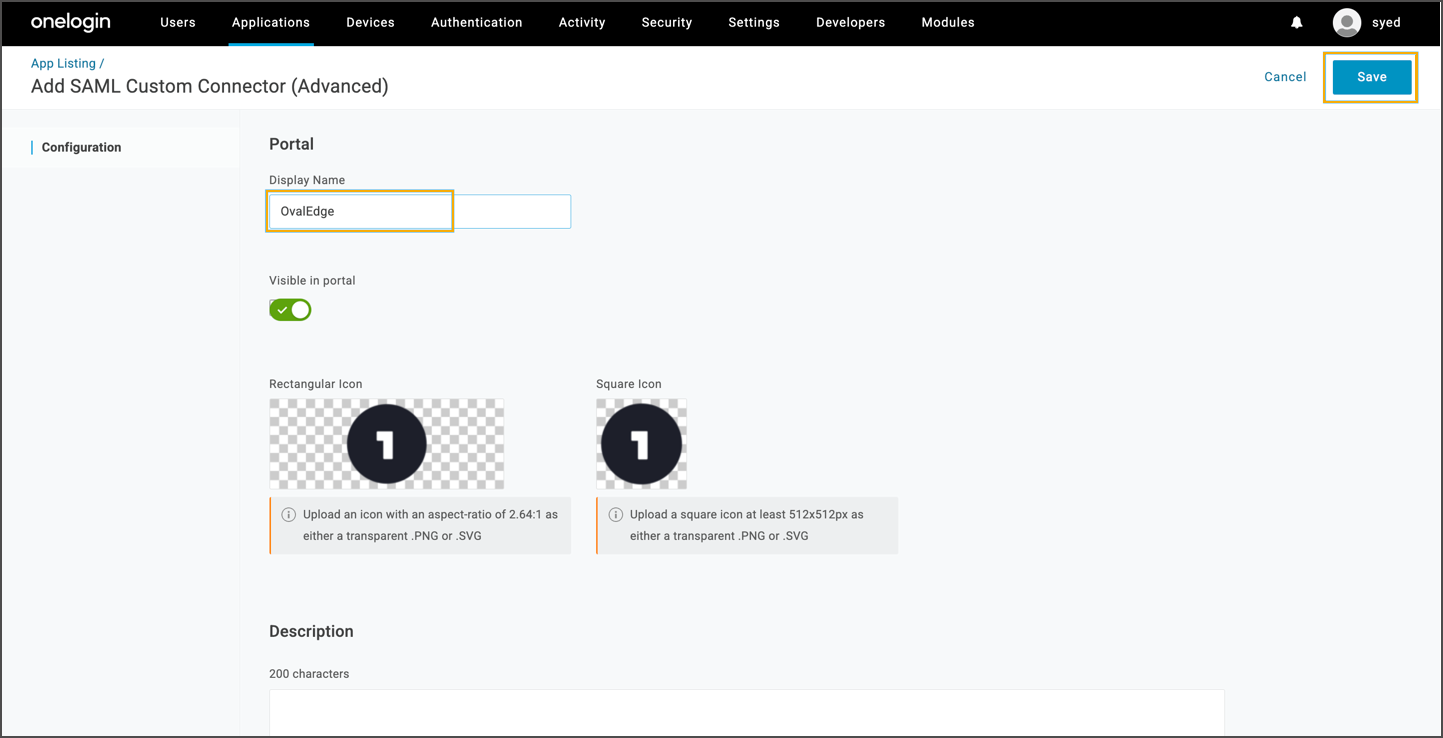

• Provide a display name for the application (for example, OvalEdge SSO) and click Save.



Configure SAML settings under the Configuration tab by entering the following values:

• Audience: https://<DNS-IP>/ovaledge/saml/metadata

• Recipient: https://<DNS-IP>/ovaledge/saml/SSO

• ACS (Consumer) URL Validator: ^https:\/\/<DNS-IP>\/ovaledge\/saml\/SSO$

• ACS (Consumer) URL: https://<DNS-IP>/ovaledge/saml/SSO Click Save.

Set up parameters

• Navigate to the Parameters tab and clicking the + icon. Ensure the “configured by admin” option is checked for credentials.


• Add fields such as Email, First Name, Last Name, and Member Of. For example:

• Email → Include in SAML assertion

• First Name → Value: First Name

• Last Name → Value: Last Name

• Member Of → Value: User Role

• Click Save after adding each parameter.



Create roles and groups

• Go to Users > Roles > Add New Role.


• Assign a name (for example, OE_ADMIN, OE_PUBLIC).


• Associate it with the application. Click Save. The created roles display as follows:


• Navigate to Groups > Add Group.


• Set a group name, and save.


• Define mappings under Mappings > New Mapping as needed.


• The Admin Role Mapping displays as follows:


• The Public Role Mapping displays as follows:



Add users

• Select Users > New User.


• Fill in user details, and clicking Save User.


• In the Authentication tab, assign the created group.


• From the Applications section, assign the role and save.


• Set a password by selecting More Actions > Change Password.



Obtain SAML Metadata

• Navigate to Applications > SSO > More Actions > SAML Metadata.


• Right-click and copy the metadata link.

Configure the OvalEdge Application

• Login in to the OvalEdge VM.

• Go to the extprop folder, edit the oasis.properties file, and set the samlHTTPMetadataProvider parameter with the copied metadata link.


• Navigate to the Tomcat bin folder and:

• For Linux: edit setenv.sh

• For Windows: edit tomcat9w

• Add or modify the parameter:

  Copy

  -DOVALEDGE_SECURITY_TYPE=saml


• Save the changes and restart Tomcat services.

Verify SSO Configuration

• Open the OvalEdge application URL in a browser.

• Select Continue with SSO.


• Provide credentials.


• Confirm login to OvalEdge via OneLogin SSO.
