GitHub

OvalEdge is a data catalog that compiles a comprehensive list of all data sources within an organization, facilitating improved data access and analysis. The OvalEdge application can be accessed with the regular user credentials provided by the OvalEdge administrator team or through the GitHub user credentials. Here, users accessing GitHub can also access OvalEdge through the OAuth Configuration.

Prerequisites

• Administrator access to the GitHub Web Console.

• Access to the OvalEdge application server.

• Access to the external OvalEdge configuration file (oasis.properties).

• Tomcat service restart privileges.

Steps Involved

1. Create an OAuth App in GitHub

   • Enter the GitHub web address (https://github.com/) in your web browser; the GitHub home page will be displayed.

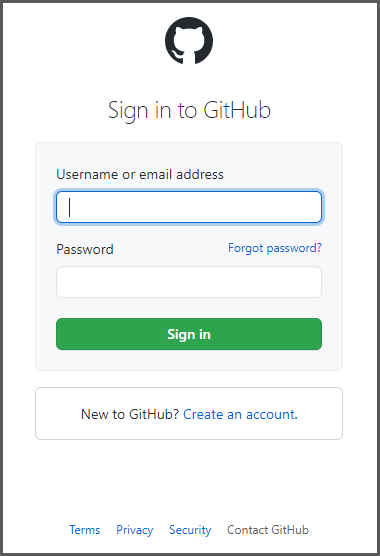

   • On the GitHub homepage, click the Sign In button. The sign-in page in GitHub is displayed.

   • In the Sign in GitHub page, enter the required username or email address and password in the respective Username or email address and Password fields.

   • Click the Sign in button to validate the entered user credentials, and the GitHub home page will be displayed.



     If the entered user credentials are invalid, an appropriate error message is displayed.

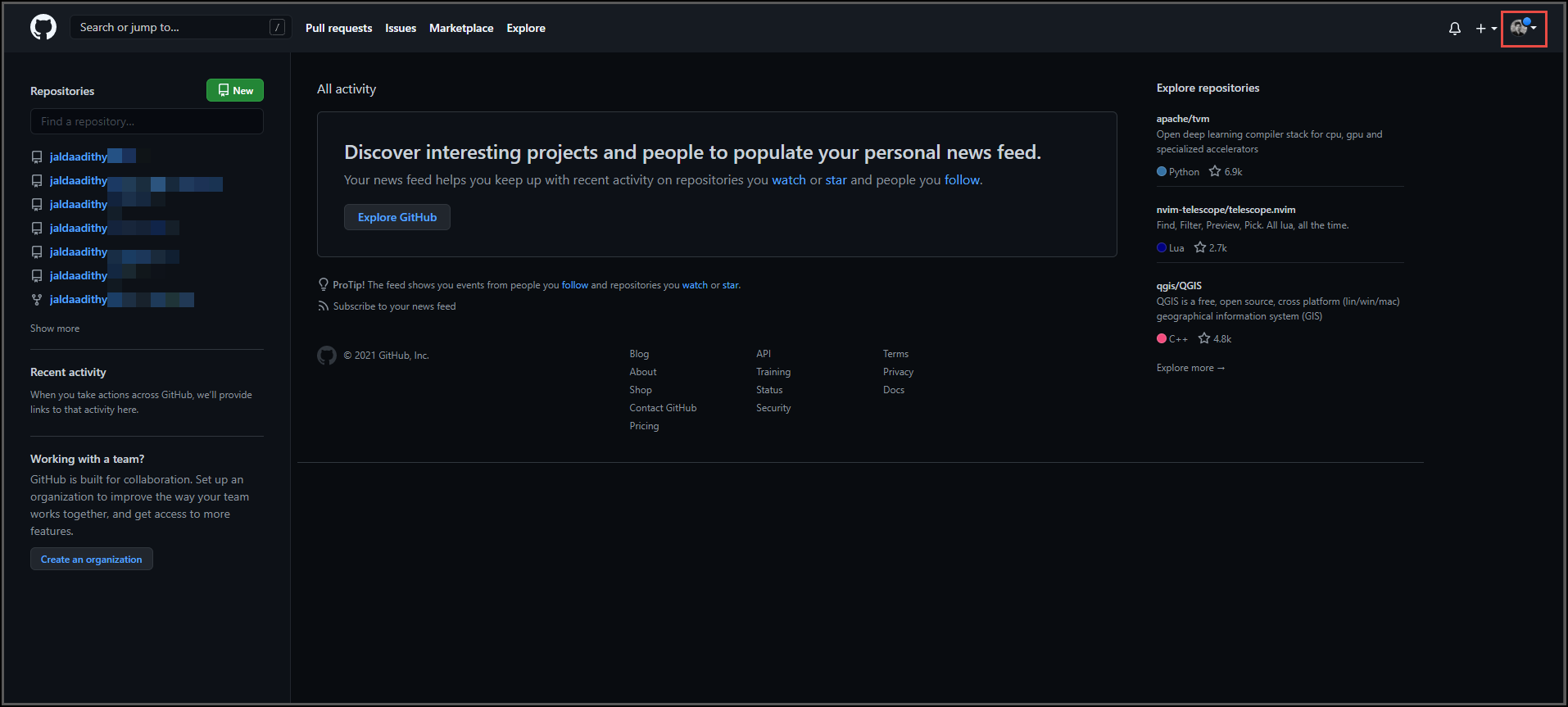

   • On the GitHub home page in the header menu, click on the User Profile icon, and the user profile settings dropdown is displayed.

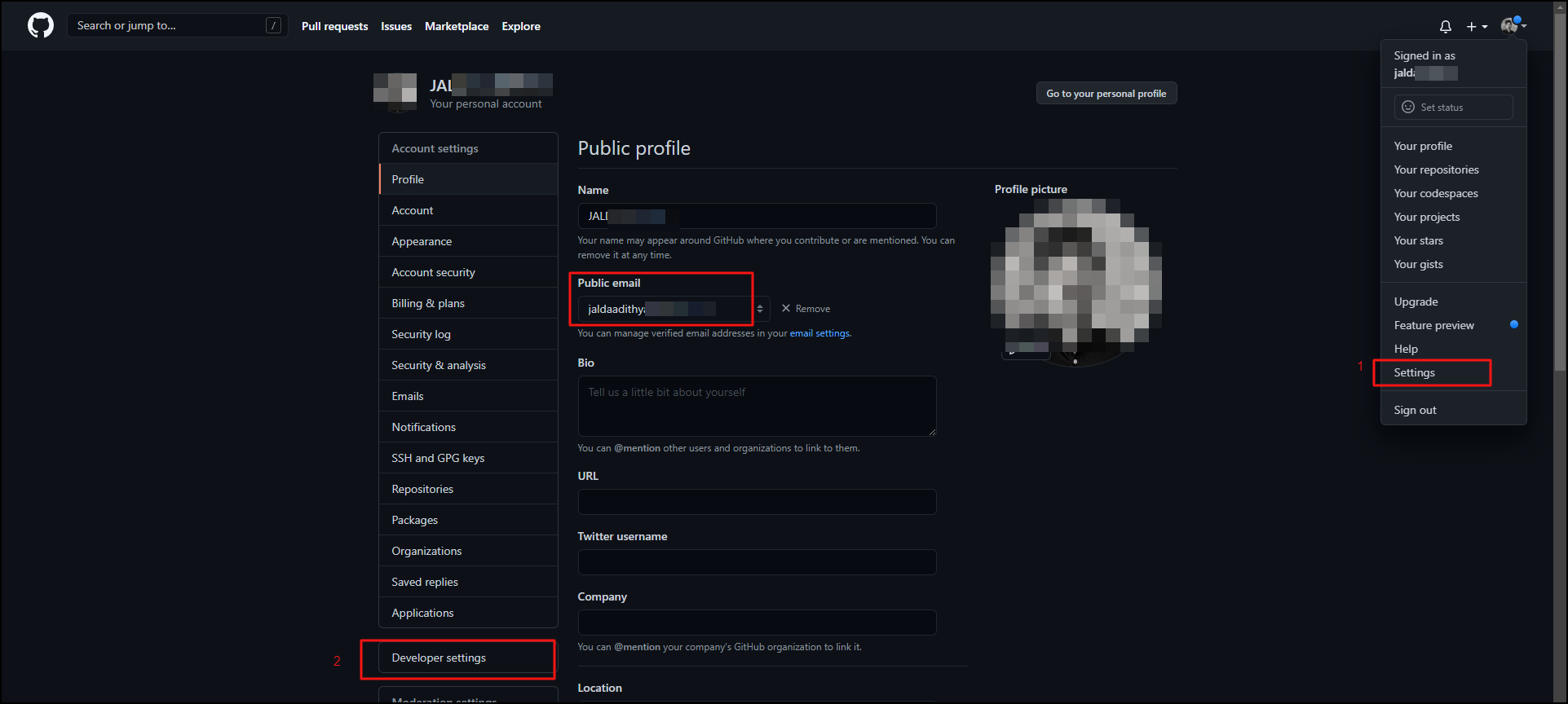

   • In the user profile settings dropdown, select the Settings option. The Public profile home page is displayed.


   • On the public profile home page, click the Public Email field. The email address associated with the logged-in user is displayed in the Public email field.

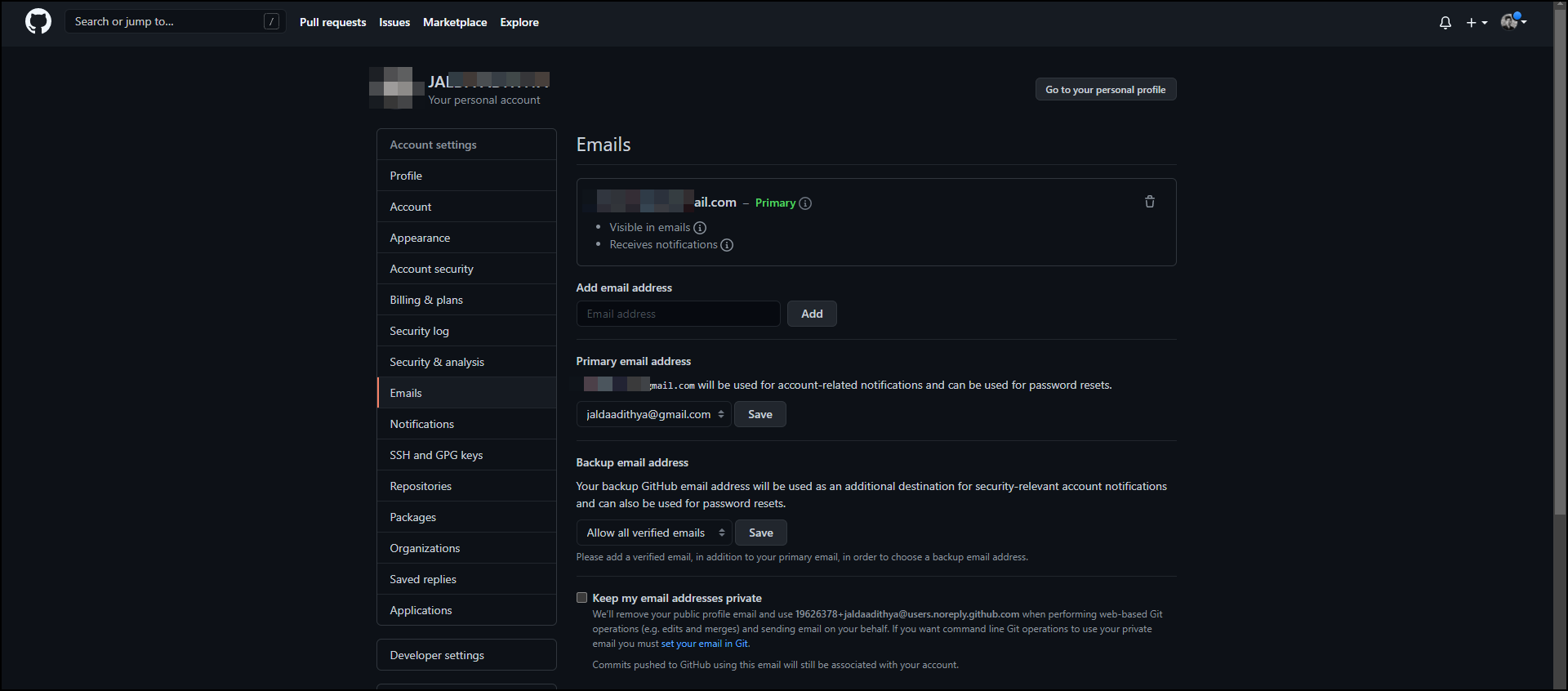

     • If the logged-in user's email address is not displayed in the Public email field, then click on the email settings hyperlink. The Emails page is displayed.

   • In the Emails page, uncheck the “Keep my email addresses private” checkbox. Here, the system will automatically update the email settings and set the user's email address as public.

   • To verify the email address as public, click on the Profile link. The Public Profile main page is displayed.


   • In the Public profile page, click on the Public email field. The email address associated with the logged-in user is displayed in the dropdown.

   • Select the email address from the Public email dropdown list and set it as public.

     By default, the logged-in user's First Name and Last Name are displayed in the Name field. Enter the user's first and last name if the name is not shown.

   • Click the Developer Settings link on the Public profile page, located in the left menu. The Developer Settings home page is displayed.

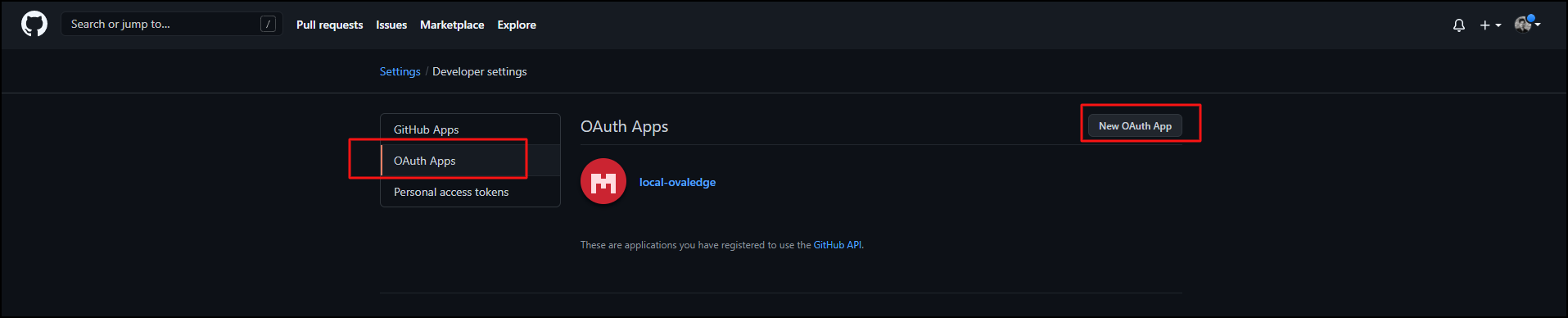

   • In the Developer Settings page, click on the OAuth Apps link. The OAuth Apps section is displayed in the right section of the page.

   • In the OAuth Apps section, click on the New OAuth App button. The Register a new OAuth application page is displayed.

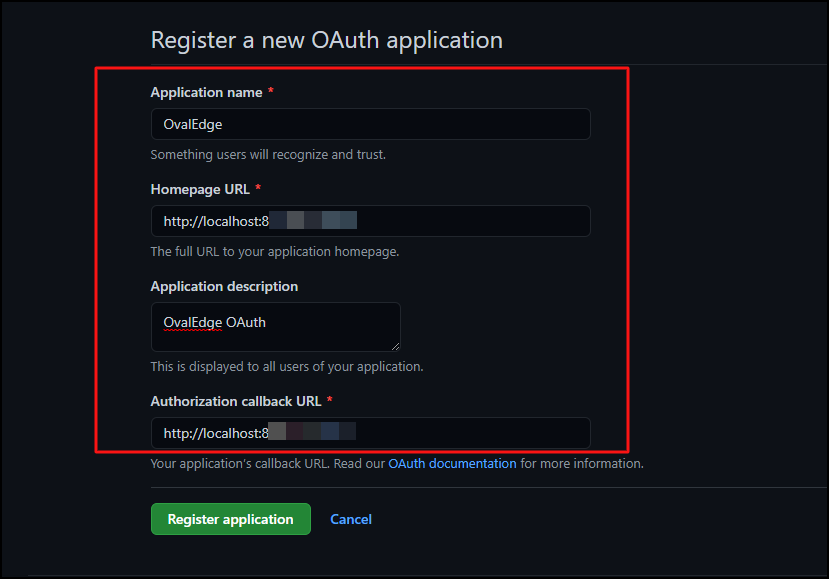

   • On the Register a new OAuth application page, enter the following details:

     • Application Name: Example: OvalEdge

     • Homepage URL: Example: http://localhost:8080/ovaledge

     • Application description: Example: OvalEdge OAuth

     • Authorization callback URL: Example: http://localhost:8080/ovaledge

     All mandatory fields on the Register a new OAuth application page are marked with a "*", without entering the details in the mandatory fields, if the user clicks on the Register application button, an appropriate error message is displayed.

   • After entering the details in the required fields, click the Register Application button, and the newly created application page will be displayed.

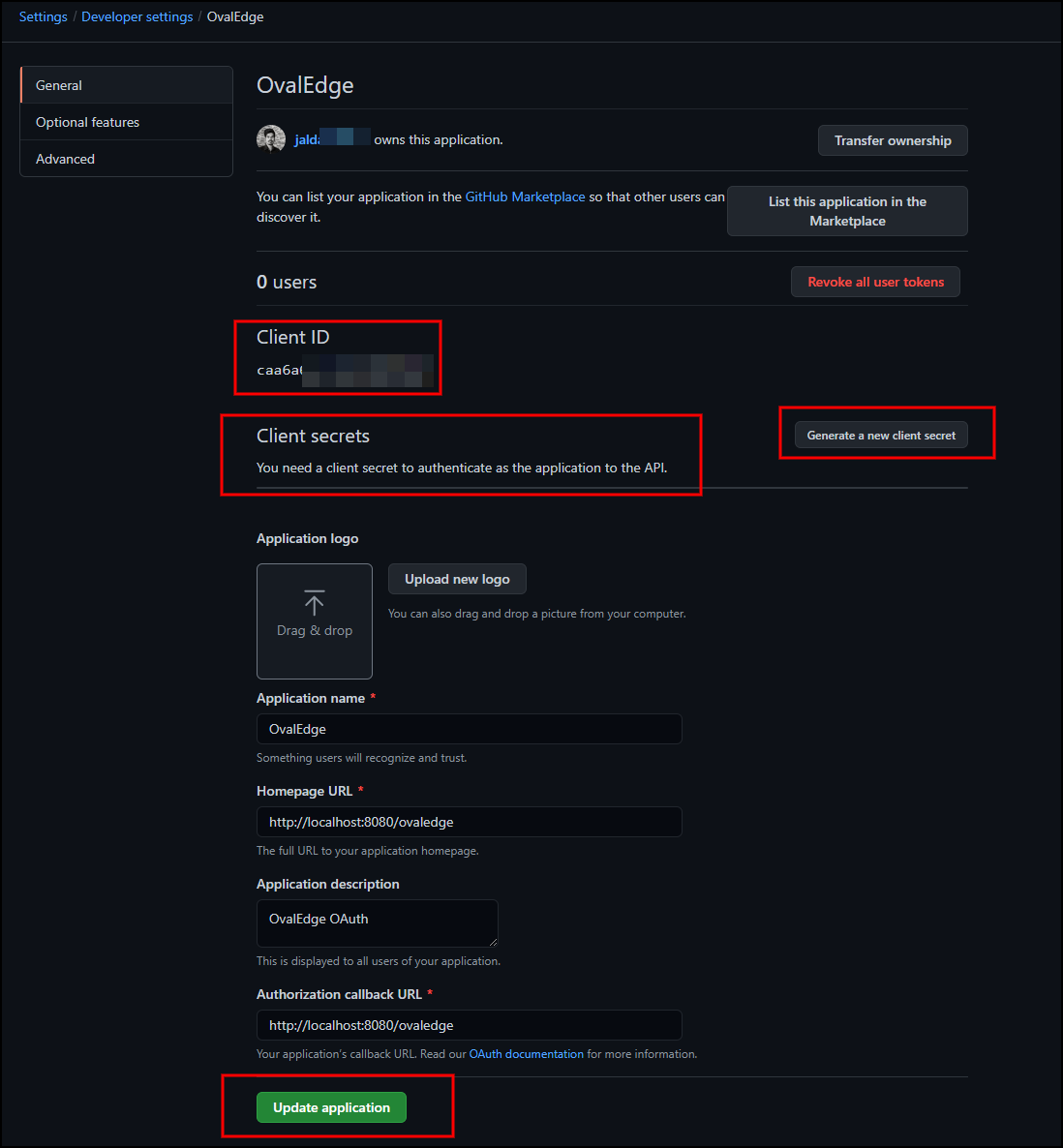

   • On the newly created application page, verify the Client ID and Client secrets, and capture the Client details. These details will be used in the OAuth Properties configuration.

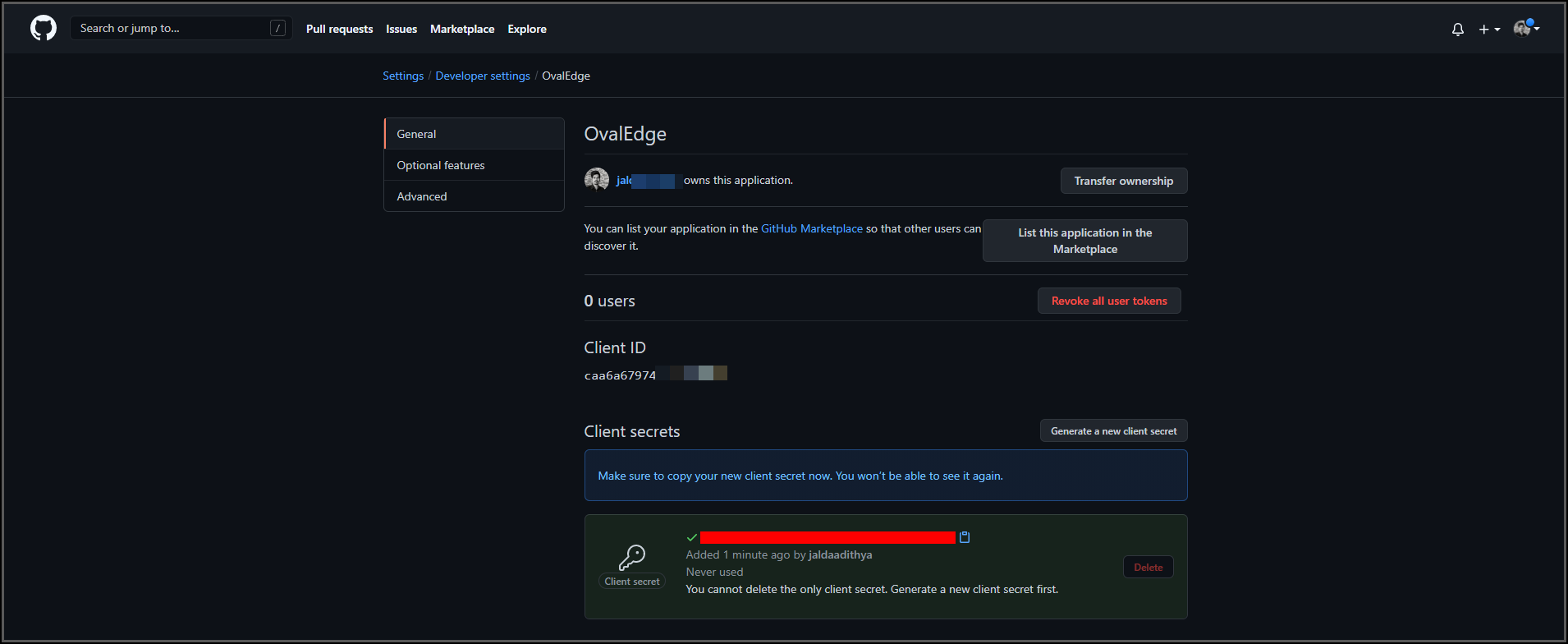

   • If the Client secrets are unavailable, click the Generate a new client secret button. The Client secrets textbox is displayed.


   • In the Client secrets textbox, enter the required client secrets code and click the Generate a new client secret button. The entered client secrets code is generated, and the newly created application page is displayed.

   • After verifying the Client ID and Client secrets details, click the Update application button. The “application updated successfully” message will be displayed.

2. Configuring OAuth Properties

   • Locate the oasis.properties file. The default path is:

     Copy

     /home/ovaledge/extprop/oasis.properties

     This path may vary depending on the client environment.

   • Update the following properties:

     • Existing Properties (Google OAuth example):

       Copy

       spring.security.oauth2.client.registration.google.clientId=clientId
       spring.security.oauth2.client.registration.google.clientSecret=clientSecret
       spring.security.oauth2.client.registration=google

     • Modified Properties (GitHub OAuth):

       Copy

       spring.security.oauth2.client.registration.github.clientId=<Client_ID>
       spring.security.oauth2.client.registration.github.clientSecret=<Client_Secret>
       spring.security.oauth2.client.registration=github
       spring.security.oauth2.client.registration.github.orgs=<Organization_Name>
       spring.security.oauth2.client.registration.github.scopes=user:email,read:org

     • Replace <Client_ID> and <Client_Secret> with values obtained from the GitHub OAuth App.

       • spring.security.oauth2.client.registration.github.orgs can include multiple organization names, separated by commas.

       • spring.security.oauth2.client.registration.github.scopes must include user:email and read:org for email and organization validation.

3. Enable OAuth Authentication

   • Update Tomcat environment variables to enable OAuth authentication:

     • Windows: Modify setenv.bat in the Tomcat bin directory:

       Copy

       set CATALINA_OPTS="-DOVALEDGE_SECURITY_TYPE=oauth2"

     • Linux: Modify setenv.sh in the Tomcat bin directory:

       Copy

       export CATALINA_OPTS="-DOVALEDGE_SECURITY_TYPE=oauth2"

   • Restart the OvalEdge application after changes:

     Copy

     systemctl restart tomcat

     (Or use the equivalent Tomcat restart command in your environment.)

Access the OvalEdge application

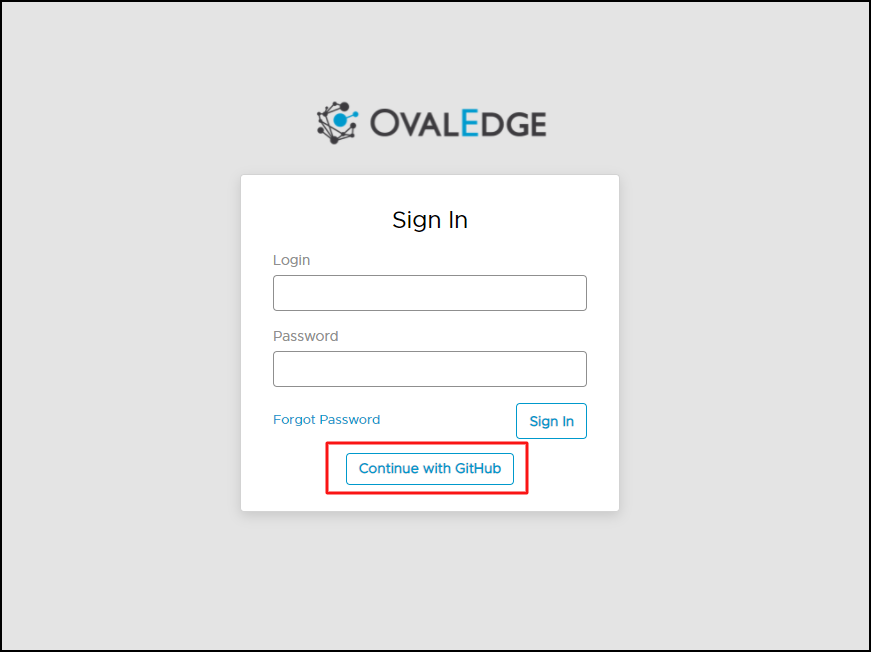

1. Navigate to the OvalEdge Sign-In page. A new option Continue with GitHub is displayed.


2. Click Continue with GitHub. The GitHub login page is displayed.

3. Enter valid GitHub credentials. On successful authentication, access to OvalEdge is granted.

Error Handling & Rollback

• If login fails:

  • Verify that Client ID and Client Secret are correctly configured in oasis.properties.

  • Ensure that the email is set to public in GitHub profile settings.

  • Confirm that required scopes (user:email, read:org) are configured.

• Rollback option:

  • Restore the previous oasis.properties file backup.

  • Revert Tomcat setenv changes by removing the OVALEDGE_SECURITY_TYPE variable.

  • Restart Tomcat.
