Amazon Redshift

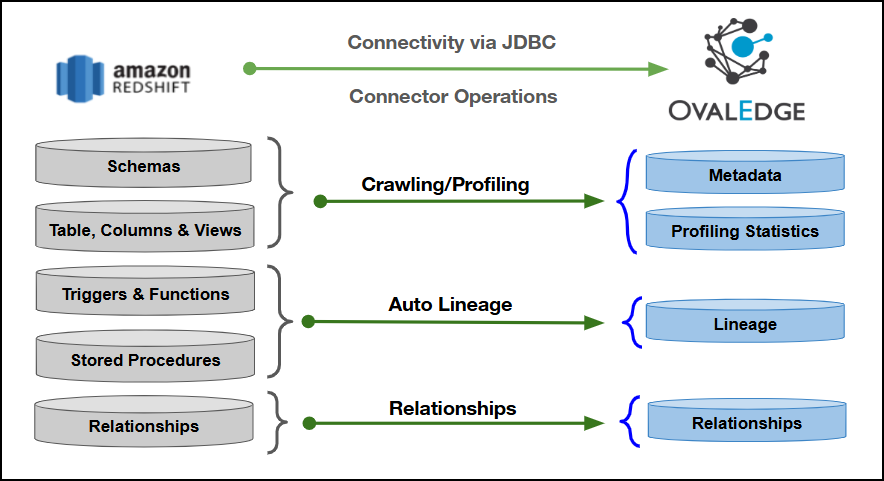

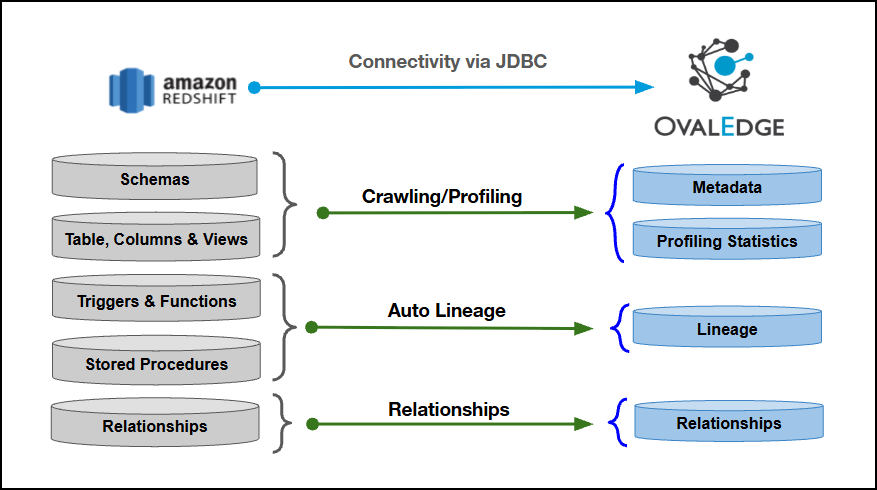

This document outlines the integration with Amazon Redshift, enabling streamlined metadata management through features such as crawling, profiling, querying, data preview, and lineage building (both automatic and manual). It also supports impact analysis and ensures secure authentication via Credential Manager.
Overview
Connector Details
Connector Category
Data Warehouse
Connector Version
Release7.1
Releases Supported (Available from)
Release4
Connectivity
[How the connection is established with Amazon Redshift]
JDBC driver
Verified Amazon Redshift Version
1.0.109768
Connector Features
Crawling
✅
Delta Crawling
❌
Profiling
✅
Query Sheet
✅
Data Preview
✅
Auto Lineage
✅
Manual Lineage
✅
Secure Authentication via Credential Manager
✅
Data Quality
✅
DAM (Data Access Management)
✅
Bridge
✅
Metadata Mapping
The following objects are crawled from Amazon Redshift and mapped to the corresponding UI assets.
Table
Table Name
Table
Tables
Table
Table
Table Type
Type
Tables
Table
Table
Table Comments
Source Description
Descriptions
Table
Columns
Column Name
Column
Table Columns
Columns
Columns
Data Type
Column Type
Table Columns
Columns
Columns
Description
Source Description
Table Columns
Columns
Columns
Ordinal Position
Column Position
Table Columns
Columns
Columns
Length
Data Type Size
Table Columns
Columns
Views
View Name
View
Tables
Views
Views
Text
View Query
Views
Views
Procedures
Routine_name
Name
Procedures
Procedures
Procedures
Description
Source Description
Descriptions
Procedures
Procedures
Routine_definition
Procedure
Procedures
Procedures
Functions
Routine_name
Name
Functions
Functions
Functions
Routine_definition
Function
Functions
Functions
Functions
Description
Source Description
Descriptions
Functions
Set up a Connection
Prerequisites
The following are the prerequisites to establish a connection:
External Supporting Files
JDBC driver file (RedshiftJDBC42)
Use this file to enable connectivity with Amazon Redshift without relying on the AWS SDK. Place the file in the Third Party Jars folder.
Whitelisting Ports
Ensure the inbound port “5439” is whitelisted for OvalEdge to connect to the Amazon Redshift database.
The default port number for Amazon Redshift is 5439. If a different port is used, ensure that the updated port number is specified during connection setup, the port is whitelisted, and communication between the system and Amazon Redshift is properly established.
Service Account User Permissions
It is recommended to use a separate service account to establish the connection to the data source, configured with the following minimum set of permissions.
Crawling & Profiling
Schema
pg_catalog.pg_namespace
USAGE
Crawling & Profiling
Schema
information_schema, svv_external_schemas
USAGE
Crawling & Profiling
Tables
information_schema.tables
SELECT
Crawling & Profiling
Tables
pg_catalog.pg_namespace
SELECT
Crawling & Profiling
Table Columns
pg_catalog.pg_namespace
SELECT, UPDATE
Crawling & Profiling
Table Columns
information_schema.columns
SELECT, UPDATE
Crawling & Profiling
Table Columns
information_schema.table_constraints
SELECT, UPDATE
Crawling & Profiling
Table Columns
svv_external_columns
SELECT, UPDATE
Crawling & Profiling
Table Columns
information_schema.key_column_usage
SELECT, UPDATE
Crawling & Profiling
Table Columns
pg_catalog.pg_description
SELECT, UPDATE
Crawling, Profiling, & Lineage Building
Views
pg_catalog.pg_class
SELECT
Crawling, Profiling, & Lineage Building
Views
pg_catalog.pg_namespace
SELECT
Crawling, & Lineage Building
Functions, Stored Procedures Source code
pg_catalog.pg_class, pg_proc_info
EXECUTE
Crawling, & Lineage Building
Functions, Stored Procedures Source code
pg_catalog.pg_namespace
EXECUTE
Crawling
Relationships
information_schema.table_constraints, information_schema.key_column_usage, information_schema.referential_constraints
REFERENCES
Connection Configuration Steps
Users are required to have the Connector Creator role in order to configure a new connection.
Log into OvalEdge, go to Administration > Connectors, click + (New Connector), search for Redshift, and complete the required parameters.
Connector Type
By default, "Redshift" is displayed as the selected connector type.
Credential Manager*
Select the desired credentials manager from the drop-down list. Relevant parameters will be displayed based on your selection.
Supported Credential Managers:
OE Credential Manager
AWS Secrets Manager
HashiCorp Vault
Azure Key Vault
License Add Ons
Auto Lineage
Supported
Data Quality
Supported
Data Access
Supported
Select the checkbox for the Auto Lineage Add-On to build data lineage automatically.
Select the checkbox for Data Quality Add-On to identify data quality issues using data quality rules and anomaly detection.
Select the checkbox for the Data Access Add-On license that will enforce connector access via OvalEdge with the Data Access Management (DAM) feature enabled.
Connector Name*
Enter a unique name for the Amazon Redshift connection
(Example: "Redshift_Prod").
Connector Environment
Select the environment (Example: PROD, STG) configured for the connector.
Connector Description
Enter a brief description of the connector.
Server*
Enter the Amazon Redshift database server name or IP address (Example: xxxx-redshift.xxxx4ijtzasl.xx-south-1.rds.xxxx.com or 192.xxx.1.xx).
Port*
By default, the port number for the Amazon Redshift, "5439" is auto-populated. If required, the port number can be modified as per custom port number that is configured for your Redshift.
Database*
Enter the database name to which the service account user has access within the Redshift.
Driver*
By default, the Redshift driver details are auto-populated.
Username*
Enter the service account username set up to access the Amazon Redshift database (Example: "oesauser").
Password*
Enter the password associated with the service account user.
Connection String
Configure the connection string for the Amazon Redshift database:
Automatic Mode: The system generates a connection string based on the provided credentials.
Manual Mode: Enter a valid connection string manually.
Replace placeholders with actual database details.
{sid} refers to Database Name.
Plugin Server
Enter the server name when running as a plugin server.
Plugin Port
Enter the port number on which the plugin is running.
Default Governance Roles
Default Governance Roles*
Select the appropriate users or teams for each governance role from the drop-down list. All users configured in the security settings are available for selection.
Admin Roles
Admin Roles*
Select one or more users from the dropdown list for Integration Admin and Security & Governance Admin. All users configured in the security settings are available for selection.
No of Archive Objects
No Of Archive Objects*
This shows the number of recent metadata changes to a dataset at the source. By default, it is off. To enable it, toggle the Archive button and specify the number of objects to archive.Example: Setting it to 4 retrieves the last four changes, displayed in the 'Version' column of the 'Metadata Changes' module.
Bridge
Select Bridge*
If applicable, select the bridge from the drop-down list.The drop-down list displays all active bridges that have been configured. These bridges facilitate communication between data sources and the system without requiring changes to firewall rules.
After entering all connection details, the following actions can be performed:
Click Validate to verify the connection.
Click Save to store the connection for future use.
Click Save & Configure to apply additional settings before saving.
The saved connection will appear on the Connectors home page.
Manage Connector Operations
Crawl/Profile
To perform crawl and profile operations, users must be assigned the Integration Admin role.
The Crawl/Profile button allows users to select one or more schemas for crawling and profiling.
Navigate to the Connectors page and click Crawl/Profile.
Select the schemas to be crawled.
The Crawl option is selected by default. To perform both operations, select the Crawl & Profile radio button.
Click Run to collect metadata from the connected source and load it into the Data Catalog.
After a successful crawl, the information appears in the Data Catalog > Databases tab.
The Schedule checkbox allows automated crawling and profiling at defined intervals, from a minute to a year.
Click the Schedule checkbox to enable the Select Period drop-down.
Select a time period for the operation from the drop-down menu.
Click Schedule to initiate metadata collection from the connected source.
The system will automatically execute the selected operation (Crawl or Crawl & Profile) at the scheduled time.
Other Operations
The Connectors page provides a centralized view of all configured connectors, along with their health status.
Managing connectors includes:
Connectors Health: Displays the current status of each connector using a green icon for active connections and a red icon for inactive connections, helping to monitor the connectivity with data sources.
Viewing: Click the Eye icon next to the connector name to view connector details, including databases, tables, columns, and codes.
Nine Dots Menu Options:
To view, edit, validate, build lineage, configure, or delete connectors, click on the Nine Dots menu.
Edit Connector: Update and revalidate the data source.
Validate Connector: Check the connection's integrity.
Settings: Modify connector settings.
Crawler: Configure data extraction.
Profiler: Customize data profiling rules and methods.
Query Policies: Define query execution rules based on roles.
Access Instructions: Include notes on how to access the data.
Business Glossary Settings: Manage term associations at the connector level.
Anomaly Detection Settings: Configure anomaly detection preferences at the connector level.
Others: Configure notification recipients for metadata changes.
Build Lineage: Automatically build data lineage using source code parsing.
Delete Connector: Remove a connector with confirmation.
Connectivity Troubleshooting
If incorrect parameters are entered, error messages may appear. Ensure all inputs are accurate to resolve these issues. If issues persist, contact the assigned support team.
1
Error while validating connection: Error while validating Redshift Connection : Failed to load driver class com.amazon.redshift.jdbc.Driver in either of HikariConfig class loader or Thread context classloader
Description: Connection validation failed due to missing Redshift JDBC driver.
Resolution:
Download the Redshift JDBC driver from Amazon's official site and upload it under Admin > Drivers. Then retry the connection.
2
Error while validating connection: Error while validating Redshift Connection : Failed to obtain JDBC Connection; nested exception is java.sql.SQLException: [Amazon](500150) Error setting/closing connection: UnknownHostException
Description: Connection validation failed due to an UnknownHostException, indicating that the hostname or IP is incorrect or the Redshift server is not reachable.
Resolution: Verify that the provided host/IP is correct and ensure the Redshift server is up and accessible from the network.
3
Error while validating connection: Error while validating Redshift Connection : Failed to obtain JDBC Connection; nested exception is java.sql.SQLException: [Amazon](500310) Invalid operation: password authentication failed for user "ovaledge1";
Description:
Connection validation failed due to incorrect credentials.
Resolution:
Check and update the username or password. Ensure the credentials are correct and have access to the Redshift cluster
4
Error while validating connection: Error while validating Redshift Connection : Failed to obtain JDBC Connection; nested exception is java.sql.SQLException: [Amazon](500310) Invalid operation: database "ovaledge" does not exist;
Description: Connection failed because the specified database does not exist.
Resolution: Verify and correct the database name in the connection settings.
