Azure Data Lake

This article outlines the integration with the Azure Data Lake connector, enabling streamlined metadata management through features such as crawling, data preview, manual lineage building, and Data Quality support for files and folders stored in Azure Data Lake environments. It also supports sample profiling for file-based assets, including CSV, TXT, Parquet, ORC, JSON, YAML, Excel, and other supported file formats.

This connector uses the ADL SDK to establish connectivity with Azure Data Lake storage environments and supports access to metadata objects such as containers, folders, files, and file columns. Authentication is supported through ADL String and ADL Service Principal methods using Client ID, Client Secret, Tenant ID, and Azure Data Lake connection details for accessing storage resources and metadata objects.

Overview

Connector Details

Connector Category

Cloud Storage

OvalEdge Releases Supported

Release5.0 to Release7.1.1

Connectivity

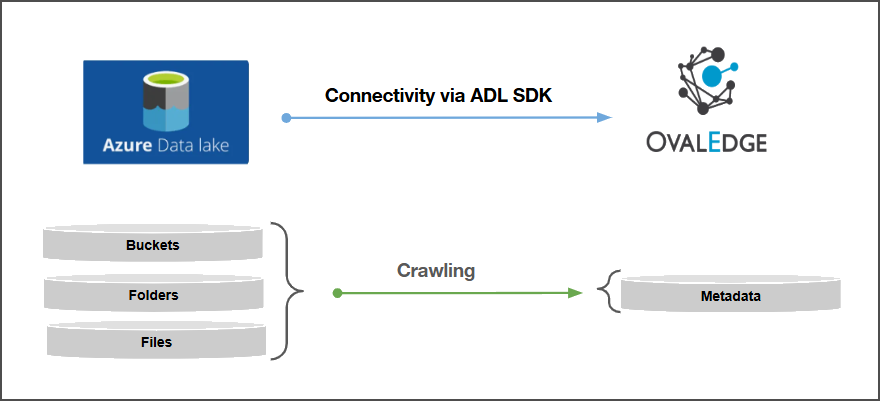

[How the connection is established with Azure Data Lake]

ADL SDK

Connector Features

Feature

Availability

Crawling

✅

Delta Crawling

❌

Profiling*

❌

Sample Profiling

✅

Query Sheet

❌

Data Preview

✅

Auto Lineage

❌

Manual Lineage

✅

Secure Authentication via Credential Manager

✅

Data Quality

✅

DAM (Data Access Management)

❌

Bridge

✅

*Full profiling is supported through DuckDB. To enable this capability, configure the system setting (enable.duckdb) to True. When enabled, the File Data tab displays only the first 100 rows from the source file.

Metadata Mapping

The following objects are crawled from Azure Data Lake and mapped to the corresponding UI assets.

Azure Data Lake Object

Azure Data Lake Attribute

OvalEdge Attribute

OvalEdge Category

OvalEdge Type

File/Folder

Folder

File

XLSX

Folder(subfile)

File

XLS

Folder(subfile)

File

CSV

File

TXT

File

PARQUET

File

ORC

File

JSON

File

YAML

File

PIP

File

Set up a Connection

Prerequisites

The following are the prerequisites to establish a connection:

Ensure that the CSV files follow the required formatting standards for proper data processing and visibility. Refer to CSV Format Requirements.

Service Account User Permissions

It is recommended to use a separate service account to establish the connection to the data source, configured with the following minimum set of permissions.

👨‍💻 Who can provide these permissions? These permissions are typically granted by the Azure Data Lake administrator, as users may not have the required access to assign them independently.

Operation

Objects

Access Permission

Connector Validation

Containers

Read

Crawling

Containers

Read

Crawling & Profiling

Buckets

Read

Crawling & Profiling

Folder

Read

Crawling & Profiling

Files

Read

View Data

profile/Get Data

Read

Required Permissions

Ensure the following Azure permissions are assigned:
- Microsoft.Storage/storageAccounts/blobServices/containers/read
- Microsoft.Storage/storageAccounts/blobServices/containers/blobs/read
If ACLs are enabled in ADLS Gen2, also configure the following access controls:
- Folder access (traverse/list): x, r-x
- File access (read): r
These permissions are required for successful access and operations.

Connection Configuration Steps

Users are required to have the Connector Creator role in order to configure a new connection.

Log into OvalEdge, go to Administration > Connectors, click + (New Connector), search for Azure Data Lake, and complete the required parameters.

Fields marked with an asterisk (*) are mandatory for establishing a connection.

Field Name

Description

Connector Type

By default, "Azure Data Lake" is displayed as the selected connector type.

Credential Manager*

Select the desired credentials manager from the drop-down list. Relevant parameters will be displayed based on your selection.

Supported Credential Managers:

OE Credential Manager
AWS Secrets Manager
HashiCorp Vault
Azure Key Vault

For more details, click here.

License Add-ons

Select the checkbox for Data Quality Add-On to identify data quality issues using data anomaly detection. For more details, click here.

Connector Environment

Select the environment (Example: PROD, STG) configured for the connector. For more details, click here.

Connector Name*

Enter a unique name for the Azure Data Lake connection

(Example: "Azure_Data_Lake").

Connector description

Enter a brief description of the connector.

Authentication Type*

The following two types of authentication are supported

for Azure Data Lake:

ADL String
ADL Service Principal

Field Name

Description

ADL Connection String*

Enter the ADL connection string that was generated at the Azure storage account.

Default Governance Roles

Default Governance Roles*

Select the appropriate users or teams for each governance role from the drop-down list. All users and teams configured in OvalEdge Security are displayed for selection.

Admin Roles

Admin Roles*

Select one or more users from the dropdown list for Integration Admin and Security & Governance Admin. All users configured in OvalEdge Security are available for selection.

No of Archive Objects

No Of Archive Objects*

This shows the number of recent metadata changes to a dataset at the source. By default, it is off. To enable it, toggle the Archive button and specify the number of objects to archive.

Example: Setting it to 4 retrieves the last four changes, displayed in the 'Version' column of the 'Metadata Changes' module.

Bridge

Select Bridge*

If applicable, select the bridge from the drop-down list.

The drop-down list displays all active bridges configured in OvalEdge. These bridges enable communication between data sources and OvalEdge without altering firewall rules.

After entering all connection details, the following actions can be performed:
1. Click Validate to verify the connection.
2. Click Save to store the connection for future use.
3. Click Save & Configure to apply additional settings before saving.
The saved connection will appear on the Connectors home page.

Manage Connector Operations

Crawl/Profile

To perform crawl operations, users must be assigned the Integration Admin role.

Navigate to the Connectors page and click Crawl/Profile.
This action initiates the metadata collection process from the data source and loads the retrieved metadata into the File Manager > File Explorer.
After a successful crawl, only the first-level folders and files are displayed in the File Manager tab under the specified connection name. To access inner-level folders or files, navigate through the folder hierarchy and perform the required operations.
In the File Manager, click the connector name, select the specific folder(s) or file(s), then click Catalog / Catalog and Profile from the Nine Dots menu. For more details, click here.
The selected files or folders will be added to the Data Catalog > Files/File Columns tab.

Profiling is supported only at the individual file level. To perform profiling, select the required file in the File Manager and use the Nine Dots menu to run the profiling operation. File columns become available only after the profiling process has been successfully completed.

Other Operations

The Connectors page in OvalEdge provides a centralized view of all configured connectors, including their health status.

Managing connectors includes:

Connectors Health: Displays the current status of each connector using a green icon for active connections and a red icon for inactive connections, helping to monitor the connectivity with data sources.
Viewing: Click the Eye icon next to the connector name to view connector details, including databases, tables, columns, and codes.

Nine Dots Menu Options:

To view, edit, validate, configure, or delete connectors, click on the Nine Dots menu.

Edit Connector: Update and revalidate the data source.
Validate Connector: Check the connection's integrity.
Settings: Modify connector settings.
- Crawler: Configure data extraction.
- Access Instructions: Add notes on how data can be accessed.
- Business Glossary Settings: Manage term associations at the connector level.
- Anomaly Detection Settings: Configure anomaly detection preferences at the connector level.
Delete Connector: Remove a connector with confirmation.

Connectivity Troubleshooting

If incorrect parameters are entered, error messages may appear. Ensure all inputs are accurate to resolve these issues. If issues persist, contact the assigned support team.

S.No.

Error Message(s)

Error Description & Resolution

Connection Validation Failure

Error Description:

Connection validation fails due to incorrect credentials, an invalid connection string, missing containers, or network issues.

Resolution:

Verify connection string format (must start with DefaultEndpointsProtocol=https)
Check Client ID, Client Secret, and Tenant ID
Ensure the storage account exists
Confirm at least one container is available
Validate network connectivity

Invalid Client Secret / Authentication Failure

Error Description:

Authentication fails when the client secret is incorrect, expired, or mismatched.

Resolution:

Verify Client Secret value (copy correctly from Azure Portal)
Check if the secret has expired
Generate a new secret if required
Ensure Client ID and Tenant ID are correct

Authorization Failure (Access Denied)

Error Description:

The service principal does not have the required permissions to access the storage account.

Resolution:

Assign required roles:
Ensure the role is assigned at the storage account level
Verify access in the Azure Portal

Resource Not Found (File / Container / Path)

Error Description:

The file, container, or path does not exist or is incorrectly specified.

Resolution:

Verify the resource exists in the Azure Portal
Check the container name and file path
Use correct format: container/folder/file
Ensure no extra or missing slashes

No Containers Found During Validation

Error Description:

Validation fails when the storage account has no containers or permissions to list containers are missing.

Resolution:

Create at least one container in the storage account
Verify permissions to list containers
Confirm access using Azure Portal

No files found in the container

Error Description:

Occurs when container is empty, path is incorrect, or permissions are missing.

Resolution:

Verify files exist in container
Check folder path
Confirm permissions
Validate container name

Container listing failed

Error Description:

Occurs due to missing permissions, invalid storage account, or network issues.

Resolution:

Assign role: Storage Blob Data Reader
Verify storage account
Check network connectivity
Validate authentication

File download failed

Error Description:

Occurs when file does not exist, permissions are missing, or network issues occur.

Resolution:

Verify file exists
Ensure download permissions
Check network stability
Validate encryption access if applicable

Access Denied

Error Description:

Occurs when Client ID, Secret, or Tenant ID is incorrect, expired, or permissions are missing.

Resolution:

Verify Client ID, Client Secret, Tenant ID
Check if the secret is expired
Ensure service principal is active
Assign roles:

Authentication / Token error

Error Description:

Occurs when credentials are invalid, expired, or Azure AD authentication fails.

Resolution:

Verify Client ID, Secret, Tenant ID
Check secret expiry
Ensure Tenant ID is correct
Validate access to: login.microsoftonline.com

Slow file listing

Error Description:

Occurs when containers have large number of files or high network latency.

Resolution:

Wait for pagination (batch loading)
Use specific folder paths
Check network speed

Operation timeout

Error Description:

Occurs due to slow network, large data volume, or low timeout settings.

Resolution:

Check the internet connection
Retry operation
Perform during off-peak hours
Increase timeout settings if possible

CSV column names not detected

Error Description:

Occurs when the file lacks a header, uses an incorrect delimiter, or has encoding issues.

Resolution:

Ensure the header row exists
Use standard delimiters (comma, tab, semicolon)
Save file in UTF-8
Avoid special characters in column names

Excel file cannot be read

Error Description:

Occurs when the file is corrupted, unsupported, password-protected, or too large.

Resolution:

Use .xls or .xlsx format
Remove password protection
Verify file opens in Excel
Reduce file size if needed

Data type detection failed

Error Description:

Occurs due to insufficient data, mixed data types, or inconsistent formats.

Resolution:

Provide at least 20–30 rows
Maintain consistent data types
Use standard date formats (YYYY-MM-DD)

FAQs

Why does connection string authentication fail?

It fails when the connection string format is incorrect, the account key is wrong, or the storage account does not exist. Check that the string starts with DefaultEndpointsProtocol=https, verify AccountName and AccountKey, and confirm the storage account exists.

Why are folders not showing correctly?

Folders do not appear when the path format is incorrect or when the results are still loading. Verify the path structure and wait for all results to load.

Why is file download slow or timing out?

Downloads are slow due to large files, a slow network, or regional differences. Check your network speed, try during off-peak hours, or increase timeout settings.

Why can’t I see file details?

You cannot see file details if permissions are missing or the file does not exist. Verify file existence, check permissions, and refresh the connection.

Why can’t I upload files?

Upload fails when permissions are missing, the path is invalid, or the network is unstable. Verify upload permissions, container existence, and path format.

What role is required for file operations?

Use Storage Blob Data Reader for read operations and Storage Blob Data Contributor for upload or write operations. Assign roles at the storage account level.

Why do I see connection or client errors?

These errors occur due to network issues, SSL problems, or incorrect proxy settings. Check your network, system time, and proxy configuration, then retry.

Why does the setup fail or the client not initialize?

Setup fails when the authentication or connection setup does not complete. Verify credentials, storage account, and network connectivity, then retry.

Why do operations timeout?

Operations timeout due to slow network or large data responses. Retry the operation or improve network speed and timeout settings.

Why are CSV column names not detected?

This happens when the file has no header row or uses an incorrect delimiter or encoding. Add a header row and use standard delimiters with UTF-8 encoding.

Why can’t the system read Excel files?

This happens when the file is corrupted, unsupported, or too large. Use .xls or .xlsx format, remove protection, and reduce file size if needed.

Why are data types detected incorrectly?

This happens when data is inconsistent, insufficient, or incorrectly formatted. Use consistent data types and standard formats, and include enough sample rows.

What is the difference between a Connection String and a Service Principal?

A connection string uses account keys and is simple to set up. A service principal uses Azure AD and is more secure. Use the connection string for testing and the service principal for production.

Why is the endpoint URL important?

It tells the system which storage account to connect to. Use the format: https://.blob.core.windows.net

Why must the connection string follow a specific format?

The system cannot parse or authenticate an incorrect format. Always use the exact format from the Azure Portal.

Why is Tenant ID required?

Tenant ID identifies your Azure AD directory for authentication. Copy it from the Azure Portal.

Why do operations fail when using a proxy?

Failures occur when proxy settings are incorrect or do not support HTTPS. Verify proxy configuration and authentication settings.

Why can’t I connect to Azure?

Connection fails due to firewall, DNS, or network restrictions. Allow outbound HTTPS (port 443) and verify DNS and network rules.

Why is file summary not available?

This happens when the file does not exist or when permissions are missing. Verify file existence and permissions.

Why are file paths not recognized?

This happens when the path format is incorrect or contains special characters. Use the format: container/folder/file.

Why does folder validation fail?

It fails when the path is incorrect or no files exist in that folder. Verify the path and ensure files exist.

Why does pagination fail?

Pagination fails due to large data volume or timeout issues. Load data in smaller batches or use specific paths.

Why does the temporary download fail?

It fails when disk space is low or permissions are missing. Ensure enough disk space and write permissions.

Why do I see “No containers found”?

This happens when the storage account has no containers or access is restricted. Create a container and verify permissions.

Known Limitations

S.No.

Limitation

For File-based connectors, the folder count in the File Manager and Data Catalog Files module may not match if folders or files are added or deleted in the source system after crawling. Run the connection crawl again to refresh and display the latest changes.

PreviousFILECLOUD NextFile Connectors

Was this helpful?
