# Microsoft Dynamics 365

This article outlines the integration with the **Microsoft Dynamics 365** connector, enabling streamlined metadata management through features such as crawling, sample profiling, data preview, and manual lineage.

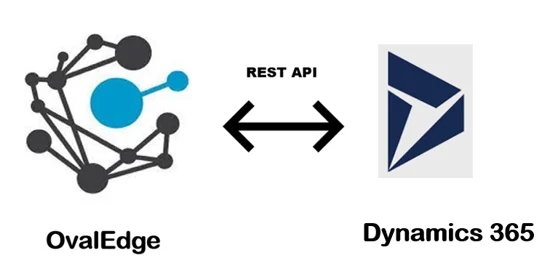

This connector connects to Microsoft Dynamics 365 using **REST APIs** and authenticates through Microsoft Entra ID (Azure AD) using OAuth 2.0 with an Azure AD application (Client ID, Client Secret, and Tenant ID). It obtains a valid OAuth access token to access Microsoft Dynamics 365 metadata and entity information, enabling metadata discovery, data preview, and sample profiling.

<img src="/files/CjbHHj9HwKThjtgxCyyI" alt="" height="343" width="624">

## Overview

### Connector Details

<table data-header-hidden><thead><tr><th width="443"></th><th></th></tr></thead><tbody><tr><td>Connector Category</td><td>Application</td></tr><tr><td>OvalEdge Release Supported</td><td>Release8.0 and later</td></tr><tr><td><p>Connectivity</p><p>[How the connection is established with Microsoft Dynamics 365]</p></td><td>REST APIs</td></tr></tbody></table>

### Connector Features

<table data-search="false"><thead><tr><th>Feature</th><th align="center">Availability</th></tr></thead><tbody><tr><td>Crawling</td><td align="center">✅</td></tr><tr><td>Delta Crawling</td><td align="center">❌</td></tr><tr><td>Profiling</td><td align="center">❌</td></tr><tr><td>Sample Profiling</td><td align="center">✅</td></tr><tr><td>Query Sheet</td><td align="center">❌</td></tr><tr><td>Data Preview</td><td align="center">✅</td></tr><tr><td>Auto Lineage</td><td align="center">❌</td></tr><tr><td>Manual Lineage</td><td align="center">✅</td></tr><tr><td>Secure Authentication via Credential Manager</td><td align="center">✅</td></tr><tr><td>Data Quality</td><td align="center">❌</td></tr><tr><td>DAM (Data Access Management)</td><td align="center">❌</td></tr><tr><td>Bridge</td><td align="center">✅</td></tr></tbody></table>

### Metadata Mapping

The following objects are crawled from Microsoft Dynamics 365 and mapped to the corresponding UI assets.

<table data-search="false"><thead><tr><th>MS Dynamics 365 Object</th><th width="180">MS Dynamics 365 Attribute</th><th>OvalEdge Attribute</th><th>OvalEdge Category</th><th>OvalEdge Type</th></tr></thead><tbody><tr><td>Schema</td><td>dynamics365</td><td>Schema</td><td>Databases</td><td>Schema</td></tr><tr><td>Schema</td><td>Schema comment</td><td>Source Description</td><td>Databases</td><td>Schema</td></tr><tr><td>Table</td><td>logicalname</td><td>Table</td><td>Tables</td><td>table</td></tr><tr><td>Table</td><td>Table Type</td><td>Type</td><td>Tables</td><td>table</td></tr><tr><td>Table</td><td>Table Comments</td><td>Source Description</td><td>Descriptions</td><td>table</td></tr><tr><td>Columns</td><td>Field keys from sampled entity row</td><td>Column</td><td>Table Columns</td><td>Columns</td></tr><tr><td>Columns</td><td>AttributeType</td><td>Column Type</td><td>Table Columns</td><td>Columns</td></tr><tr><td>Columns</td><td>Description.UserLocalizedLabel.Label</td><td>Source Description</td><td>Table Columns</td><td>Columns</td></tr><tr><td>Columns</td><td>ColumnNumber</td><td>Column Position</td><td>Table Columns</td><td>Columns</td></tr><tr><td>Columns</td><td>Length</td><td>Data Type Size</td><td>Table Columns</td><td>Columns</td></tr><tr><td>Columns</td><td>IsPrimaryId</td><td>Primary Key</td><td>Table Columns</td><td>Columns</td></tr><tr><td>Columns</td><td>RequiredLevel</td><td>Nullable</td><td>Table Columns</td><td>Columns</td></tr><tr><td>Column Relations</td><td>ReferencedEntity</td><td>Left Table</td><td>Relationships</td><td>-</td></tr><tr><td>Column Relations</td><td>ReferencedAttribute</td><td>Left Column</td><td>Relationships</td><td>-</td></tr><tr><td>Column Relations</td><td>ReferencingEntity</td><td>Right Table</td><td>Relationships</td><td>-</td></tr><tr><td>Column Relations</td><td>ReferencingAttribute</td><td>Right Column</td><td>Relationships</td><td>-</td></tr><tr><td>Views</td><td>View Name</td><td>View</td><td>Tables</td><td>view</td></tr><tr><td>Procedures</td><td>ROUTINE_NAME</td><td>Name</td><td>Procedures</td><td>-</td></tr><tr><td>Functions</td><td>ROUTINE_NAME</td><td>Name</td><td>Functions</td><td>-</td></tr><tr><td>Triggers</td><td>Trigger Name</td><td>Name</td><td>Triggers</td><td>-</td></tr><tr><td>Indexes</td><td>Index name</td><td>Index</td><td>Indexes</td><td>Index</td></tr></tbody></table>

## Set up a Connection

### Prerequisites

The following are the prerequisites to establish a connection:

**Service Account User Permissions**

{% hint style="warning" %}
It is recommended to use a dedicated service account to establish the connection to the data source, configured with the following minimum set of permissions.
{% endhint %}

{% hint style="info" %}
**👨‍💻 Who can provide these permissions?** These permissions are typically granted by the Microsoft Dynamics 365 administrator, as users may not have the required access to assign them independently.
{% endhint %}

<table data-search="false"><thead><tr><th width="158">Operations</th><th width="149">Objects</th><th width="202">API Details</th><th width="257">Access Permissions</th></tr></thead><tbody><tr><td>Connection Validation</td><td>-</td><td>POST /oauth2/v2.0/token</td><td>Valid Azure AD Application (Tenant ID, Client ID, Client Secret)</td></tr><tr><td>Crawling</td><td>Tables</td><td>GET /entities?$select=logicalname</td><td>Read</td></tr><tr><td>Crawling</td><td>Table Columns</td><td>GET /EntityDefinitions(LogicalName='{table}')?$select=EntitySetName</td><td>Read</td></tr><tr><td>Crawling</td><td>Table Columns</td><td>GET /{entitySetName}?$top=1</td><td>Read</td></tr><tr><td>Crawling</td><td>Table Columns</td><td>GET /EntityDefinitions(LogicalName='{table}')/Attributes(LogicalName='{column}')</td><td>Read</td></tr><tr><td>Crawling</td><td>Relationships</td><td>GET /RelationshipDefinitions</td><td>Read</td></tr><tr><td>Data Preview</td><td>Tables</td><td>GET /{entitySetName}?$top={limit}</td><td>Read</td></tr><tr><td>Sample Profiling</td><td>Tables / Table Columns</td><td>GET /{entitySetName}?$top={sampleSize}</td><td>Read</td></tr><tr><td>Profiling</td><td>Tables</td><td>GET /RetrieveTotalRecordCount(EntityNames=['{tableName}'])</td><td>Read / Execute Dataverse Action</td></tr></tbody></table>

{% hint style="info" %}

* A valid OAuth 2.0 access token must be obtained before performing metadata crawling, data preview, or sample profiling operations.
* The Azure AD application (service principal) requires Read access to Microsoft Dataverse metadata and entities, along with permission to execute the RetrieveTotalRecordCount Dataverse action.
  {% endhint %}

### Connection Configuration Steps

{% hint style="warning" %}
Users are required to have the Connector Creator role in order to configure a new connection.
{% endhint %}

1. Log into **OvalEdge**, go to **Administration** > **Connectors**, click **+ (New Connector)**, search for **Microsoft Dynamics 365**, and complete the required parameters.

{% hint style="info" %}
Fields marked with an asterisk (\*) are mandatory for establishing a connection.
{% endhint %}

<table data-search="false"><thead><tr><th width="220">Field Name</th><th>Description</th></tr></thead><tbody><tr><td>Connector Type</td><td>By default, "Microsoft Dynamics 365" is displayed as the selected connector type.</td></tr><tr><td>Credential Manager*</td><td><p>Select the desired credentials manager from the drop-down list. Relevant parameters will be displayed based on your selection.</p><p>Supported Credential Managers:</p><ul><li>OE Credential Manager</li><li>AWS Secrets Manager</li><li>HashiCorp Vault</li><li>Azure Key Vault</li></ul><p>For more details, click<a href="https://docs.ovaledge.com/connectors/additional-requirements/credential-manager-configuration"> here</a>. </p></td></tr><tr><td>Connector Name*</td><td><p>Enter a unique name for the Microsoft Dynamics 365 connection              </p><p>(Example: "Microsoft Dynamics 365_Prod").</p></td></tr><tr><td>Connector Environment</td><td><p>Select the environment (Example: PROD, STG) configured for the connector.</p><p>For more details, click<a href="https://docs.ovaledge.com/connectors/introduction-to-connectors/setup-and-connectivity/prerequisites#connector-environment"> here</a>. </p></td></tr><tr><td>Connector description</td><td>Enter a brief description of the connector.</td></tr><tr><td>Server*</td><td>Enter the Microsoft Dynamics 365 environment hostname (for example, orgname.xxxxxx.dynamics.com). The connector uses this hostname to construct the Microsoft Dataverse API endpoint and OAuth scope.</td></tr><tr><td>Client Id*</td><td>Enter the Azure AD Application (Client) ID of the registered application used to authenticate the connector with Microsoft Dynamics 365.</td></tr><tr><td>Client Secret*</td><td>Enter the client secret associated with the Azure AD application. This value is used together with the Client ID and Tenant ID to obtain the OAuth access token.</td></tr><tr><td>Tenant Id*</td><td>Enter the Azure AD Directory (Tenant) ID that identifies the Microsoft Entra tenant containing the registered application. The connector uses this value to authenticate through the Microsoft OAuth token endpoint.</td></tr><tr><td>Connection String</td><td><p>Configure the connection string for Microsoft Dynamics 365:</p><ul><li>Automatic Mode: The system generates a connection string based on the provided credentials.</li><li>Manual Mode: Enter a valid connection string manually.</li></ul></td></tr><tr><td>Proxy Enabled*</td><td>Select Yes to route API calls through a proxy server. Select No to bypass the proxy and connect directly.</td></tr><tr><td>Plugin Server</td><td>Enter the server’s name when running as a plugin server.</td></tr><tr><td>Plugin Port</td><td>Enter the port number on which the plugin is running.</td></tr></tbody></table>

<table data-header-hidden data-search="false"><thead><tr><th width="220"></th><th></th></tr></thead><tbody><tr><td><strong>Default Governance Roles</strong></td><td></td></tr><tr><td>Default Governance Roles*</td><td>Select the appropriate users or teams for each governance role from the drop-down list. All users and teams configured in OvalEdge Security are displayed for selection.</td></tr><tr><td><strong>Admin Roles</strong></td><td></td></tr><tr><td>Admin Roles*</td><td>Select one or more users from the dropdown list for Integration Admin and Security &#x26; Governance Admin. All users configured in OvalEdge Security are available for selection.</td></tr><tr><td><strong>No of Archive Objects</strong></td><td></td></tr><tr><td>No Of Archive Objects*</td><td><p>This shows the number of recent metadata changes to a dataset at the source. By default, it is off. To enable it, toggle the Archive button and specify the number of objects to archive.</p><p>Example: Setting it to 4 retrieves the last four changes, displayed in the 'Version' column of the 'Metadata Changes' module.</p></td></tr><tr><td><strong>Bridge</strong></td><td></td></tr><tr><td>Select Bridge*</td><td><p>If applicable, select the bridge from the drop-down list.</p><p>The drop-down list displays all active bridges configured in OvalEdge. These bridges enable communication between data sources and OvalEdge without altering firewall rules.</p></td></tr></tbody></table>

2. After entering all connection details, the following actions can be performed:
   1. Click **Validate** to verify the connection.
   2. Click **Save** to store the connection for future use.
   3. Click **Save & Configure** to apply additional settings before saving.
3. The saved connection will appear on the **Connectors** home page.

## Manage Connector Operations

### Crawl/Profile

{% hint style="warning" %}
To perform crawl and profile operations, users must be assigned the Integration Admin role.
{% endhint %}

The **Crawl/Profile** button allows users to select one or more schemas for crawling and profiling.&#x20;

1. Navigate to the **Connectors** page and click **Crawl/Profile**.
2. Select the schemas to **crawl**.
3. The **Crawl** option is selected by default. Click the **Crawl** & **Profile** radio button to perform both crawling and profiling operations.
4. Click **Run** to collect metadata from the connected source and load it into the **Data Catalog.**
5. After a successful crawl, the information appears in the **Data Catalog** > **Databases** tab.

The **Schedule** checkbox allows automated crawling and profiling at defined intervals, from a minute to a year.

1. Click the **Schedule** checkbox to enable the **Select** Period drop-down.
2. Select a time period for the operation from the drop-down menu.
3. Click **Schedule** to initiate metadata collection from the connected source.
4. The system will automatically execute the selected operation (**Crawl** or **Crawl & Profile**) at the scheduled time.

#### Other Operations

The **Connectors** page in OvalEdge provides a centralized view of all configured connectors, including their health status.

**Managing connectors includes:**

* **Connectors Health**: Displays the current status of each connector using a **green** icon for active connections and a **red** icon for inactive connections, helping to monitor the connectivity with data sources.
* **Viewing**: Click the **Eye** icon next to the connector name to view connector details, including schema, tables, and columns.

**Nine Dots Menu Options:**

To view, edit, validate, configure, or delete connectors, click on the **Nine Dots** menu.

* **Edit Connector**: Update and revalidate the data source.
* **Validate Connector:** Check the connection's integrity.
* **Settings**: Modify connector settings.
  * **Crawler**: Configure data extraction.
  * **Profiler**: Customize data profiling rules and methods.
  * **Access Instructions:** Add notes on how data can be accessed.
  * **Business Glossary Settings**: Manage term associations at the connector level.
  * **Lineage**: Select the parsing method and configure the AI confidence score threshold for automatic lineage merging.
  * **Others**: Configure notification recipients for metadata changes.
* **Delete Connector**: Remove a connector with confirmation.

For more details on connector settings, click [here](https://docs.ovaledge.com/connectors/introduction-to-connectors/setup-and-connectivity/connector-settings).

## Connectivity Troubleshooting

If incorrect parameters are entered, error messages may appear. Ensure all inputs are accurate to resolve these issues. If issues persist, contact the assigned support team.

<table><thead><tr><th width="89">Sl. No</th><th width="194">Error Message</th><th>Error Description &#x26; Resolution</th></tr></thead><tbody><tr><td>1</td><td>Failed to authenticate with Dynamics 365 / Failed to login</td><td><p>The connector could not authenticate with Microsoft Dynamics 365 using the configured credentials.</p><p><strong>Resolution</strong>:</p><ul><li>Verify the Server, Client Id, Client Secret, and Tenant Id values.</li><li>Ensure the Azure AD application exists in the specified tenant.</li><li>Verify that the configured client secret is the Secret Value and has not expired.</li></ul></td></tr><tr><td>2</td><td>AADSTS7000215: Invalid client secret provided</td><td><p>The configured client secret is invalid, expired, or the Secret ID was entered instead of the Secret Value.</p><p><strong>Resolution</strong>:</p><ul><li>Generate a new client secret in the Azure AD App Registration.</li><li>Copy the Secret Value, not the Secret ID.</li><li>Update the connector configuration and validate the connection again.</li></ul></td></tr><tr><td>3</td><td>AADSTS700016: Application with identifier was not found in the directory</td><td><p>The specified Client Id does not exist in the configured Azure AD tenant.</p><p><strong>Resolution</strong>:</p><ul><li>Verify that the Client Id and Tenant Id belong to the same Azure AD application.</li><li>Correct any typographical errors in the configured values.</li><li>Revalidate the connection after updating the configuration.</li></ul></td></tr><tr><td>4</td><td>AADSTS70011 / invalid_scope</td><td><p>The OAuth scope could not be generated because the Server value is invalid.</p><p><strong>Resolution</strong>:</p><ul><li>Enter only the Dataverse hostname (for example, orgname.xxxx.dynamics.com).</li><li>Do not include https://, URL paths, or trailing slashes.</li><li>Validate the connection after updating the Server value.</li></ul></td></tr><tr><td>5</td><td>Failed to get access token for Dynamics 365</td><td><p>The connector could not obtain an OAuth access token from Microsoft Entra ID.</p><p><strong>Resolution</strong>:</p><ul><li>Verify the Tenant Id, Client Id, and Client Secret.</li><li>Confirm that the token endpoint URL references the correct tenant.</li><li>Review the connector logs for the Azure AD authentication error.</li></ul></td></tr><tr><td>6</td><td>Test Connection succeeds, crawl fails with 401 Unauthorized</td><td><p>Authentication succeeded, but the Dataverse API rejected the access token during crawling.</p><p><strong>Resolution:</strong></p><ul><li>Add the Azure AD application as an Application User in the Dataverse environment.</li><li>Assign an appropriate Dataverse security role.</li><li>Retry the crawl after updating permissions.</li></ul></td></tr><tr><td>7</td><td>HTTP 403 Forbidden during crawl or profiling</td><td><p>The authenticated application does not have sufficient privileges to access Dataverse metadata or entities.</p><p><strong>Resolution</strong>:</p><ul><li>Assign a Dataverse security role with the required Read permissions.</li><li>Verify that metadata access is permitted.</li><li>Retry the operation after updating permissions.</li></ul></td></tr><tr><td>8</td><td>Exception occurred while getting the remote tables for the schema: dynamics365</td><td><p>The connector could not retrieve entity metadata from Microsoft Dataverse.</p><p><strong>Resolution</strong>:</p><ul><li>Verify the configured Server value and API endpoint.</li><li>Check proxy or network connectivity settings.</li><li>Ensure the application has permission to read Dataverse metadata.</li></ul></td></tr><tr><td>9</td><td>EntitySet not found for the entity {name}</td><td><p>The connector could not resolve the EntitySet name for the specified entity.</p><p><strong>Resolution</strong>:</p><ul><li>Verify that the entity exists in the Dataverse environment.</li><li>Ensure the application has access to the entity metadata.</li><li>Confirm that the entity has not been renamed or removed.</li></ul></td></tr><tr><td>10</td><td>Exception occurred while getting the remote columns for the table: {table}</td><td><p>The connector could not retrieve column metadata or sample records for the specified table.</p><p><strong>Resolution</strong>:</p><ul><li>Verify that the table contains at least one readable record.</li><li>Ensure the application has permission to read entity attributes.</li><li>Validate that the EntitySet name is resolved successfully.</li></ul></td></tr><tr><td>11</td><td>Exception occurred while getting the first N rows of the table: {table}</td><td><p>Sample profiling or Data Preview could not retrieve records from the entity.</p><p><strong>Resolution</strong>:</p><ul><li>Verify that the application has read access to the entity.</li><li>Confirm that the table contains accessible records.</li><li>Check proxy and network connectivity if the issue persists.</li></ul></td></tr><tr><td>12</td><td>Exception occurred while getting the number of rows of the table: {table}</td><td><p>The connector could not retrieve the table row count using the Dataverse action.</p><p><strong>Resolution</strong>:</p><ul><li>Ensure the application user can execute the RetrieveTotalRecordCount action.</li><li>Verify that the required Dataverse permissions are assigned.</li><li>Retry the profiling operation after updating permissions.</li></ul></td></tr><tr><td>13</td><td>Exception occurred while getting the remote column relations</td><td><p>The connector could not retrieve relationship metadata from Dataverse.</p><p><strong>Resolution</strong>:</p><ul><li>Verify that the application has permission to read relationship metadata.</li><li>Confirm that metadata access is enabled for the application.</li><li>Retry the crawl after updating permissions.</li></ul></td></tr><tr><td>14</td><td>Connection timeout or proxy errors</td><td><p>The connector could not communicate with Microsoft Entra ID or the Dataverse endpoint due to network or proxy issues.</p><p><strong>Resolution</strong>:</p><ul><li>Verify the configured proxy settings if proxy is enabled.</li><li>Ensure outbound HTTPS access to login.microsoftonline.com and the Dataverse environment.</li><li>Retry the connection after resolving network connectivity issues.</li></ul></td></tr><tr><td>15</td><td>Unauthorized token in getRemoteColumns / getEntitySetByEntityName / getIndividualColumns</td><td><p>The access token became invalid or unauthorized while retrieving metadata.</p><p><strong>Resolution</strong>:</p><ul><li>Verify that the configured Client Secret is valid and has not expired.</li><li>Confirm that the Dataverse Application User exists and is enabled.</li><li>Revalidate the connection and rerun the operation.</li></ul></td></tr></tbody></table>

***
