# Microsoft Access

An out of the box connector is available for \<MS Access> databases. It provides support for crawling database objects, profiling of sample data.

## **Connectivity Summary**

<figure><img src="https://content.gitbook.com/content/hTnkoJQml0pok9awFDhx/blobs/vviX87W5OGsXaf9BYC5f/msaconn.webp" alt=""><figcaption></figcaption></figure>

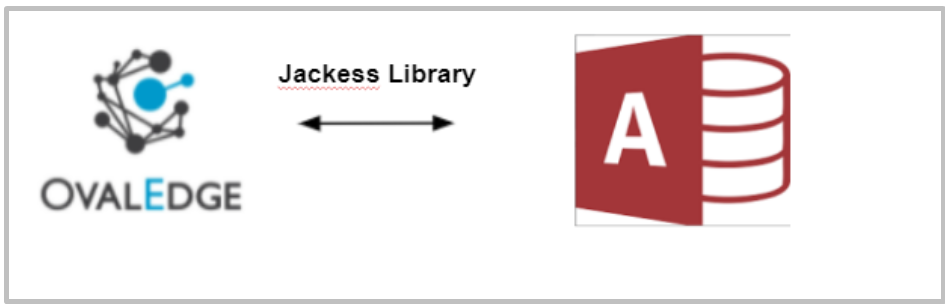

The connectivity to \<MS Access> is via \<Jackess Library>, which is included in the platform.&#x20;

The connector currently supports the following versions of MS Access:

| Edition                 | Version | Support   |
| ----------------------- | ------- | --------- |
| Professional            | 11.0.X  | Supported |
| Standard                | 11.0.X  | Supported |
| Professional Enterprise | 11.0.X  | Supported |

The drivers used by the connector are given below:

| Driver / API      | Version | Details                             |
| ----------------- | ------- | ----------------------------------- |
| UCanAccess Driver | 4.0.4   | Is JDBC 4.2 compliant, uses JDK 8.0 |

## **Technical Specifications**

The connector capabilities are shown below:

### **Crawling**

| Feature  | Supported Objects | Remarks                                                      |
| -------- | ----------------- | ------------------------------------------------------------ |
| Crawling | Tables            |                                                              |
| Crawling | Table columns     | <p>Supported Data types:</p><p>STRING, TIMESTAMP, BIGINT</p> |
| Crawling | Views             |                                                              |

### **Profiling**

| Feature          | Support                                       | Remarks                                           |
| ---------------- | --------------------------------------------- | ------------------------------------------------- |
| Table Profiling  | Row count, Columns count, View sample data    |                                                   |
| View Profiling   | Row count, Columns count, View sample data    | View is treated as a table for profiling purposes |
| Column Profiling | Min, Max, Null count, distinct, top 50 values |                                                   |
| Full Profiling   | Supported                                     |                                                   |
| Sample Profiling | Supported                                     |                                                   |

### **Lineage Building**

| Lineage Entities | Details       |
| ---------------- | ------------- |
| Table lineage    | Not Supported |
| Column lineage   | Not Supported |

### **Querying**&#x20;

| Operation              | Details                    |
| ---------------------- | -------------------------- |
| Select                 | Supported                  |
| Insert                 | Not supported, by default. |
| Update                 | Not supported, by default. |
| Delete                 | Not supported, by default. |
| Joins within database  | Supported                  |
| Joins outside database | Not supported              |
| Aggregations           | Supported                  |
| Group By               | Supported                  |
| Order By               | Supported                  |

By default the service account provided for the connector will be used for any query operations. If the service account has write privileges, then Insert / Update / Delete queries can be executed.

## **Pre-requisites**

To use the connector, the following need to be available:

1. Connection details as specified in the following section should be available.
2. An admin / service account with read privileges.
3. JDBC driver is provided by default. In case it needs to be changed, add MS Access client drivers into the OvalEdge Jar path to communicate to the MS Access database.
4. Check the Configuration section for further details on how to add the drivers to the jar path.

### **Connection Details**

The following connection settings should be added for connecting to a MS Access database:

<table><thead><tr><th width="176.5">Property</th><th>Details</th></tr></thead><tbody><tr><td>Database Type</td><td>MS Access</td></tr><tr><td>Connection Name</td><td>Select a Connection name for the MS Access  database. The name that you specify is a reference name to easily identify your MS Access  database connection in OvalEdge. Example: MS Access Connection DB1</td></tr><tr><td>File System</td><td>Which type of file system where files are located</td></tr><tr><td>File Path</td><td>Location of the .accdb or .mdb files</td></tr><tr><td>Username </td><td>User account login credential MS Access Authentication</td></tr><tr><td>Password </td><td>Password  (only for &#x3C;MS Access> Authentication)</td></tr></tbody></table>

Once connectivity is established, additional configurations for crawling and profiling can be specified:

## **FAQs**

**1. What should I know when upgrading my driver?**

The Microsoft JDBC Driver 7.4 supports the JDBC 4.2, and 4.3 (partially) specifications and includes three JAR class libraries in the installation package as follows:

| JAR            | JDBC Specification | JDK Version |
| -------------- | ------------------ | ----------- |
| UCanAccess.jar | JDBC 4.2           | JDK 8.0     |

**2. How much does the driver cost?**

The Microsoft JDBC Driver for MS Access is available at no additional charge.

**3.  Can I use the driver to access MS Access from a Linux computer?**

Yes! You can use the driver to access MS Access from Linux, Unix, and other non-Windows platforms.&#x20;

**4.  Which authentication types are supported by the MS Access JDBC Driver for MS Access?**\
The table below lists available authentication options.

| Platform     | Authentication                   |
| ------------ | -------------------------------- |
| Any Platform | Authentication By Password/Token |

***
