> For the complete documentation index, see [llms.txt](https://docs.ovaledge.com/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.ovaledge.com/release8.3/deployment-and-maintenance/backup/cron-tab-for-daily-backup-and-db-restoration.md). # Cron Tab for Daily Backup and DB Restoration This document describes the procedure for automating MySQL database backups and restores using CronTab on a Linux-based system. The process ensures consistent backup execution and supports timely recovery in case of data loss. It reduces manual intervention and improves the reliability of metadata storage for the OvalEdge platform. ## Prerequisites * Linux-based system with root or sudo access * Sufficient storage space for backup files * Basic knowledge of CronTab and shell scripting * NFS mount (optional) for storing backups in a network location ## Steps Involved 1. Configure MySQL Database Backup * Log in to the MySQL server. * Create a directory to store backup scripts and files. * Create a file named mysql\_backup.sh.\ \ Sample Reference Screenshot:

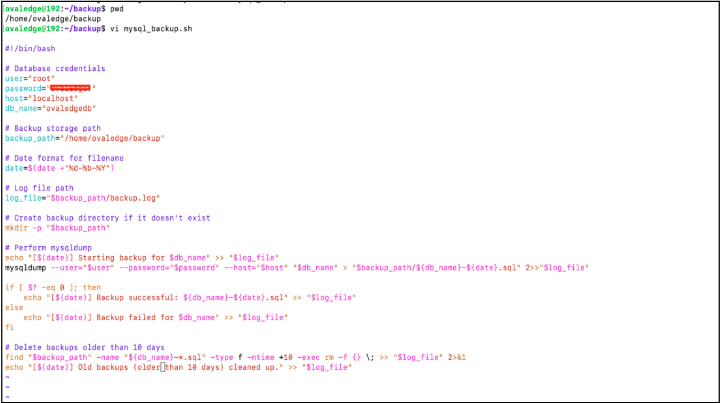

* Add the following script to the file: ``` #!/bin/bash # Database credentials user="root" password="" host="" db_name="ovaledgedb" # Backup storage path backup_path="" # Date format for filename date=$(date +"%d-%b-%Y") # Log file path log_file="$backup_path/backup.log" # Create backup directory if it does not exist mkdir -p "$backup_path" # Perform mysqldump echo "[$(date)] Starting backup for $db_name" >> "$log_file" mysqldump --user="$user" --password="$password" --host="$host" "$db_name" > "$backup_path/${db_name}-${date}.sql" 2>>"$log_file" if [ $? -eq 0 ]; then echo "[$(date)] Backup successful: ${db_name}-${date}.sql" >> "$log_file" else echo "[$(date)] Backup failed for $db_name" >> "$log_file" fi # Delete backups older than 10 days find "$backup_path" -name "${db_name}-*.sql" -type f -mtime +10 -exec rm -f {} \; >> "$log_file" 2>&1 echo "[$(date)] Old backups (older than 10 days) cleaned up." >> "$log_file" ``` Sample Reference Screenshot:

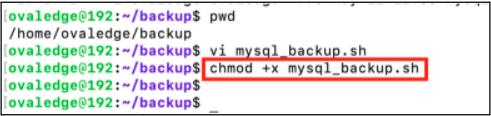

* Update the following parameters based on the environment: * MySQL username and password * Host (local or RDS endpoint) * Backup directory path * Grant execute permission to the script: ``` chmod +x mysql_backup.sh ``` \ Sample Reference Screenshot:

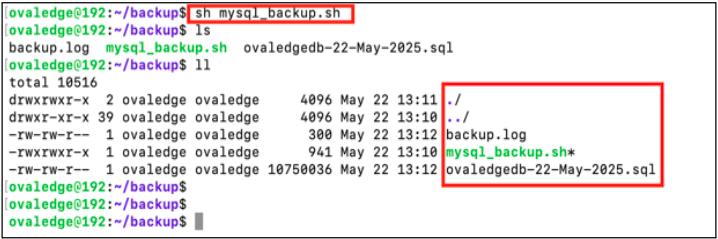

* Run the script manually to verify execution: ``` sh mysql_backup.sh ``` \ Sample Reference Screenshot:

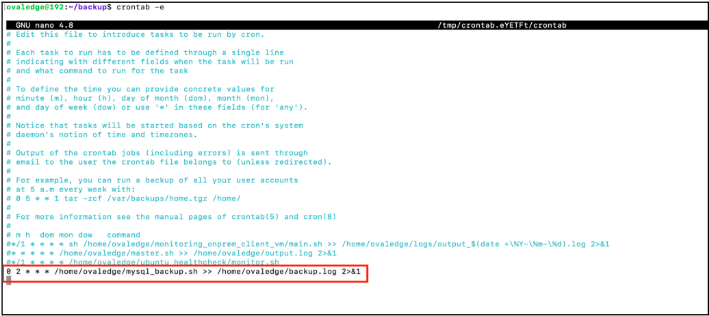

* Confirm that the backup file is created in the specified directory. 2. Schedule Backup Using CronTab * Open the crontab editor: ``` crontab -e ``` * Add the following entry to schedule daily execution at 2:00 AM: ``` 0 2 * * * /home/ovaledge/mysql_backup.sh >> /home/ovaledge/backup.log 2>&1 ``` \ \ Sample Reference Screenshot:

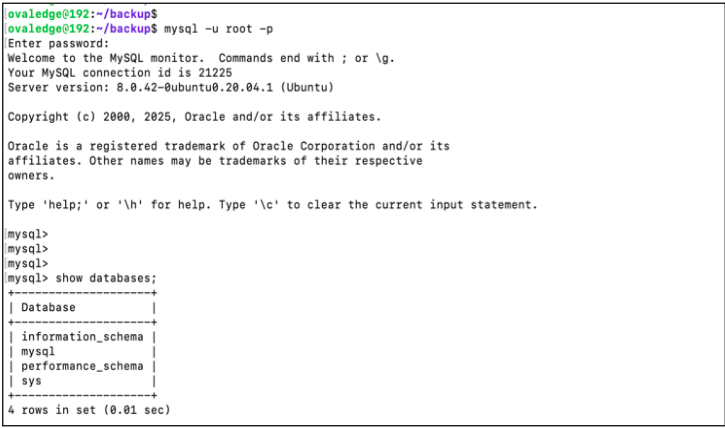

{% hint style="info" %} This configuration runs the backup script daily at 02:00 AM, and appends logs to the specified log file. {% endhint %} 3. Perform MySQL Database Restoration * Connect to the MySQL server: ``` mysql -u root -p ``` \ Sample Reference Screenshot:

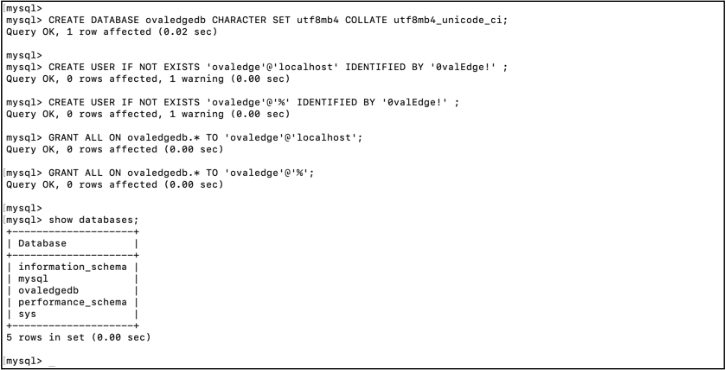

* Create the database and user, and grant required permissions: ``` CREATE DATABASE ovaledgedb CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci; CREATE USER IF NOT EXISTS 'ovaledge'@'localhost' IDENTIFIED BY ''; CREATE USER IF NOT EXISTS 'ovaledge'@'%' IDENTIFIED BY ''; GRANT ALL ON ovaledgedb.* TO 'ovaledge'@'localhost'; GRANT ALL ON ovaledgedb.* TO 'ovaledge'@'%'; ``` \ Sample Reference Screenshot:

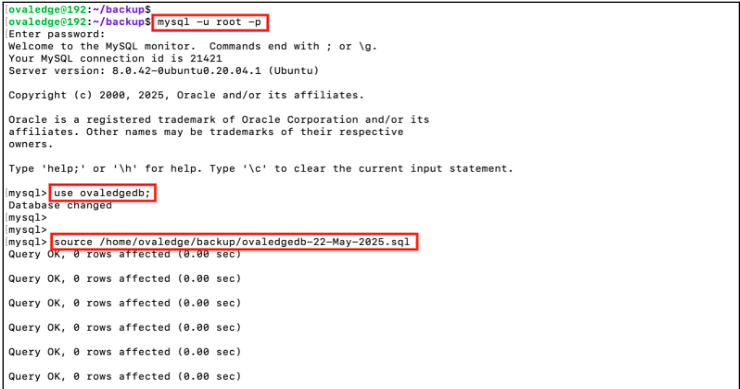

* Replace with the required password. * Restore the database using the backup file: ``` source /home/ovaledge/ovaledgedb-22-May-2025.sql ``` \ Sample Reference Screenshot:

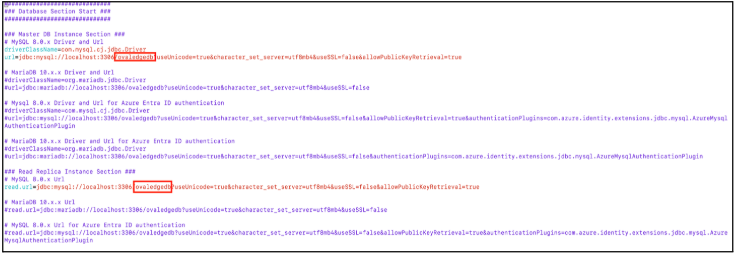

* Verify that the database restoration is completed successfully. 4. Update Configuration and Start Services * Update the oasis.properties file with the correct database details.\ \ Sample Reference Screenshot:

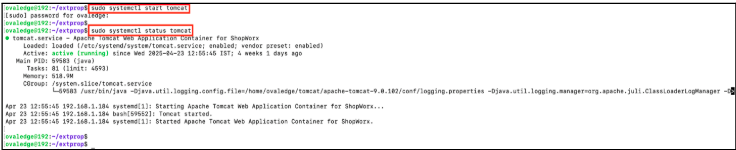

* Start the Tomcat service: ``` sudo systemctl start tomcat ``` \ Sample Reference Screenshot:
* Verify that the application is accessible after a few minutes. *** Copyright © 2026, OvalEdge LLC, Peachtree Corners, GA, USA. --- # Agent Instructions This documentation is published with GitBook. GitBook is the documentation platform designed so that both humans and AI agents can read, navigate, and reason over technical content effectively. Learn more at gitbook.com. ## Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation by asking a question. Perform an HTTP GET request on the following URL with the `ask` and `goal` query parameters: ``` GET https://docs.ovaledge.com/release8.3/deployment-and-maintenance/backup/cron-tab-for-daily-backup-and-db-restoration.md?ask=&goal= ``` `ask` is the immediate question: it should be specific, self-contained, and written in natural language. `goal` is what the user is ultimately trying to achieve, the reason they need the answer. Sharing it helps GitBook give you a better, more relevant answer. A goal is most helpful when it describes the outcome the user wants rather than restating the question. For example, with `ask=how do I create an API token`, a goal like `automate deployments from our CI pipeline` lets GitBook tailor the answer to that use case. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
