# SSAS Application Setup

This document outlines the step-by-step process to install the SSAS Application as a Windows service using NSSM (nssm.exe). This setup is applicable for both .NET 6 and .NET 8 versions.

The SSAS Application can be executed in two ways.

* Automatic execution by installing the application as a Windows Service using NSSM
* Manual execution by running the application using Command Prompt

## Download the SSAS Application Package

Download the SSAS project ZIP file provided as part of the installation artifacts.

#### Download Details

<table><thead><tr><th width="220.140625">Item</th><th>Description</th></tr></thead><tbody><tr><td>Package Name</td><td>ssas_app.zip</td></tr><tr><td>Source</td><td>Provided by OvalEdge as part of the installation artifacts</td></tr></tbody></table>

{% hint style="info" %}
Use the provided ZIP file for the SSAS Application installation and configuration.
{% endhint %}

## Extract the SSAS Package

* Extract the downloaded zip file into a preferred directory.
* This extracted folder contains the SSAS Application project files required for configuration and execution.

## Configure the SSAS Application

### Update the SSAS Configuration File

Before running the SSAS Application, update the SSAS configuration file with the required server details.

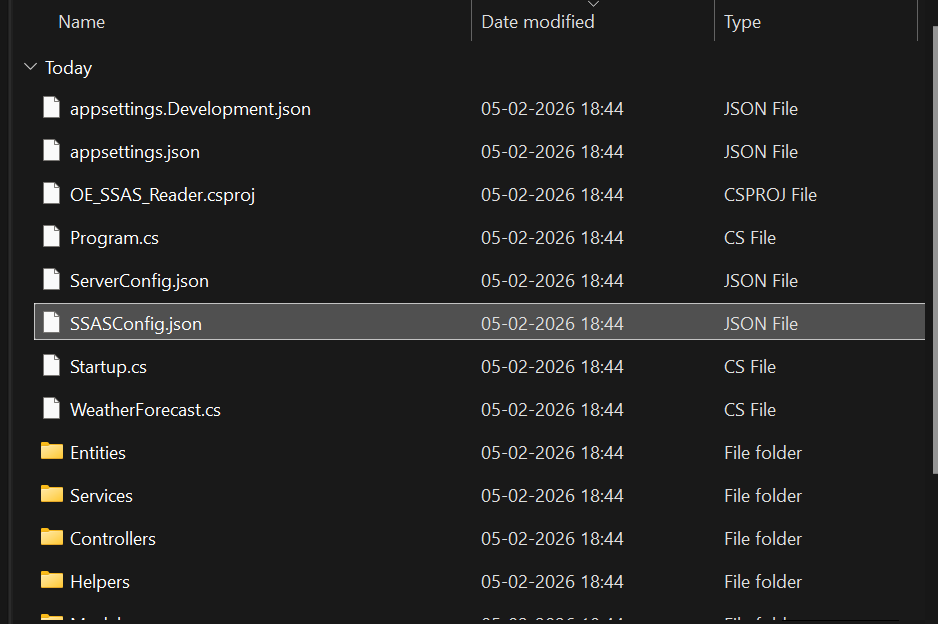

#### Locate the Configuration Directory

* Navigate to the SSASConfig.json directory inside the extracted SSAS application folder.

<figure><img src="https://content.gitbook.com/content/8fgltewNgYZ8ucAp7Svt/blobs/eF1GVWkvFF4k8hfc94Zq/unknown.png" alt=""><figcaption></figcaption></figure>

#### Edit the Configuration File

* Open the configuration file for editing and update the required SSAS server connection details.

#### Provide SSAS Server Details

* Update the configuration file by entering the following information.

| Parameter                             | Description                                                 |
| ------------------------------------- | ----------------------------------------------------------- |
| SSAS Server Domain Name or IP Address | Domain name or IP address of the SSAS server to be accessed |

{% hint style="warning" %}
The SSAS server domain name or IP address must be correctly updated in the configuration file. Incorrect details may prevent the application from connecting to the SSAS server.
{% endhint %}

## Select the SSAS Execution Mode

### SSAS Application Startup Method

SSAS Application can be started manually or automatically based on the requirement.

| Startup Method | Description                                               |
| -------------- | --------------------------------------------------------- |
| Automatic      | Runs the SSAS Application as a Windows Service using NSSM |
| Manual         | Runs the SSAS Application directly using .Net commands    |

{% hint style="warning" %}
For automatic startup, proceed with next step (Locate the NSSM Executable) where the application is configured as a Windows Service.
{% endhint %}

## Running the SSAS Application Automatically

Configure the SSAS Application as a Windows Service

* Open Command Prompt
  * Open Command Prompt on the Windows machine.
* Navigate to the Project Folder
  * Navigate to the folder where the .NET SSAS project is available.

```
cd C:\ssas_app\v8.0\OE_SSAS_Reader
```

{% hint style="warning" %}
The folder path may vary depending on where the zip file was extracted.
{% endhint %}

## Build the SSAS Application

Execute the following commands in sequence to run the SSAS application manually.

* Build the Project
  * Build the SSAS application using the following command.

```
dotnet build
```

This will generate the SSAS Application executable file OE\_SSAS\_Reader.exe under bin\Debug\net8.0

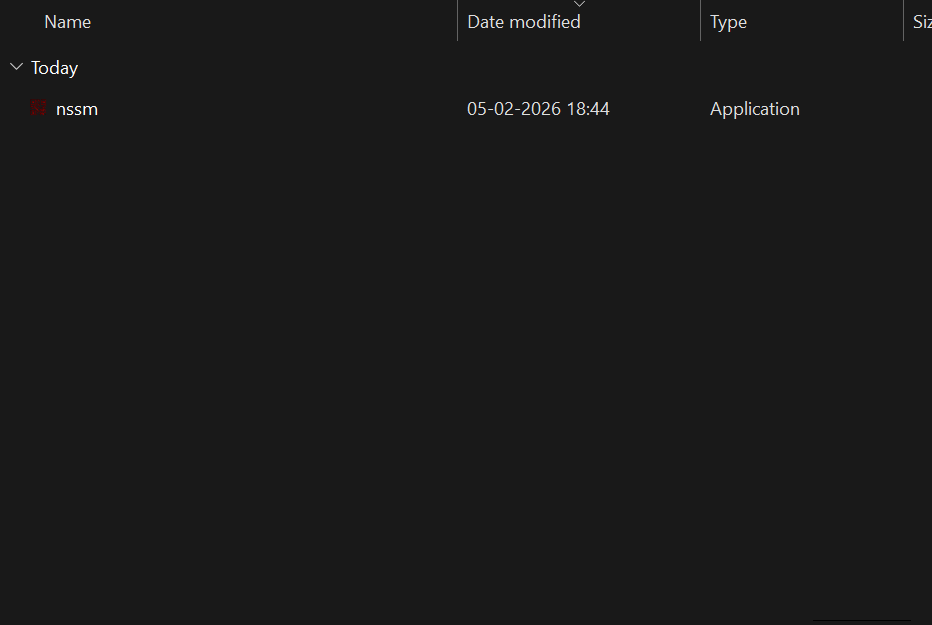

### Locate the NSSM Executable

* Navigate to the folder where nssm.exe is available under the extracted ssas\_app.zip directory.
  * Path: \<extracted\_ssas\_app\_folder>\NSSM\nssm.exe
  * The nssm.exe executable is available within the extracted SSAS application package.

<figure><img src="https://content.gitbook.com/content/8fgltewNgYZ8ucAp7Svt/blobs/C413T2G4lZmy71K1OhP0/unknown.png" alt=""><figcaption></figcaption></figure>

* This executable is used to install the SSAS application as a Windows service.

## Install the SSAS Application as a Windows Service

Install the SSAS Application as a Windows service using Command Prompt.

### Open Command Prompt in the NSSM Directory

* Open Command Prompt and ensure the current path is set to the directory where nssm.exe is located.

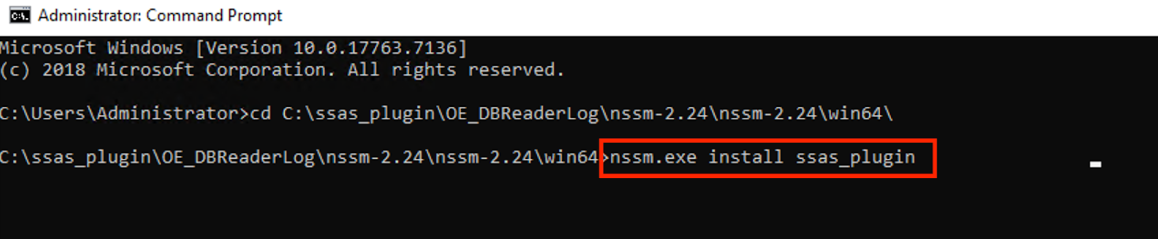

### Execute the NSSM Install Command

* Run the following command to install the SSAS Application as a service.

```
nssm.exe install <ssas_plugin_service_name>
```

<figure><img src="https://content.gitbook.com/content/8fgltewNgYZ8ucAp7Svt/blobs/i6BWlpX9KPSGpKZtvjgm/unknown.png" alt=""><figcaption></figcaption></figure>

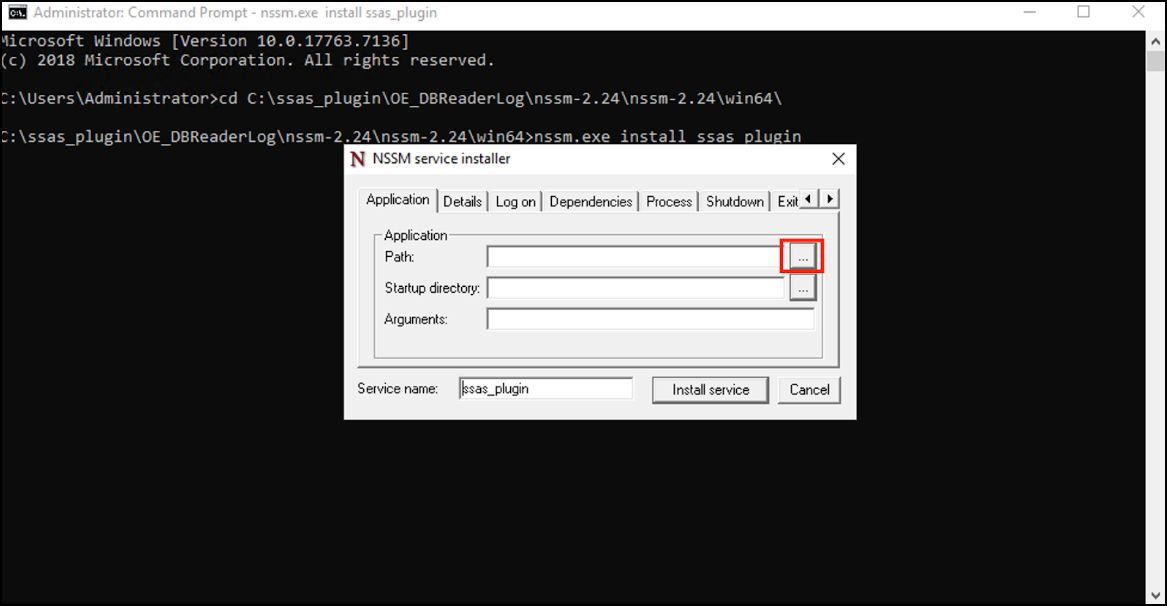

### Provide the Application Executable Path

After running the command, a pop-up window is displayed.

* Click the three-dot button (...)
* Browse and select the SSAS Application executable (.exe) file path

<figure><img src="https://content.gitbook.com/content/8fgltewNgYZ8ucAp7Svt/blobs/gbf8rpyDTdZodzmAaphJ/unknown.png" alt=""><figcaption></figcaption></figure>

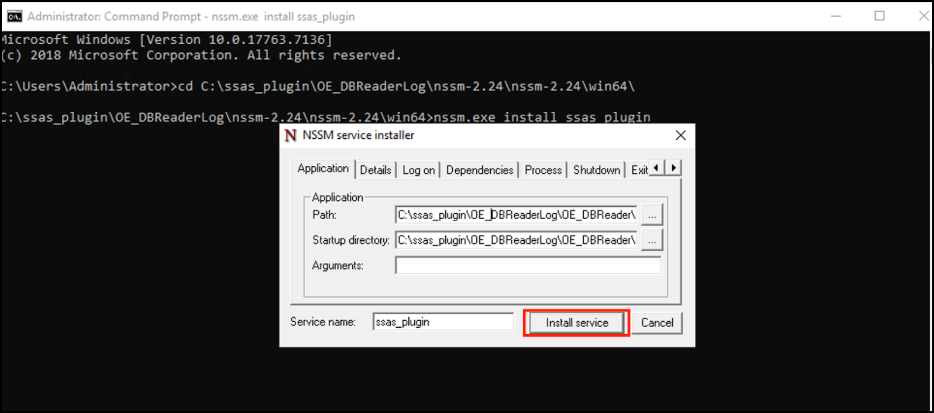

### Install the Service

* After selecting the executable file, click Install Service to complete the service installation.

<figure><img src="https://content.gitbook.com/content/8fgltewNgYZ8ucAp7Svt/blobs/qZVpjOsjloDx0hbtTAaR/unknown.png" alt=""><figcaption></figcaption></figure>

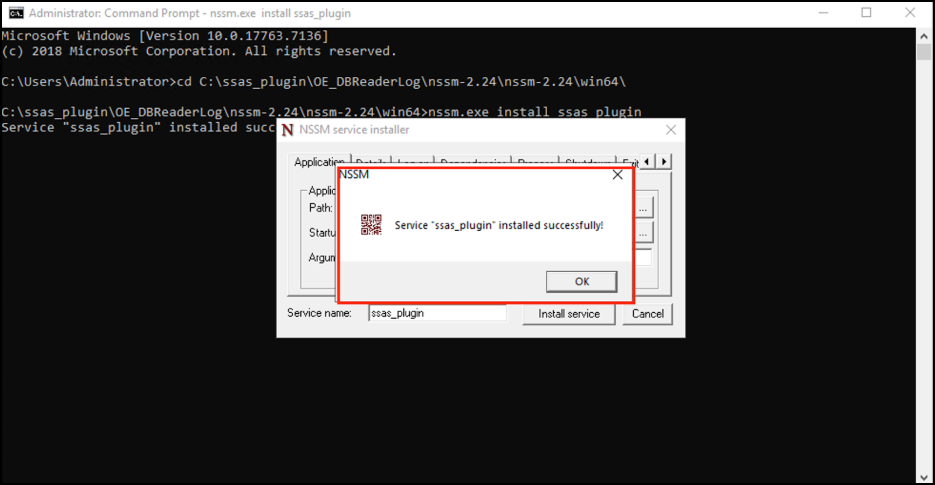

### Confirm the Installation

* A confirmation message is displayed indicating that the service was installed successfully.

<figure><img src="https://content.gitbook.com/content/8fgltewNgYZ8ucAp7Svt/blobs/jdG7J10qitBO1oQqCfDs/unknown.png" alt=""><figcaption></figcaption></figure>

{% hint style="warning" %}
The SSAS Application service name provided in the install command is used to identify the service in the Windows Services console.
{% endhint %}

## Starting the SSAS Windows Service

### Start the Installed SSAS Application Service

After the SSAS Application is installed as a Windows service, start the service from the Services console.

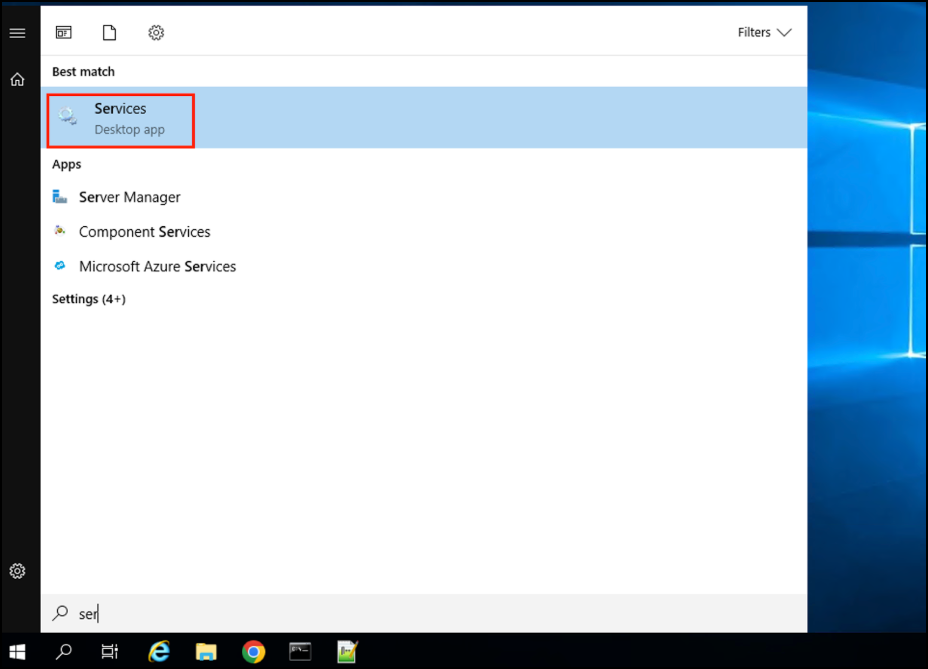

* Open the Services Console
  * Open the Windows Services console using the following command.

```
services.msc
```

<figure><img src="https://content.gitbook.com/content/8fgltewNgYZ8ucAp7Svt/blobs/XrvUmkQp1jPFZi4xqzN4/unknown.png" alt=""><figcaption></figcaption></figure>

* Locate the Installed Service
  * Locate the SSAS Application service that was installed using NSSM.

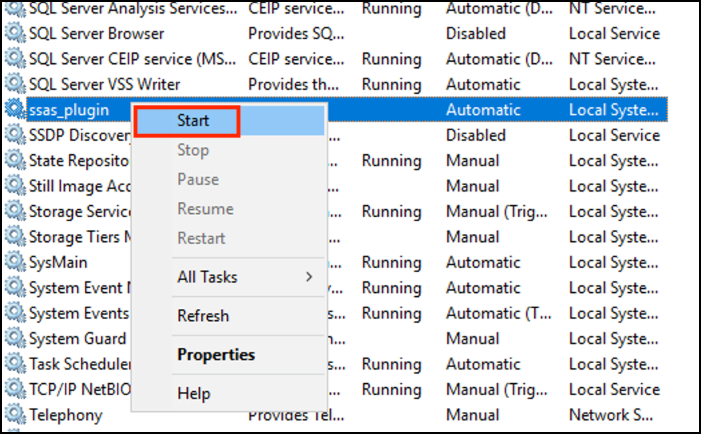

* Start the Service
  * Right click the service and select Start.

<figure><img src="https://content.gitbook.com/content/8fgltewNgYZ8ucAp7Svt/blobs/a4v1A0tNSes8nepBJtyg/unknown.png" alt=""><figcaption></figcaption></figure>

{% hint style="warning" %}
The SSAS application runs continuously when started as a Windows service.
{% endhint %}

## Running the SSAS Application Manually

### Execute the SSAS Application Using Command Prompt

Manual execution is supported for running the SSAS application without installing it as a Windows service.

* Open Command Prompt
  * Open Command Prompt on the Windows machine.
* Navigate to the Project Folder
  * Navigate to the folder where the .NET SSAS project is available.

```
cd C:\ssas_app\v8.0\OE_SSAS_Reader
```

{% hint style="warning" %}
The folder path may vary depending on where the zip file was extracted.
{% endhint %}

## Build, Publish, and Run the SSAS Application

Execute the following commands in sequence to run the SSAS application manually.

* Build the Project
  * Build the SSAS application using the following command.

```
dotnet build

```

* Publish the Project
  * After the build is completed, publish the SSAS application using the following command.

```
dotnet publish
```

* Run the Project
  * After the publish is completed, run the SSAS application using the following command.

```
dotnet run
```

{% hint style="warning" %}
All commands must be executed in the SSAS project folder location.
{% endhint %}

## Accessing the SSAS Swagger UI

### Open Swagger UI for SSAS Application

After the SSAS application is started, access the Swagger documentation page using the following URL.

```
http://<ssas_server_domain_name_or_ip>:5000/swagger/index.html
```

{% hint style="warning" %}
Swagger UI provides API documentation and allows validation of the SSAS Application availability.
{% endhint %}

***
