# Governance APP on Windows OS

This article outlines the steps required to install and configure the **OvalEdge Governance App** on a Windows-based system.

### Purpose

* Enable standalone deployment of the Governance App on a Windows machine.
* Integrate the Governance App with the OvalEdge platform.

## Prerequisites

### System Requirements

* **Windows Operating System:** Windows 10/11 or Windows Server 2016+.
* Administrative access to the Windows machine.

#### Java

* Java Development Kit (JDK) must be installed.
* Java must be available in the system `PATH`.
* Verify installation:

  ```bash
  java -version
  ```

#### Internet Access

* Required to download dependencies such as the `application.yaml` file.

#### Required Permissions

* Ability to create directories on `C:\`.
* Permission to execute `.jar` files from the command prompt.
* Ability to open ports (ensure port **8082** is not blocked or in use).

#### Required Files

* `oe-gov-app.jar` – provided by the OvalEdge team.
* `application.yaml` – download from the official release link.
* Access to `oasis.properties` – located in the `extprop` directory of the OvalEdge setup.

#### Tomcat Access

* Permission to restart the Tomcat service on the OvalEdge host machine.

## Installation Steps

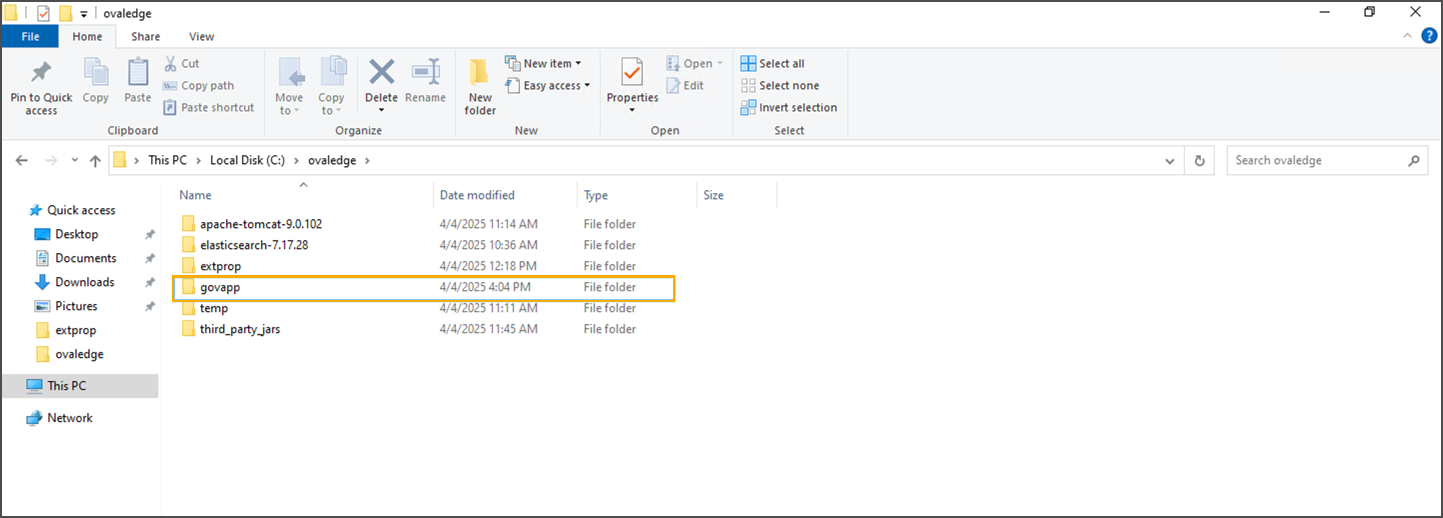

#### Create the Installation Directory

* Open File Explorer or Command Prompt.
* Create a directory named `govapp` on the `C:` drive:

  ```bash
  mkdir C:\govapp
  ```

  <figure><img src="/files/gCKsqUFFOLufNpuxGKN6" alt=""><figcaption></figcaption></figure>

#### Download and Place Configuration File

* Download `application.yaml` from:\
  [https://ovaledge-releases.s3.ap-south-1.amazonaws.com/Release7.1.1/windows/application.yaml](https://ovaledge-releases.s3.ap-south-1.amazonaws.com/Release7.1.1/windows/application.yaml?utm_source=chatgpt.com)

  <figure><img src="/files/kxtRICZBAnTRITdAaEwr" alt=""><figcaption></figcaption></figure>

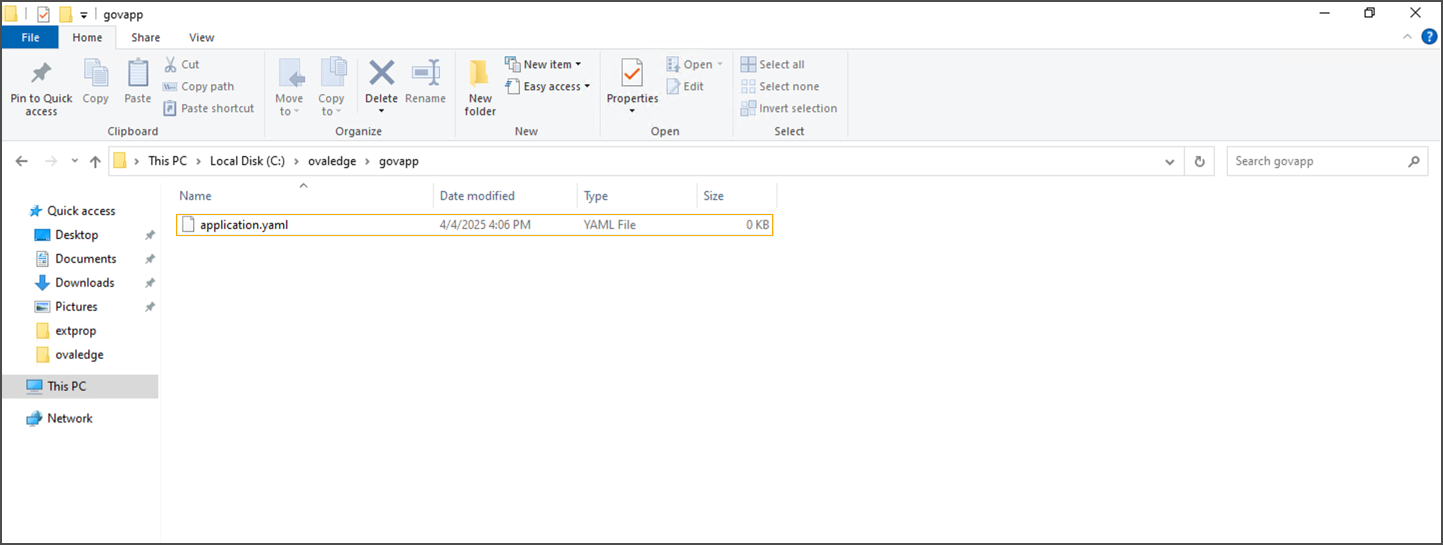

* Save it to `C:\govapp`.

  <figure><img src="/files/vATcfCxSzSImHSxGaqqQ" alt=""><figcaption></figcaption></figure>

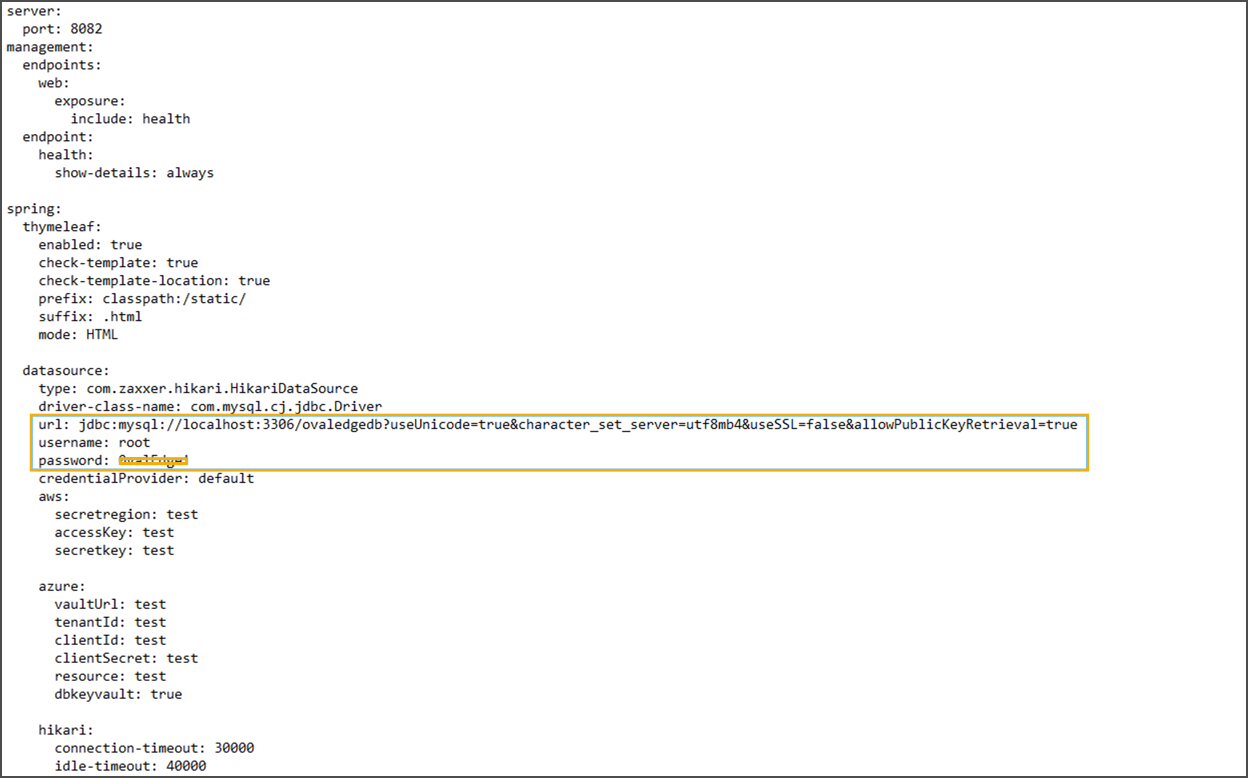

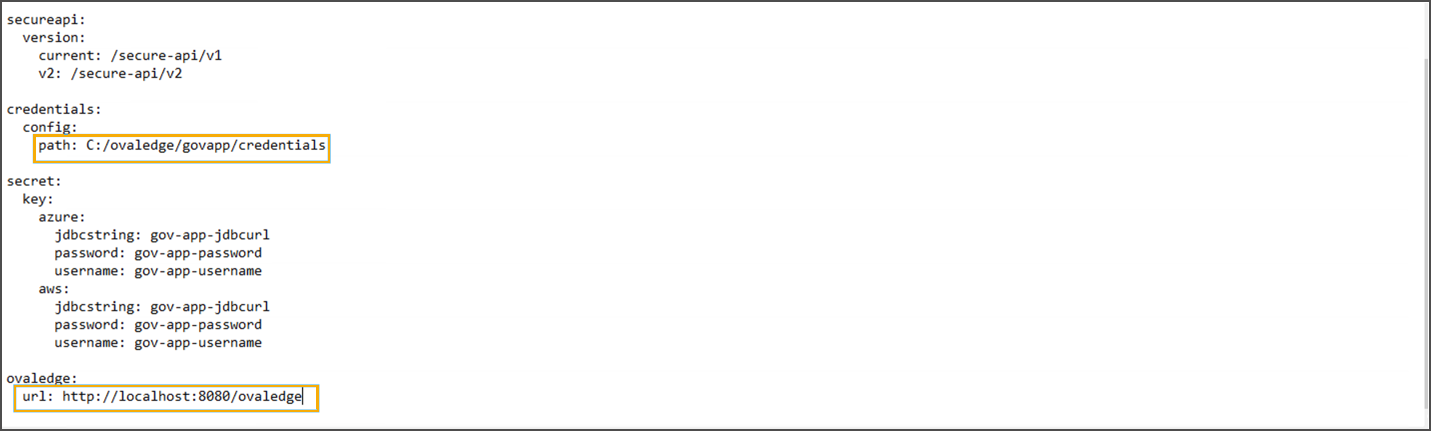

* Customize the contents (database credentials, service URLs, etc.).

  <figure><img src="/files/7zlEDuMgD0xwsmONqLmq" alt=""><figcaption></figcaption></figure>

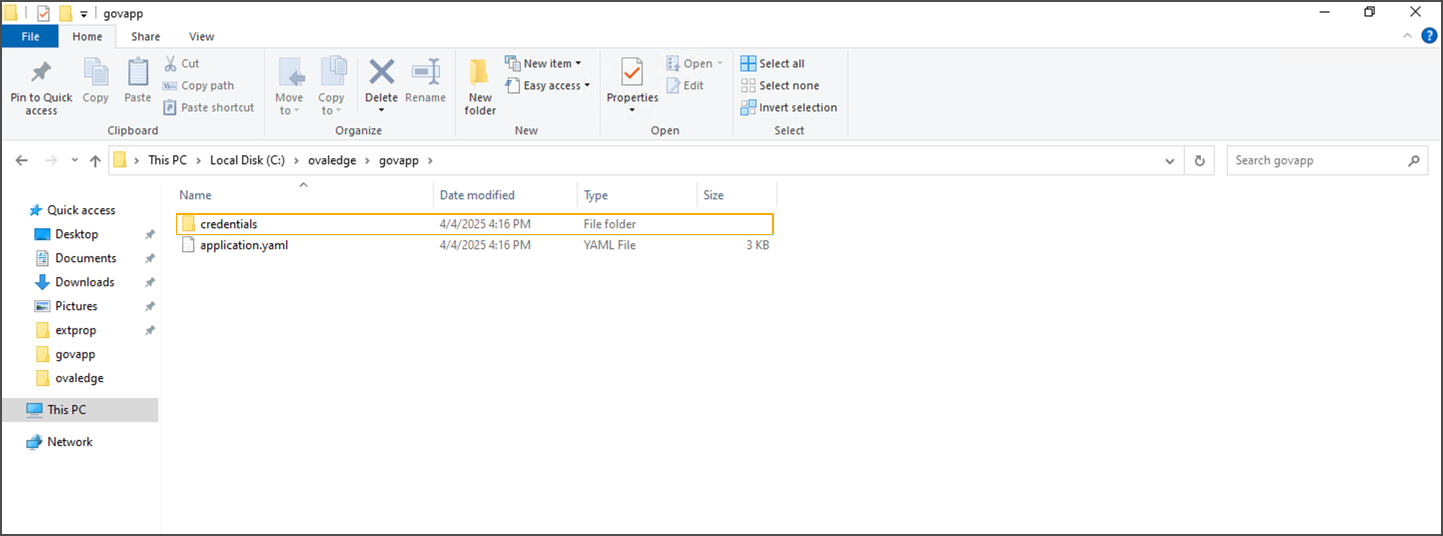

#### Create the Credentials Folder

* Inside `C:\govapp`, create a folder named `credentials`:

  ```bash
  mkdir C:\govapp\credentials
  ```

  <figure><img src="/files/ij2eBczK6bnSIdnzzGmB" alt=""><figcaption></figcaption></figure>

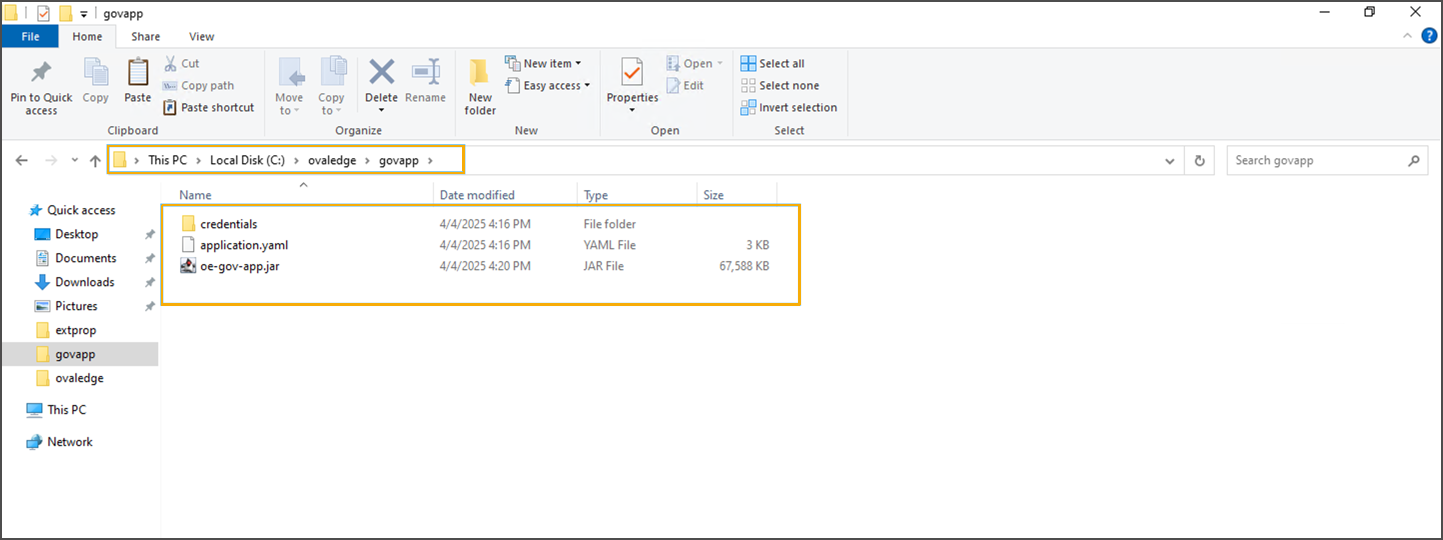

#### Place the Governance App JAR File

* Obtain `oe-gov-app.jar` from the OvalEdge support team.
* Copy the file into `C:\govapp`.

  <figure><img src="/files/jAeezeMTVfhm9yBGQKoz" alt=""><figcaption></figcaption></figure>

#### Launch the Governance App

* Open Command Prompt as Administrator.
* Navigate to the directory:

  ```bash
  cd C:\govapp
  ```

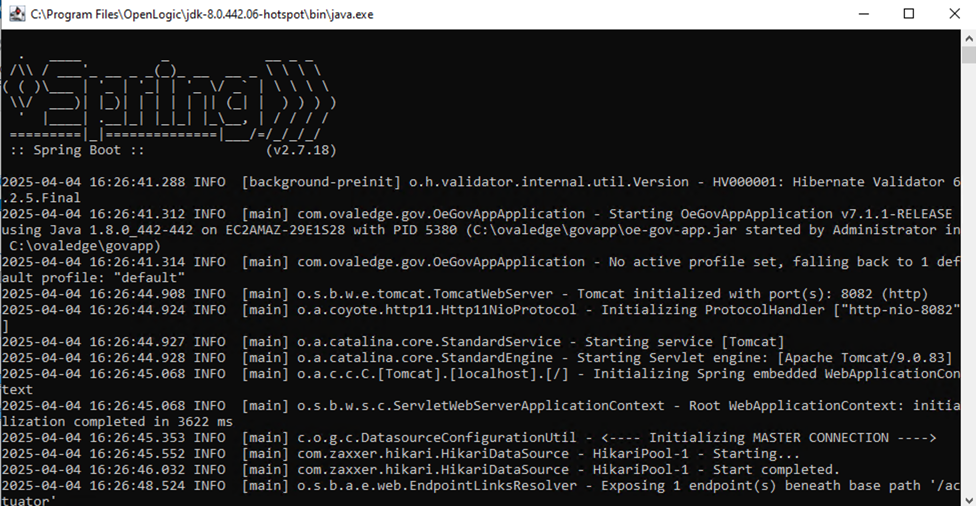

* Start the Governance App:

  ```bash
  start java -jar "oe-gov-app.jar" --spring.config.location="application.yaml" 2>nul 1>nul
  ```

  <figure><img src="/files/k4F3UvmeCr77NTTriw3D" alt=""><figcaption></figcaption></figure>
* Outcome: The Governance App runs in the background.

#### Port Availability

* Ensure **port 8082** is available and not blocked by firewalls or in use.
* This port is required for Governance App access.

  <figure><img src="/files/ohoIADTKovH2TZAr3GQy" alt=""><figcaption></figcaption></figure>

### Governance App Configuration in oasis.properties

#### Locate and Edit Properties File

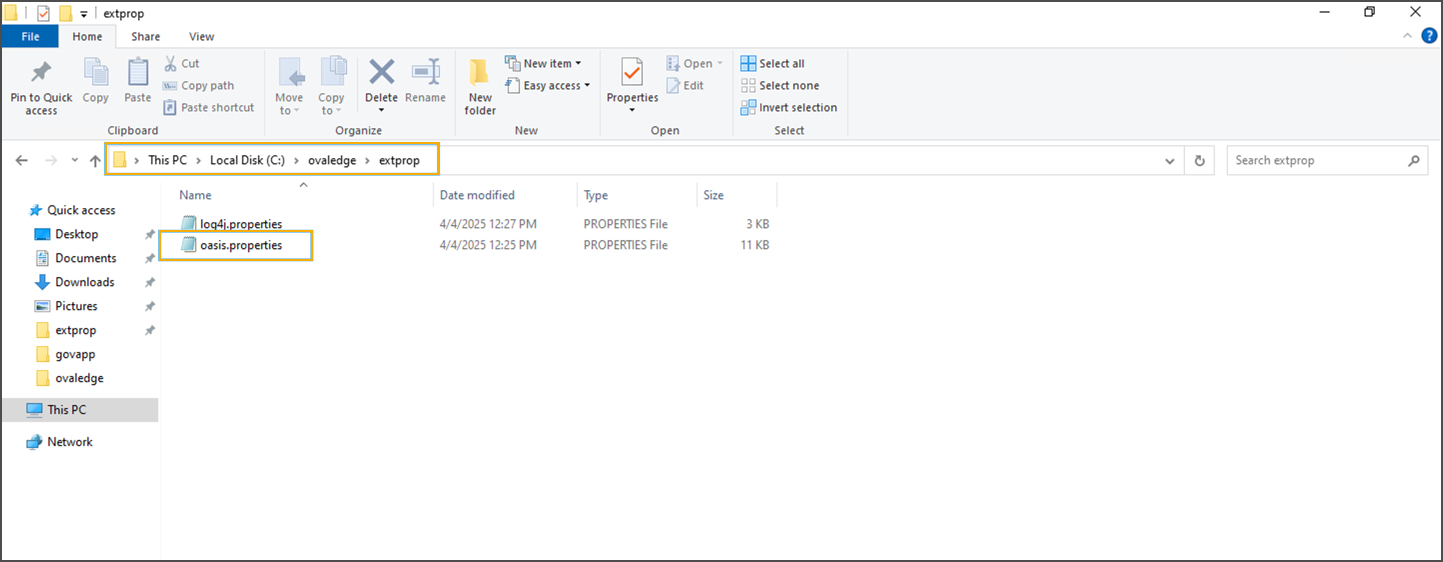

* Navigate to the `extprop` directory in the OvalEdge installation.

  <figure><img src="/files/rlaggxnIHjo7oqLH3w6V" alt=""><figcaption></figcaption></figure>

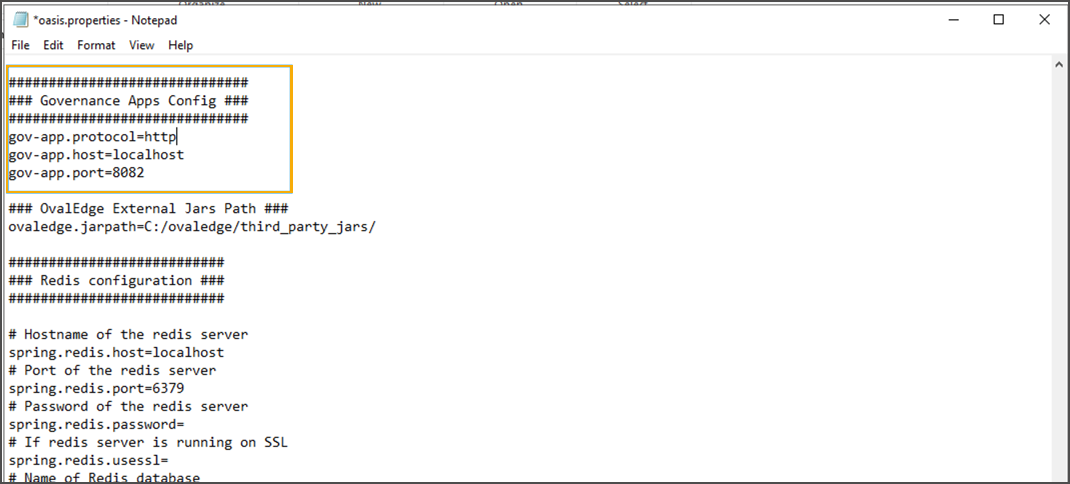

* Open `oasis.properties` in a text editor.

  <figure><img src="/files/j1GbN6dgyCWYZiLtDWuq" alt=""><figcaption></figcaption></figure>

#### Update Governance App Settings

* Ensure the following configuration is present:

  ```properties
  governance.app.url=http://localhost:8082
  ```
* Update the host and port if using a different environment.

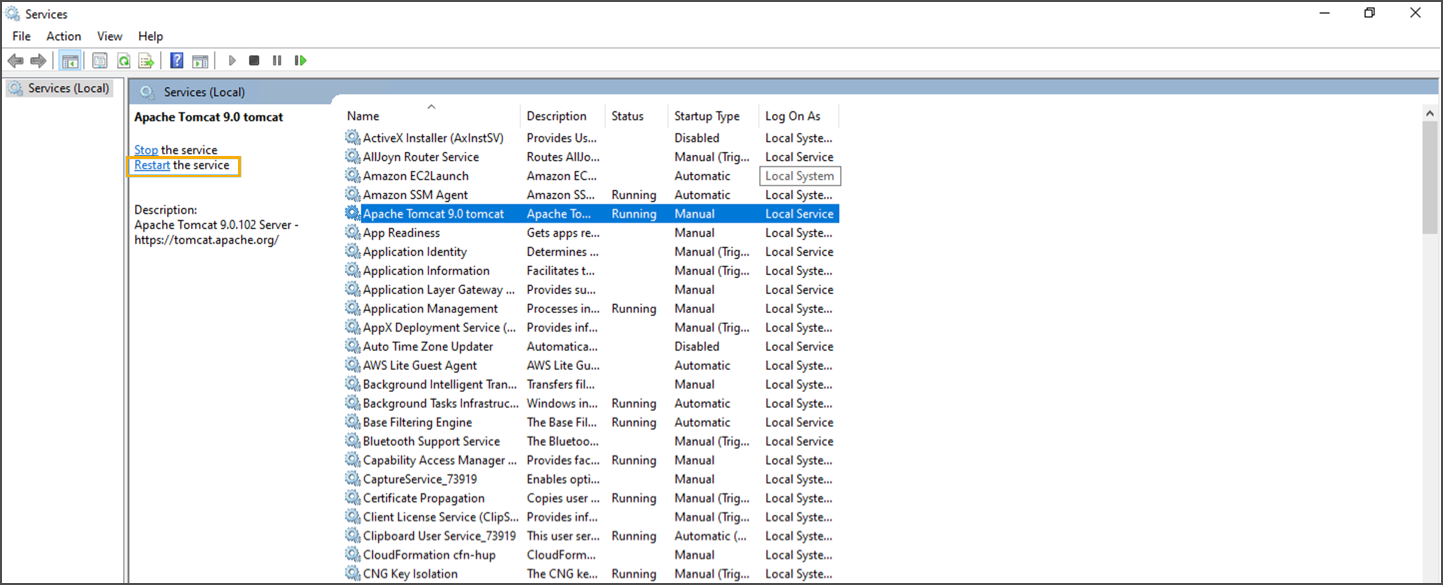

#### Restart Tomcat

* Open **Services** (`services.msc`).
* Locate **Apache Tomcat \[version]**.
* Right-click → **Restart**.

  <figure><img src="/files/lDzdz7GKtAz4k6PnBerh" alt=""><figcaption></figcaption></figure>

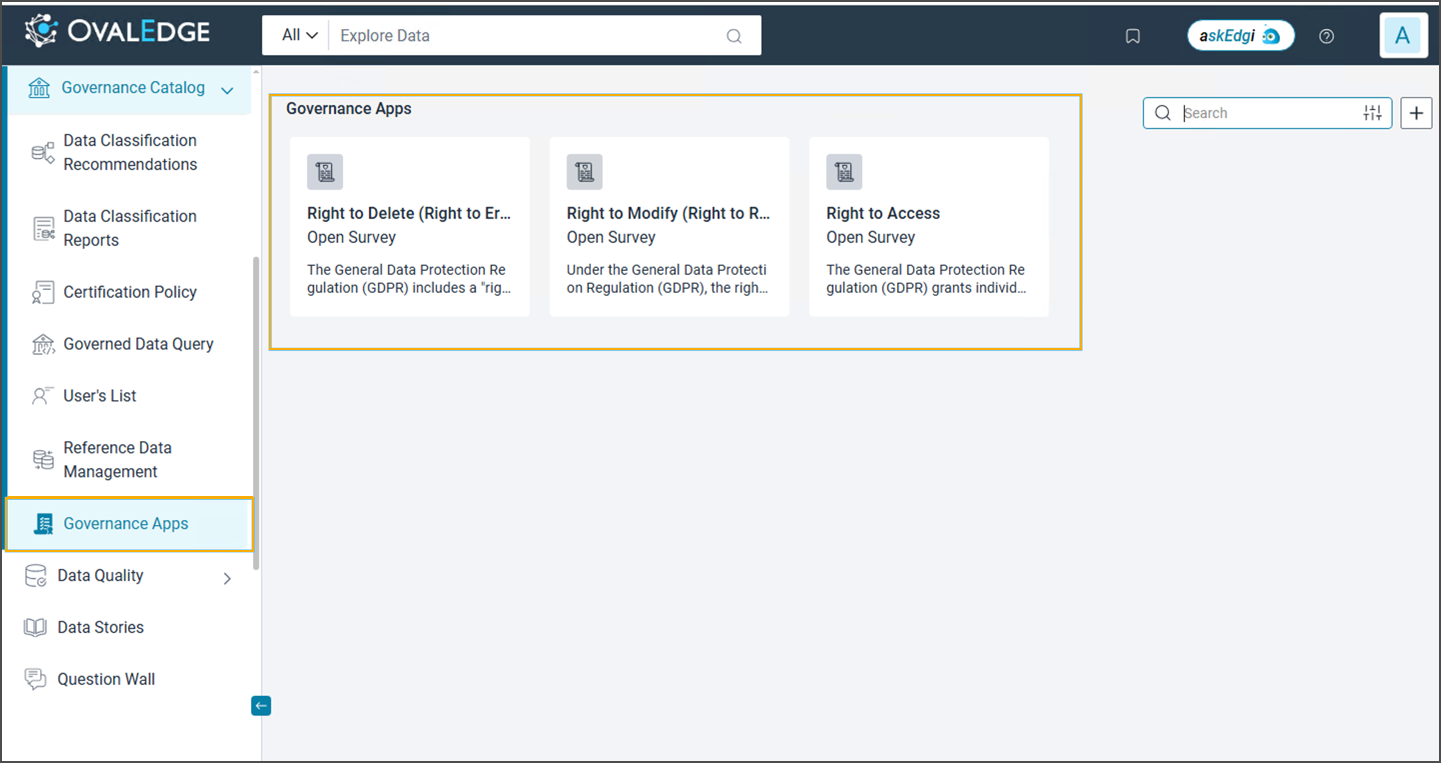

### Verification

* Wait \~5 minutes after restarting Tomcat.
* Open the OvalEdge application in a browser.
* Confirm that the Governance App is operational and integrated.

  <figure><img src="/files/mIunEV6FTvOhXOcohGmQ" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}

* **Port Conflicts**: If port **8082** is in use, modify `application.yaml` to specify another port.
* **Log Files**: Check the Command Prompt window for runtime logs if the application does not start.
* **Optional Service Setup**: For persistent execution, wrap the JAR as a Windows service using a tool like **NSSM (Non-Sucking Service Manager)**.
  {% endhint %}

***
