# Tomcat 10.1.x on Windows

Apache Tomcat is an open-source implementation of the Java Servlet, JavaServer Pages (JSP), and WebSocket technologies. It is widely used to deploy Java-based web applications. This document provides a detailed, step-by-step process for installing and configuring both single-instance and multi-instance Tomcat setups on a Windows machine for OvalEdge deployment.

### Pre-requisites

Before proceeding with the installation, ensure the following requirements are met:

* Windows OS (Windows 10 or later recommended)
* Administrator privileges
* Java 17 installed and configured
* Ensure the JAVA\_HOME environment variable is set
* Refer to the [Java Installation Guide](/release8.2/deployment-and-maintenance/installation/java-21-on-windows-machine.md) if Java is not configured

## Single Tomcat Installation

* **Prepare Directory Structure**

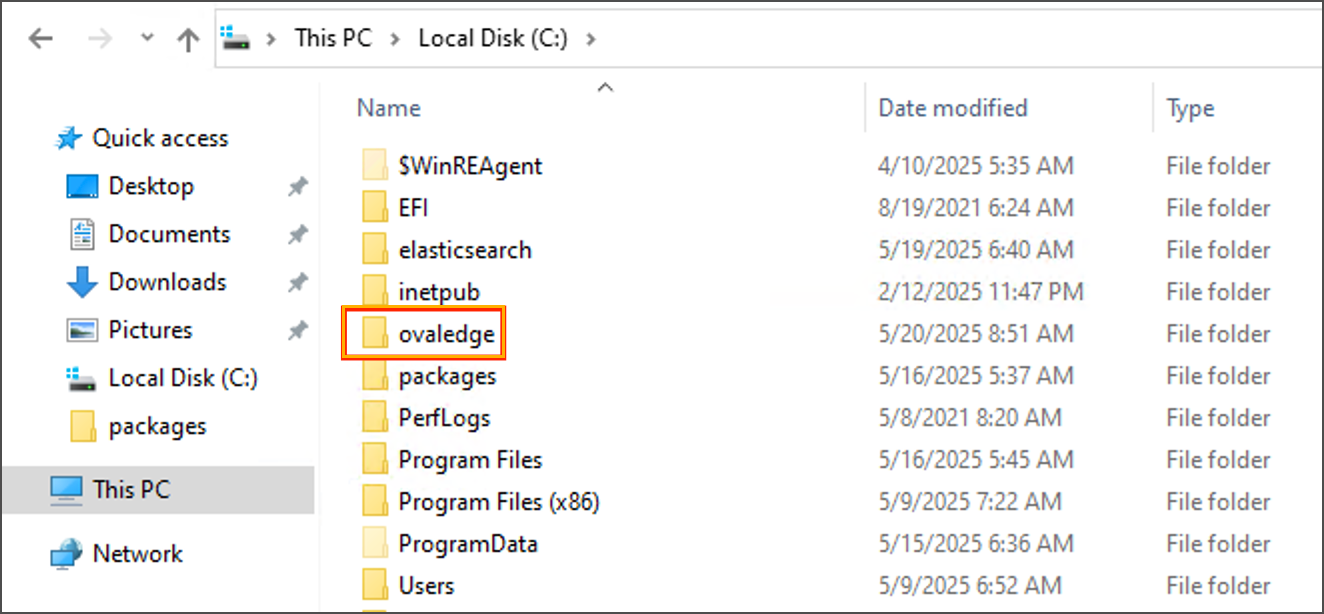

  Create a base folder, e.g., `C:\ovaledge`, to store all required files.

  <figure><img src="/files/MmD3F9bQPbPTV9J685uZ" alt=""><figcaption></figcaption></figure>

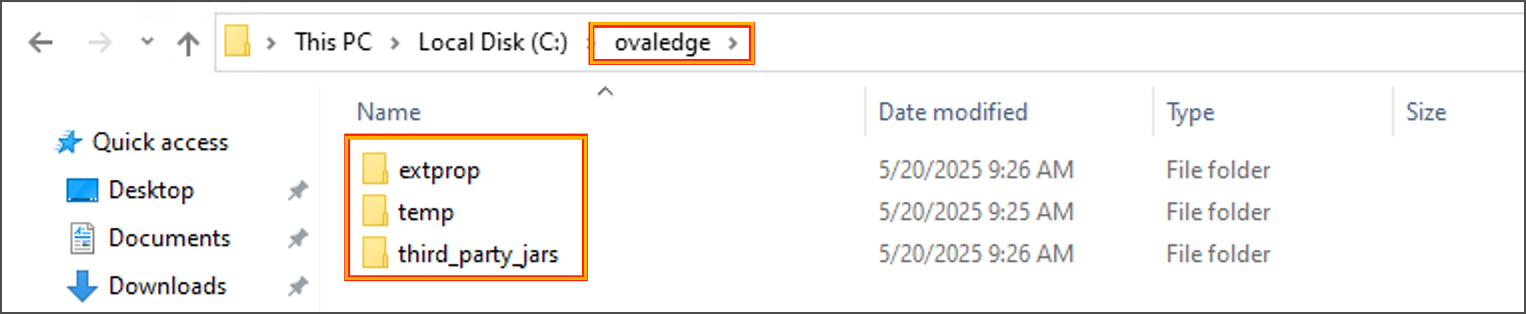

* Inside this folder, create subfolders:

  * `temp`
  * `extprop`
  * `Third_party_jars`

  <figure><img src="/files/5fdaai9bb2ysao2kECdF" alt=""><figcaption></figcaption></figure>
* **Place Required Files**

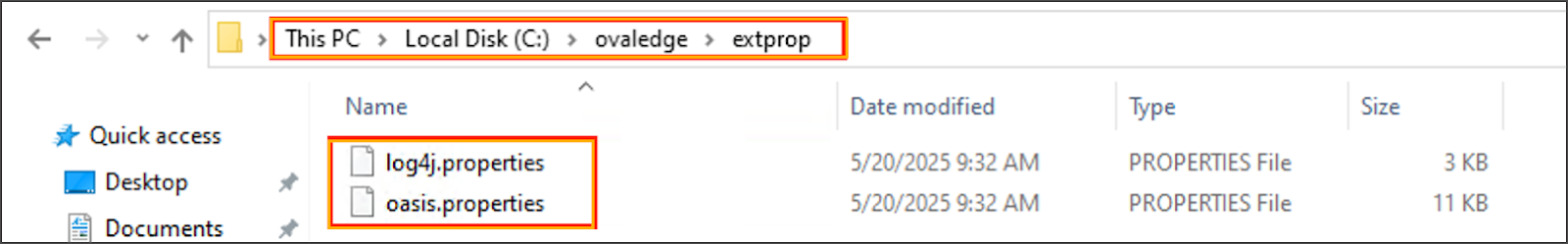

  * **Configuration Files**: Place `oasis.properties` and `log4j.properties` inside the `extprop` folder (provided by GCS team).

    <figure><img src="/files/DIXtFU7pYEVASrzPsGyN" alt=""><figcaption></figcaption></figure>

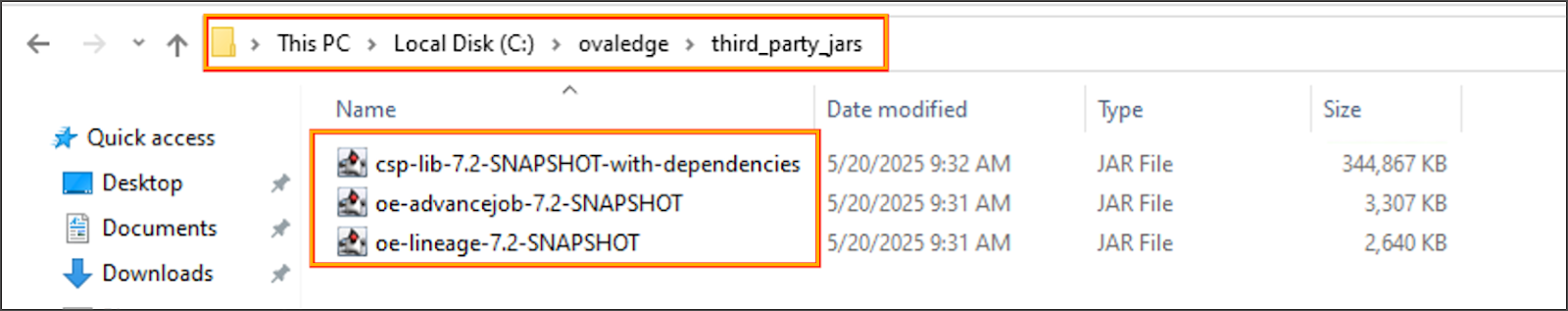

  * **JAR Files**: Place required third-party JARs in the `Third_party_jars` folder.

    <figure><img src="/files/xotvOHO9DeZm5qvMREuo" alt=""><figcaption></figcaption></figure>
* **Download and Extract Tomcat**
  * Download [Apache Tomcat ](https://ovaledge.s3.us-west-1.amazonaws.com/scripts/hardened_tomcat/apache-tomcat-10.1.40-windows-x64.zip)(ZIP package).

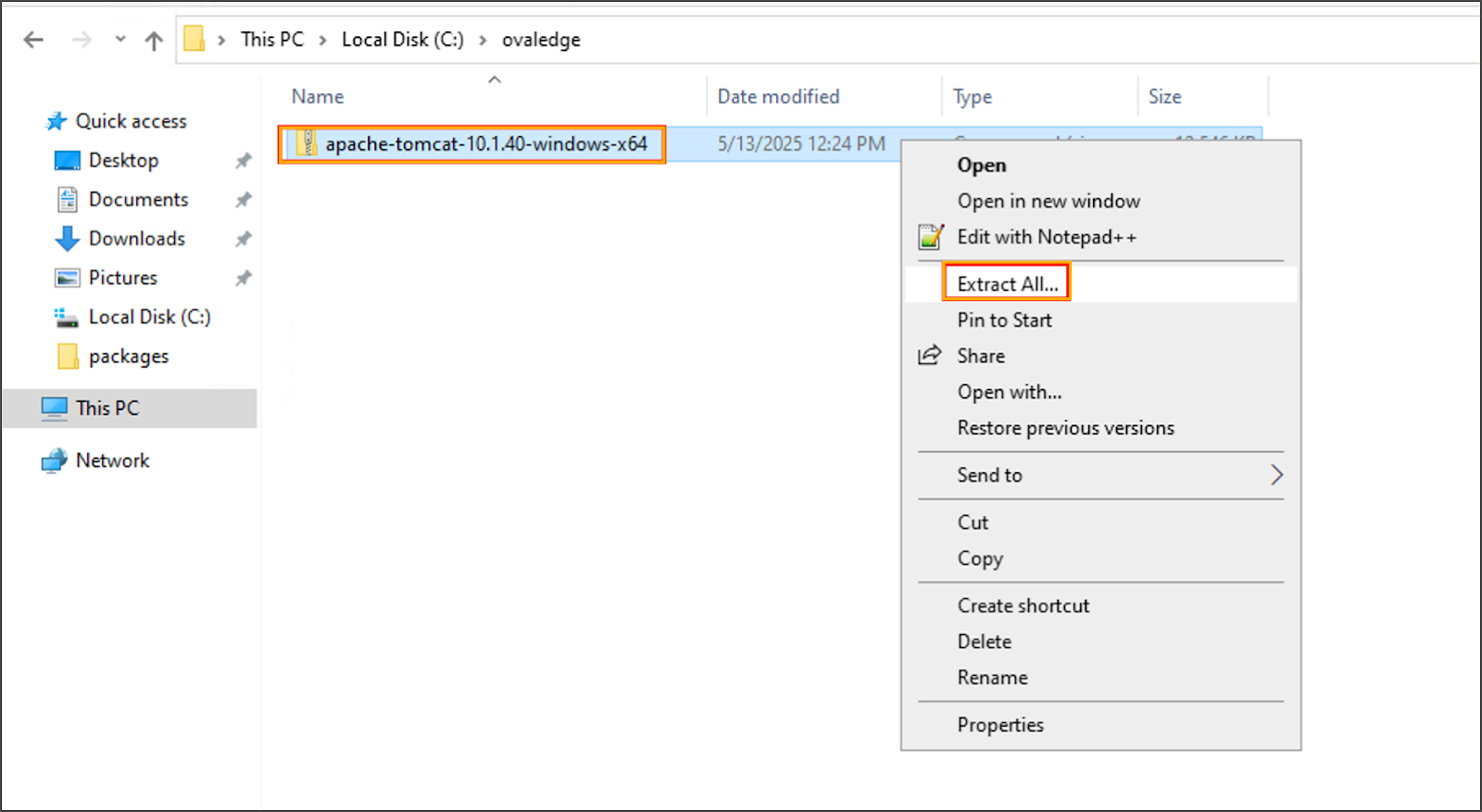

  * Extract contents under `C:\ovaledge`.

    <figure><img src="/files/kGAe8cJFxUtWFLPMAx7q" alt=""><figcaption></figcaption></figure>
* **Deploy WAR File**

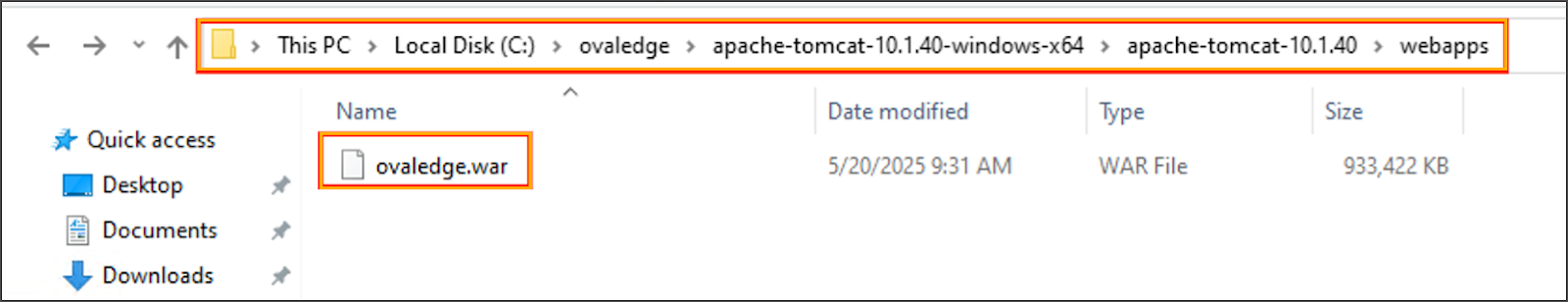

  * Navigate to the `webapps` folder inside the Tomcat directory.
  * Place the `ovaledge.war` file (provided by GCS team).

    <figure><img src="/files/8wfcen57K3HPoB816LCP" alt=""><figcaption></figcaption></figure>
* **Install Tomcat as a Windows Service**

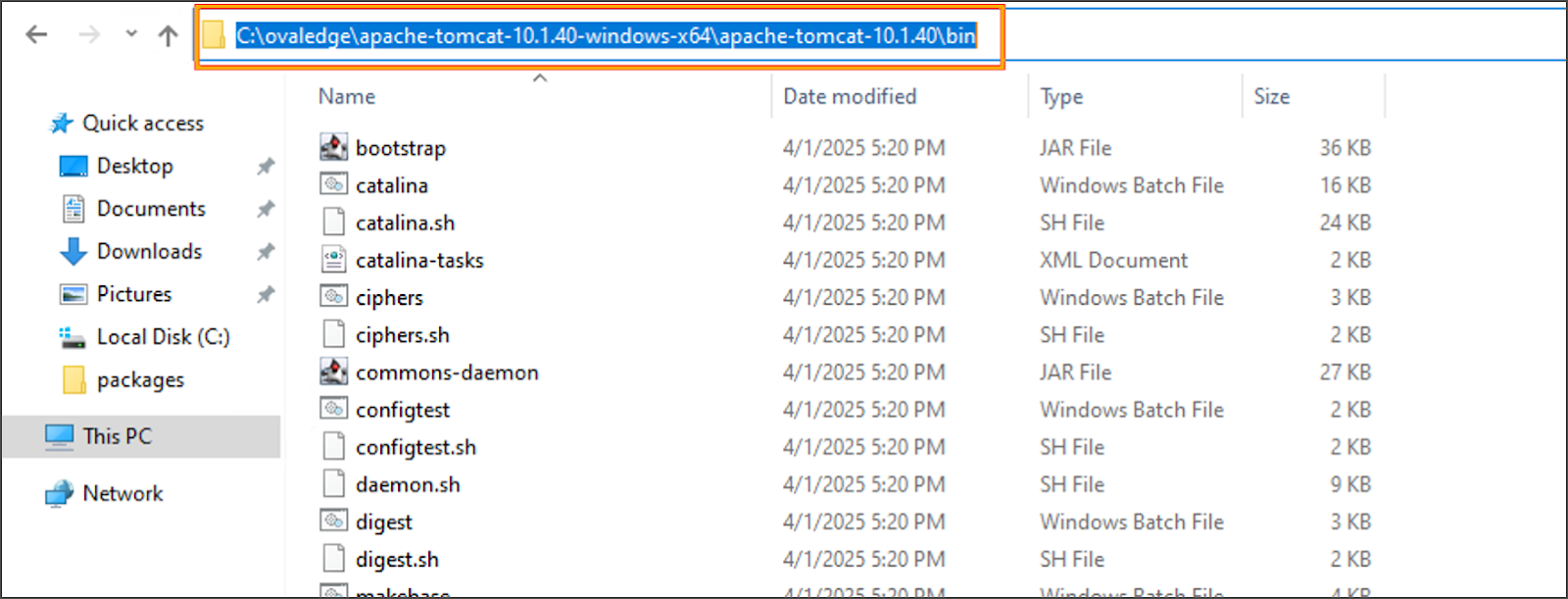

  * Navigate to the `bin` folder inside Tomcat and open Command Prompt.

    <figure><img src="/files/MUbWvyyKHFNTh7kF7yAx" alt=""><figcaption></figcaption></figure>

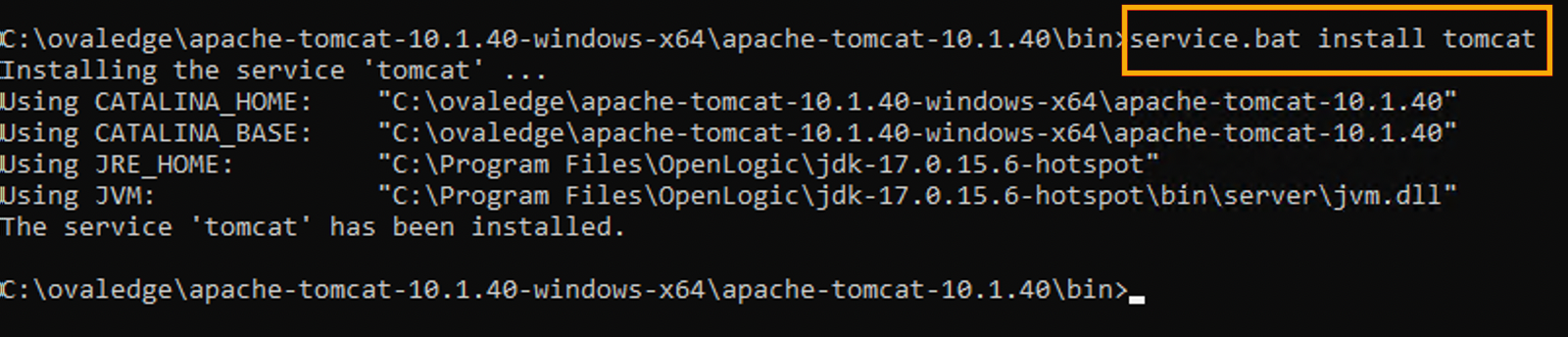

  * Run the command:

    ```bash
    service.bat install tomcat
    ```

    <figure><img src="/files/7zsWw74HGq0U20syVcyZ" alt=""><figcaption></figcaption></figure>

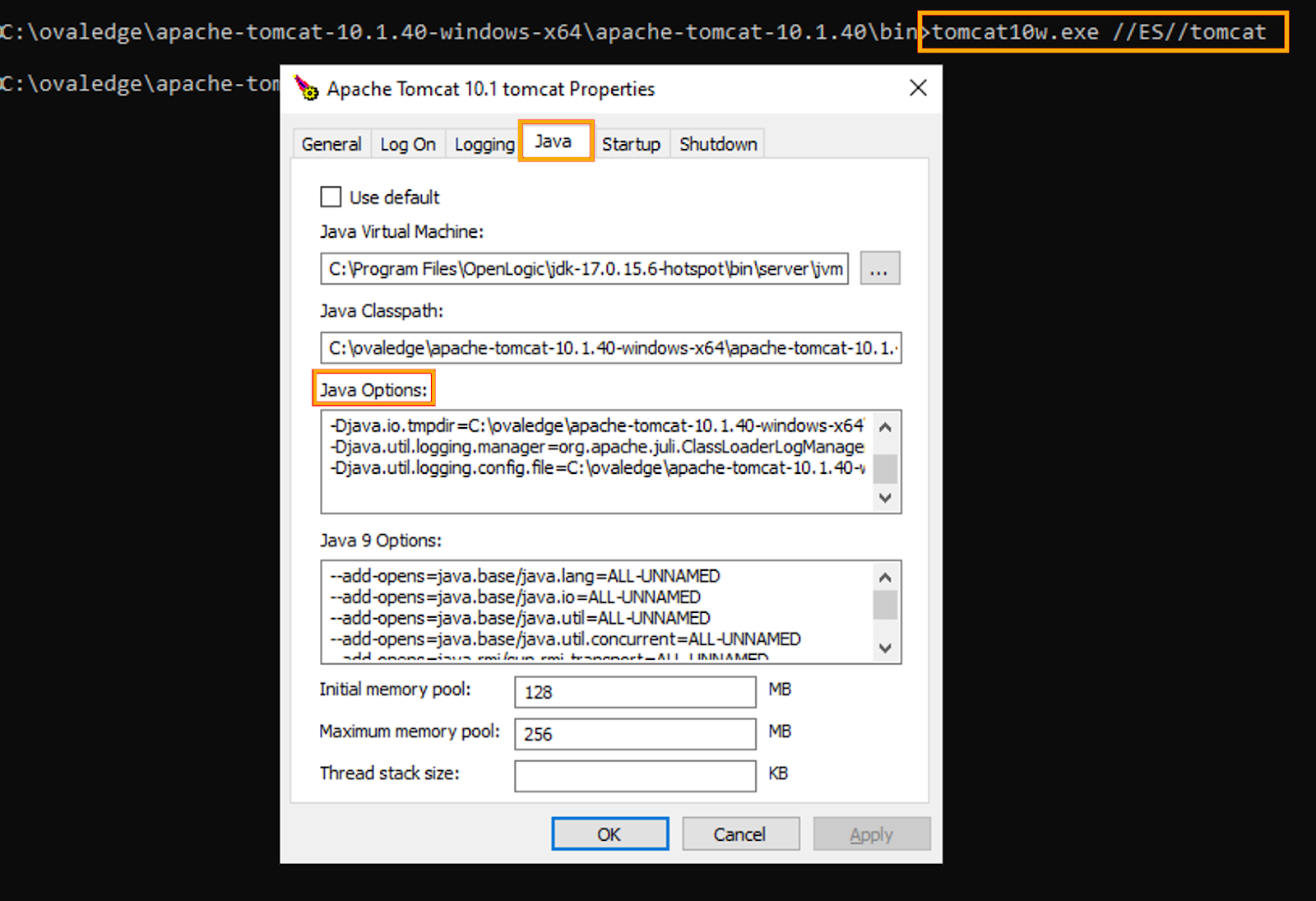

* **Configure Java Options for Tomcat**

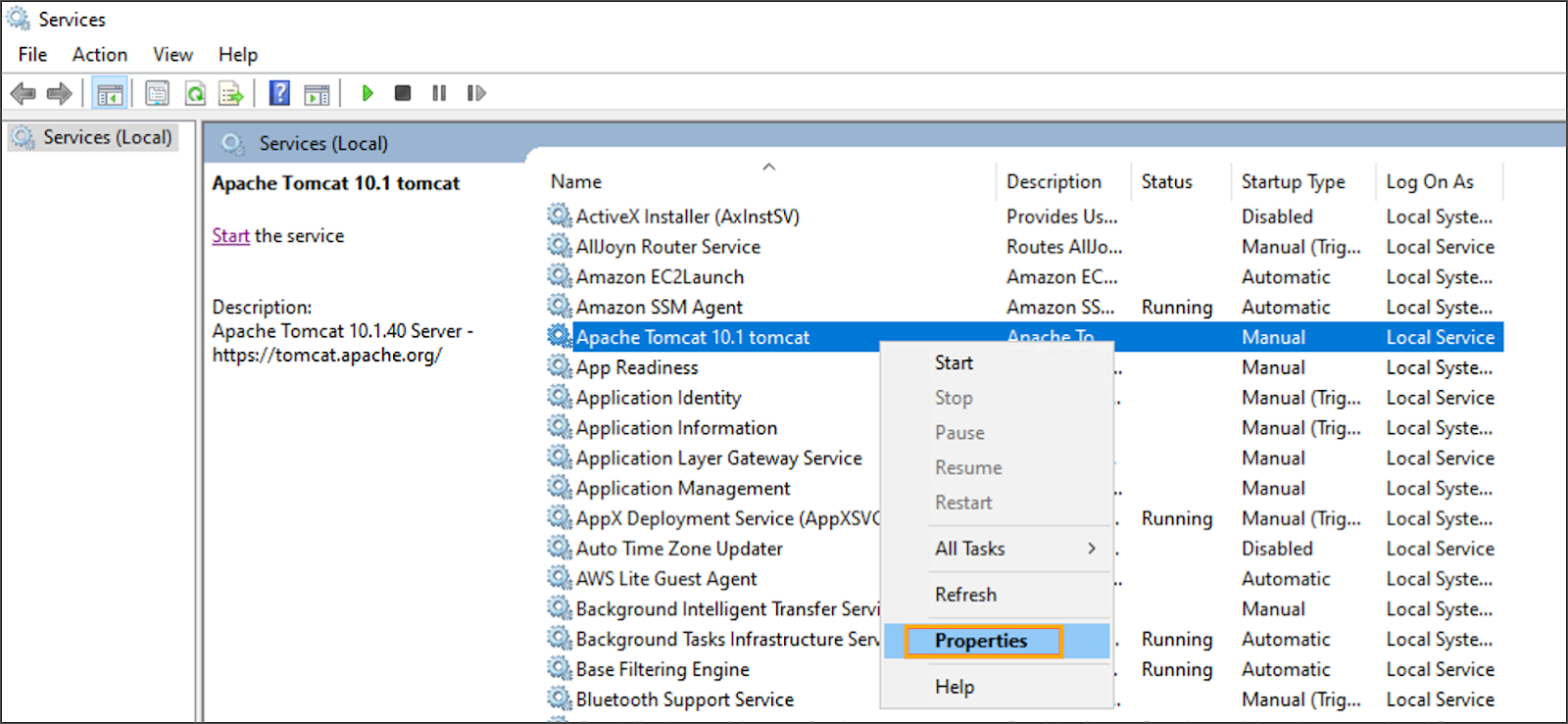

  * Open Tomcat service properties:

    ```bash
    tomcat10w.exe //ES//tomcat
    ```

    <figure><img src="/files/WsC7rBcM3o0xQvQ3vy45" alt=""><figcaption></figcaption></figure>

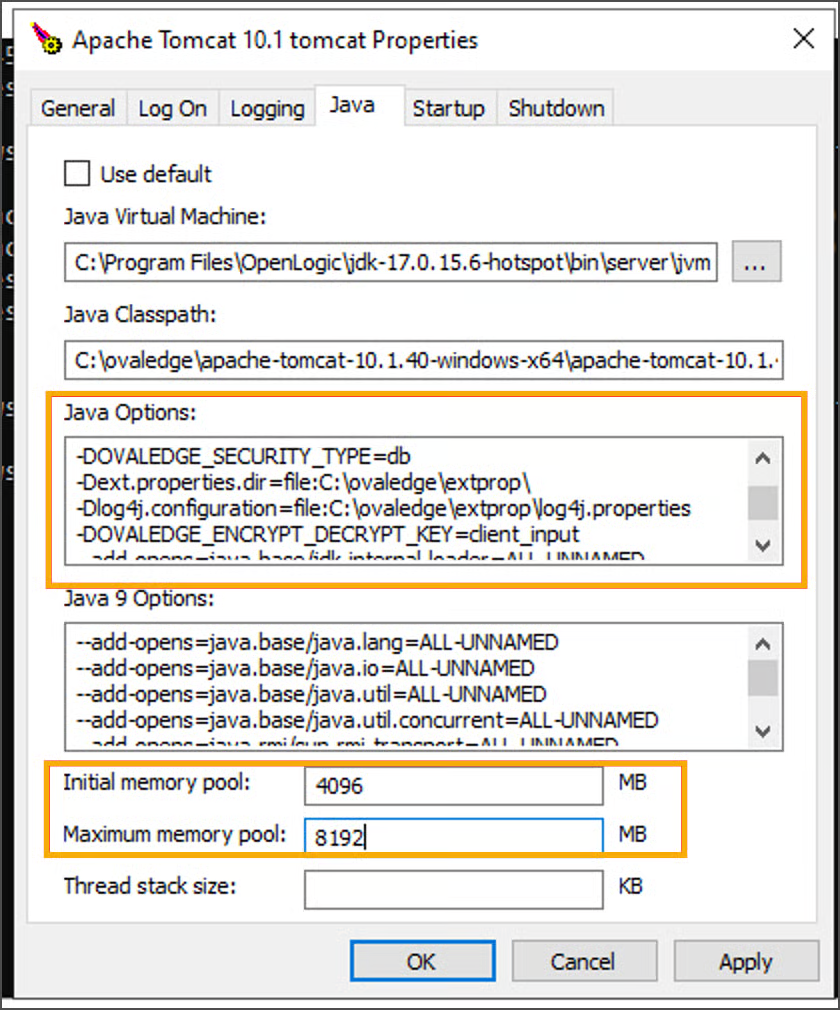

  * Go to the **Java** tab and add:

    ```
    -DOVALEDGE_SECURITY_TYPE=db
    -Dext.properties.dir=file:C:\ovaledge\extprop\
    -Dlog4j.configuration=file:C:\ovaledge\extprop\log4j.properties
    -DOVALEDGE_ENCRYPT_DECRYPT_KEY=client_input
    --add-opens=java.base/jdk.internal.loader=ALL-UNNAMED
    --add-opens=jdk.zipfs/jdk.nio.zipfs=ALL-UNNAMED
    --add-opens=java.base/java.net=ALL-UNNAMED
    ```
  * Confirm with GCS/DevOps team:
    * `ext.properties.dir` path
    * `log4j.configuration` path
    * Encryption key value
    * Java heap settings (per VM specification)\
      ![](/files/CYvBAInSVtrr10NwSSX2)

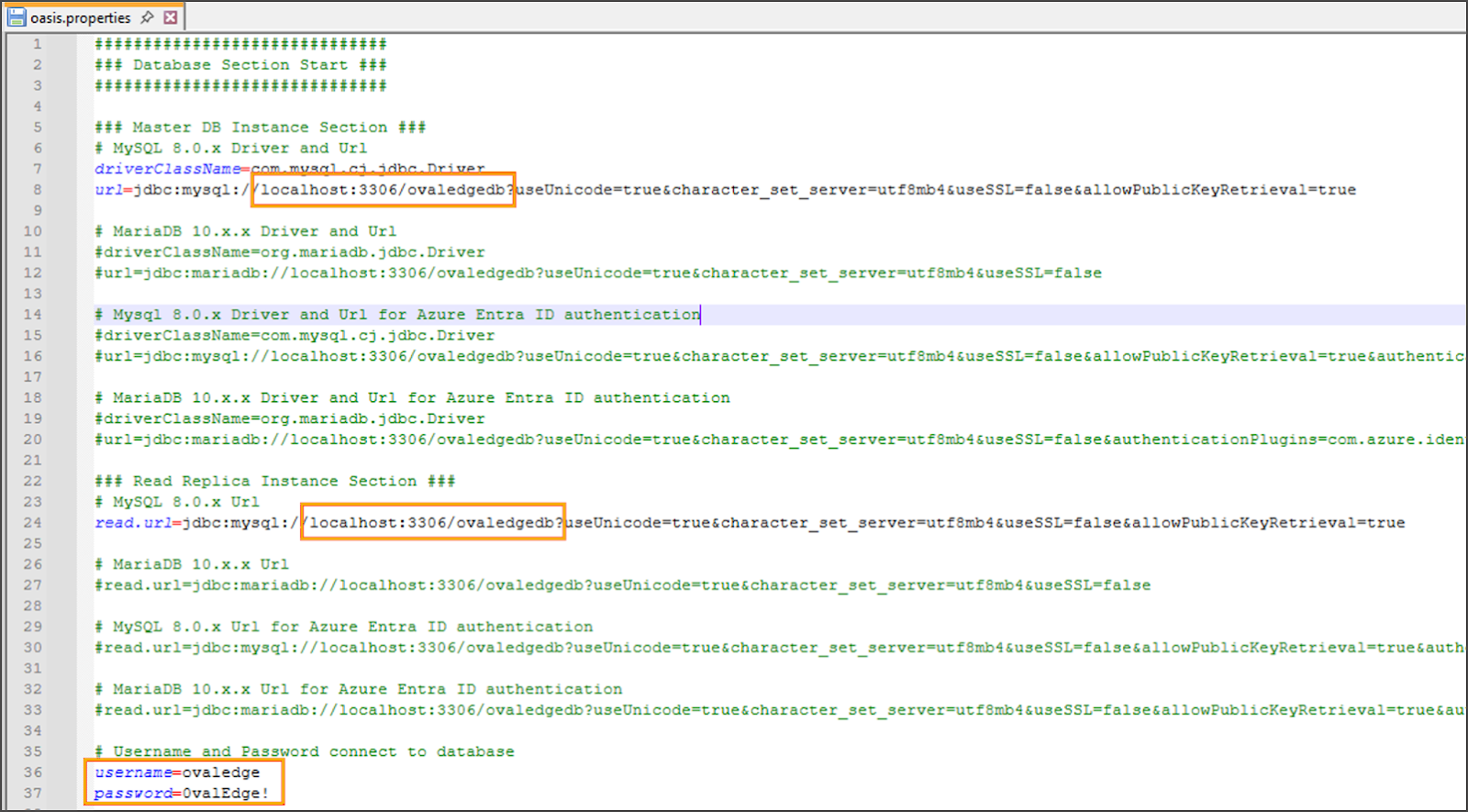

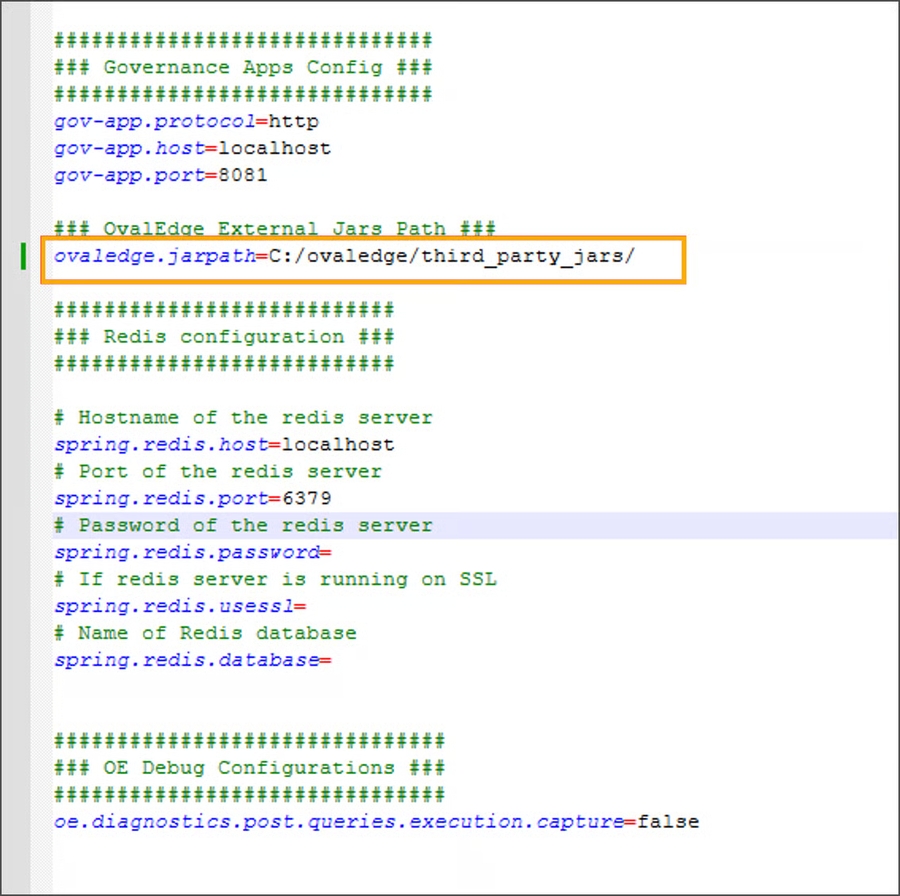

* **Update `oasis.properties`**
  * Configure:
    * Database connection details

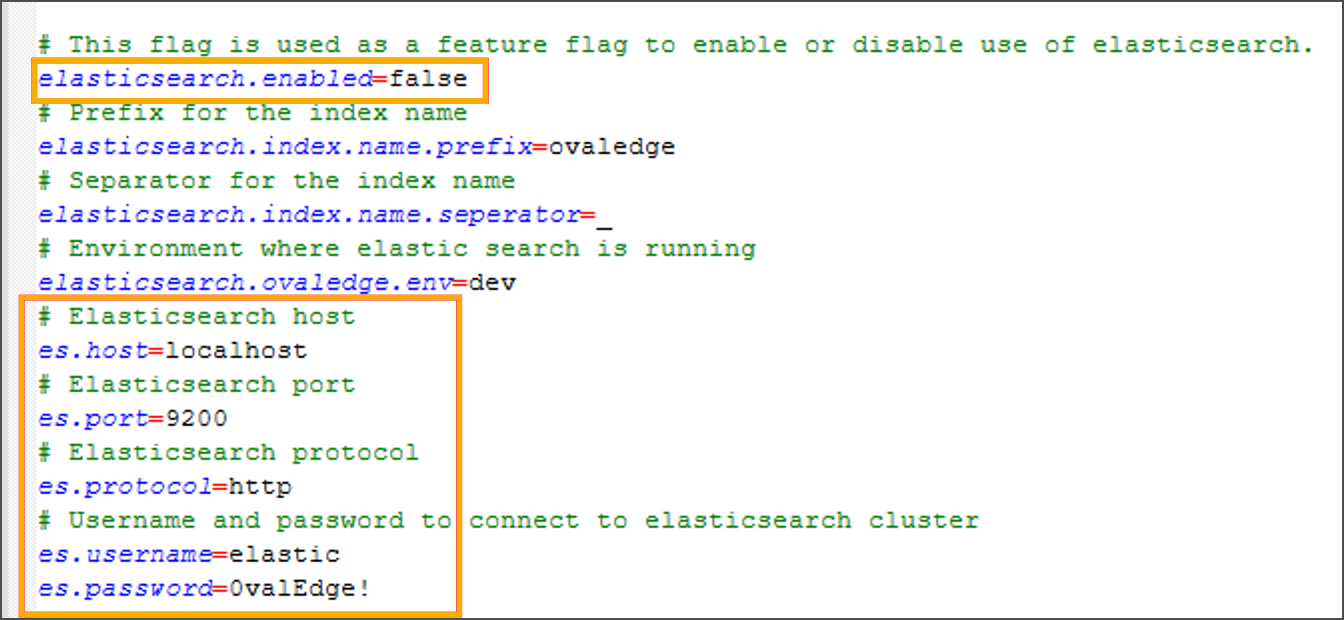

    * Elasticsearch configuration (if applicable)
    * Path to third-party JAR files

      <figure><img src="/files/B4V9hx3W5Zq71CUGMFXW" alt=""><figcaption></figcaption></figure>

      <figure><img src="/files/dnA3GjdkMlkdoSqVkT6j" alt=""><figcaption></figcaption></figure>

      \
      ![](/files/w25Xq51X7w7rvlYm7xBW)

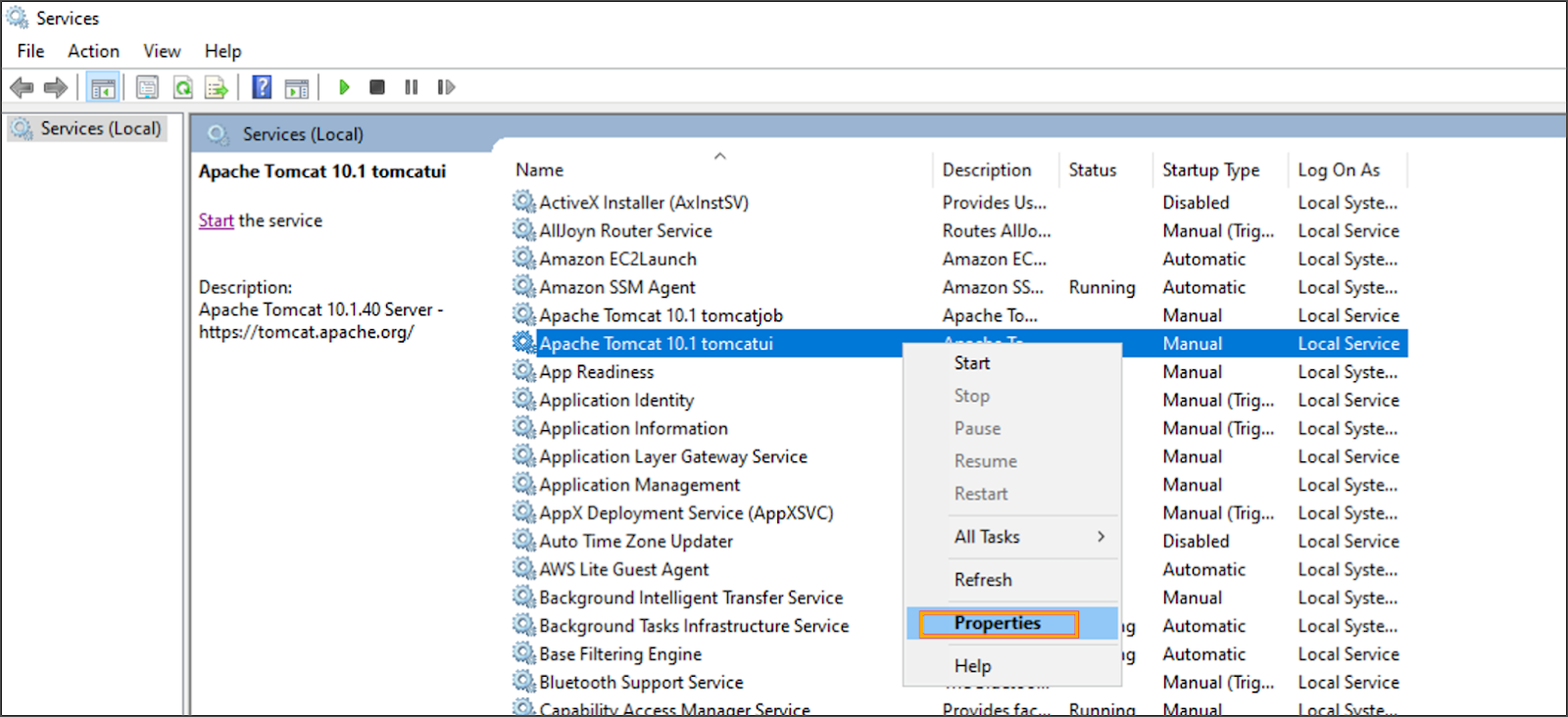

* **Start Tomcat Service**
  * Open **Services** from Windows Start menu.

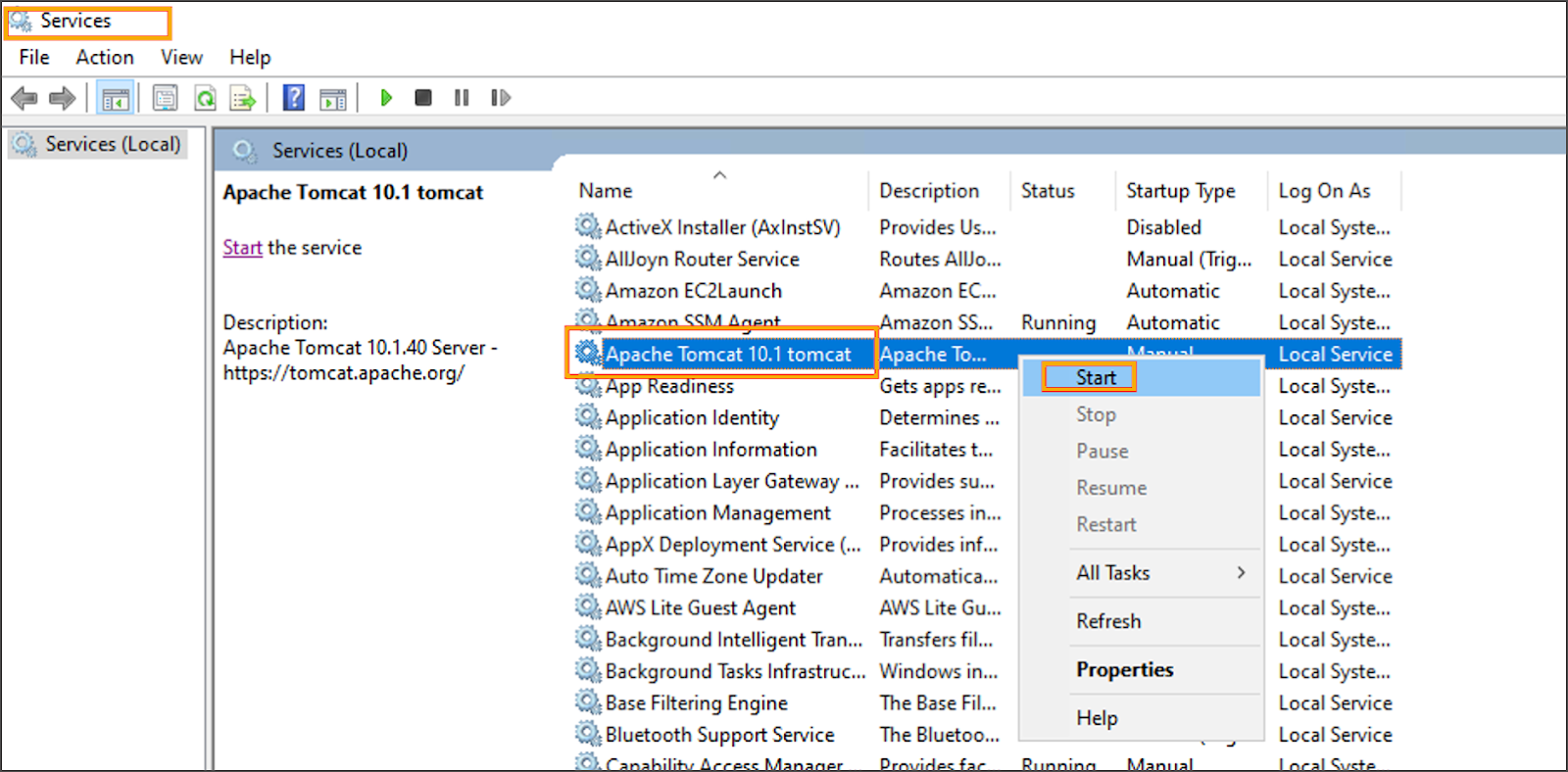

  * Locate and start the Tomcat service.

    <figure><img src="/files/o93RctkoamfNTJ6yW8A5" alt=""><figcaption></figcaption></figure>

    <figure><img src="/files/dLiO5mMQrdnFfjfKObtR" alt=""><figcaption></figcaption></figure>
  * In Properties:

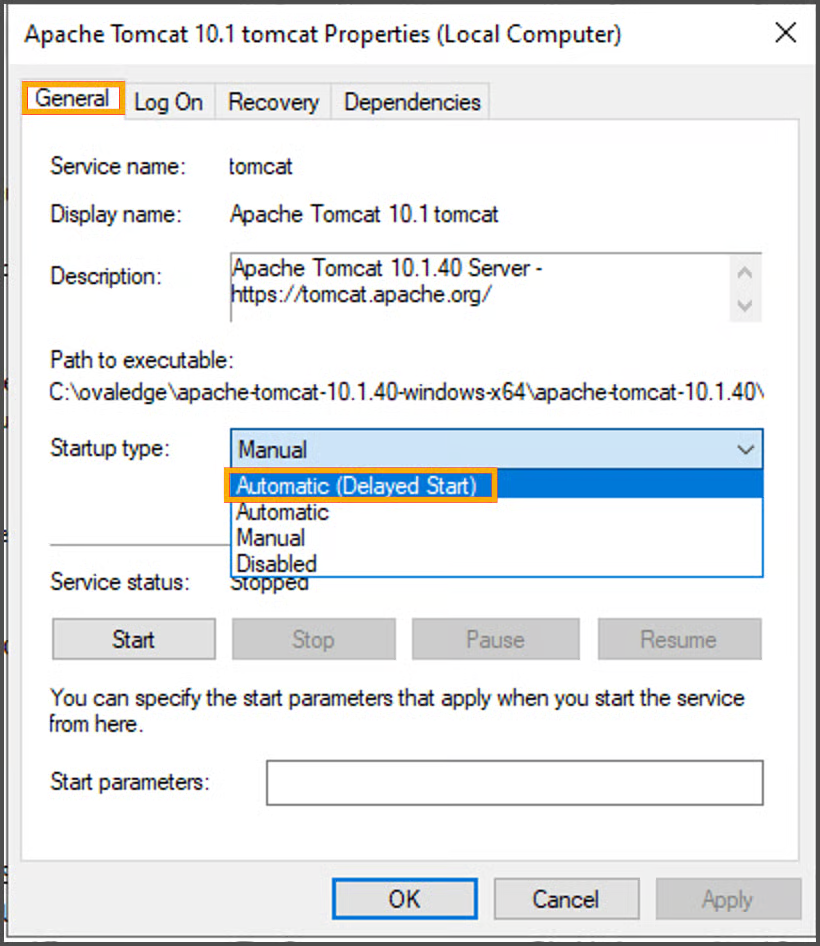

    * Set **Startup type** → *Automatic (Delayed Start)*\
      ![](/files/Hj8i1LNQtC62fJBkQKGh)

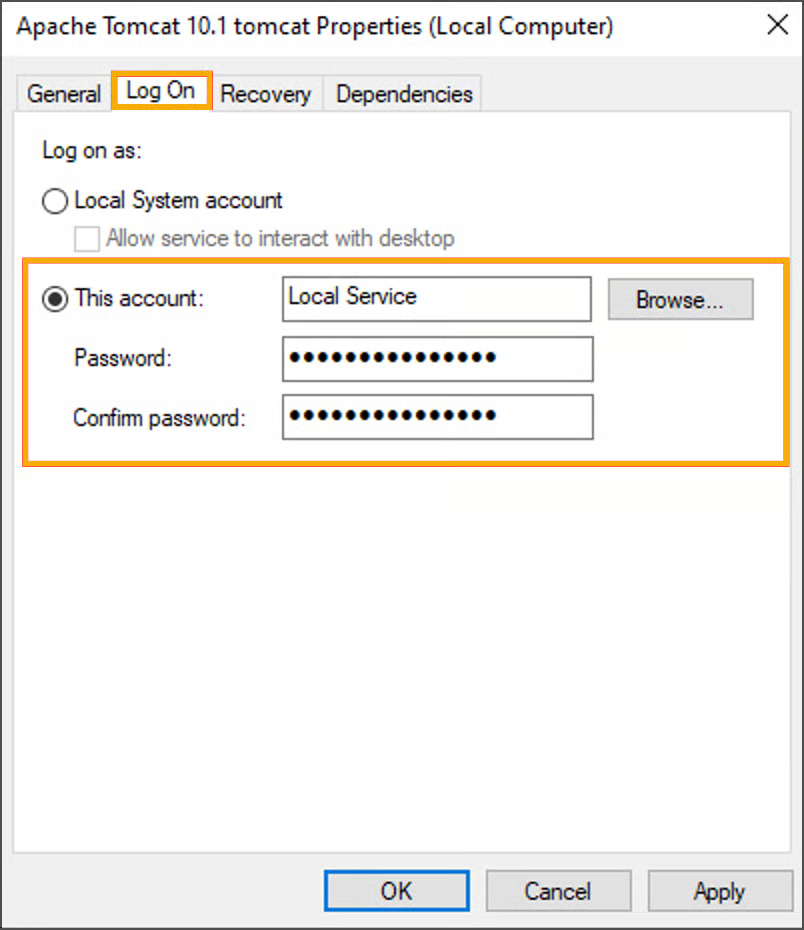

    * Update **Log On** credentials as required and click **OK**.\
      ![](/files/wLwKYOfpwbGzblVGrg22)

## Multi-Tomcat Installation (UI + Job)

For multi-instance setups, two Tomcats are configured:

* Two Tomcats are configured:
  * `tomcatui` → User Interface (UI)
  * `tomcatjob` → Job Processing
* **Repeat Initial Setup**
  * Follow **Single Tomcat Installation steps** until WAR deployment.
* **Duplicate Tomcat Directory**

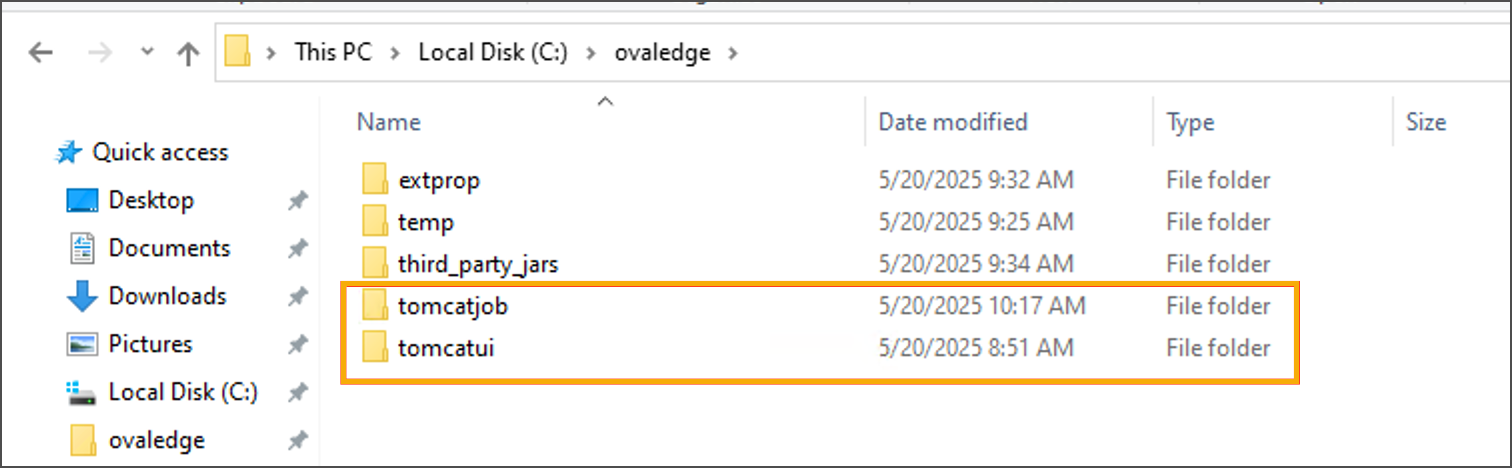

  * Create two copies of the Tomcat directory.
  * Rename:

    * One to `tomcatui`
    * One to `tomcatjob`

    <figure><img src="/files/TAqBYyGBZrrOBVviz5sI" alt=""><figcaption></figcaption></figure>

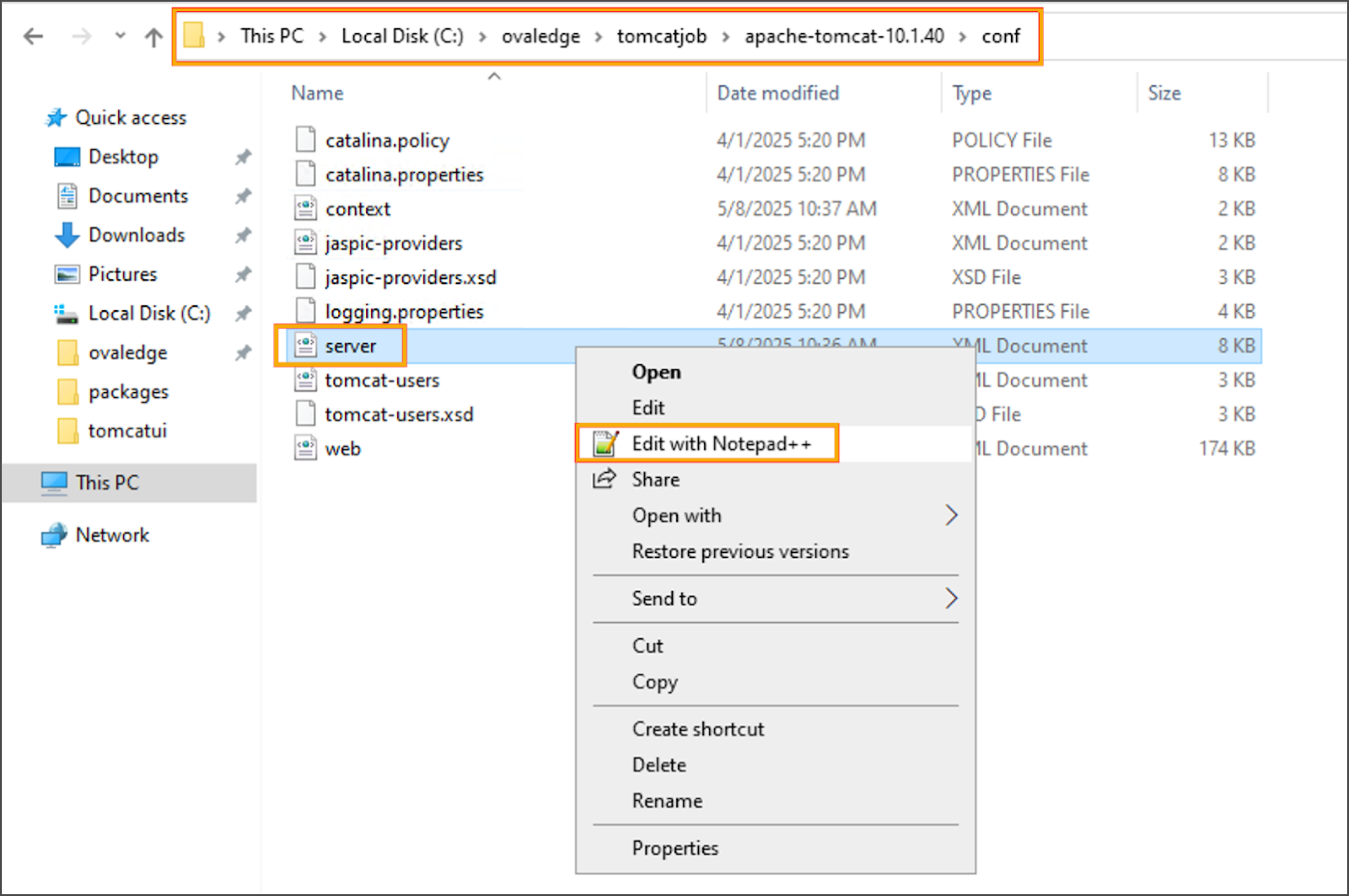

* **Update Ports for `tomcatjob`**

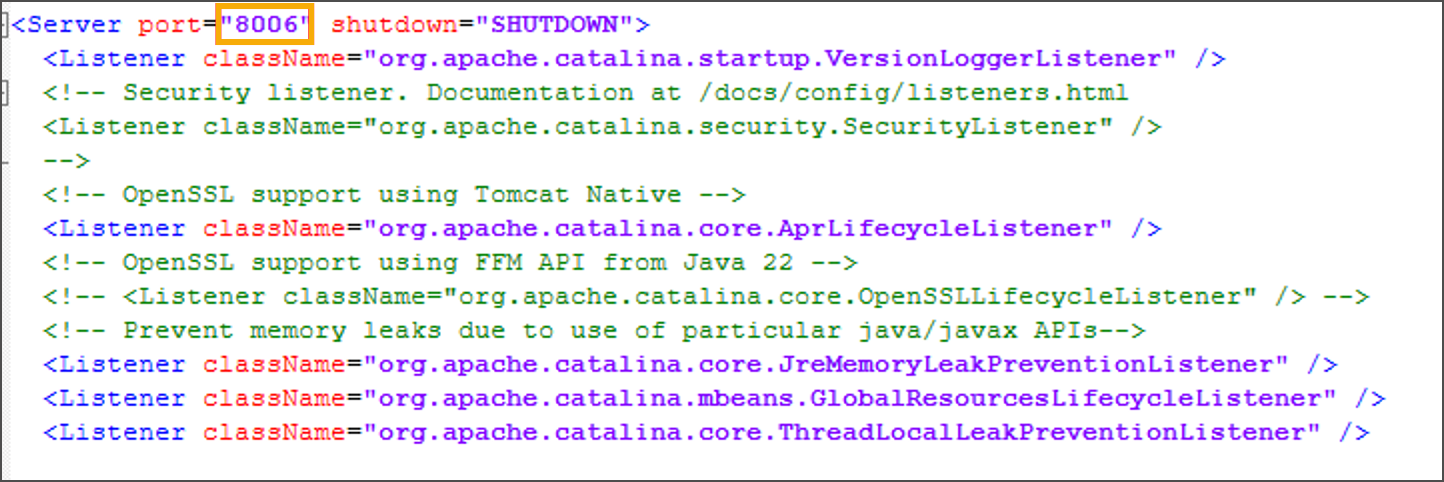

  * Navigate to `tomcatjob\conf\server.xml`.
  * Modify:

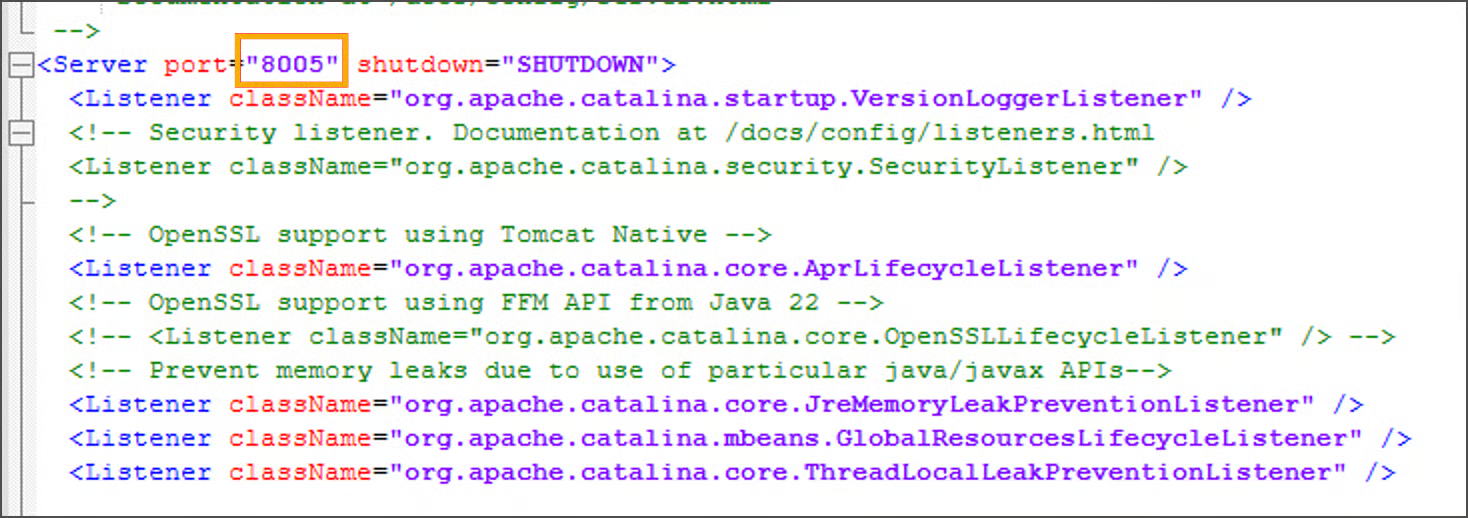

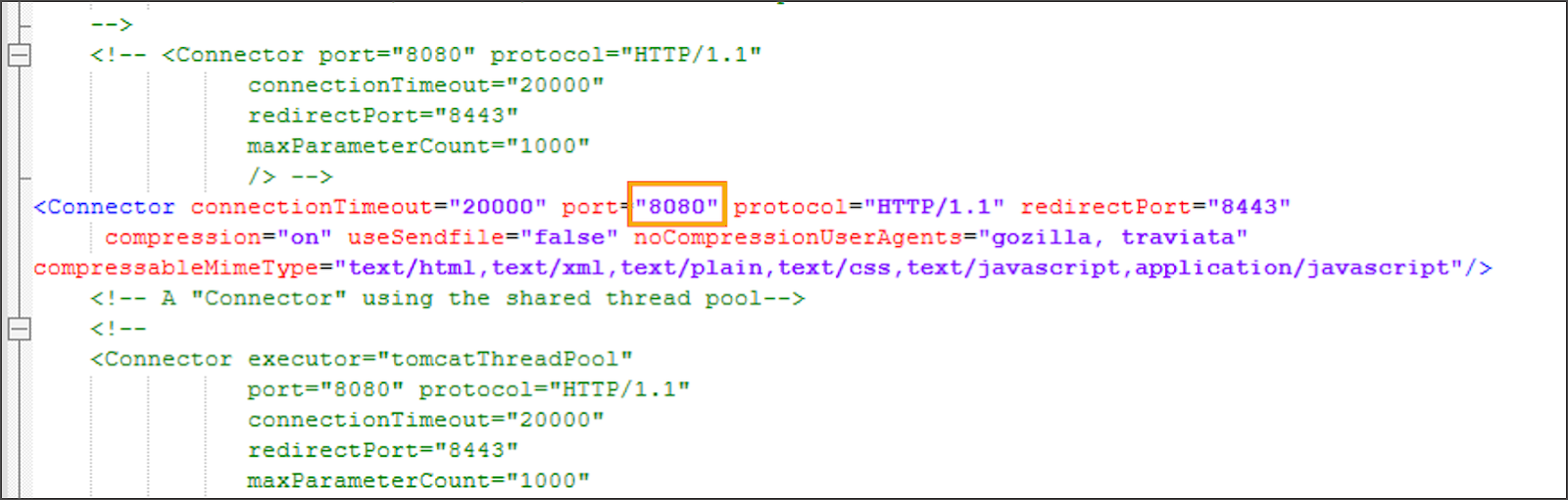

    * Shutdown port → `8005` → `8006`

      <figure><img src="/files/CCnj3i4nmcurAbSBzeSF" alt=""><figcaption></figcaption></figure>

      <figure><img src="/files/5JqrK4YNJaoMz3iOfFmK" alt=""><figcaption></figcaption></figure>

      <figure><img src="/files/3xWIUP3gy6qUWGKcp71H" alt=""><figcaption></figcaption></figure>

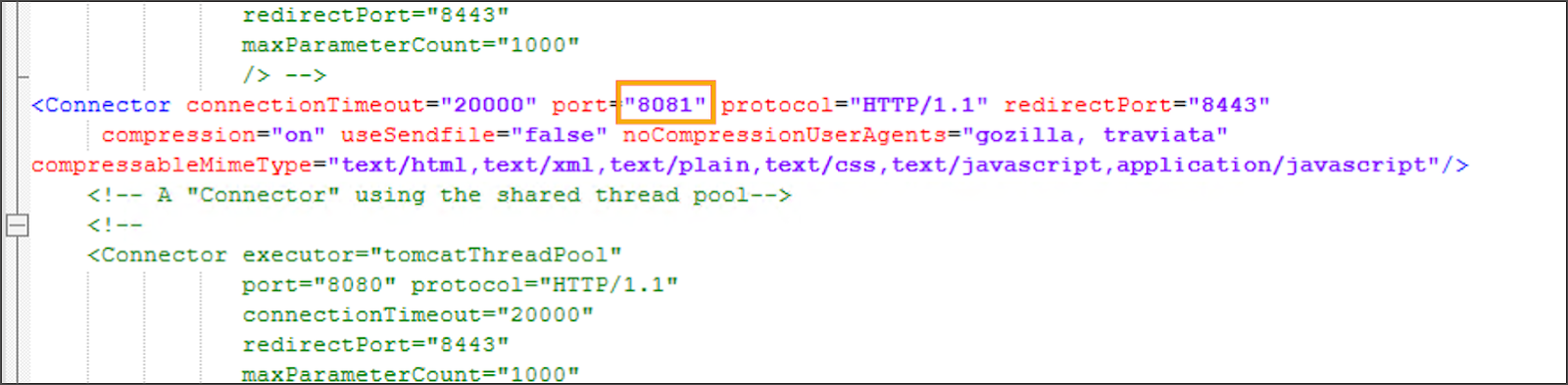

    * HTTP port → `8080` → `8081`&#x20;

      <figure><img src="/files/Bxy4DKEuQ2lqvKRy8n8a" alt=""><figcaption></figcaption></figure>

      <figure><img src="/files/7Dl3xGuMEs5xzpm2ztFF" alt=""><figcaption></figcaption></figure>

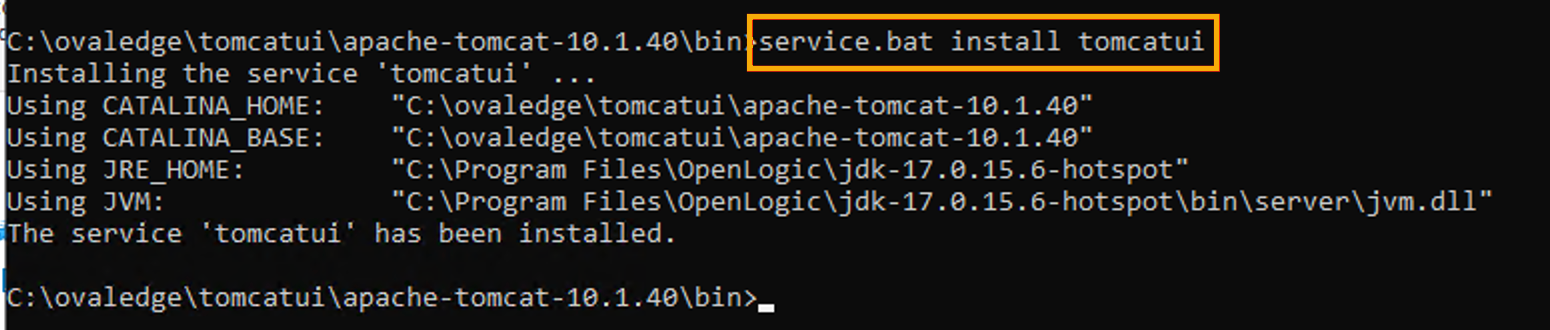

* **Install and Configure `tomcatui` Service**

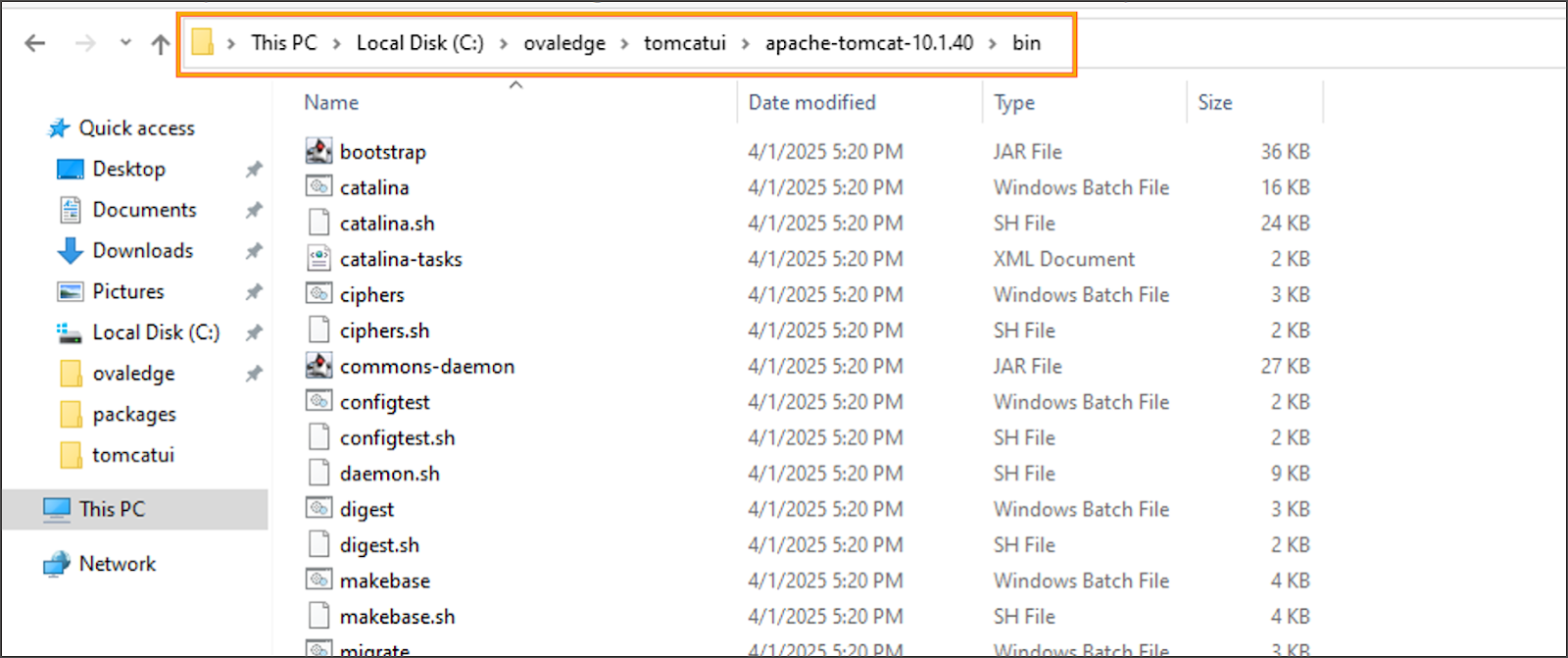

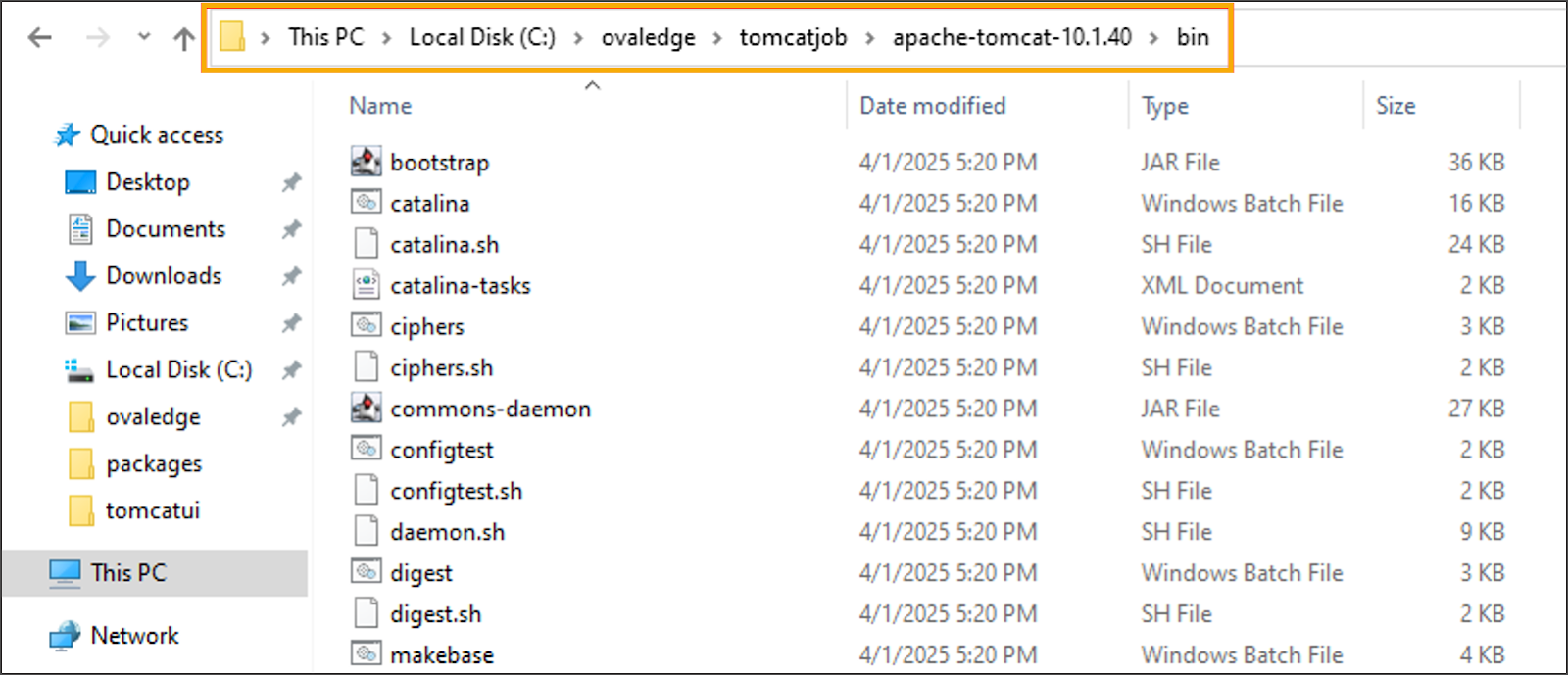

  * Navigate to `tomcatui\bin` and open Command Prompt:

    ```bash
    service.bat install tomcatui
    ```

    <figure><img src="/files/pgJKpDZNFZYDu6vkm1CB" alt=""><figcaption></figcaption></figure>

    <figure><img src="/files/ABOf7RvJCVHY6rT5pKIS" alt=""><figcaption></figcaption></figure>

    ```bash

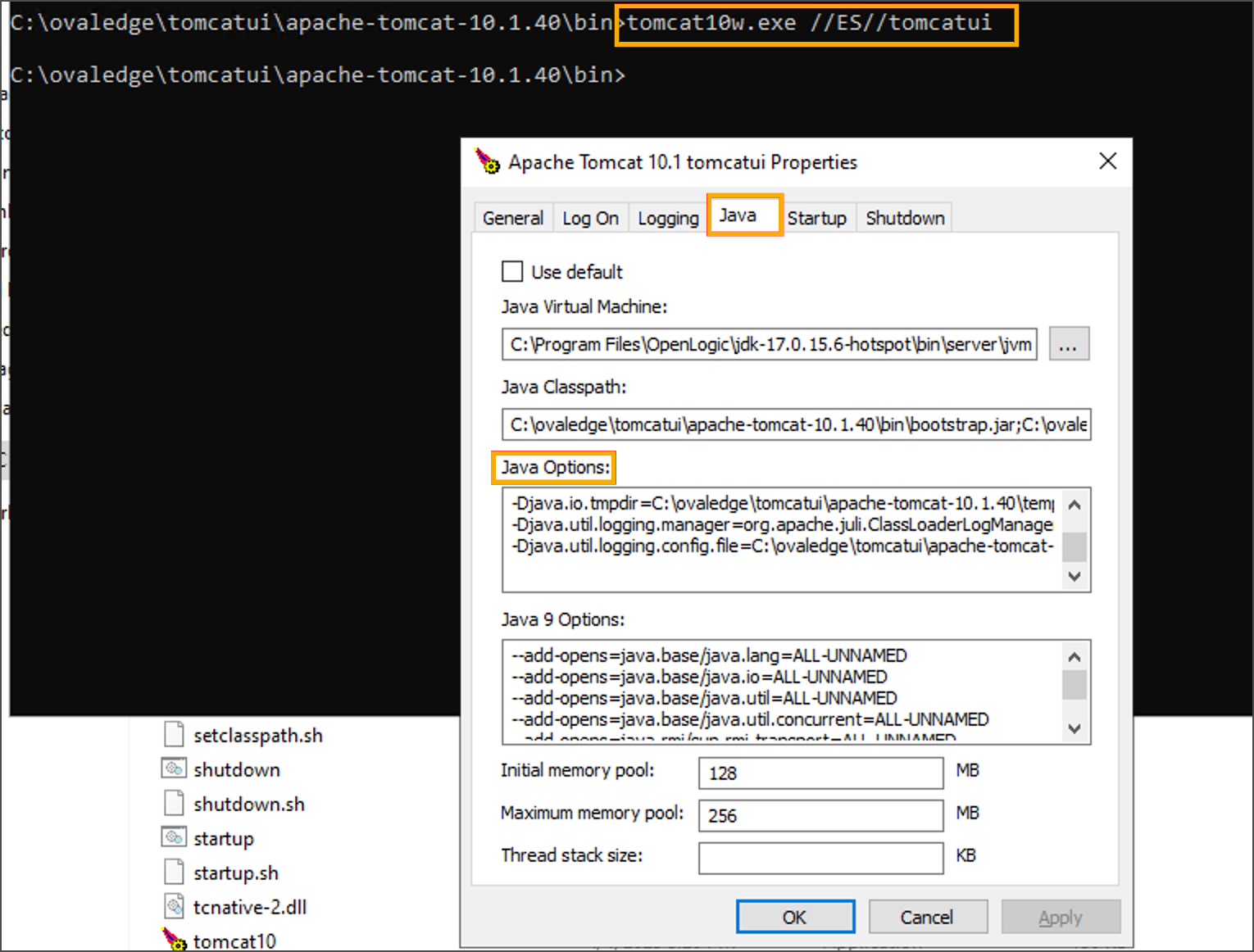

    tomcat10w.exe //ES//tomcatui
    ```

    <figure><img src="/files/4JuMs0gXtxQKvDXXDhvA" alt=""><figcaption></figcaption></figure>

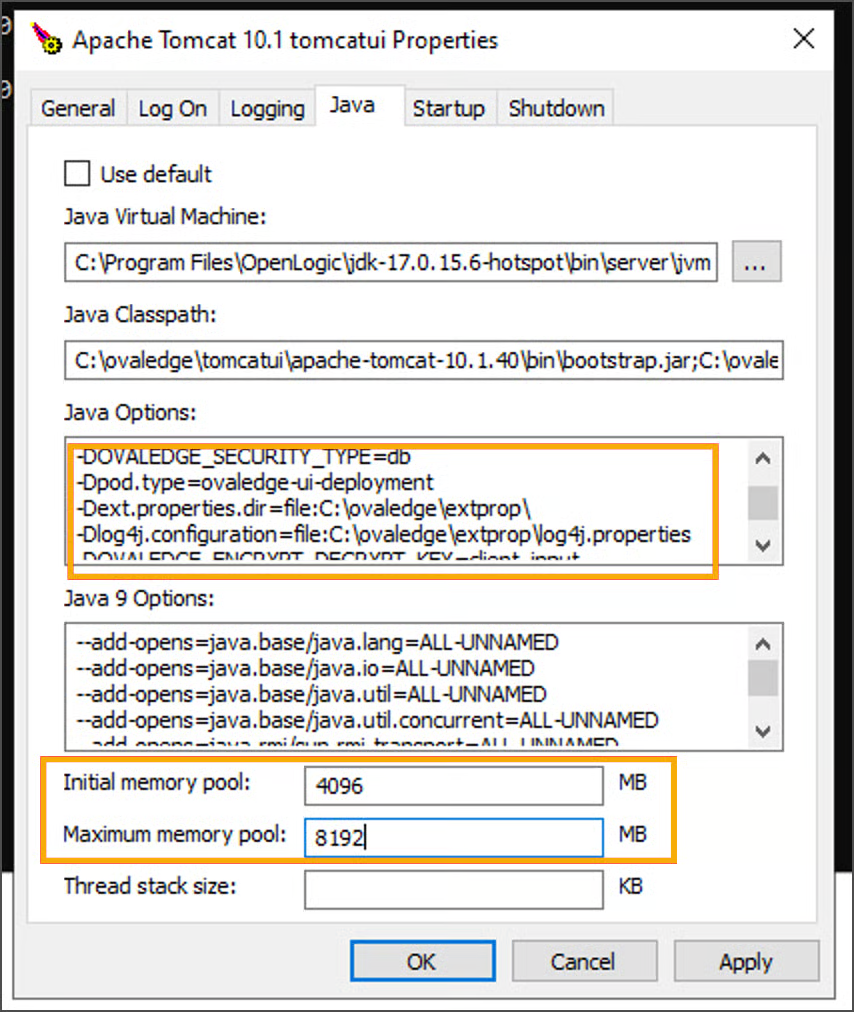

  * In the Java tab, add:\
    ![](/files/JGicXCNcgYgI3LrQ0Ubj)

    ```
    -DOVALEDGE_SECURITY_TYPE=db
    -Dpod.type=ovaledge-ui-deployment
    -Dext.properties.dir=file:C:\ovaledge\extprop\
    -Dlog4j.configuration=file:C:\ovaledge\extprop\log4j.properties
    -DOVALEDGE_ENCRYPT_DECRYPT_KEY=client_input
    --add-opens=java.base/jdk.internal.loader=ALL-UNNAMED
    --add-opens=jdk.zipfs/jdk.nio.zipfs=ALL-UNNAMED
    --add-opens=java.base/java.net=ALL-UNNAMED
    ```

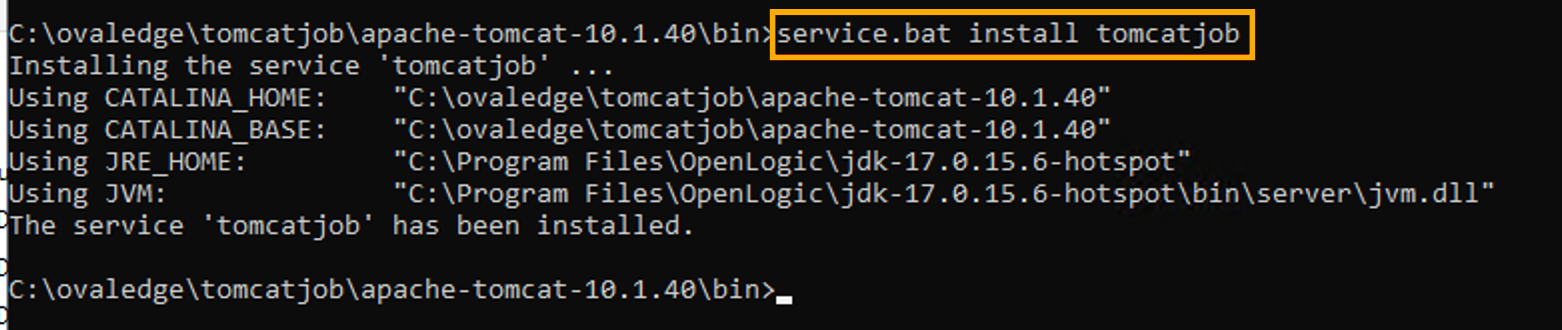

* **Install and Configure `tomcatjob` Service**
  * Navigate to `tomcatjob\bin` and open Command Prompt:

    ```bash
    service.bat install tomcatjob
    ```

    <figure><img src="/files/AFqOZhrM4lokYM922ww3" alt=""><figcaption></figcaption></figure>

    <figure><img src="/files/1oH85OHahGPNXOxq9Kwi" alt=""><figcaption></figcaption></figure>

    ```

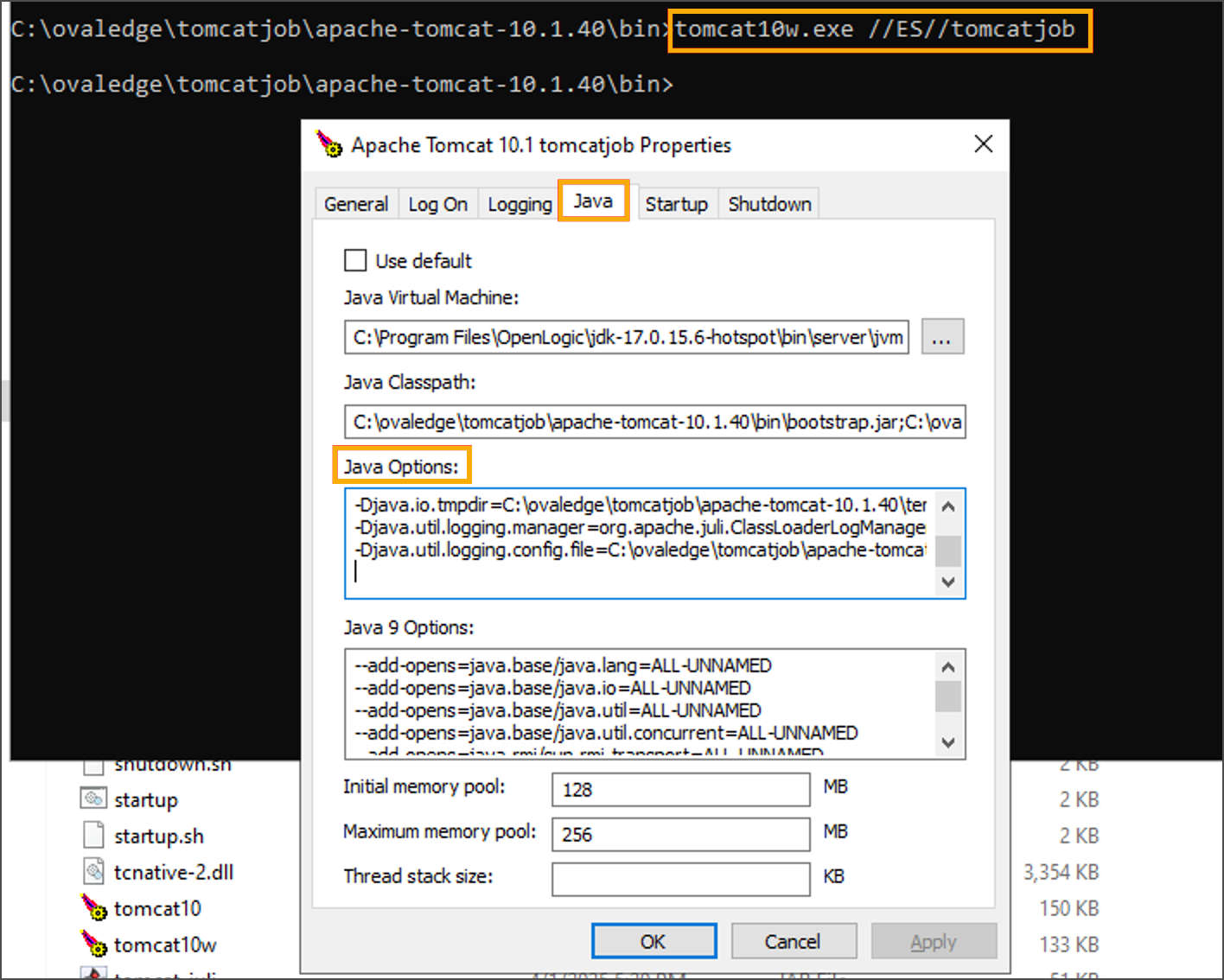

    tomcat10w.exe //ES//tomcatjob
    ```

    <figure><img src="/files/KjqItAXTyZLaIONGELBS" alt=""><figcaption></figcaption></figure>
  * In the Java tab, add:

    ```
    -DOVALEDGE_SECURITY_TYPE=db
    -Dpod.type=ovaledge-job-deployment
    -Dext.properties.dir=file:C:\ovaledge\extprop\
    -Dlog4j.configuration=file:C:\ovaledge\extprop\log4j.properties
    -DOVALEDGE_ENCRYPT_DECRYPT_KEY=client_input
    --add-opens=java.base/jdk.internal.loader=ALL-UNNAMED
    --add-opens=jdk.zipfs/jdk.nio.zipfs=ALL-UNNAMED
    --add-opens=java.base/java.net=ALL-UNNAMED
    ```
* **Final Configuration and Startup**
  * Ensure `oasis.properties` is properly updated.

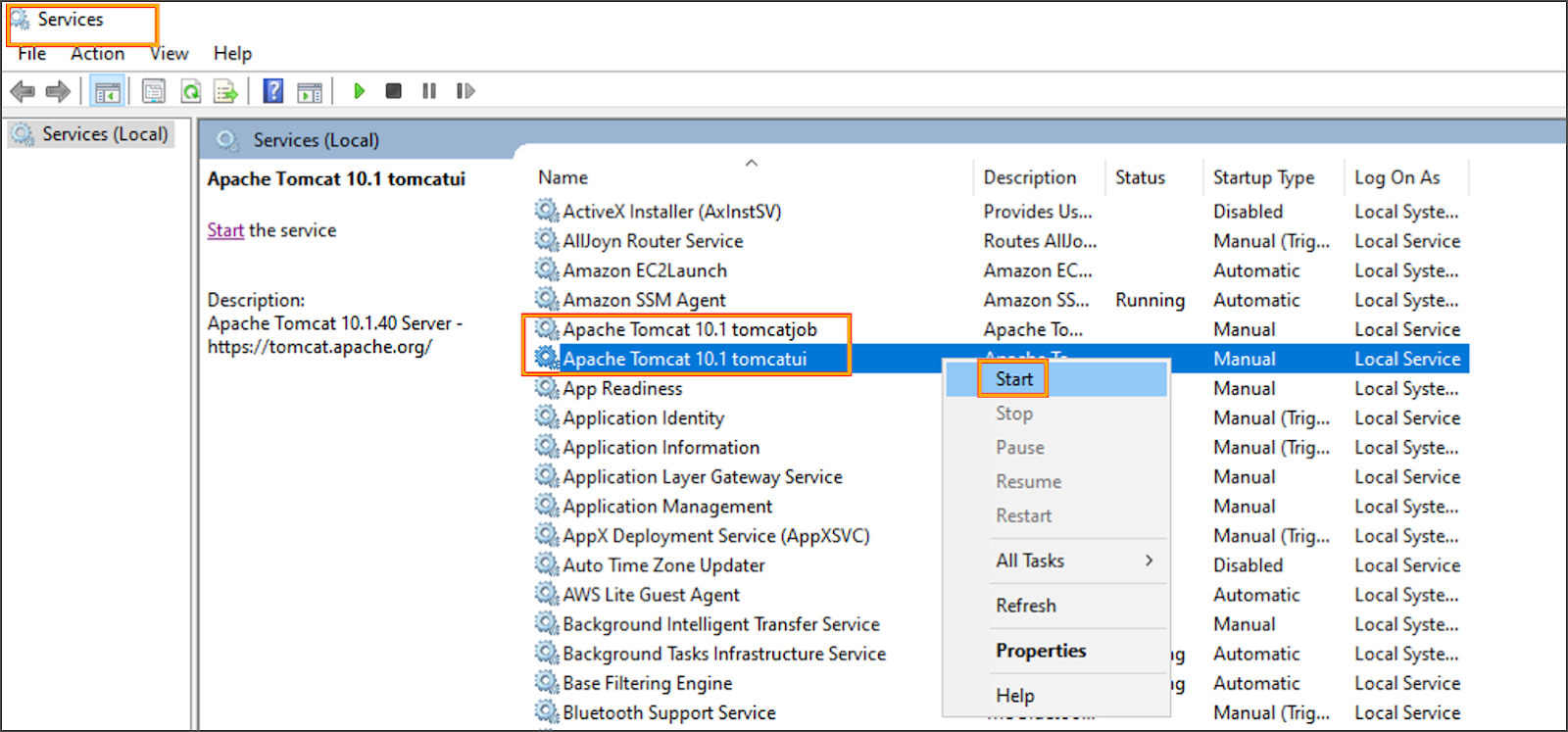

  * Start `tomcatui` and `tomcatjob` services from Services panel.

    <figure><img src="/files/YMGyfPIDtcRnjuTV7CEU" alt=""><figcaption></figcaption></figure>

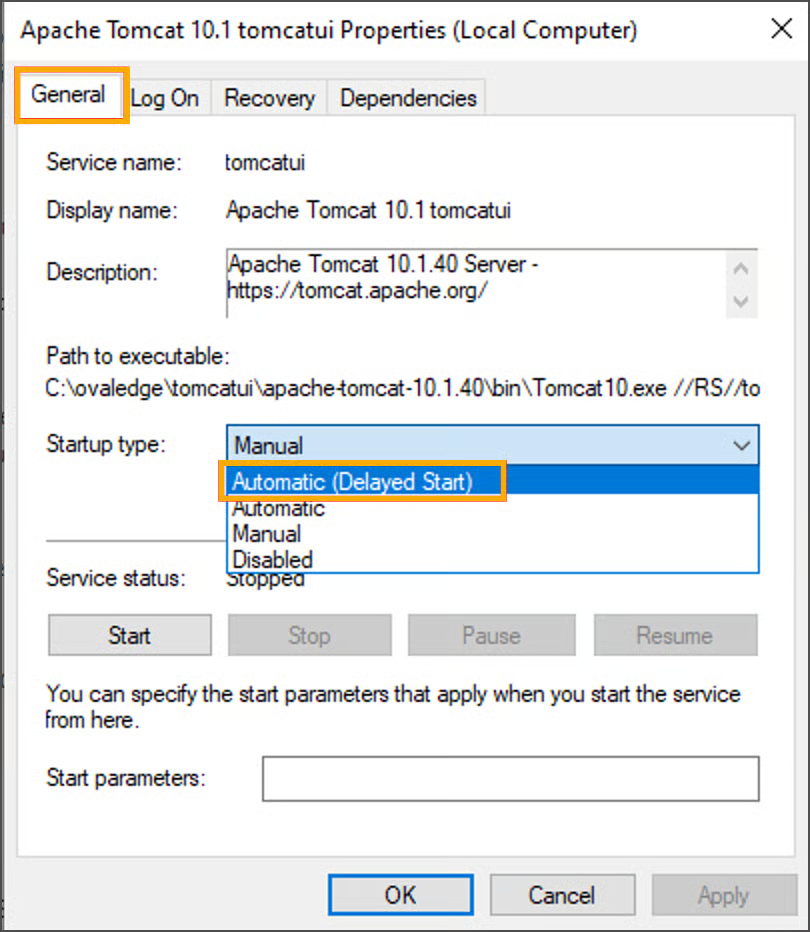

  * Set **Startup type** to *Automatic (Delayed Start)* for both.

    <figure><img src="/files/XpQX0oWkhbtlTnTNTYEE" alt=""><figcaption></figcaption></figure>

    \
    ![](/files/qZMsfjLitXn4kvdw92MB)

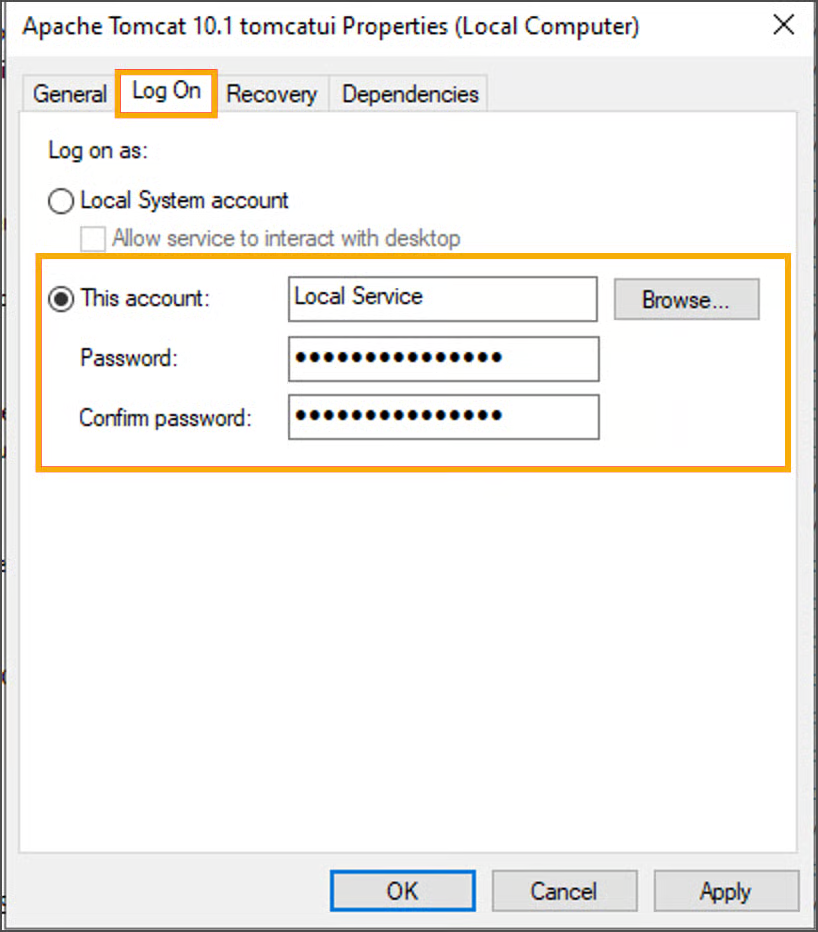

  * Update **Log On** settings with proper credentials and restart services.\
    ![](/files/zjK2rr8eAybJZmuz5GEc)

***

Copyright © 2025, OvalEdge LLC, Peachtree Corners, GA, USA.


---
