# Single-VM

This article describes the infrastructure requirements for deploying OvalEdge in a Proof of Concept (POC) environment. It defines the virtual machine specifications, network and port requirements, supported software versions, and required deployment artifacts.

Use this article to prepare the environment before installing the OvalEdge application and related services.

### **Scope**

This article covers the following areas:

* Virtual machine specifications
* Network and port requirements
* Software versions and dependencies
* Deployment artifacts and ownership

### Virtual Machine Specifications

OvalEdge requires two virtual machines for optimal performance and logical separation of services:

* **VM1** hosts the OvalEdge application, ElasticSearch, and askEdgi services.
* **VM2** hosts the MySQL database.

#### Recommended VM Configuration

| Service Type                             | Ram   | vCPU | Storage (SSD) |
| ---------------------------------------- | ----- | ---- | ------------- |
| VM1 (OvalEdge + ElasticSearch + askEdgi) | 32 GB | 8    | 200 GB        |
| VM2 (Database)                           | 32 GB | 8    | 200 GB        |

{% hint style="info" %}
These specifications are recommended for a POC environment. Production environments may require higher capacity based on metadata volume, connector usage, and lineage processing.
{% endhint %}

### Network and Port Requirements

#### Database Connectivity

Allow VM1 (OvalEdge application + Elastic Search) to communicate with VM2 (MySQL database) using the following port:

* **Port**: 3306 (MySQL)

#### Network Configuration Guidelines

* Whitelist the IP addresses of VM1 and VM2 on both servers.
* Ensure bi-directional network access between the virtual machines.
* Verify that no firewall or security group rules block database connectivity.

### Software Specifications and Supported Versions

Install and configure the following software versions before deploying OvalEdge:

| Component            | Supported Version        |
| -------------------- | ------------------------ |
| Operating System     | Ubuntu 24.04             |
| MySQL                | 8.4.x                    |
| OvalEdge Application | Latest supported version |
| Apache Tomcat        | 10.1.5x                  |
| ElasticSearch        | 9.3x                     |
| Java                 | OpenJDK 21               |
| Python               | 3.13.x                   |
| Poetry               | 2.1.2                    |

{% hint style="warning" %}
**Important**: Use only the supported versions listed above to avoid compatibility issues with metadata ingestion, lineage processing, and stewardship workflows.
{% endhint %}

### Deployment Artifacts

#### Artifacts Provided by OvalEdge

The OvalEdge team provides the following artifacts required for deployment:

* OvalEdge application **WAR file**
* **MasterScripts** for initial database schema setup
* **License key**
* **Crontab configuration** for cleaning temporary and cached files

#### Artifacts Provided by the Customer

The customer must provide the following:

* **SSL certificate** bound to the domain used for the OvalEdge application

Attach the SSL certificate to enable HTTPS access and secure communication between users and the OvalEdge platform.

### Network Architecture

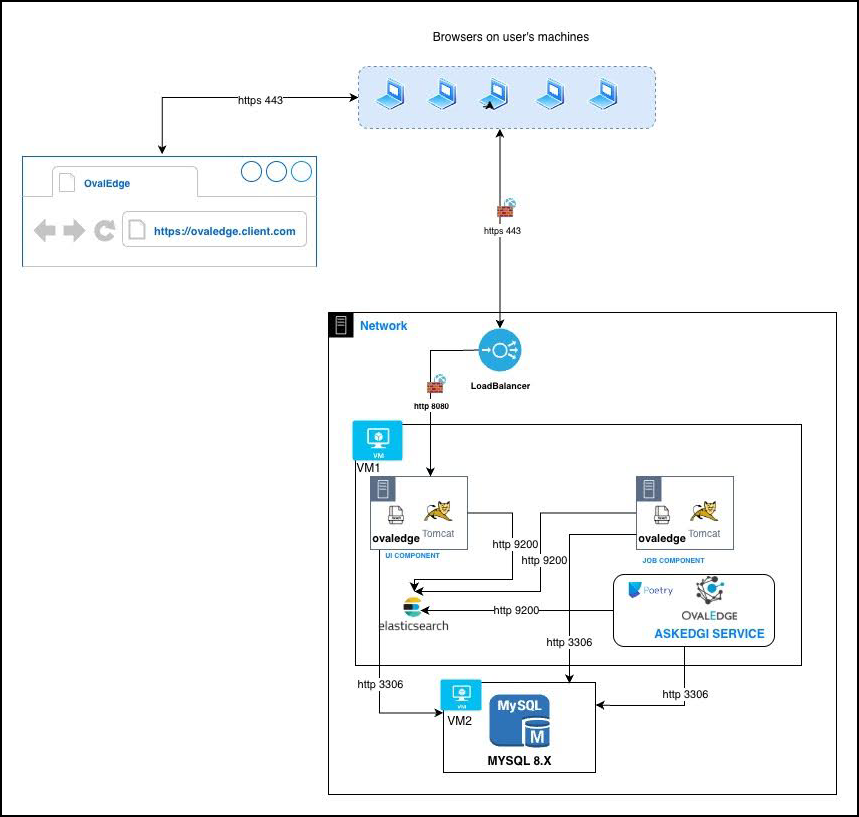

The following diagram represents the high-level network architecture for the OvalEdge POC deployment.

<figure><img src="/files/Cfs92csiVfgi2B21IlsG" alt=""><figcaption></figcaption></figure>

## Conclusion

This article outlines the infrastructure, network, software, and artifact prerequisites for deploying OvalEdge in a POC environment. Completing these requirements ensures a stable and secure foundation for OvalEdge installation and operation.

***
