Project Integration
This article explains how My Workspace integrates with the Projects module and other OvalEdge modules, including Data Catalog, Business Glossary, Data Stories, and Search Results. It describes how users can add supported data objects to My Workspace, the validation checks performed during the process, and the behavior of workspace actions across different modules.
The article also explains the rules for supported object types, access validation, duplicate detection, workspace limits, and project management to ensure consistent behavior and data governance.
Data Catalog - Workspace Projects Integration
This section explains the functional details of the Workspace integration within AskEdgi and its behavior across modules, including Projects, Data Catalog, Business Glossary, Data Stories, and Search Results.
Operational Framework
The AskEdgi Workspace operates as a personal project within the Projects module and receives data objects from multiple areas, including the Data Catalog, Business Glossary, Data Stories, and Search Results. Tables and files can be added to the workspace from the AskEdgi interface. Still, direct workspace management actions from other modules are governed by clear rules to ensure consistent behavior and data governance.
“My Workspace” functions as a default personal project with defined validations, icon behavior, access checks, duplicate checks, workspace limits, and visual indicators. Only supported object types, including tables and files, can be added to the workspace. Other object types, such as glossary terms and data stories, remain restricted to standard projects.
Feature Details
Projects List View
Project Type
It will be displayed as My Workspace
Description
Non-editable to maintain workspace integrity

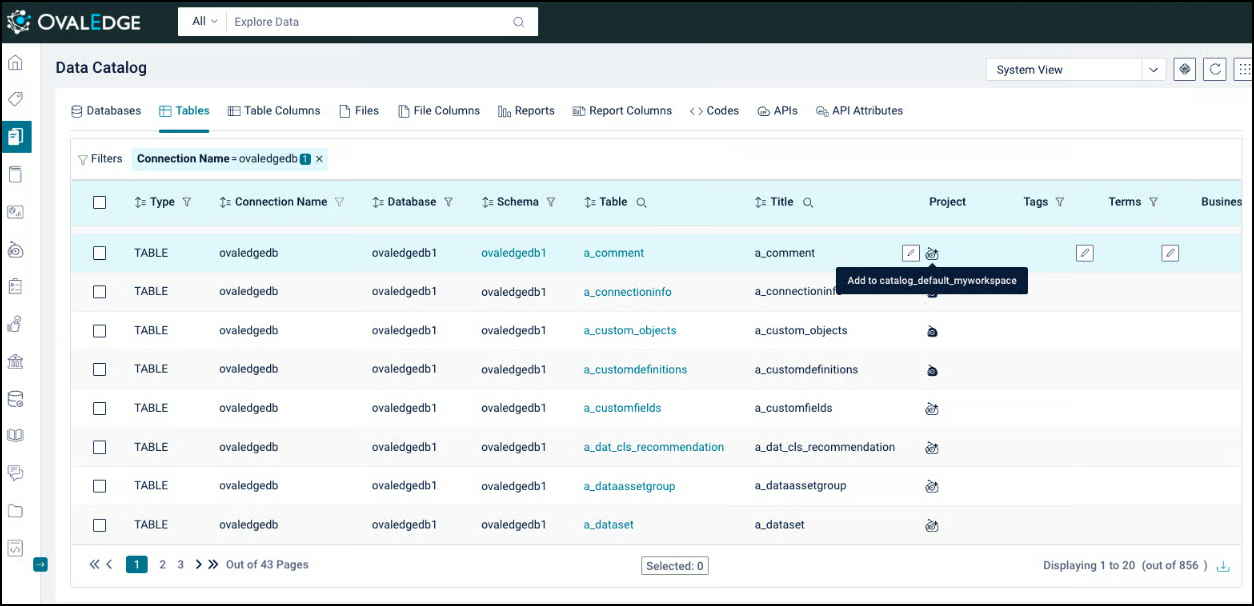

Data Catalog List View
Tables and Files
Workspace icon visible
All other object types
The icon appears greyed out to indicate restriction

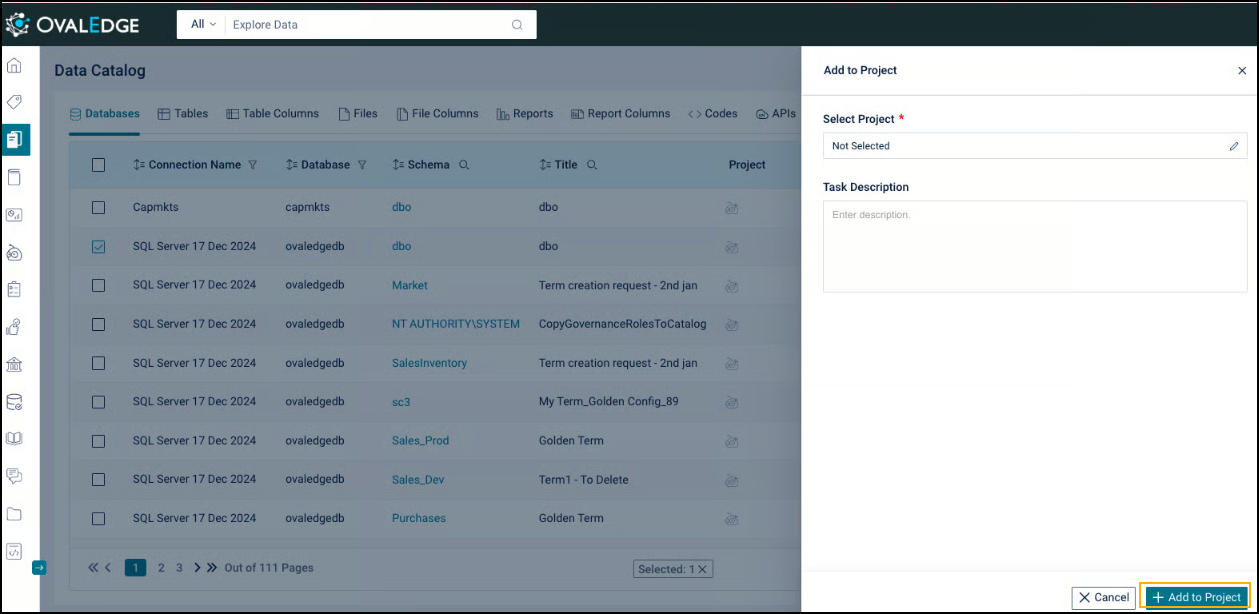

Manage Project navigation
Log in as an Administrator.
Navigate to the Data Catalog module from the main application menu.
Select one or more data objects from the list.
Click on the Nine-Dot menu.
Select the Manage Projects.
Click Add to Project.
The system displays the list of eligible projects based on the selected object types.
Choose a target project from the displayed list.
The system validates duplicate entries, data access, and workspace limits.
The system displays the relevant success or validation message.
Data objects where the user has minimum Data Read access permission are added to the selected project.
Validation rules for adding to My Workspace
Duplicate Check
If the object already exists, it is skipped
Some table(s) or file(s) already exist in your workspace and will not be added again
Mixed Duplicate and New
Some exist, and some are new
X of the selected tables or files already exist in your workspace. The remaining Y have been added successfully
Access Check
If the user does not have minimum Data Read access, the object is not added to the workspace.
X of Y data objects were not added due to access permission. Error message displayed.
Workspace Limit
Workspace limit reached
X of Y objects added to the workspace. Workspace has reached its limit of N tables or files. Please remove some objects before adding new ones.
Connector availability is validated before adding objects to ensure AskEdgi access readiness
3. Data Catalog Summary View
Add to Project
Only non-table or file objects
My Workspace is not displayed when Add to Project is clicked
Only tables or files
My Workspace displayed
Validation
Messages match those shown in Data Catalog List View
Examples
The selected table(s) or file(s) already exist in your workspace and will not be added again.
Workspace limit exceeded: Workspace has reached its limit of X tables or files. Please remove some objects before adding new ones.
4. Business Glossary, Data Stories, and Impact Analysis
Add to Project
Default Project is My Workspace
Only tables and files are supported
Business Glossary Terms and Data Stories
Cannot be added to My Workspace
Alternate routes, including bulk selection
My Workspace is not shown
Icon
From the Business Glossary List View, the default project icon changes to a greyed-out state.
Only data objects, including tables and files, are allowed in My Workspace.
Glossary terms, Data Stories, and Impact Analysis items remain associated with standard projects.
5. Search Page Results
For Tables and Files
My Workspace icon is displayed.
Validation checks performed including
Duplicate check
Access check
Workspace limit check
For other object types
The " Add to Project” button is greyed out.
