# Google

This article outlines the steps to configure **SSO in OvalEdge using Google OAuth2**.

Single Sign-On (SSO) is a user authentication method that enables access to multiple applications using a single set of credentials. Integrating SSO enhances user experience and reduces the overhead of managing multiple usernames and passwords across platforms.

## Purpose

The purpose of this document is to provide a **step-by-step guide** for configuring Google OAuth2 as the identity provider for SSO in OvalEdge. This includes:

* Creating a Google project
* Generating OAuth credentials
* Updating the OvalEdge configuration files
* Setting Tomcat runtime environment variables
* Restarting the OvalEdge application server

## Prerequisites

* **Access to Google Cloud Console**
* **Admin privileges** in the OvalEdge application server
* **Valid domain name and redirect URL** for OvalEdge (e.g., `https://<your-domain>/ovaledge/oauth2/code/google`)
* **Access to modify** the `oasis.properties` file

## Configuration Steps

1. **Create a Project in Google Cloud Console**
   * Navigate to: [Google Cloud Console](https://console.developers.google.com?utm_source=chatgpt.com)

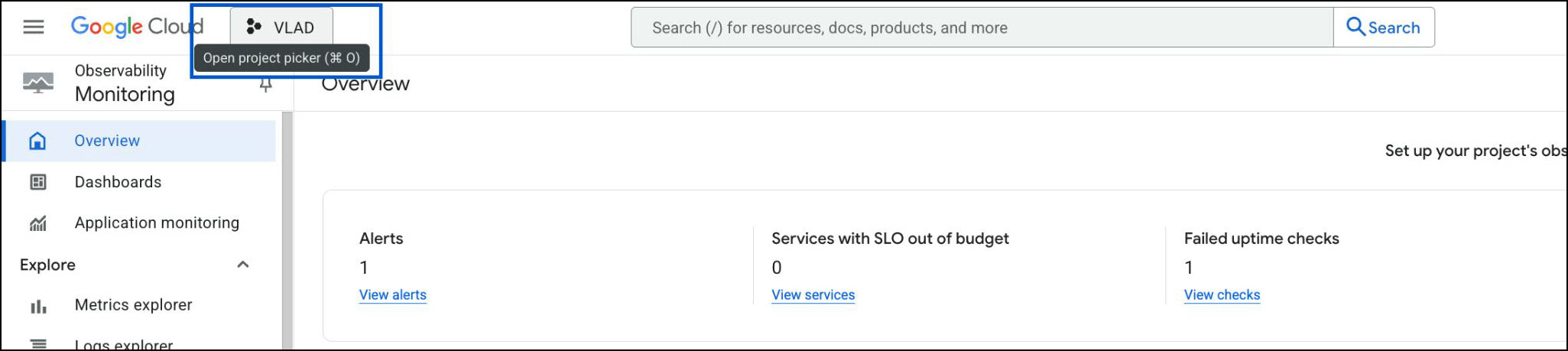

   * Click **Open project picker** in the top navigation bar.

     <figure><img src="/files/PrWvUnIvnORdyXc8Y6df" alt=""><figcaption></figcaption></figure>

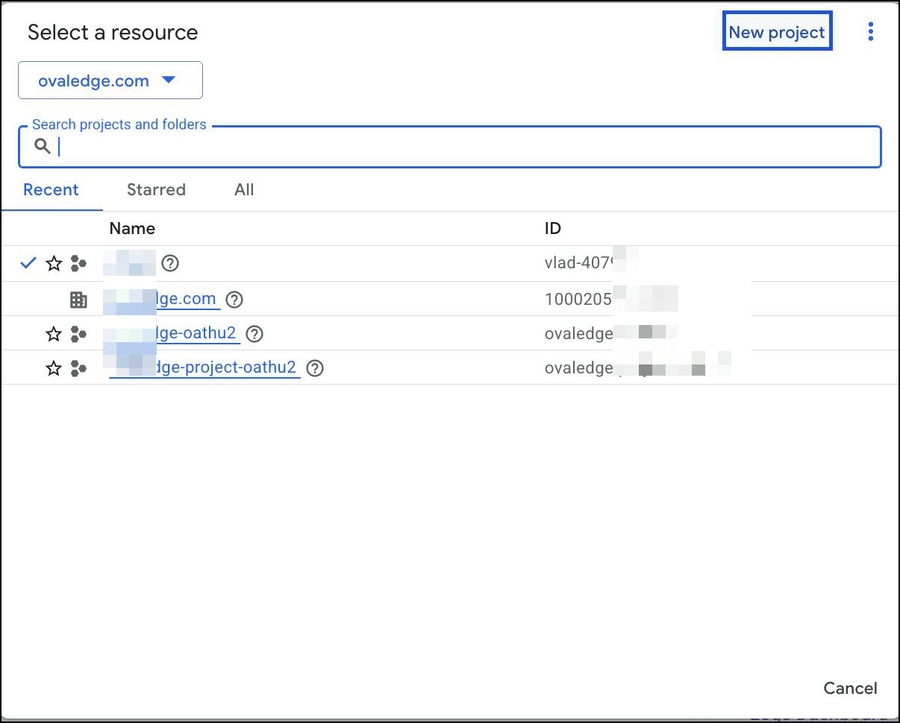

   * Select **Resource** → click **New Project**.\
     ![](/files/foWGDLWecROaoWwpjDzR)

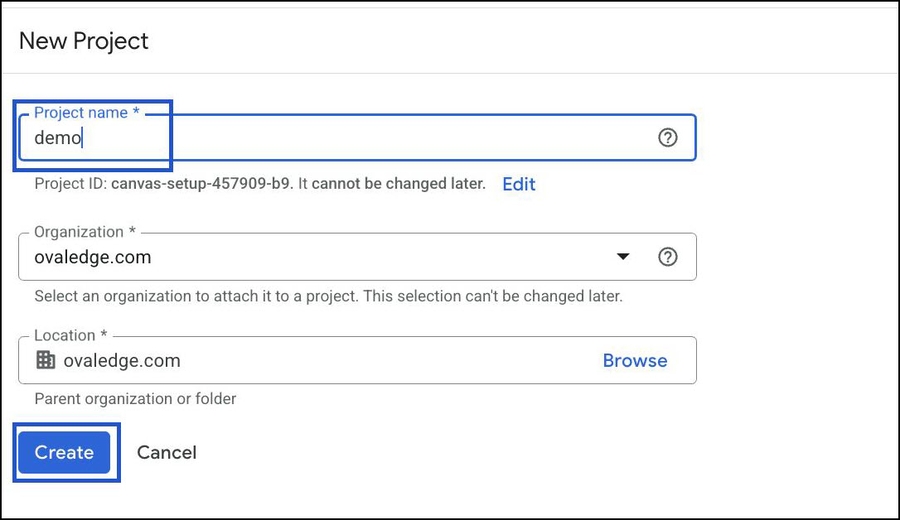

   * Enter a **Project Name** → click **Create**.\
     ![](/files/rrQ3XhaJtK6LbbdCmiVs)

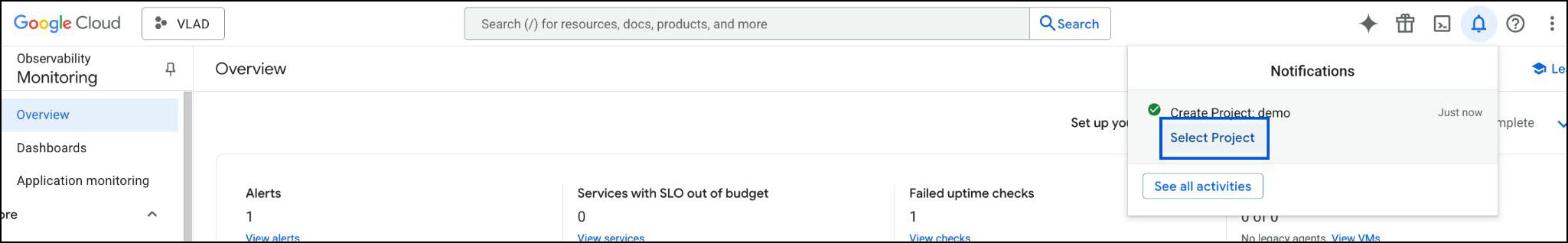

   * After creation, click **Select Project** to open the newly created project.

     <figure><img src="/files/S890Kx2Rxx6AesDRmJ12" alt=""><figcaption></figcaption></figure>

2. **Enable OAuth2 and Configure Consent Screen**

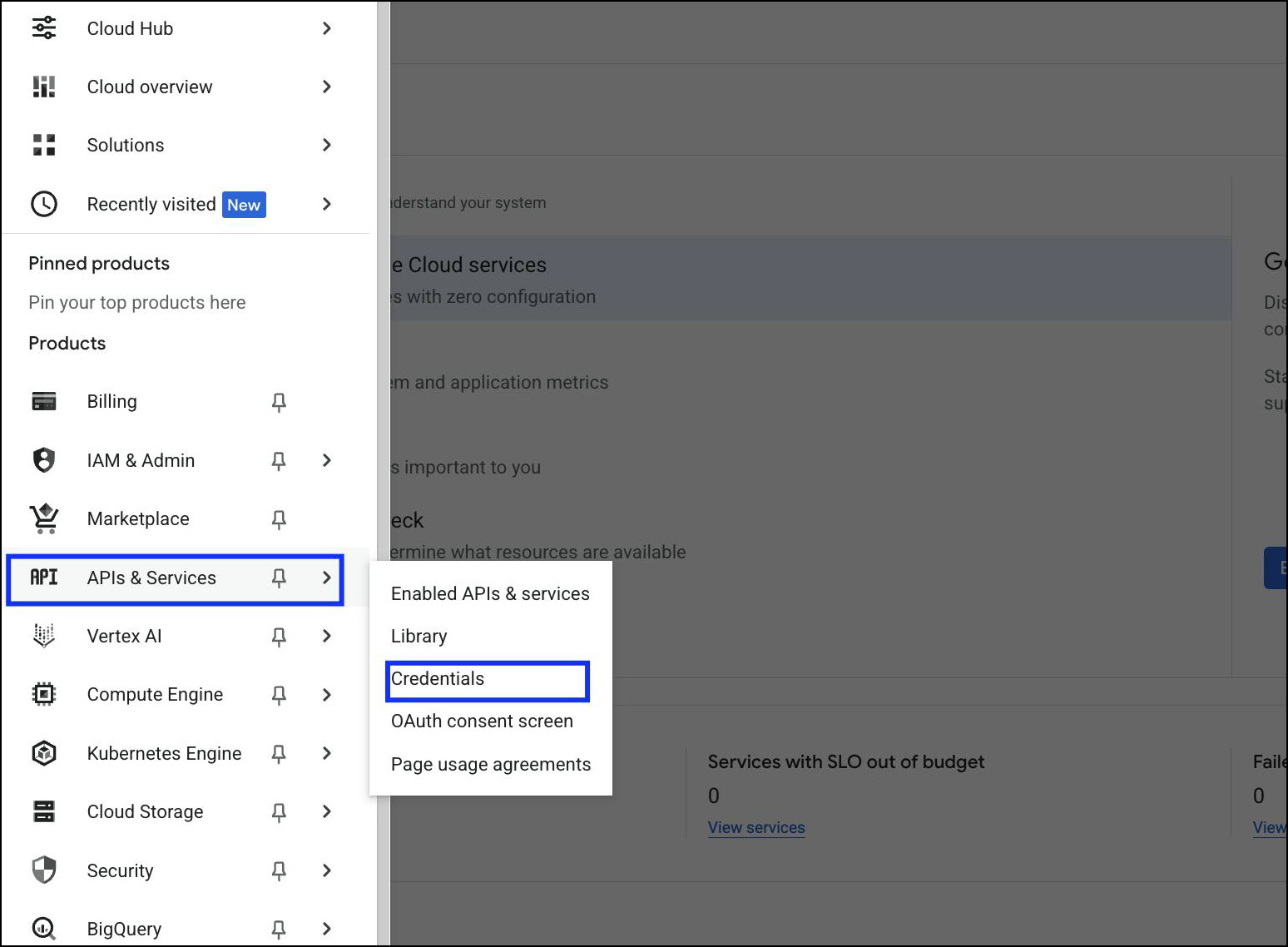

   * Navigate to **APIs & Services > Credentials**.

     <figure><img src="/files/nXsLjxPOlii0HkwZo9uN" alt=""><figcaption></figcaption></figure>

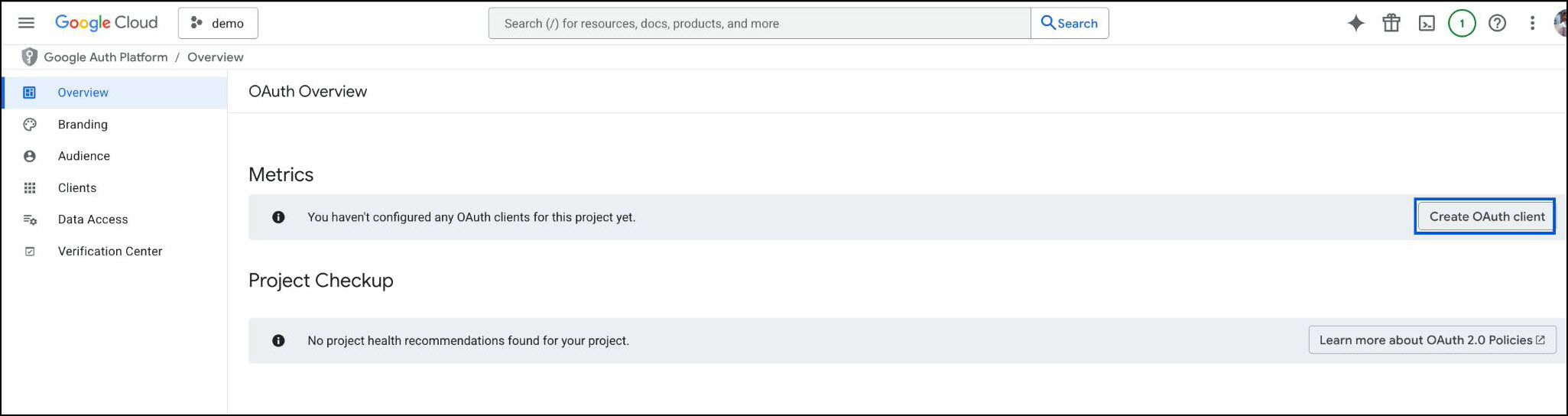

   * Click **+ CREATE CREDENTIALS → OAuth client ID**.

     <figure><img src="/files/YJj5fj7BoaJvWTTlFC8q" alt=""><figcaption></figcaption></figure>

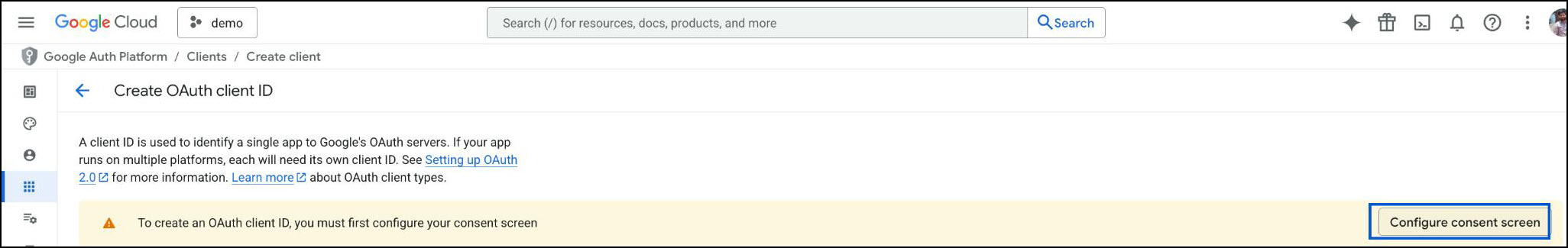

   * Configure consent screen:

     <figure><img src="/files/po9bWIlamm6lmYEtzUMV" alt=""><figcaption></figcaption></figure>

     * Click **Create** to start a new consent screen.

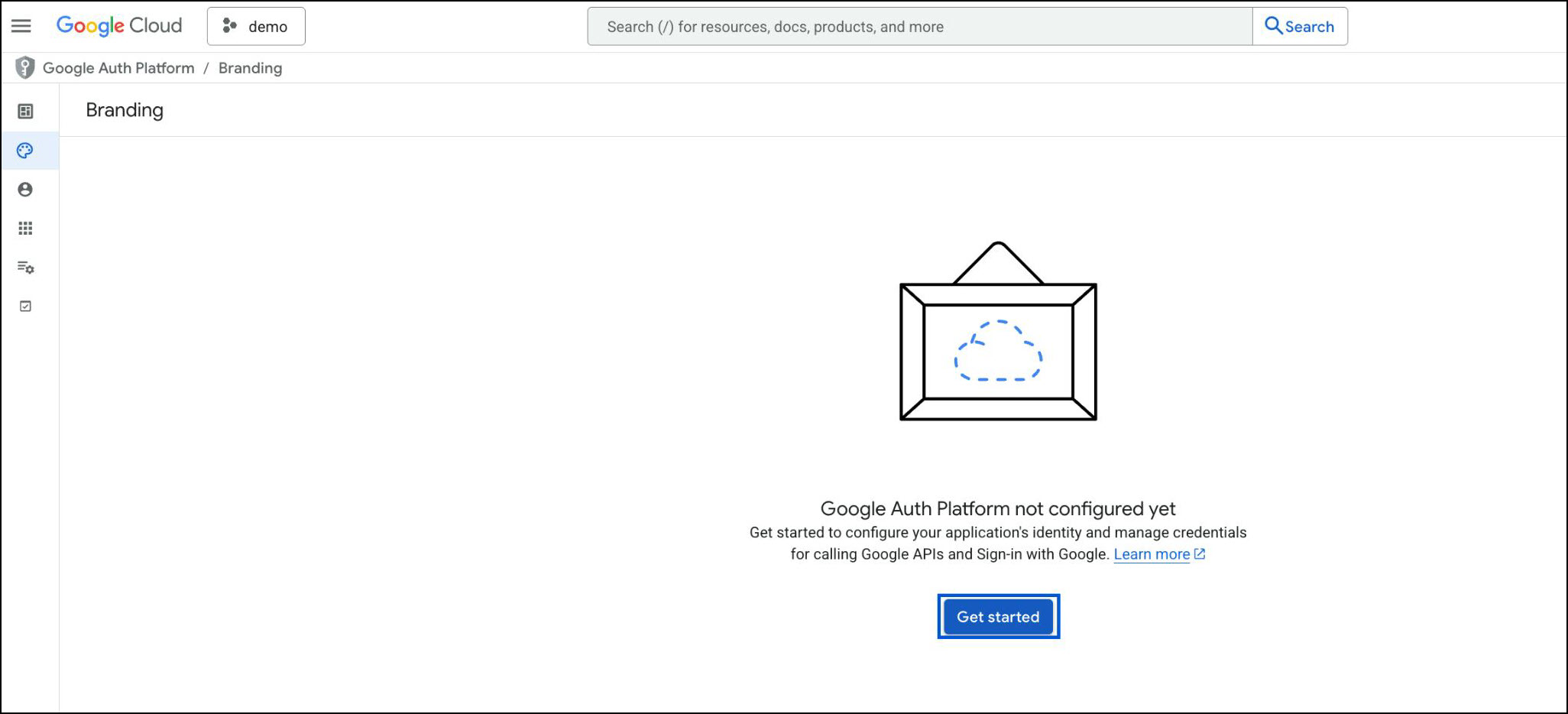

     * Click **Getting Started**.

       <figure><img src="/files/CcNXgdD8BZMO5ZY10csx" alt=""><figcaption></figcaption></figure>

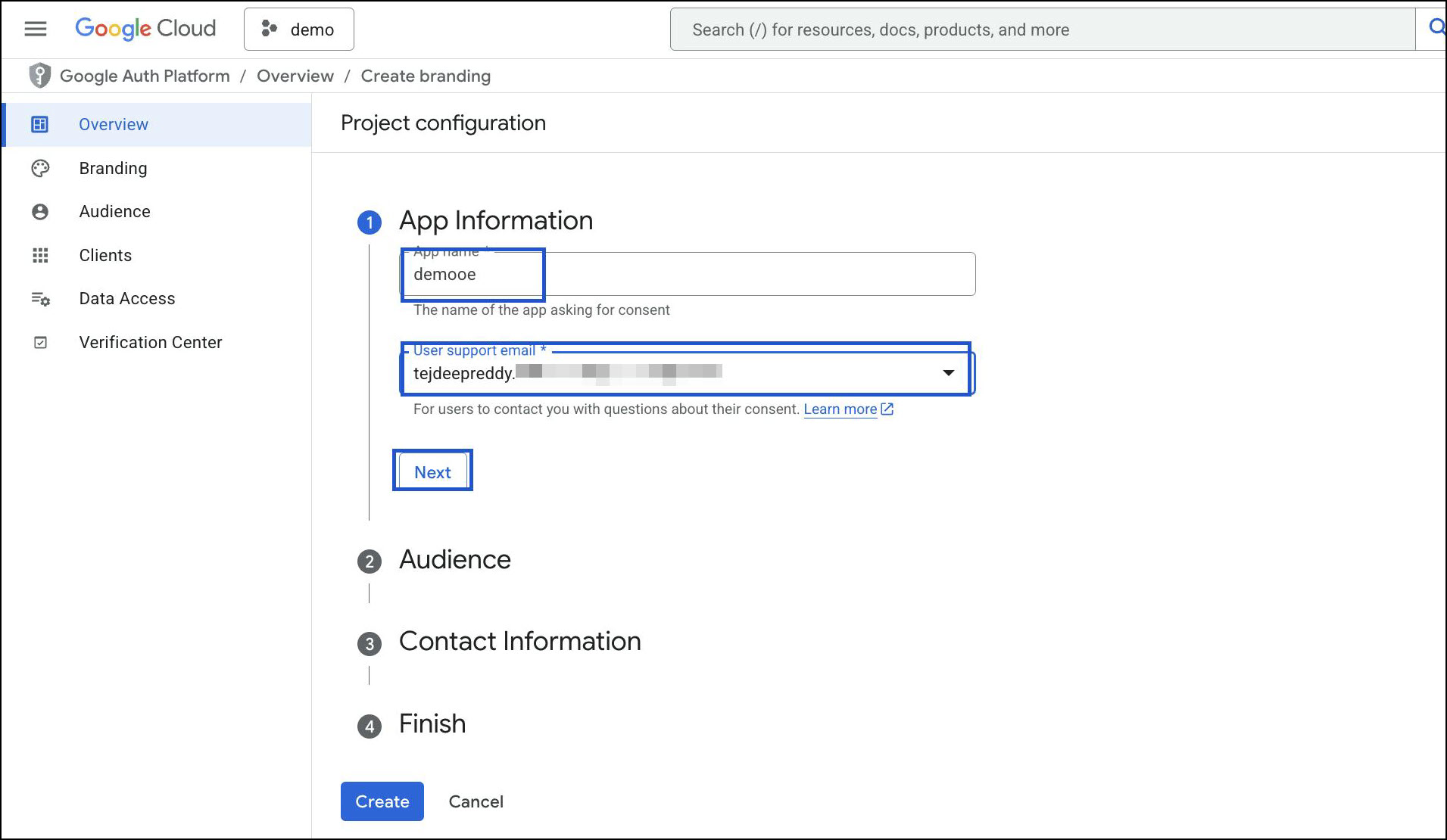

     * Provide **App Name** and **Support Email** → click **Next**.

       <figure><img src="/files/Oj0knQYHMAx0Ocw9d9hK" alt=""><figcaption></figcaption></figure>

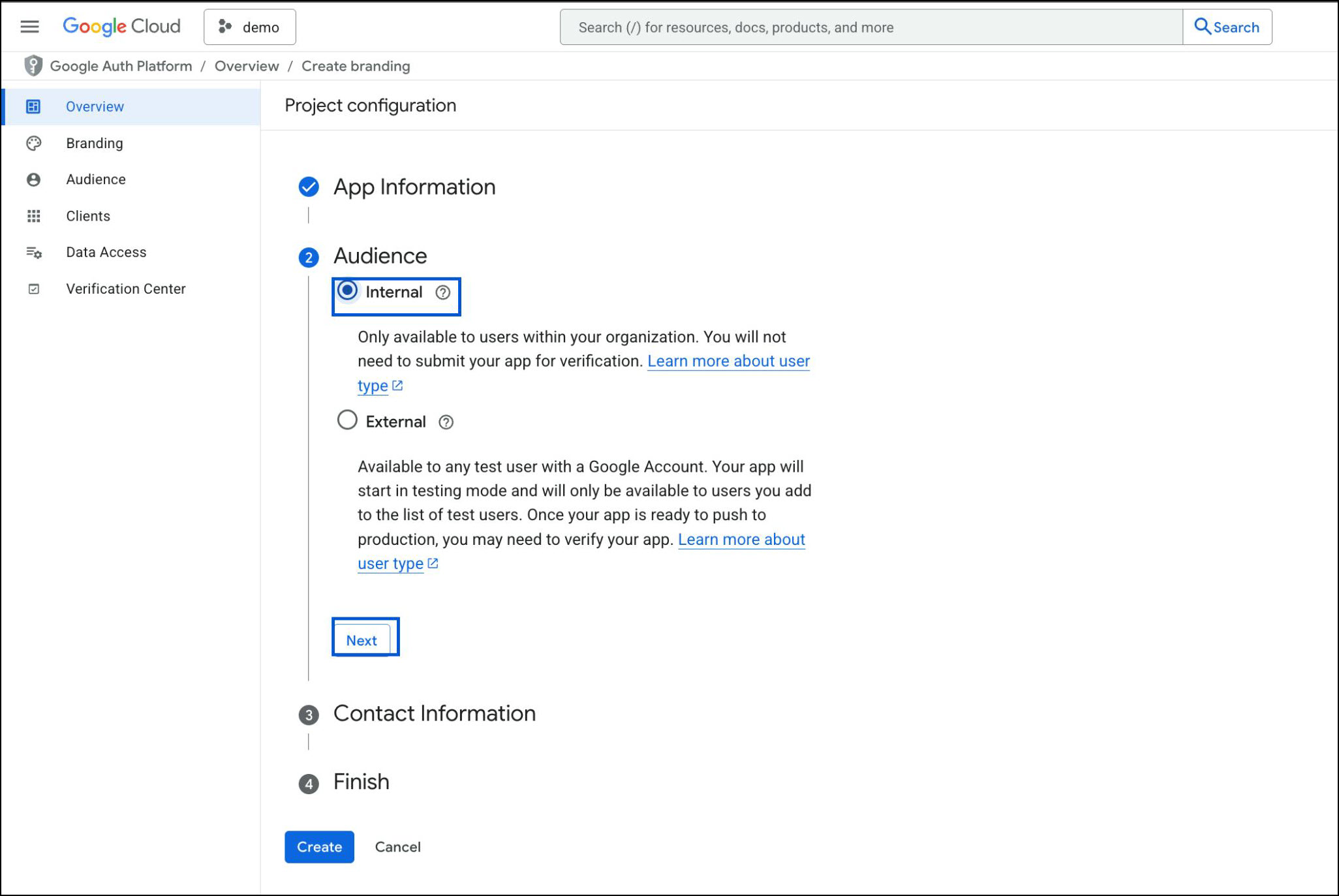

     * Select **Internal** as the user type (recommended for organizations).

       <figure><img src="/files/jEZbWQDulQN6VPhs53gC" alt=""><figcaption></figcaption></figure>

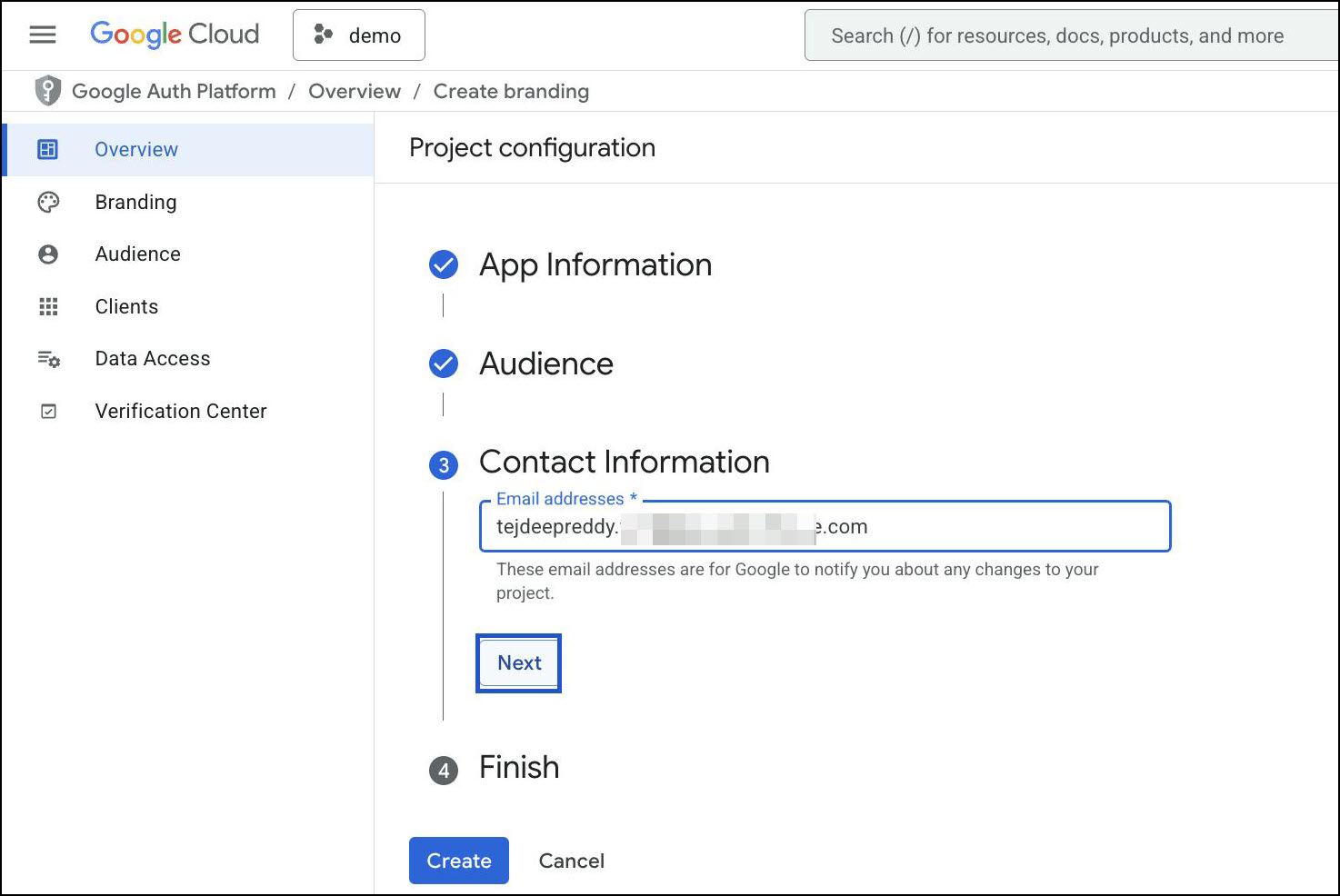

     * Add a **Contact Email address** → click **Next**.

       <figure><img src="/files/hig7EWmcmbXAqV4VrHng" alt=""><figcaption></figcaption></figure>

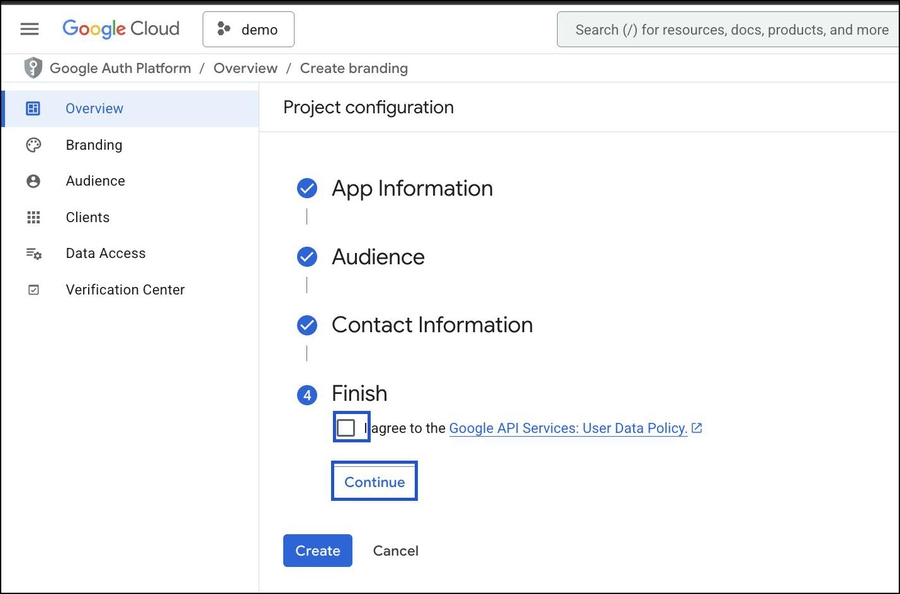

     * Select **I agree** and click **Continue**.\
       ![](/files/f780b8Ssh1VHmsTHfP8C)

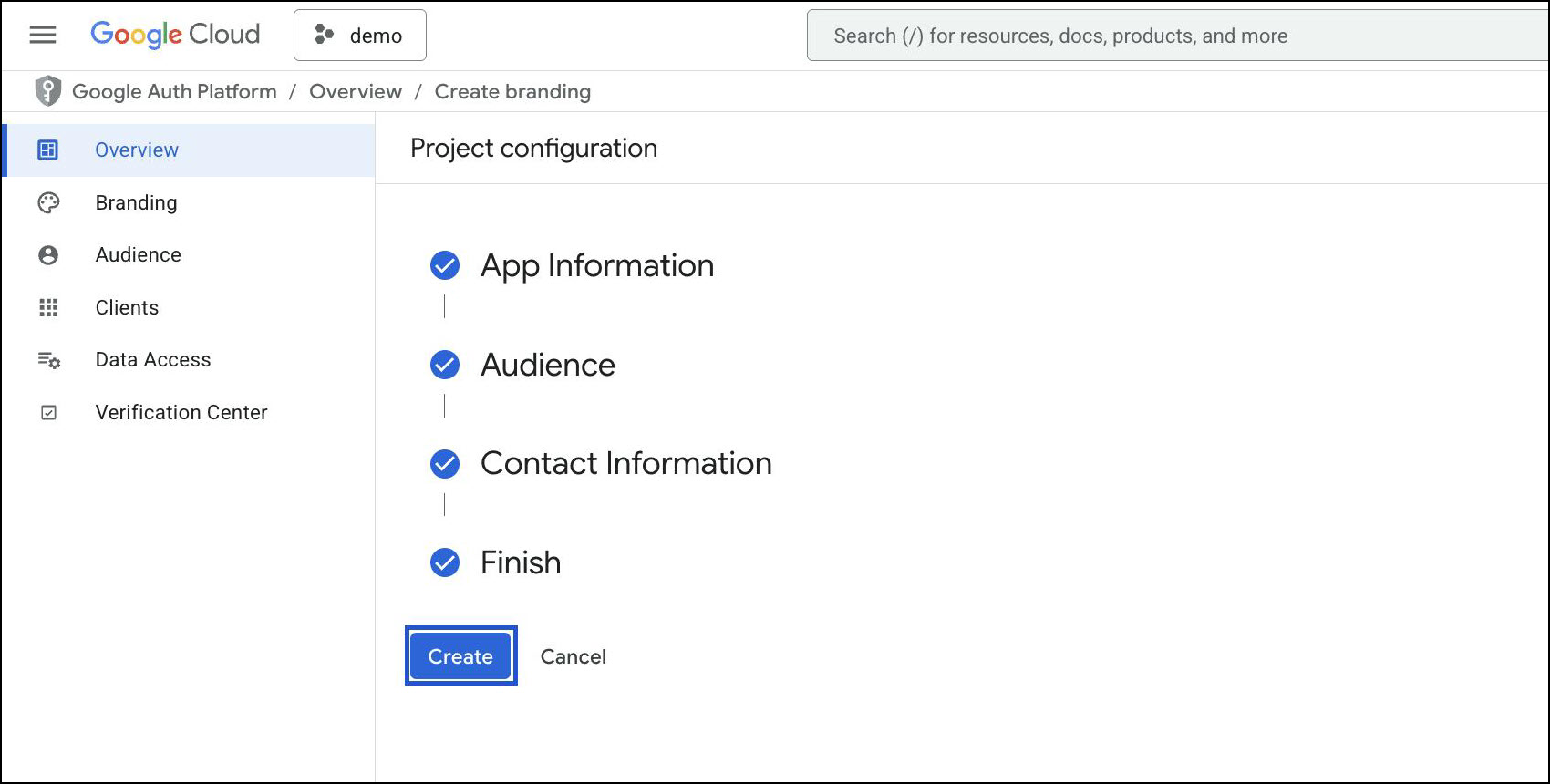

     * Once all sections show a checkmark (**App Information, Audience, Contact Information, Finish**), click **Create**.

       <figure><img src="/files/14PV4mSTSWFY7MdoDMP2" alt=""><figcaption></figcaption></figure>

3. **Create OAuth Client ID**

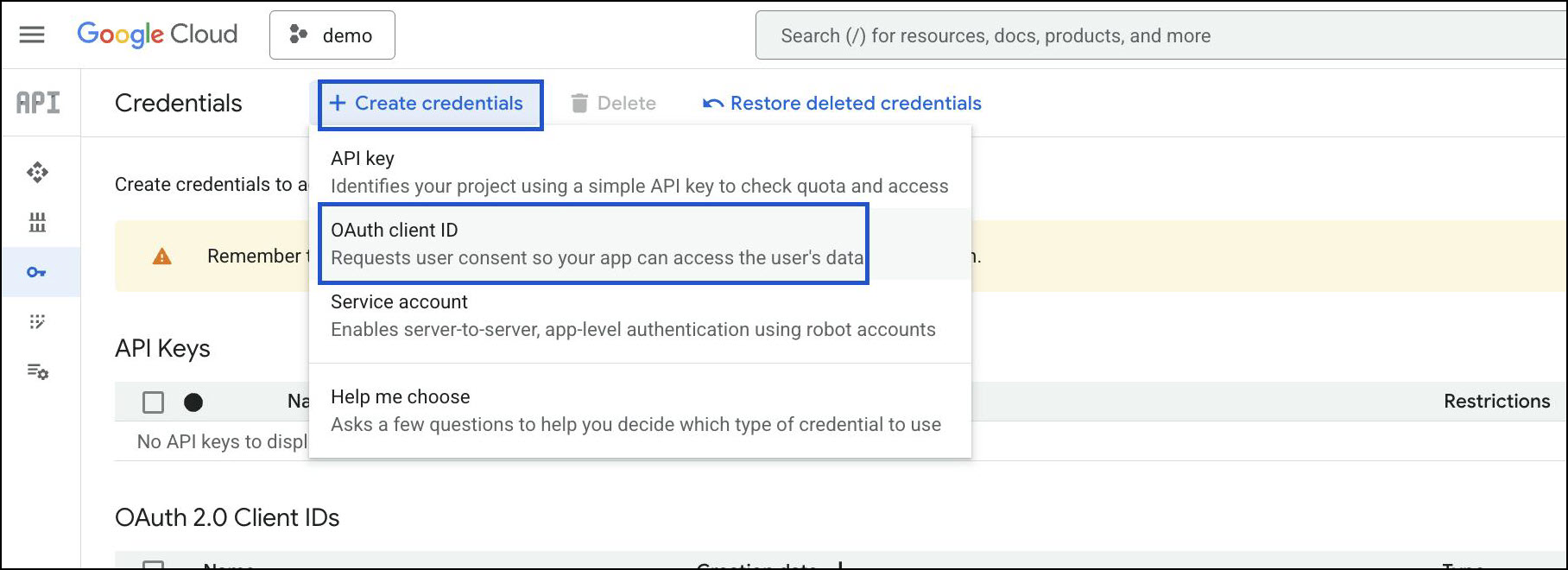

   * From the **Credentials tab**, click **+ CREATE CREDENTIALS → OAuth client ID**.

     <figure><img src="/files/13XYqYBwvye2mQ5vFPmJ" alt=""><figcaption></figcaption></figure>

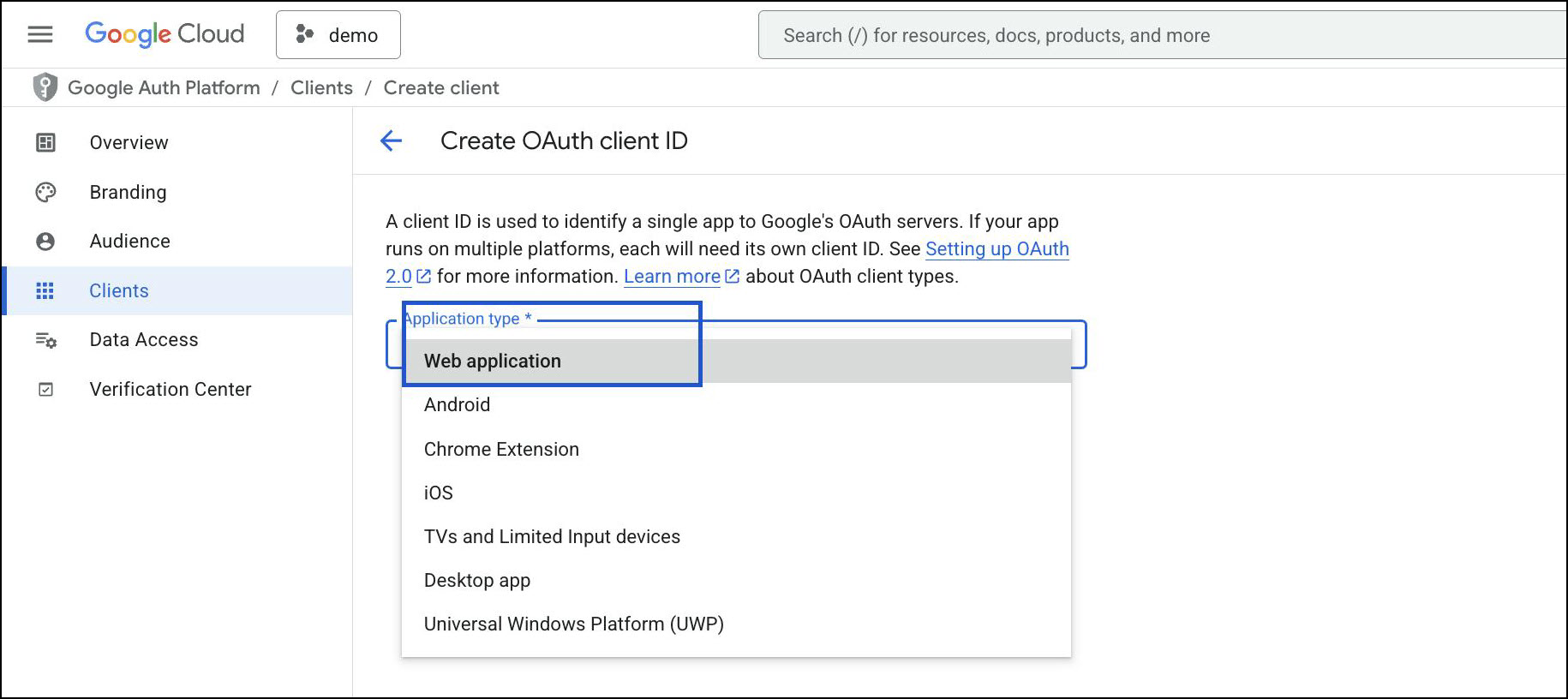

   * Choose **Application type = Web application**.

     <figure><img src="/files/wOM34LcyjLniD86LyctD" alt=""><figcaption></figcaption></figure>

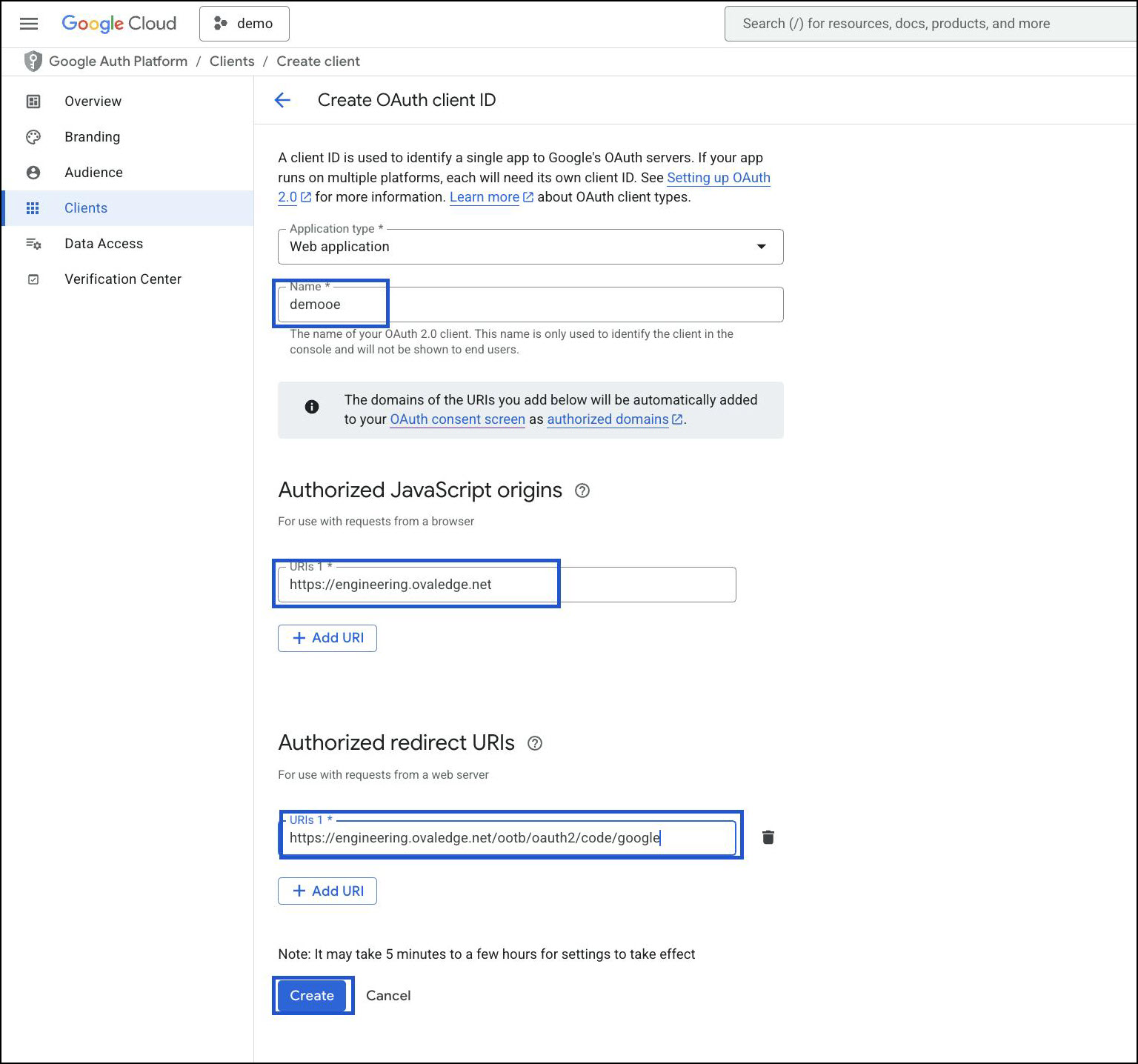

   * Enter a **Name** (e.g., `OvalEdgeSSO`).
   * Under **Authorized JavaScript origins**, add:

     ```
     https://<your-domain>
     ```
   * Under **Authorized redirect URIs**, add:

     ```
     https://<your-domain>/ovaledge/oauth2/code/google
     ```
   * Click **Create**.

     <figure><img src="/files/0UltJi5nyvSlw74550WU" alt=""><figcaption></figcaption></figure>

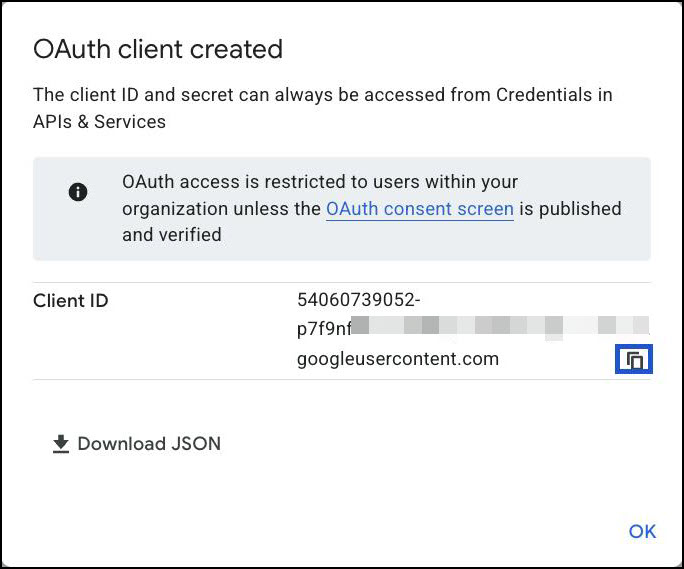

   * Copy the **Client ID** and click **OK**.\
     ![](/files/qAAQeFjfyuI9GvlFLgwc)

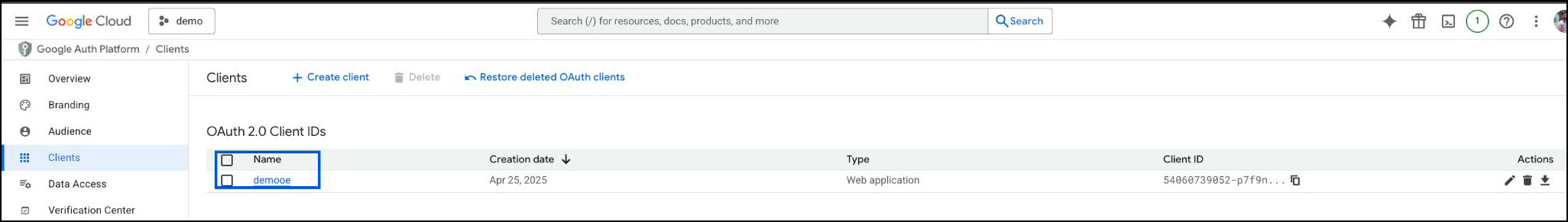

   * Navigate to **Clients** and click on the **OAuth2.0 Client ID**.

     <figure><img src="/files/HM9iYXlI03RFxlMkYBAN" alt=""><figcaption></figcaption></figure>

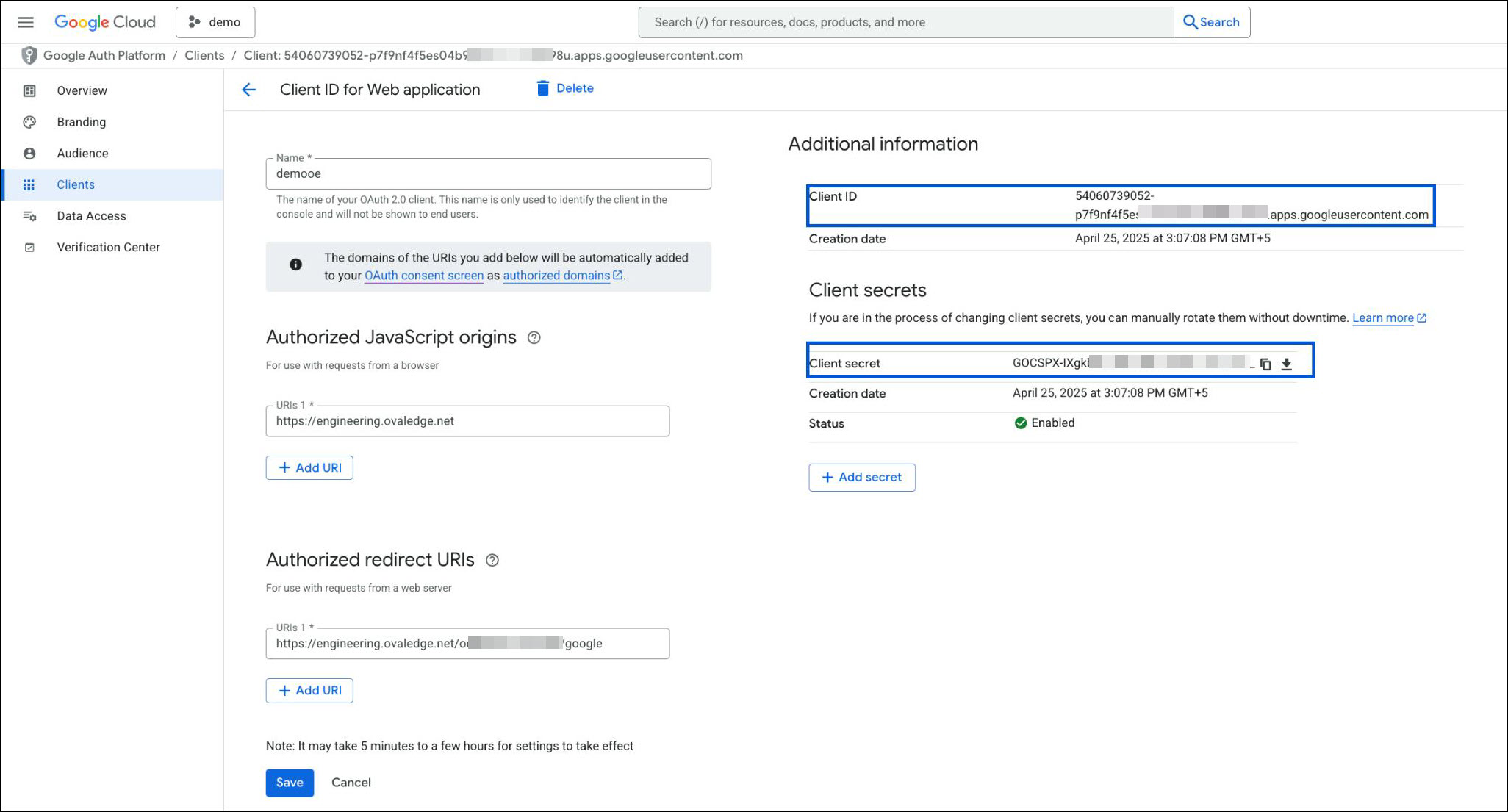

   * From the Additional Information section, copy the **Client ID** and **Client Secret**. These will be used in the OvalEdge configuration.

     <figure><img src="/files/K86U9WOXe5UAPverUU3c" alt=""><figcaption></figcaption></figure>

4. **Update OvalEdge Configuration**

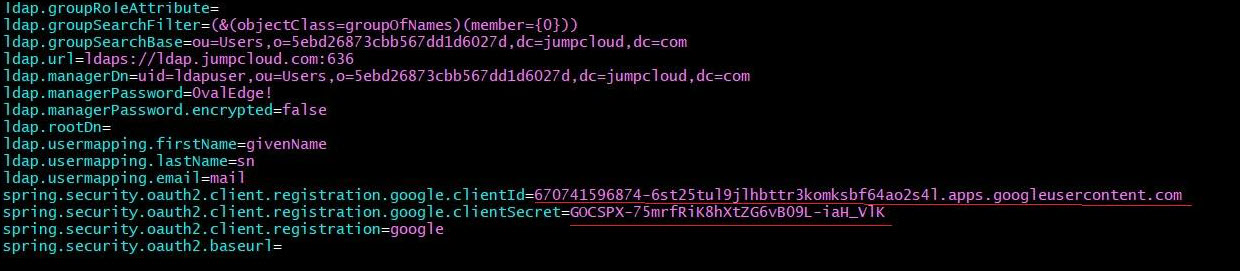

   * Edit the `oasis.properties` file and add the following lines:

     ```properties
     spring.security.oauth2.client.registration.google.clientId=<Your-Client-ID>
     spring.security.oauth2.client.registration.google.clientSecret=<Your-Client-Secret>
     ```

     <figure><img src="/files/KMfzP1p1kW5jsqQBsrvg" alt=""><figcaption></figcaption></figure>

5. **Enable OAuth2 in the OvalEdge Server**
   * For Windows (Tomcat)
     * Navigate to the `Tomcat/bin` directory.

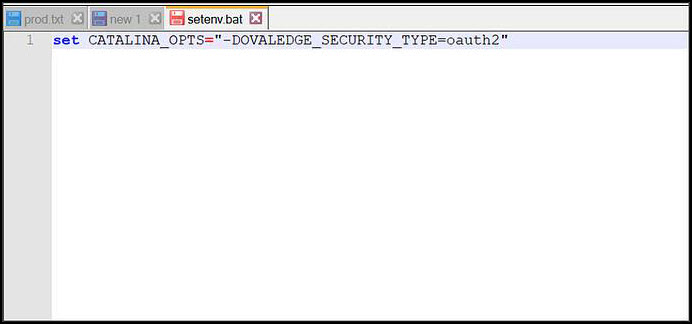

     * Create a file named `setenv.bat` with the following content:

       ```bat
       set CATALINA_OPTS=-DOVALEDGE_SECURITY_TYPE=oauth2
       ```

       <figure><img src="/files/ZRWuxo1hxjfRknvnMogM" alt=""><figcaption></figcaption></figure>
   * For Linux/Unix (Tomcat)

     * Navigate to the `Tomcat/bin` directory.
     * Create a file named `setenv.sh` with the following content:

       ```bash
       export CATALINA_OPTS="-DOVALEDGE_SECURITY_TYPE=oauth2"
       ```

       <figure><img src="/files/eAYbYWdxp7isbRu5RirF" alt=""><figcaption></figcaption></figure>
     * Make the script executable:

       ```bash
       chmod +x setenv.sh
       ```

6. **Restart the Server**
   * Restart the Tomcat server to apply the changes.
   * Once the server is up, navigate to the **OvalEdge application URL**.

     <figure><img src="/files/bVjLZJ5DOtnMr3n0TSOA" alt=""><figcaption></figcaption></figure>

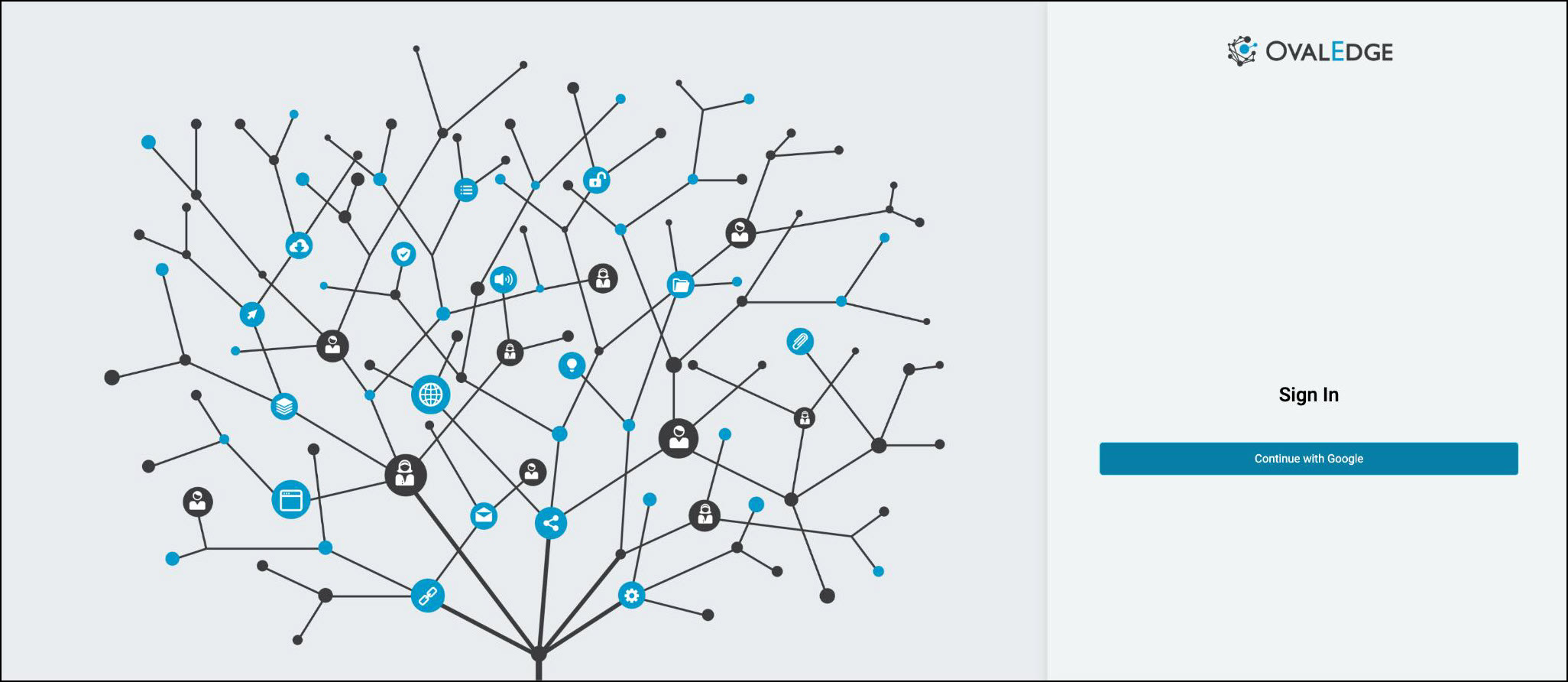

   * Click **Continue with Google**.

     <figure><img src="/files/sRdKkTzJ9KQOyjmhKIy7" alt=""><figcaption></figcaption></figure>

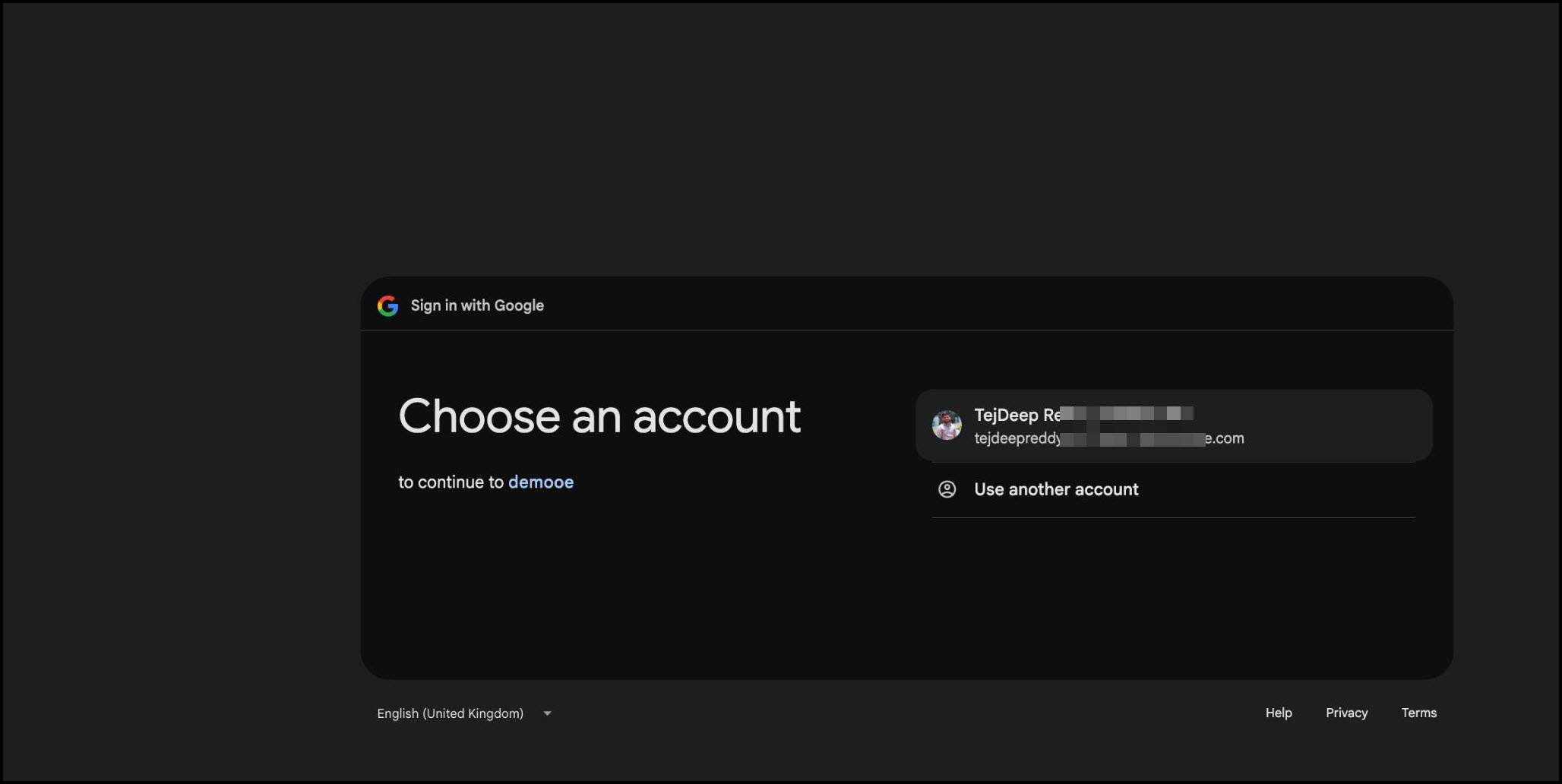

   * Select a **Google OAuth 2.0 account**.

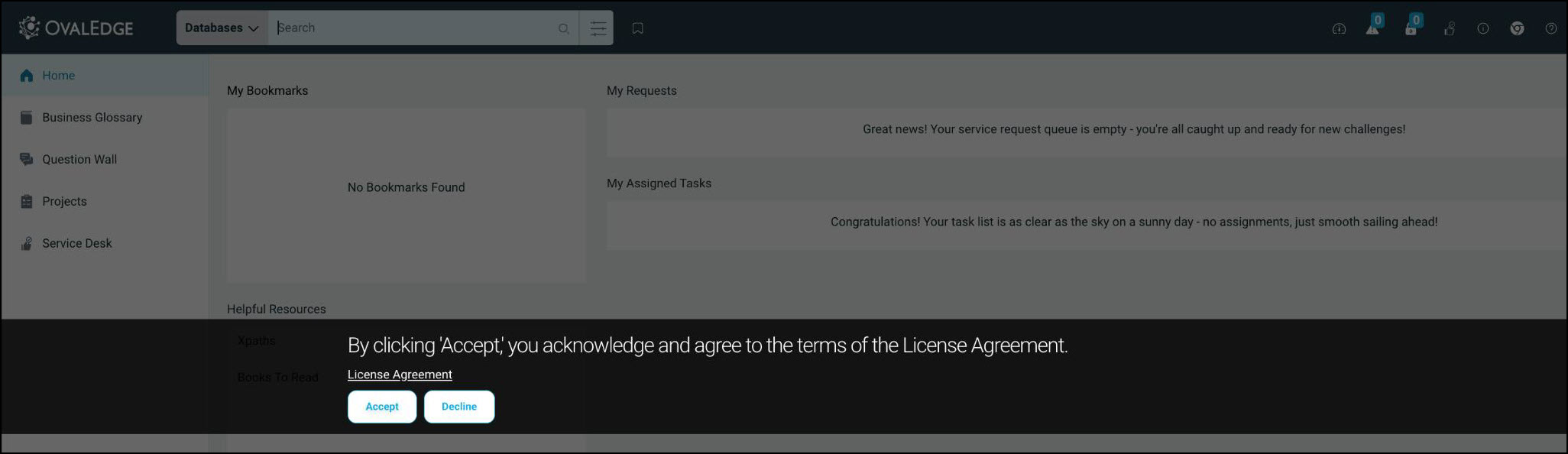

   * After successful validation, the **OvalEdge Home page** will appear.

     <figure><img src="/files/dJACNbwRzExJdHQRxiC9" alt=""><figcaption></figcaption></figure>

***
