# MySQL 8.4.x on AWS
This article describes the steps to configure a **MySQL 8.4.x database on AWS RDS** for use with OvalEdge. The procedure covers RDS instance creation, parameter configuration, and schema setup.
**Audience:** System Administrators, DevOps Engineers, Database Administrators
## Prerequisites
Before starting the installation, ensure the following:
* **AWS Permissions**
* IAM user/role with permissions to create and manage RDS instances, networking (VPC, Subnet Groups, Security Groups), and parameter groups.
* **Technical Knowledge**
* Basic understanding of AWS networking concepts (VPC, Subnets, Security Groups).
* Familiarity with MySQL administration.
* **Tools**
* MySQL client installed on the local machine or bastion host.
* Access to the **Masterscripts.sql** file provided by the OvalEdge team.
### Steps Involved
1. **Create a MySQL RDS Instance**

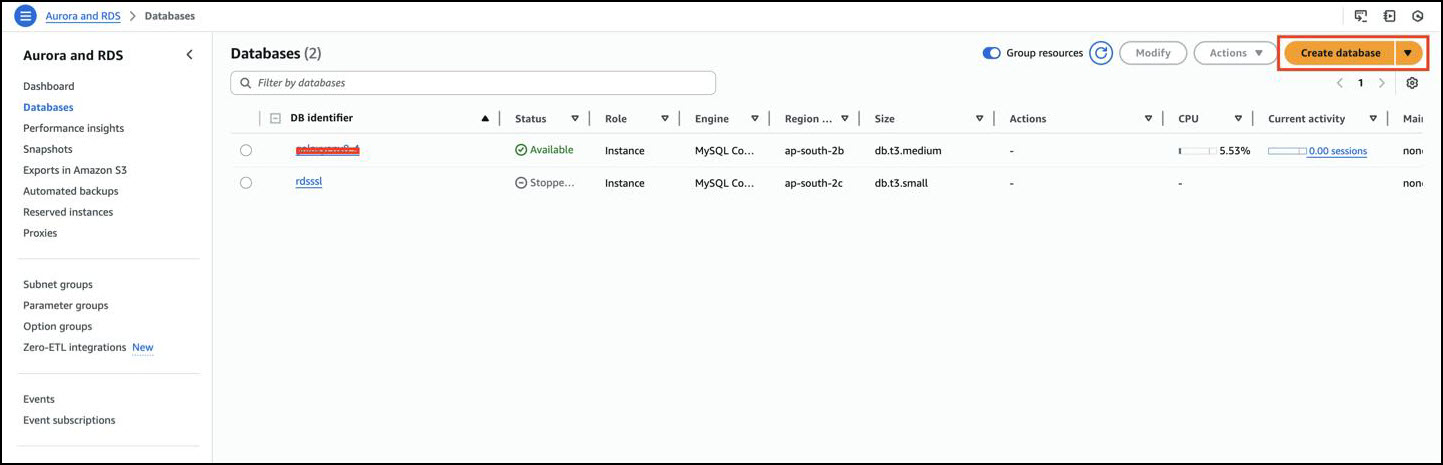

* Log in to the [**AWS Management Console**](https://eu-north-1.signin.aws.amazon.com/oauth?client_id=arn%3Aaws%3Asignin%3A%3A%3Aconsole%2Fcanvas\&code_challenge=Pf0_a-fQXerL2wFLkJZcxA9wnjSYKrttmoqFrHQ_PJ4\&code_challenge_method=SHA-256\&response_type=code\&redirect_uri=https%3A%2F%2Fconsole.aws.amazon.com%2Fconsole%2Fhome%3FhashArgs%3D%2523%26isauthcode%3Dtrue%26nc2%3Dh_ct%26src%3Dheader-signin%26state%3DhashArgsFromTB_eu-north-1_af0dd427315d135e) and navigate to:\
**RDS → Databases → Create Database**

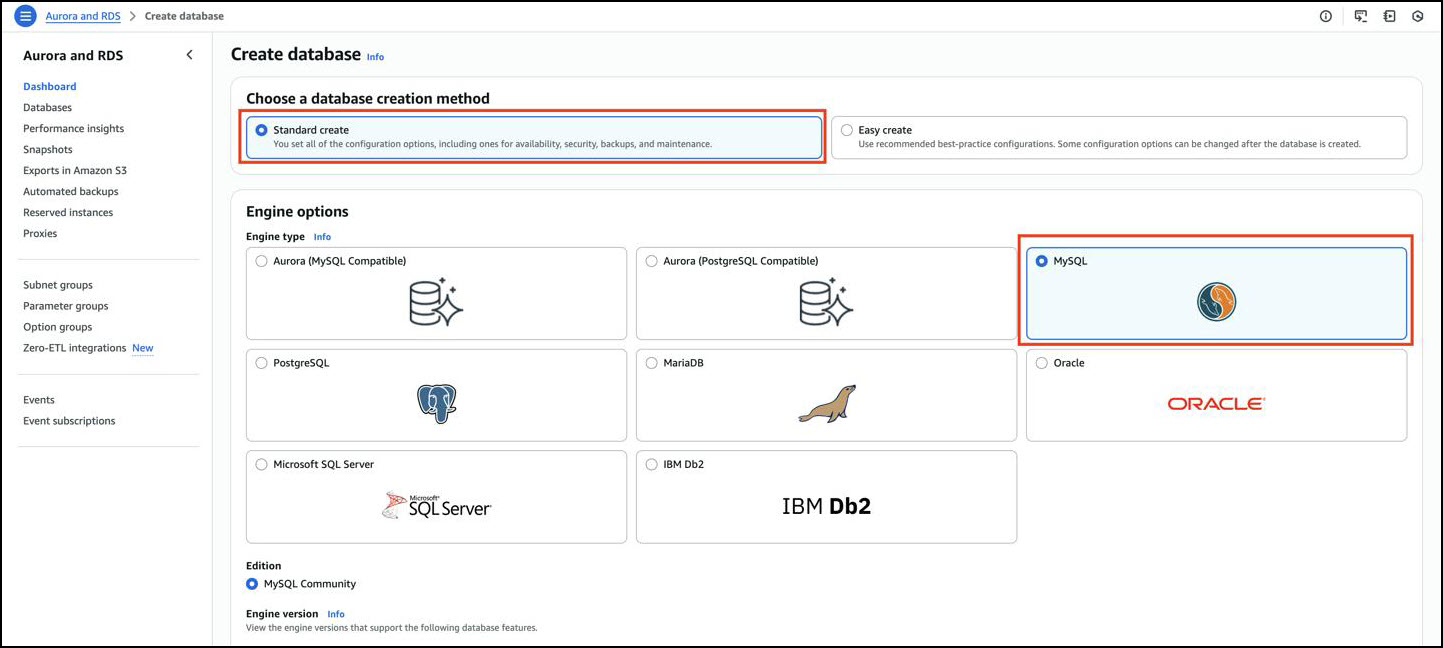

* Select **Standard Create** as the creation method.
* In **Engine Options**, choose **MySQL**.

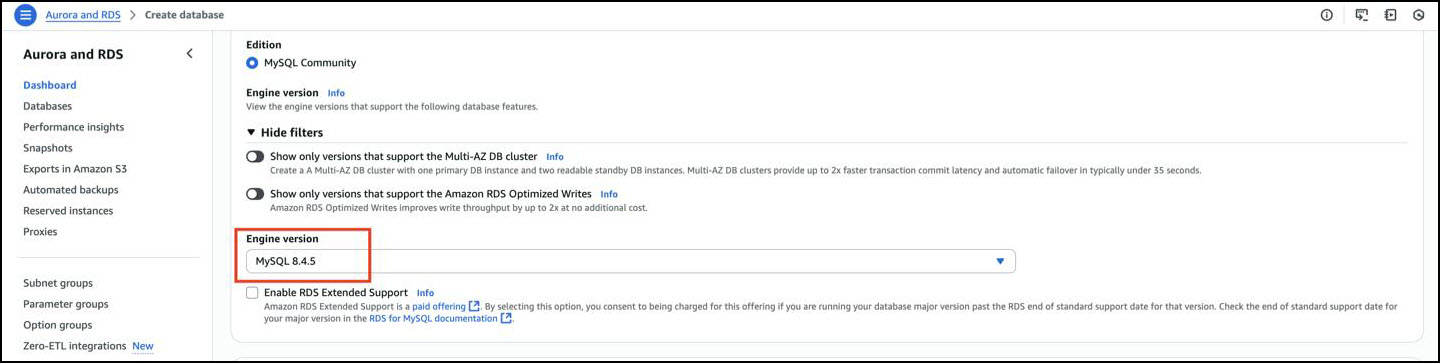

* **Recommended Version:** 8.4.x (Latest GA release)

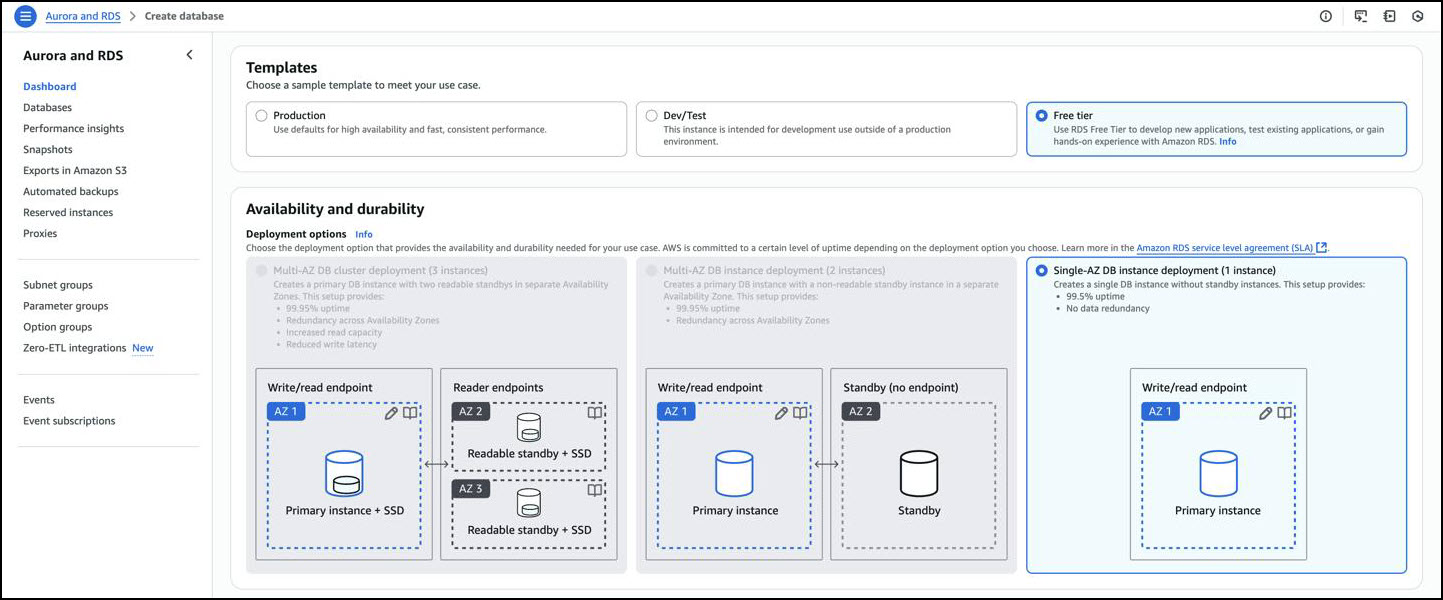

* Configure Templates, Availability, and Durability based on organizational requirements (e.g., **Multi-AZ** for high availability).

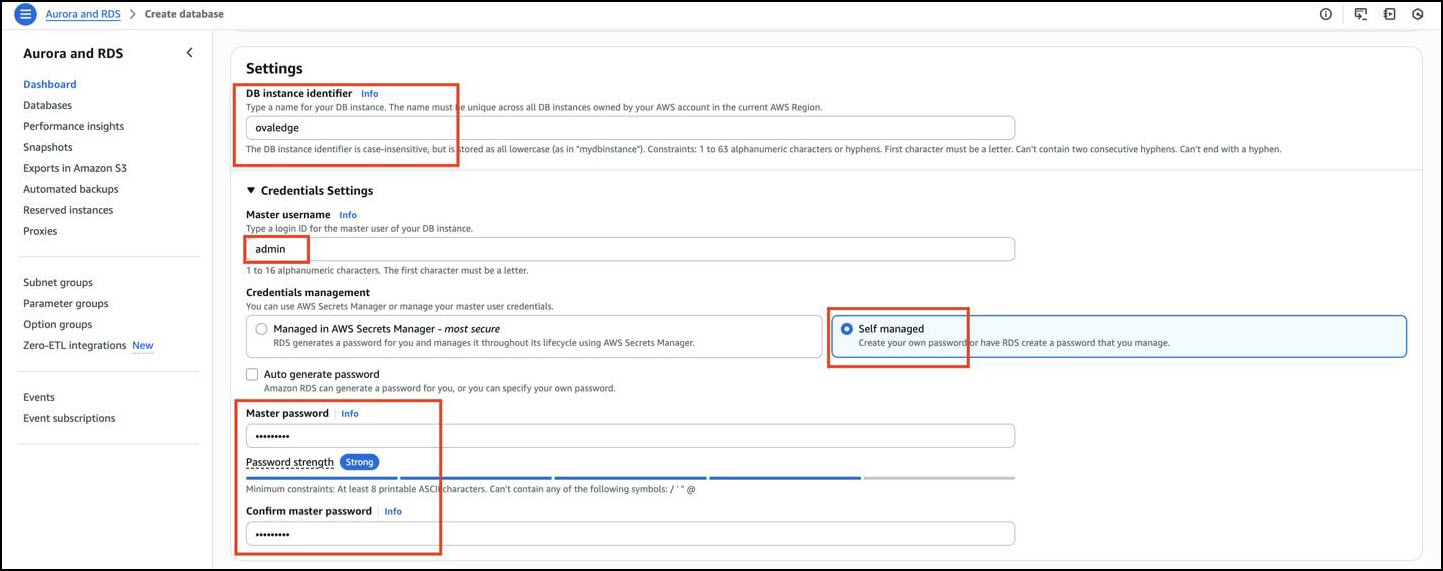

* Provide database details:
* **DB Identifier:** ``
* **Master Username:** ``
* **Password:** ``

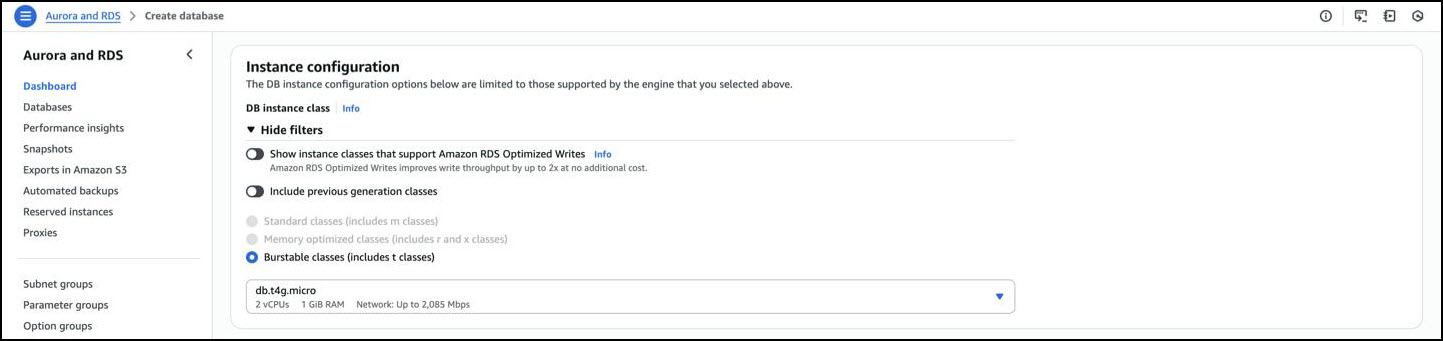

* Select an **Instance Configuration** that meets workload requirements.
* Example: `db.m6g.large` for medium workloads.

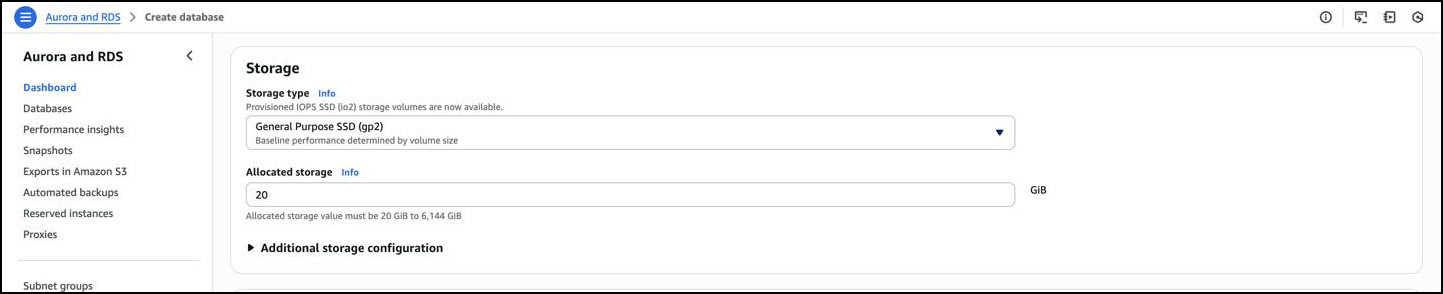

* In **Storage**, configure:
* Storage type (e.g., **General Purpose SSD**)
* Allocated storage size (e.g., **100 GB**, scalable as required).

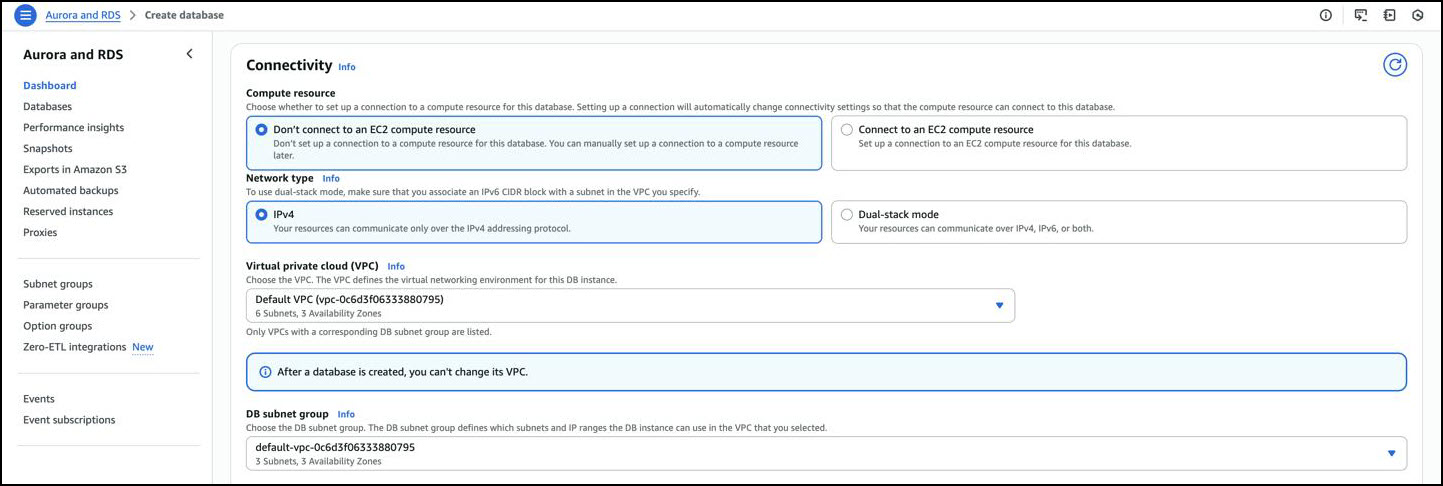

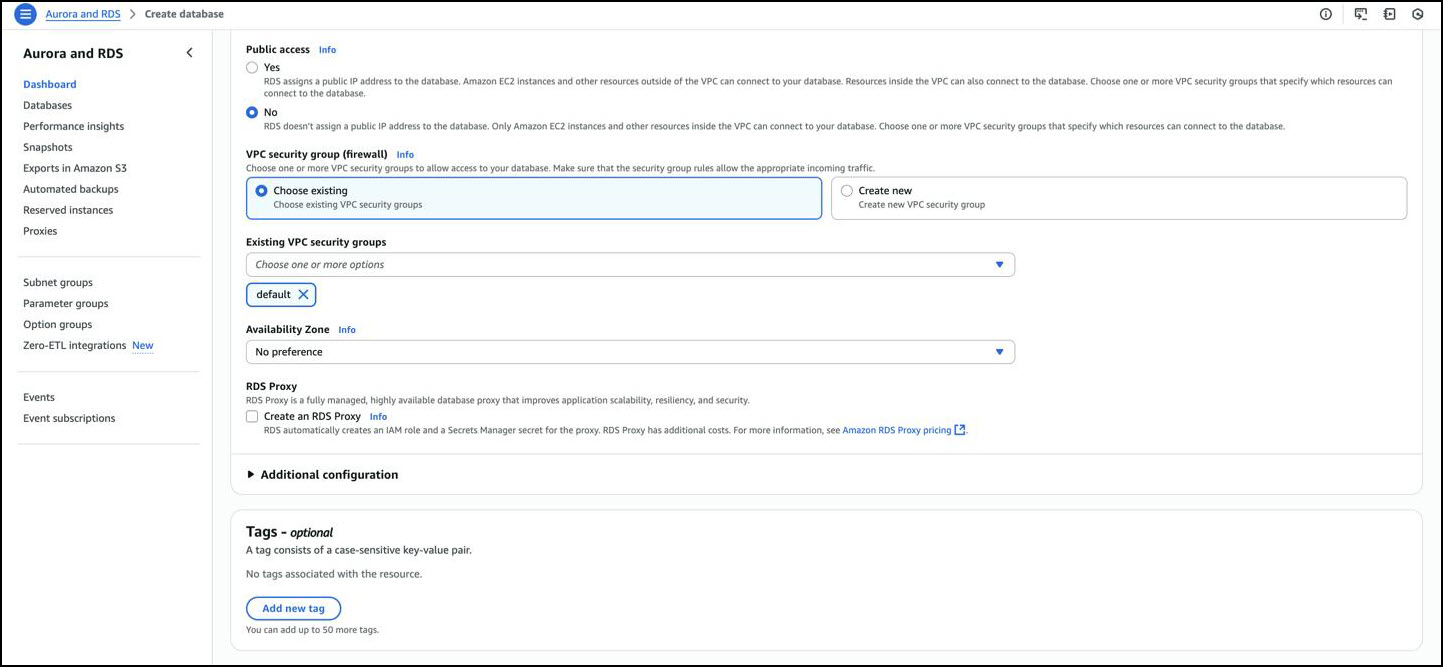

* **Configure Connectivity:**
* Select the appropriate **VPC**, **Subnet group**, and **Security group** as per the Cloud/Networking team’s recommendations.
* Ensure that **MySQL (port 3306)** is open to the required application servers.

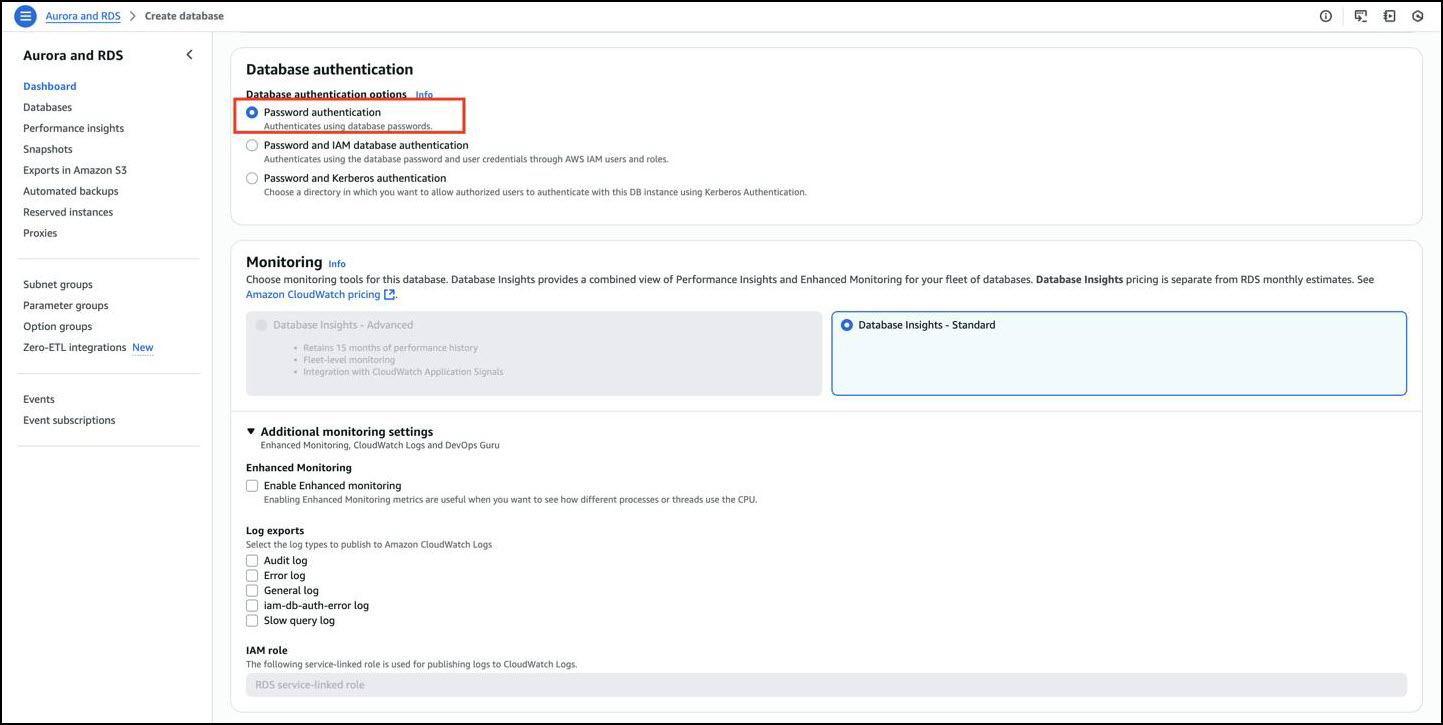

* Under **Authentication**, select **Password Authentication**.
* In **Additional Configuration:**
* Set an initial database name if required.
* Attach a new **DB Parameter Group** customized for OvalEdge.

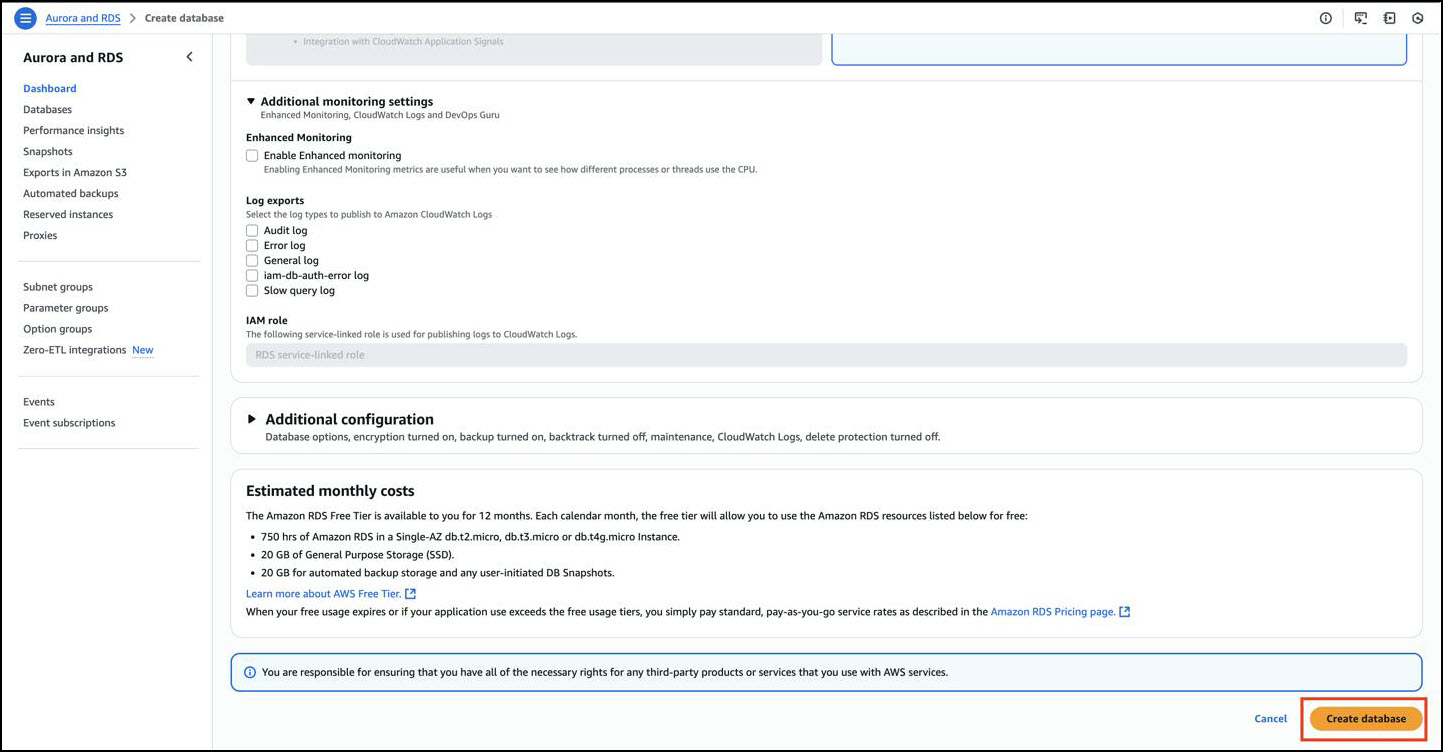

* Click **Create Database**.

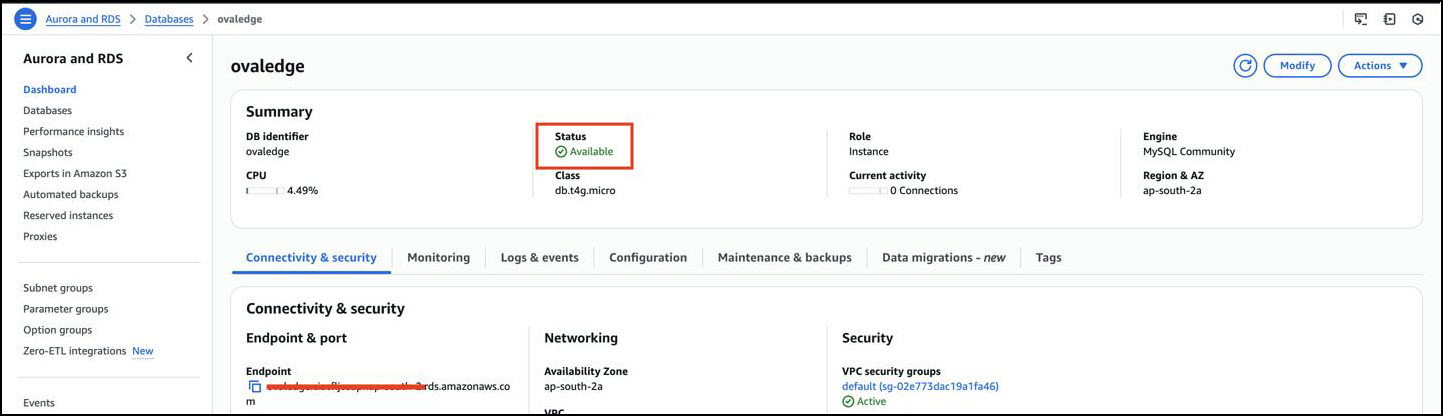

⚡ It will take a few minutes to create the RDS, and then it will display the **available** status.

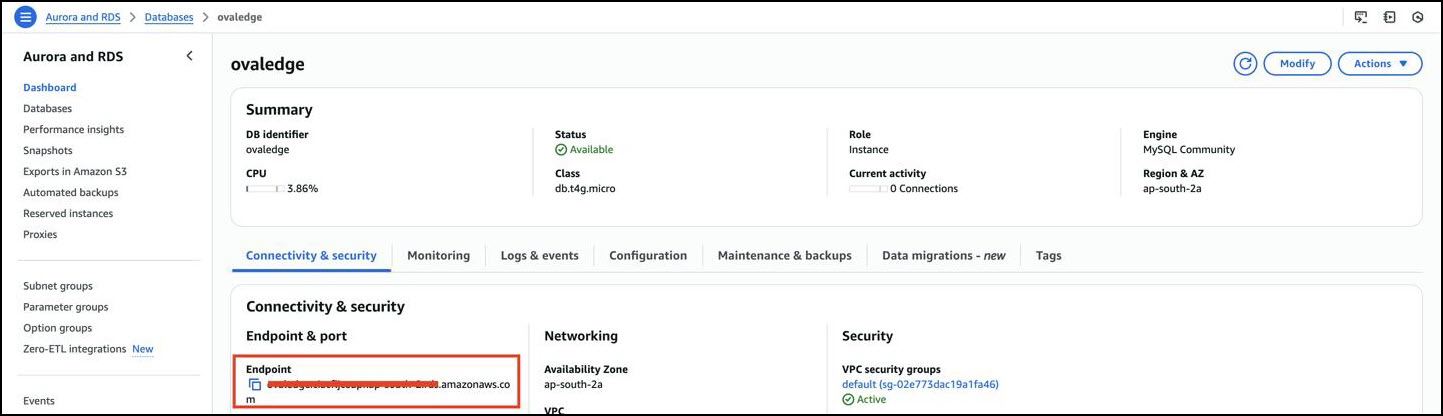

2. **Retrieve Database Endpoint**
* From the **RDS console**, select the newly created instance.
* Copy the **Endpoint** value (host address).
3. **Connect to the Database**

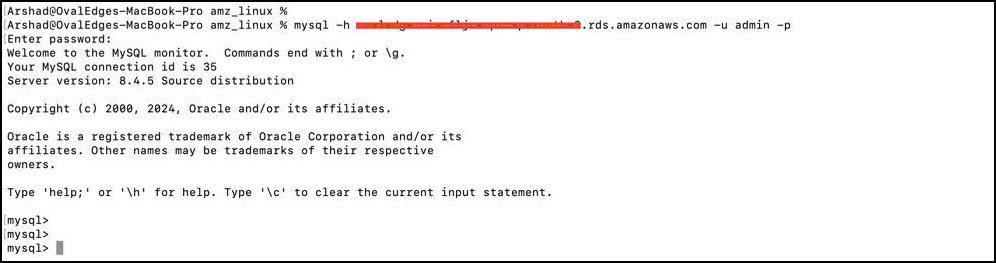

* Run the following command from a system with the MySQL client installed:
```bash
mysql -h -u -p
```
\
*Sample Reference Screenshot:*
* Replace `` with the RDS instance endpoint.
* Enter the master password when prompted.
#### **Error Handling Tip**
If the connection fails, verify:
* Security group inbound rules allow access from the client machine.
* Correct endpoint, username, and password are used.
* MySQL client version is compatible with **MySQL 8.4.x**.
4. **Create OvalEdge Schema**

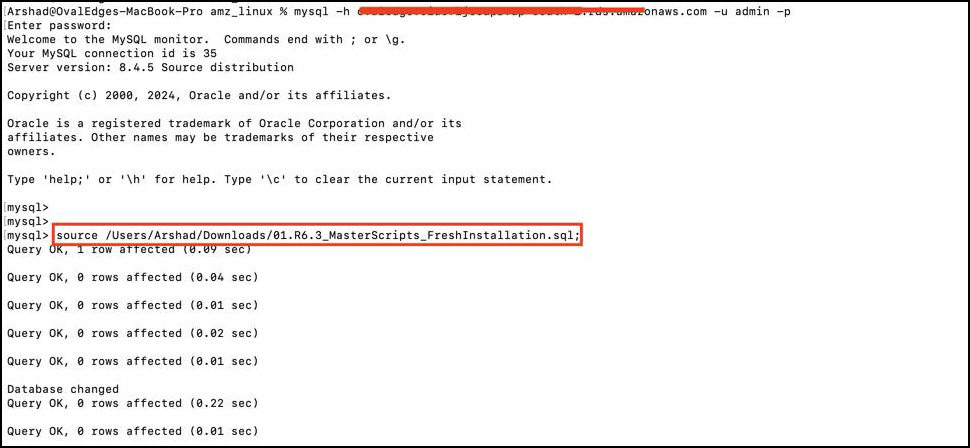

* From the MySQL prompt, execute the OvalEdge **Masterscripts.sql** file:
```sql
source
```
\
*Sample Reference Screenshot:*

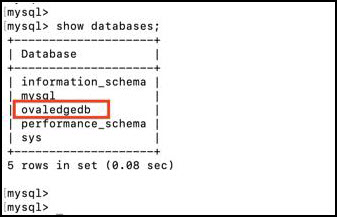

* Verify database creation with:
```sql
SHOW DATABASES;
```
\
*Sample Reference Screenshot:*\
### Rollback Instructions
* **If incorrect parameters or instance class were selected:**
* Delete the RDS instance from the AWS console.
* Recreate with correct parameters.
* **If schema creation fails:**
* Drop the failed database using:
```sql
DROP DATABASE ;
```
* Re-run the **Masterscripts.sql** file.
***
