Talend
This article outlines the integration with the Talend connector, enabling metadata management through crawling and lineage building (automatic and manual). The connector crawls Talend .item files and maps the extracted metadata to the Data Catalog.

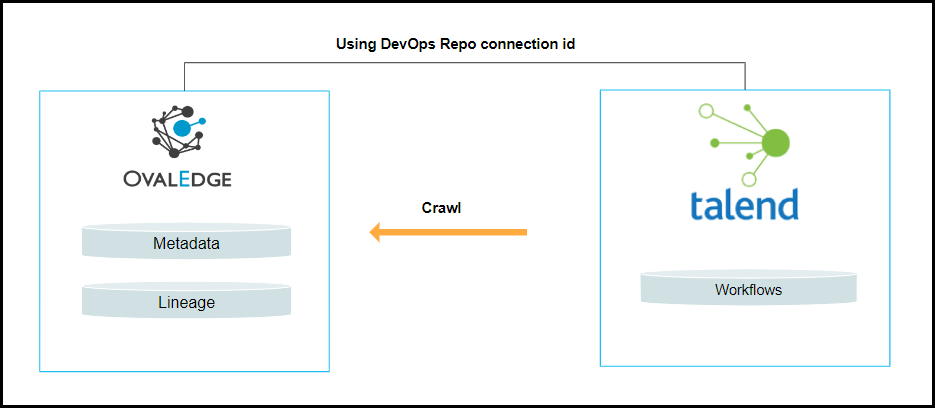

The connector establishes connectivity to Talend through an External Workspace, including Azure DevOps Repo, NFS, and GitHub Files. Connection configuration requires a Workspace Connection ID, an optional Context Params File Path, and read access to .item files for crawling.
Overview
Connector Details
Connector Category
ETL Tool
OvalEdge Release Supported
Release6.3.x and later
Connectivity
[How the connection is established with Talend]
External Workspace (Azure DevOps Repo / NFS / GitHub Files)
Connector Features
Crawling
✅
Delta Crawling
❌
Data Preview
❌
Auto Lineage
✅
Manual Lineage
✅
Secure Authentication via Credential Manager
✅
Data Quality
NA
DAM (Data Access Management)
NA
Bridge
✅
Metadata Mapping
The following objects are crawled from Talend and mapped to the corresponding UI assets.
.item File
.item File name
Code Name
Codes
TALEND_ITEMS
Set up a Connection
Prerequisites
The following are the prerequisites to establish a connection:
Service Account User Permissions
It is recommended to use a dedicated service Token to establish the connection to the data source, configured with the following minimum set of permissions.
Crawling
Datasets
READ permission for .item files
Connection Configuration Steps
Users are required to have the Connector Creator role in order to configure a new connection.
Log into OvalEdge, go to Administration > Connectors, click + (New Connector), search for Talend, and complete the required parameters.
Connector Type
By default, "Talend" is displayed as the selected connector type.
Credential Manager*
Select the desired credentials manager from the drop-down list. Relevant parameters will be displayed based on the selection.
Supported Credential Managers:
OE Credential Manager
AWS Secrets Manager
HashiCorp
Azure Key Vault
For more details, click here.
License Add Ons
Select the checkbox for the Auto Lineage Add-On to build data lineage automatically. For more details, click here.
Connector Name*
Enter a unique name for the Talend connection
(Example: "Talend_ETL").
Connector Environment
Select the environment (Example: PROD, STG) configured for the connector. For more details, click here.
Connector Description
Enter a brief description of the connector.
Workspace Connection Id*
Enter the connection ID of the Talend workspace to be accessed by the connector. The workspace connection ID identifies the workspace from which the Talend .item files are accessed for metadata crawling and automated lineage.
Context Params File Path
Enter the path to the context parameters file used by the Talend workspace connection. The file provides the context parameters required to access and process the Talend workspace resources.
Admin Roles
Admin Roles*
Select one or more users from the drop-down list for Integration Admin and Security & Governance Admin. All users configured in the security settings are available for selection.
Bridge
Select Bridge*
If applicable, select the bridge from the drop-down list.
The drop-down list displays all active bridges that have been configured. These bridges facilitate communication between data sources and the system without requiring changes to firewall rules.
After entering all connection details, the following actions can be performed:
Click Validate to verify the connection.
Click Save to store the connection for future use.
Click Save & Configure to apply additional settings before saving.
The saved connection will appear on the Connectors home page.
Manage Connector Operations
Crawl
To perform crawl operations, users must be assigned the Integration Admin role.
The Crawl/Profile button allows users to select one or more datasets for crawling.
Navigate to the Connectors page and click Crawl/Profile.
Select the datasets to crawl.
The Crawl option is selected by default.
Click Run to collect metadata from the connected source and load it into the Data Catalog.
After a successful crawl, the information appears in the Data Catalog > Databases/<>Codes tab.
The Schedule checkbox allows automated crawling at defined intervals, from a minute to a year.
Click the Schedule checkbox to enable the Select Period drop-down.
Select a time period for the operation from the drop-down menu.
Click Schedule to initiate metadata collection from the connected source.
The system will automatically execute the crawl operation at the scheduled time.
Other Operations
The Connectors page provides a centralized view of all configured connectors, along with the health status.
Managing connectors includes:
Connector Health: Displays the current status of each connector using a green icon for active connections and a red icon for inactive connections, helping to monitor connectivity with data sources.
Viewing: Click the Eye icon next to the connector name to view connector details.
Nine Dots Menu Options:
To view, edit, validate, build lineage, configure, or delete connectors, click on the Nine Dots menu.
Edit Connector: Update and revalidate the data source.
Validate Connector: Check the connection's integrity.
Settings: Modify connector settings.
Lineage: Configure Server Dialects for source code parsing and Connector Priority for table lineage connection.
Build Lineage: Automatically build data lineage using source code parsing.
Delete Connector: Remove a connector with confirmation.
For more details on connector settings, click here.
