# Tomcat Upgrade from 9.x to 10.1.x (Windows) This document provides a step-by-step upgrade procedure for migrating Apache Tomcat 9.x to Tomcat 10.1.x on a Windows Server. The upgrade ensures compatibility with Java 17, preserves existing configurations, and integrates application-specific parameters. This procedure includes backup, setup, configuration transfer, validation, and rollback planning. ## Prerequisites Ensure the following conditions are met before proceeding with the upgrade: * Administrative privileges on the Windows Server * Java Development Kit (JDK) 17 is installed and configured (`JAVA_HOME` environment variable set appropriately) * Sufficient permissions to manage Windows services * Access to the `ovaledge.war` application package (if deploying OvalEdge) * Network access to application-specific file paths and encrypted keys * Backup tools or storage location for configuration preservation ## Upgrade Procedure 1. **Backup Existing Configuration and Parameters** * Navigate to the current Tomcat installation directory: ``` \bin ``` * Open a Command Prompt and run: ``` tomcat9w.exe //ES// ``` \ \&#xNAN;*Sample Reference Screenshot:*
* **In the Java tab, document or screenshot the following:** * Java options and JVM memory settings * Paths to external configuration files * **Backup the following files:** ``` \conf\server.xml \conf\context.xml ``` * Any other custom configuration or `.properties` files
2. **Stop the Tomcat 9 Service** * Open the Windows Services console (`services.msc`). * Locate the Tomcat 9 service.\ \ \&#xNAN;*Sample Reference Screenshot:*
* Right-click and select **Stop**.
3. **Download Tomcat 10 - Latest** * Navigate to the [Tomcat 10 download archive.](https://archive.apache.org/dist/tomcat/tomcat-10/) * Download the latest stable `.zip` package.\ \ \&#xNAN;*Sample Reference Screenshot:*
4. **Extract Tomcat 10 - Latest** * Extract the downloaded ZIP file to a temporary location.\ \ \&#xNAN;*Sample Reference Screenshot:*
* Copy the extracted `apache-tomcat-10.x.xx` folder to: ``` C:\Apache\Tomcat10 ``` (or another designated installation path).\ \ \&#xNAN;*Sample Reference Screenshot:*
* Delete the ZIP file after extraction to save disk space.
5. **Configure Tomcat 10 - Latest as a Windows Service** * Uninstall the existing Tomcat service using the command: ``` service.bat uninstall ``` \ \&#xNAN;*Sample Reference Screenshot:*
* Install the new Tomcat 10 - Latest service: ``` service.bat install tomcat10 ``` * Open the new Tomcat service configuration: ``` tomcat10w.exe //ES//tomcat10 ``` \ \&#xNAN;*Sample Reference Screenshot:*
* **In the Java tab, enter the following:** * JVM memory and parameter settings from Step 1 * Required OvalEdge application parameters:

Add the parameters below in tomcat9w, in the Java tab. Ensure you provide the correct encryption/decryption key and the correct properties file path.

``` -DOVALEDGE_SECURITY_TYPE=db -DOVALEDGE_ENCRYPT_DECRYPT_KEY= -Dext.properties.dir=file:C:/path/to/ovaledge/ext-prop/ -Dlog4j.configuration=file:C:/path/to/ovaledge/ext-prop/log4j.properties --add-opens java.base/jdk.internal.loader=ALL-UNNAMED --add-opens jdk.zipfs/jdk.nio.zipfs=ALL-UNNAMED --add-opens java.base/java.net=ALL-UNNAMED --add-opens java.base/java.time=ALL-UNNAMED --add-opens java.base/java.nio=ALL-UNNAMED ``` \ \&#xNAN;*Sample Reference Screenshot:*
6. **Update `server.xml` Configuration** * Open: ``` \conf\server.xml ``` \ \&#xNAN;*Sample Reference Screenshot:*
* Replace or update the `` element as follows: ```xml ``` \ \&#xNAN;*Sample Reference Screenshot:*

Comment out the default connector to avoid conflicts.

* Verify and adjust: * Startup and shutdown ports * SSL connector configuration (if applicable)
7. **Update `context.xml` Cache Configuration** * Open: ``` \conf\context.xml ``` * Add the following line within the `` element: ```xml ``` \ \&#xNAN;*Sample Reference Screenshot:*
8. **Deploy Application WAR File** * Delete all folders from: ``` \webapps ``` except `ROOT` (if default).\ \ \&#xNAN;*Sample Reference Screenshot:*
* Copy `ovaledge.war` from the old Tomcat webapps folder to the new one: ``` copy C:\OldTomcat\webapps\ovaledge.war C:\Apache\Tomcat10\webapps\ ```

For version-specific builds (e.g., OvalEdge 7.2), use the .war file provided by the OE Team.

\ \&#xNAN;*Sample Reference Screenshot:*

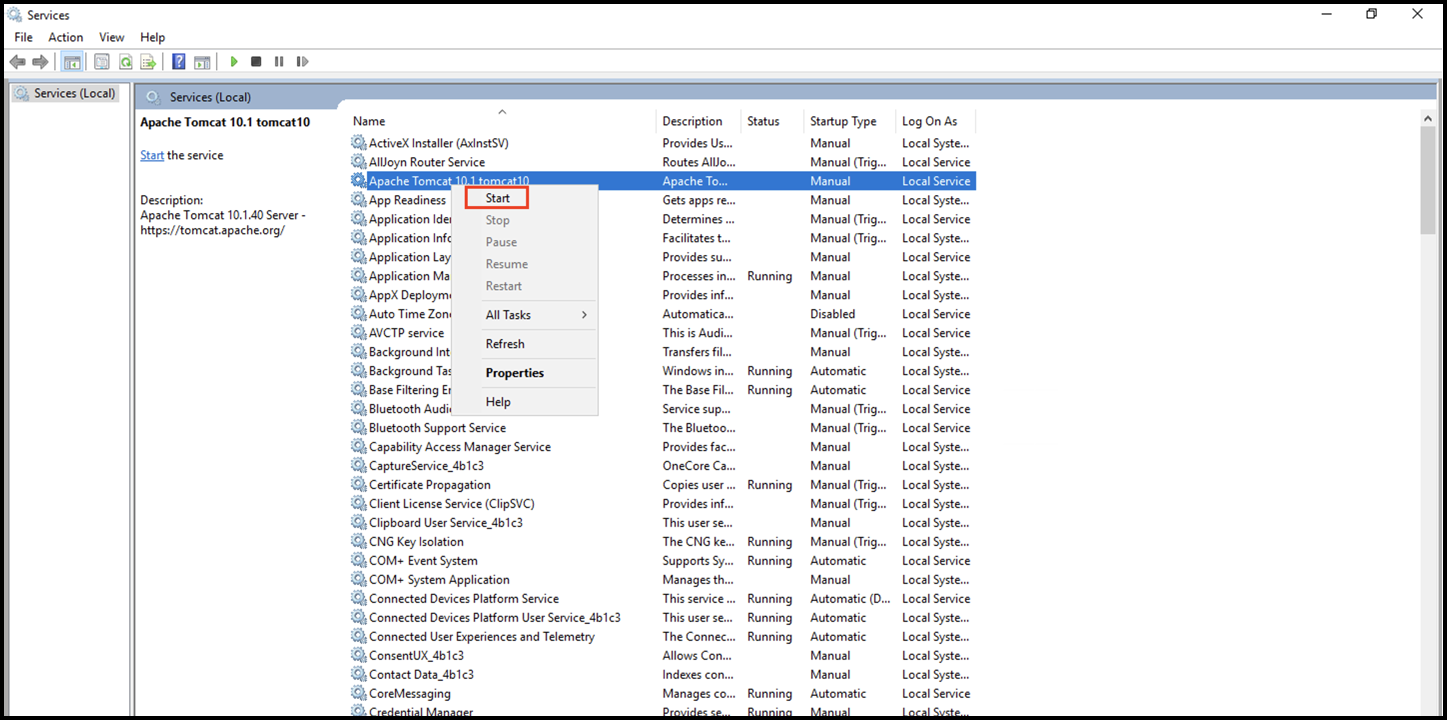

9. **Start the Tomcat 10 - Latest Service** * Open the Services console (`services.msc`). * Locate **Tomcat10** service and start it.
* Ensure the service starts without errors. ## Testing and Verification * Open a web browser and navigate to the application URL. * Confirm that the OvalEdge application loads successfully. * Validate key features and workflows to ensure application integrity. * Monitor Tomcat logs for any errors: ``` \logs\catalina.YYYY-MM-DD.log \logs\localhost.YYYY-MM-DD.log ``` \ \&#xNAN;*Sample Reference Screenshot:*
## Rollback Plan In the event of a failed upgrade: 1. Stop the Tomcat 10 service. 2. Remove the Tomcat 10 directory. 3. Reinstall the Tomcat 9 service: ``` \bin\service.bat install ``` 4. Restore previously backed-up configuration files. 5. Restart the Tomcat 9 service and validate application functionality. *** Copyright © 2025, OvalEdge LLC, Peachtree Corners, GA, USA.
