Elasticsearch 7.17.x on Ubuntu 22.04+

This article provides a comprehensive guide for installing Elasticsearch version 7.17.x on an Ubuntu 22.04 system. It includes prerequisites, installation steps, configuration, and performance optimization guidelines recommended by OvalEdge.

Prerequisites

Before proceeding, ensure the following requirements are met:

• Operating System: Ubuntu 22.04 LTS or later

• User Access: Root or a user with sudo privileges

• Network: Stable internet connection

• Java: Java 17 installed (openjdk-17-jdk)

• Firewall: Ensure required ports are open (9200, 9300)

Installation Steps

1. Java Installation

   • Log in to the Elasticsearch VM and install Java 17:

     Copy

     sudo apt update -y
     sudo apt install -y openjdk-17-jdk
     java --version

     Sample Reference Screenshot


2. Elasticsearch Installation

   • Update Package Index and Enable HTTPS Support

     • Before installing Elasticsearch, update the package index and ensure secure APT transport is enabled:

       Copy

       sudo apt update -y
       sudo apt install apt-transport-https -y


   • Create Elasticsearch Repository File

     Download and add the GPG key, then configure the repository:

     Copy

     wget -qO - https://artifacts.elastic.co/GPG-KEY-elasticsearch | sudo apt-key add -
     sudo sh -c 'echo "deb https://artifacts.elastic.co/packages/7.x/apt stable main" > /etc/apt/sources.list.d/elastic-7.x.list'


   • Install Elasticsearch

     Run the following commands to install Elasticsearch:

     Copy

     sudo apt update
     sudo apt install elasticsearch -y


   • Enable and Start the Service

     Enable Elasticsearch to start at boot and then start the service:

     Copy

     sudo systemctl daemon-reexec
     sudo systemctl enable elasticsearch
     sudo systemctl start elasticsearch



3. Elasticsearch Configuration

   • Configure Elasticsearch Settings

     Open the Elasticsearch configuration file:

     Copy

     sudo vi /etc/elasticsearch/elasticsearch.yml

     Add or update the following parameters:

     Copy

     cluster.name: ovaledge
     network.host: 0.0.0.0
     http.port: 9200
     transport.host: localhost
     transport.tcp.port: 9300
     xpack.security.enabled: true


   • Configure JVM Heap Size

     Edit the JVM options file:

     Copy

     sudo vi /etc/elasticsearch/jvm.options

     Locate the following lines (usually near the top of the file):

     Copy

     ## -Xms4g
     ## -Xmx4g

     Uncomment and configure them:

     Copy

     -Xms4g
     -Xmx4g

     Both values must be set to the same. Recommended value = 50% of available memory.



   • Restart Elasticsearch

     Restart the service to apply changes:

     Copy

     sudo systemctl restart elasticsearch

4. Elasticsearch Passwords

   • Set Password for Elastic User

     Run the password reset tool:

     Copy

     sudo /usr/share/elasticsearch/bin/elasticsearch-reset-password -u elastic -i

     When prompted:

     • Type y and enter a new password for the elastic user

     • Confirm the password if requested

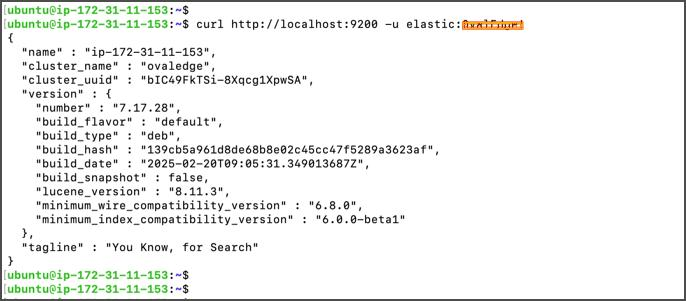

5. Verify Installation

   • Verify Service Availability

     • Use curl or a browser to verify Elasticsearch is running:

       Copy

       curl http://localhost:9200 -u elastic:<password>

     • Replace <password> with the password set previously

     • A successful response should display cluster information in JSON format


6. Integrate Elasticsearch with OvalEdge

   • Locate and Edit oasis.properties

     On the OvalEdge application VM, navigate to the extprop directory and open the file:

     Copy

     vi /path/to/ovaledge/extprop/oasis.properties


   • Update Elasticsearch Section

     Configure the following parameters:

     Copy

     es.host=<elasticsearch_host>
     es.port=9200
     es.protocol=http
     es.username=elastic
     es.password=<password>



   • Restart Tomcat Service

     • Restart Tomcat to apply the updated configuration:

       Copy

       sudo systemctl restart tomcat
