Elasticsearch 7.17.x on RHEL 8+

This article provides a comprehensive guide for installing Elasticsearch version 7.17.x on Ubuntu 22.04, Amazon Linux, and RHEL 8.x systems. It includes prerequisites, installation steps, configuration instructions, and integration steps with the OvalEdge application.

Hardware Requirements

• Minimum 4 GB RAM (8 GB recommended)

• Minimum 2 vCPUs

• 10 GB available disk space

Prerequisites

• Ubuntu system with version 22.04 or later

• User with sudo privileges

• Stable internet connection

• Java 17 installed (or to be installed during the process)

Elasticsearch Installation on RHEL 8.x

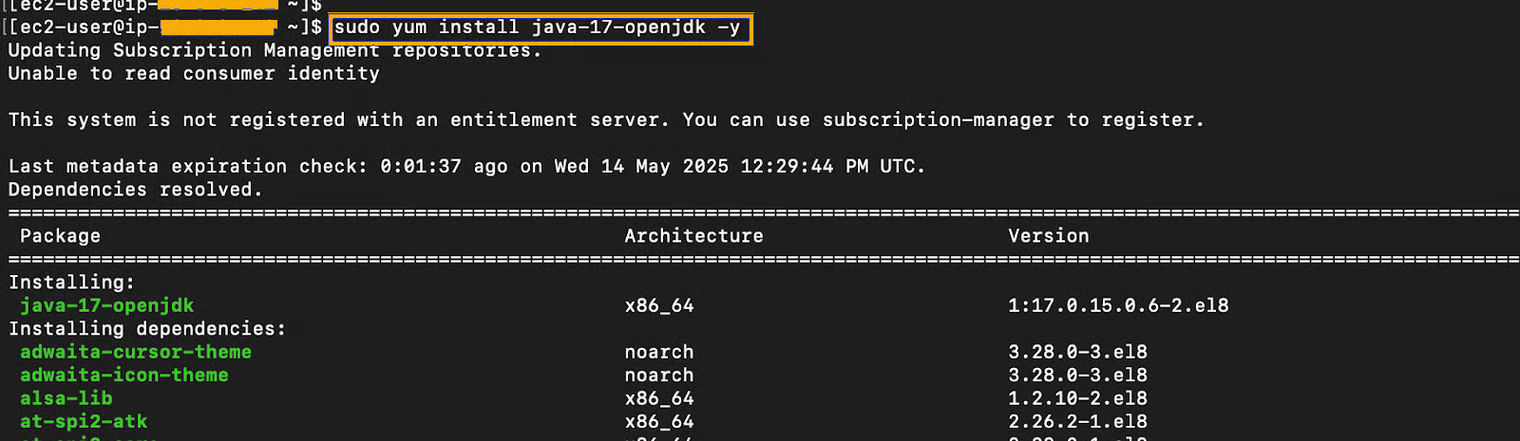

Install Java 17

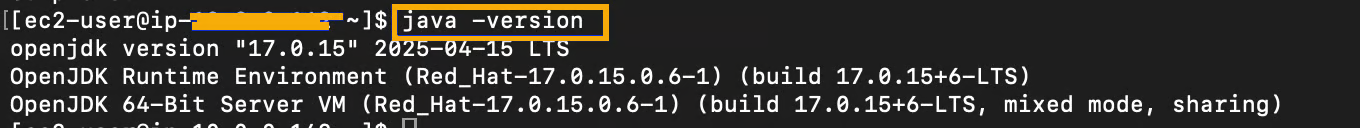

• Elasticsearch requires Java 17. Install it with the following command. If Java is already installed, verify using the version check command.

  sudo yum install java-17-openjdk -y



  java -version



Import the Elasticsearch GPG Key

• Add the official GPG key to verify package authenticity.

  sudo rpm --import https://artifacts.elastic.co/GPG-KEY-elasticsearch



Add the Elasticsearch YUM Repository

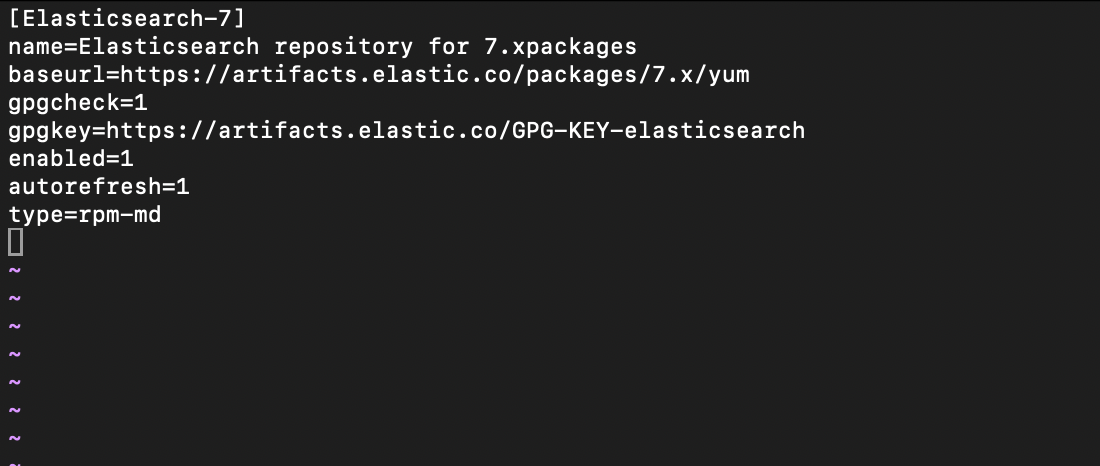

• Create the repository file for Elasticsearch packages:

  sudo vi /etc/yum.repos.d/elasticsearch.repo


• Insert the following content:

  [Elasticsearch-7]
  name=Elasticsearch repository for 7.x packages
  baseurl=https://artifacts.elastic.co/packages/7.x/yum
  gpgcheck=1
  gpgkey=https://artifacts.elastic.co/GPG-KEY-elasticsearch
  enabled=1
  autorefresh=1
  type=rpm-md



Ensure there are no typos in the baseurl or gpgkey to avoid installation issues.

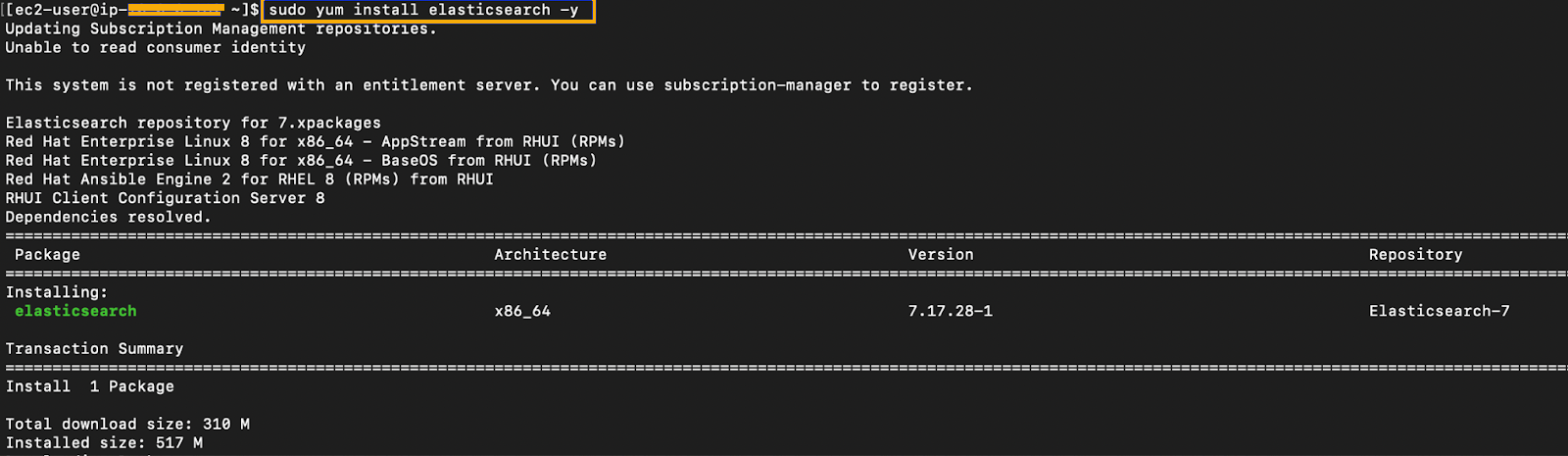

Install Elasticsearch

• Update the package index and install Elasticsearch:

  sudo yum update -y
  sudo yum install elasticsearch -y



Enable and Start the Elasticsearch Service

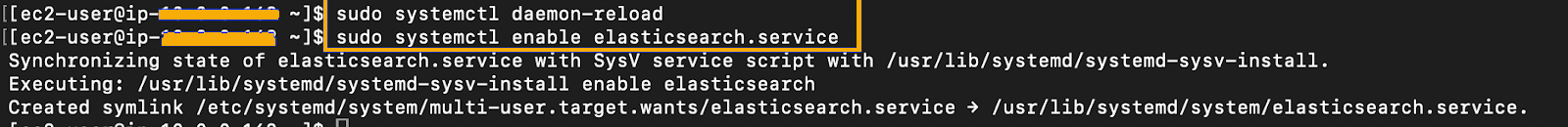

• Reload the systemd configuration to register the new service.

• Enable Elasticsearch to start on system boot:

  sudo systemctl daemon-reexec

• Enable Elasticsearch to start on system boot:

  sudo systemctl enable elasticsearch.service

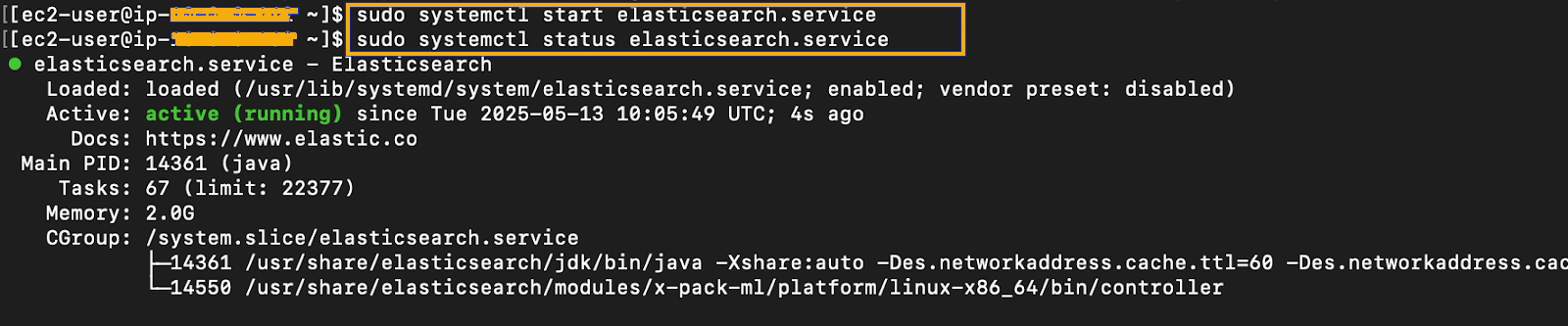

• Start the service and verify its status:

  sudo systemctl daemon-reexec
  sudo systemctl enable elasticsearch.service
  sudo systemctl start elasticsearch.service
  sudo systemctl status elasticsearch.service


• At this point, Elasticsearch is installed and running.

Configure Elasticsearch

Update elasticsearch.yml

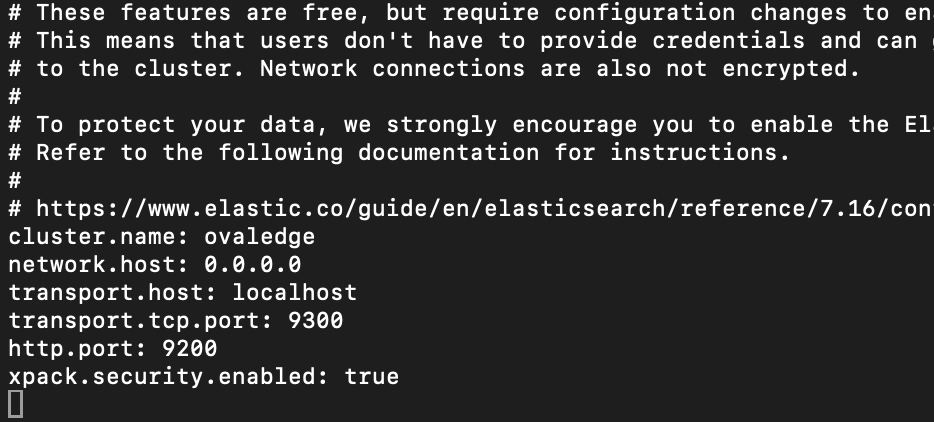

• Edit the configuration file at /etc/elasticsearch/elasticsearch.yml:

  sudo vim /etc/elasticsearch/elasticsearch.yml

• Add or modify the following settings:

  cluster.name: ovaledge
  network.host: 0.0.0.0
  transport.host: localhost
  transport.tcp.port: 9300
  http.port: 9200
  xpack.security.enabled: true

These settings configure the node to:

• Be accessible from external networks (network.host: 0.0.0.0)

• Use custom cluster and port settings

• Enable security features for authentication



Restart Elasticsearch

• Restart the service to apply the configuration changes:

  sudo systemctl restart elasticsearch.service
  sudo systemctl status elasticsearch.service

Setting Up Passwords

To secure the installation, set passwords for the built-in reserved users. These accounts are used by Elastic Stack components for internal authentication.

Navigate to the Elasticsearch Binary Directory

cd /usr/share/elasticsearch/bin

Run the Password Setup Script

• Use interactive mode to configure passwords:

  sudo ./elasticsearch-setup-passwords interactive

When prompted:

• Press y to continue


• Provide passwords for the following users:

  • elastic, kibana_system, logstash_system, beats_system, apm_system, remote_monitoring_user

• It is recommended to use the same password for all users for ease of configuration unless stricter separation is required.

Note: Store these credentials securely, as they are required for configuring clients such as Kibana, Logstash, and OvalEdge.

Integration with the OvalEdge Application

Locate and Open the Configuration File

• Navigate to the extprop directory inside the OvalEdge installation folder:

  cd /<path_to_ovaledge>/extprop
  sudo vi oasis.properties

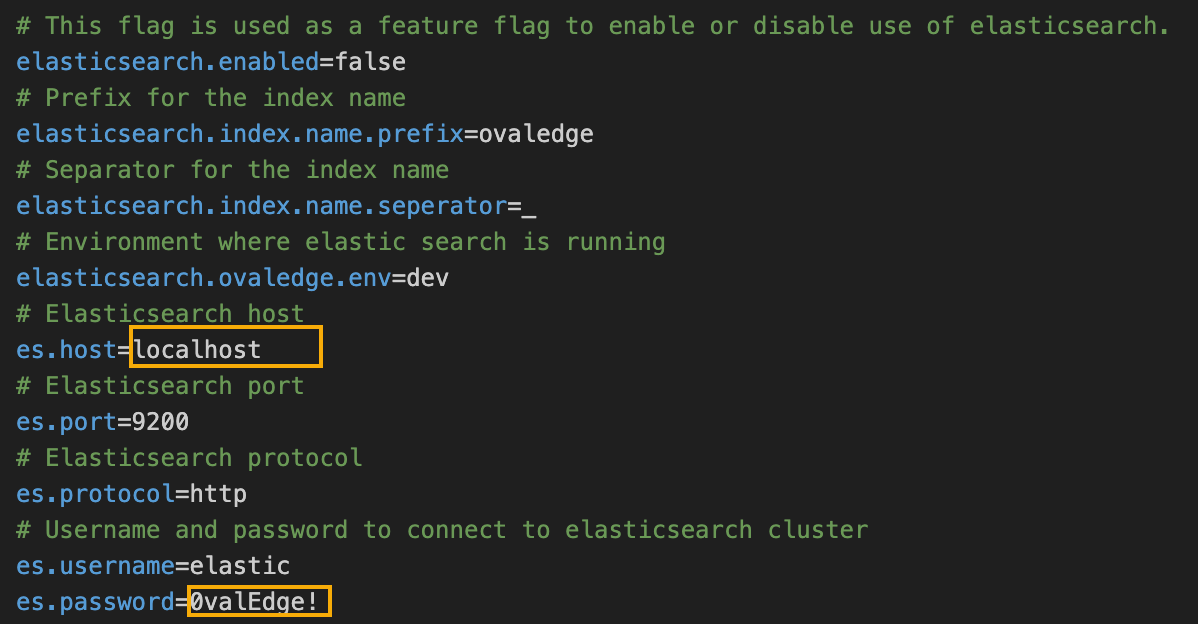

Update Elasticsearch Properties

• Modify or add the following entries:

  es.host=<elasticsearch_host>
  es.port=9200
  es.protocol=http
  es.username=elastic
  es.password=<elastic_password>

• es.host: Use localhost if Elasticsearch is on the same VM as OvalEdge. Otherwise, provide the server’s IP address.

• es.password: Use the password configured for the elastic user.

Restart Tomcat

• After saving the changes, restart Tomcat:

  sudo systemctl restart tomcat

Important: Ensure the Elasticsearch service is running and accessible from the OvalEdge server before restarting Tomcat.

---
