Elasticsearch 7.17.x on Amazon Linux

This article provides a comprehensive guide for installing Elasticsearch 7.17.x on Ubuntu 22.04 and Amazon Linux. It includes prerequisites, installation steps, configuration instructions, and integration with the OvalEdge application.

Hardware Requirements

• Memory: Minimum 4 GB RAM (8 GB recommended)

• CPU: Minimum 2 vCPUs

• Disk Space: Minimum 10 GB free

Prerequisites

• User account with sudo privileges

• Stable internet connection

• Java 17 installed (Amazon Corretto or OpenJDK). Elasticsearch 7.17.x requires Java 17.

Elasticsearch Installation (Amazon Linux)

Follow the steps below to install and start Elasticsearch 7.x on Amazon Linux.

Install Java 17

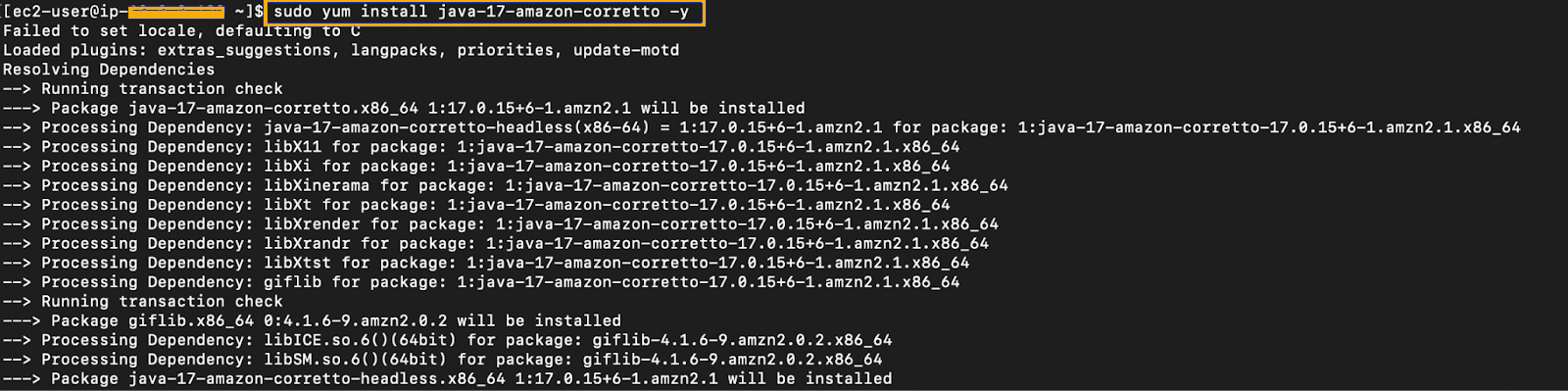

• Elasticsearch requires Java 17. Use Amazon Corretto 17:

  sudo yum install java-17-amazon-corretto -y

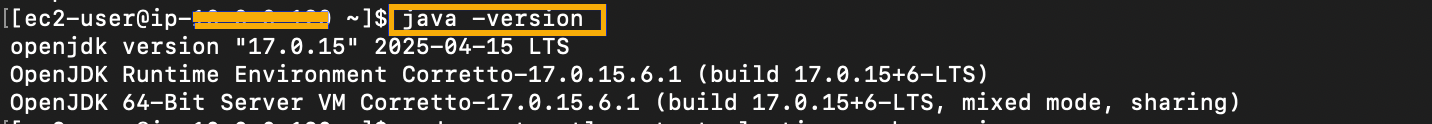

  java -version


• If Java is already installed and java -version returns a supported version, skip this step.

Import the GPG Key

• Add the Elastic GPG key for the Elasticsearch repository:

  sudo rpm --import https://artifacts.elastic.co/GPG-KEY-elasticsearch



Create Elasticsearch Repository

• Create the elasticsearch.repo file in the /etc/yum.repos.d/ directory on RedHat-based systems.

  sudo vi /etc/yum.repos.d/elasticsearch.repo

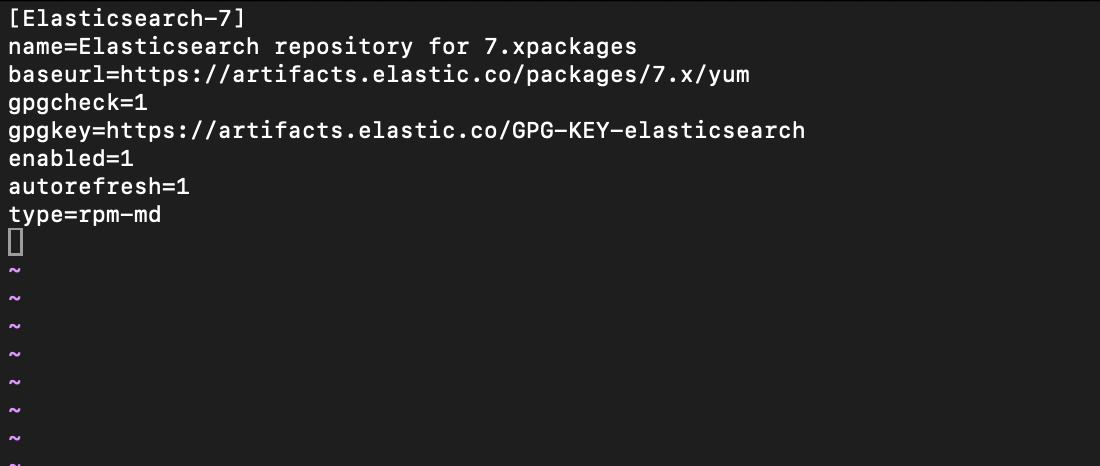

• Add the following content:

  [Elasticsearch-7]
  name=Elasticsearch repository for 7.x packages
  baseurl=https://artifacts.elastic.co/packages/7.x/yum
  gpgcheck=1
  gpgkey=https://artifacts.elastic.co/GPG-KEY-elasticsearch
  enabled=1
  autorefresh=1
  type=rpm-md



Install Elasticsearch

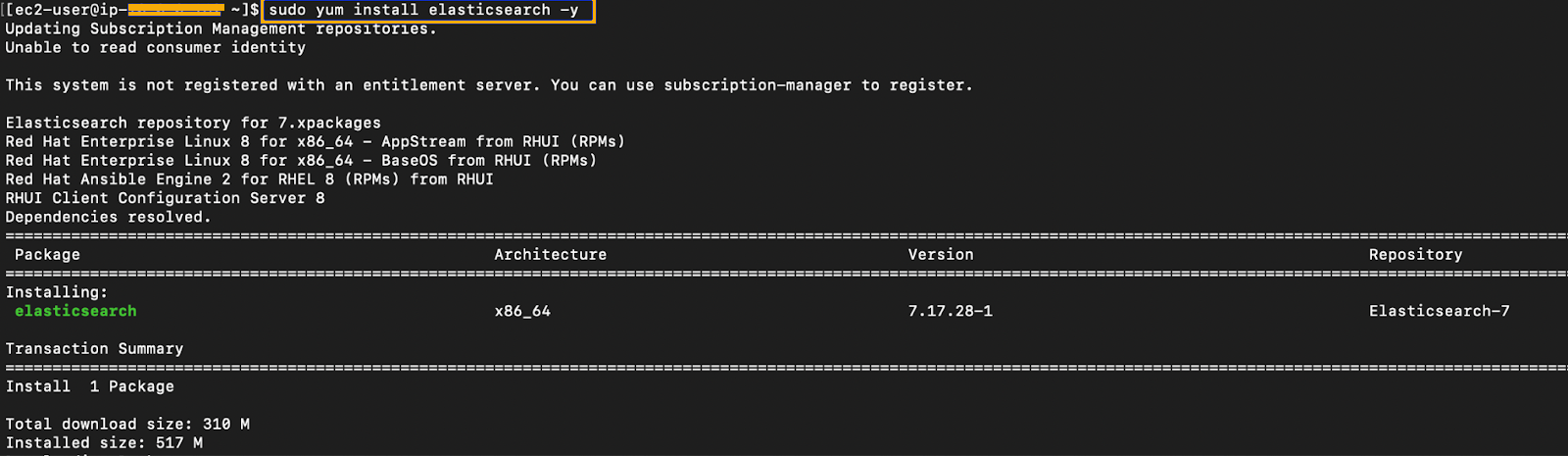

• Update packages and install Elasticsearch:

  sudo yum update -y
  sudo yum install elasticsearch -y



Enable and Start Elasticsearch

• Start the Elasticsearch service after installation.

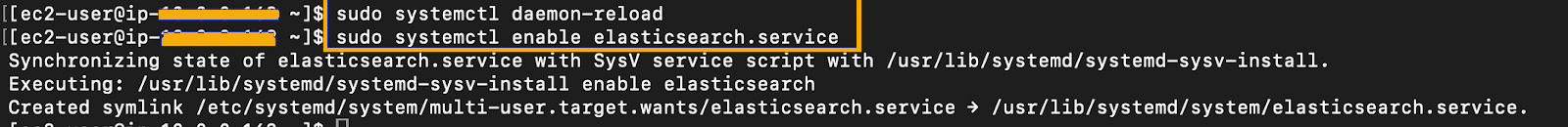

• Reload the systemd manager configuration to recognize the new service:

  sudo systemctl daemon-reload

• Enable Elasticsearch on boot:

  sudo systemctl enable elasticsearch.service

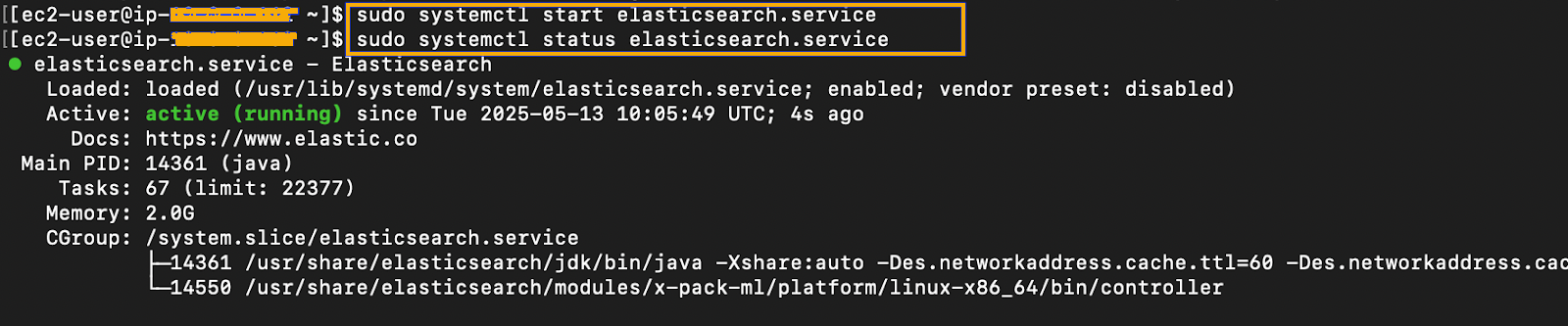

• Start and verify status:

  sudo systemctl start elasticsearch.service
  sudo systemctl status elasticsearch.service


• Ensure the status shows active (running) before proceeding.

Configure Elasticsearch

Elasticsearch requires configuration updates to define cluster settings, enable network access, and activate security features.

Edit elasticsearch.yml

• Edit the elasticsearch.yml file in the /etc/elasticsearch/ directory to configure Elasticsearch.

  sudo vim /etc/elasticsearch/elasticsearch.yml

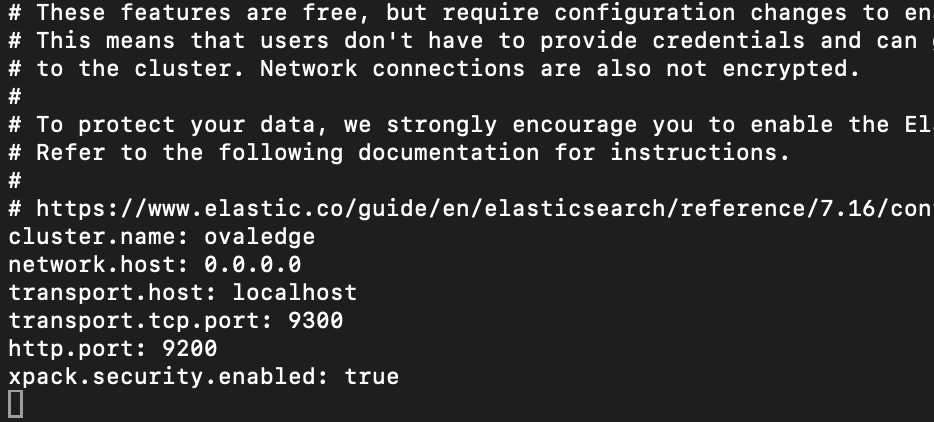

• Append or modify:

  cluster.name: ovaledge
  network.host: 0.0.0.0
  transport.host: localhost
  transport.tcp.port: 9300
  http.port: 9200
  xpack.security.enabled: true
  cluster.name: Logical name for the Elasticsearch cluster.
  network.host: Binds the HTTP service to all available network interfaces.
  xpack.security.enabled: Enables built-in security features including authentication and TLS.

Restart Elasticsearch

• Restart the Elasticsearch Service.

  sudo systemctl restart elasticsearch.service


• Verify it responds on port 9200

  curl http://localhost:9200

Set Up Password for Elastic User

Elasticsearch includes built-in reserved users that require password configuration. These users are used by various components within the Elastic Stack for authentication and internal communication.

• Navigate to the bin directory:

  cd /usr/share/elasticsearch/bin

• Run password setup:

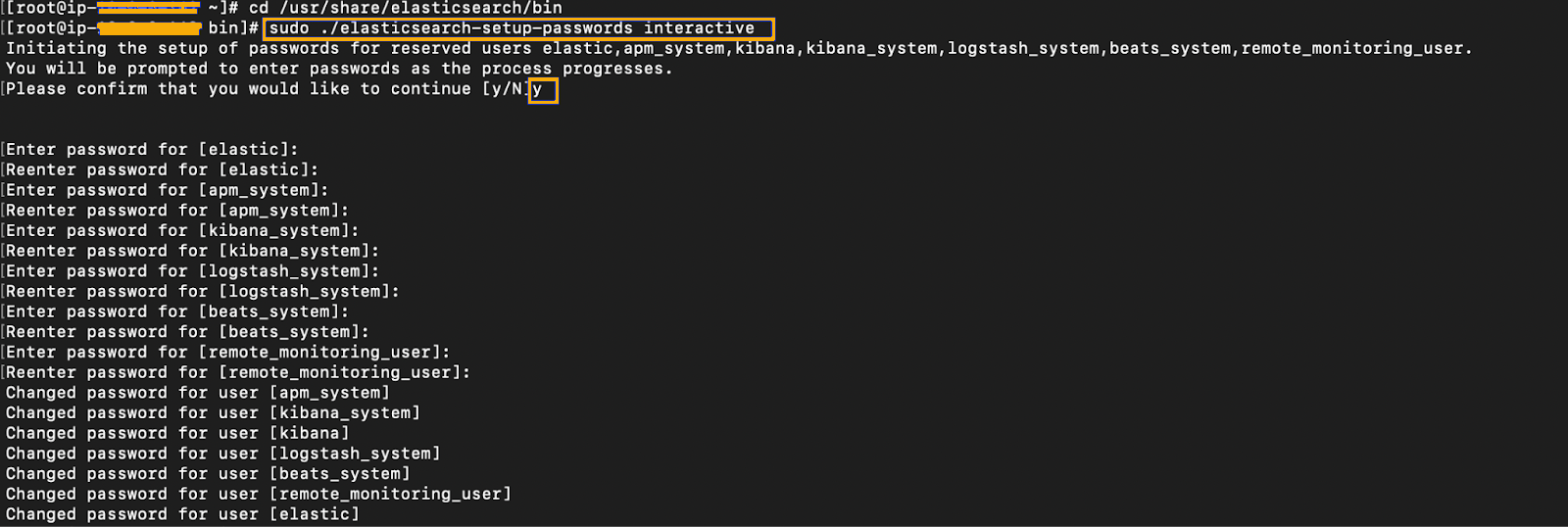

  sudo ./elasticsearch-setup-passwords interactive

• When prompted, type y to continue.

• Enter and confirm a secure password for each built-in user (e.g., elastic, kibana, logstash_system).

• For simplicity and manageability, the same password can be used for all users, but this is optional.



  Record these credentials securely. The elastic user credentials will be required for integrating Elasticsearch with other applications such as OvalEdge.

Integration with OvalEdge

To integrate Elasticsearch with the OvalEdge application, update the relevant configuration in the oasis.properties file located on the OvalEdge application server.

Edit oasis.properties

• Navigate to extprop directory:

  cd /<path_to_ovaledge>/extprop
  sudo vi oasis.properties

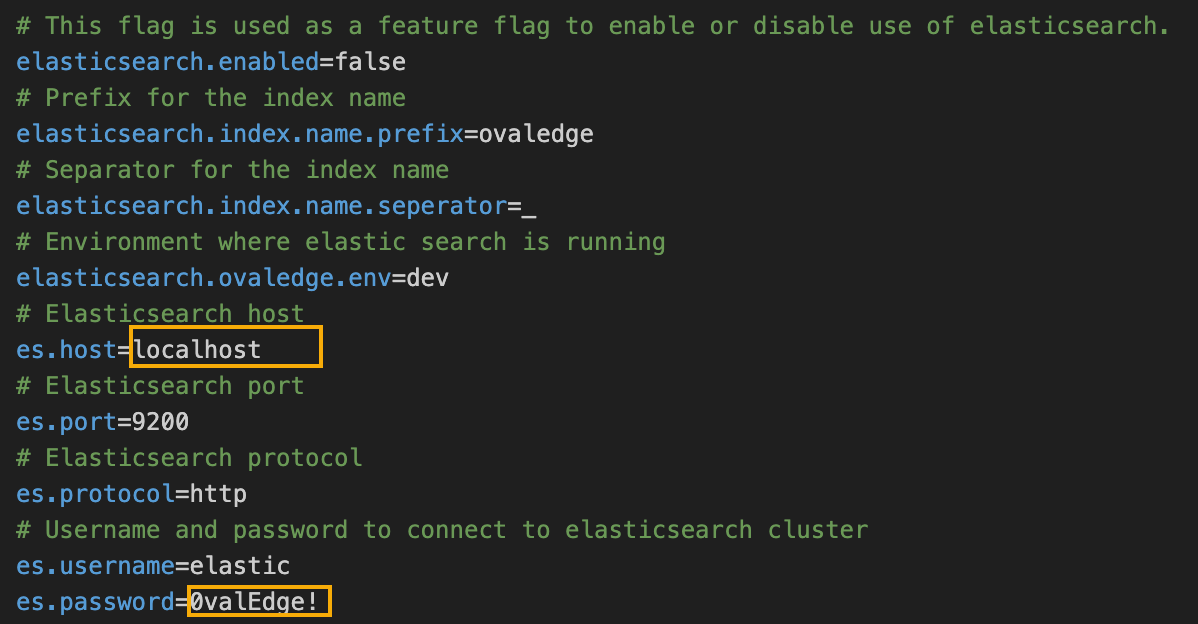

• Configure Elasticsearch Connection Parameters

  • If Elasticsearch is on the same VM: es.host=localhost

  • If on another VM: Replace <elasticsearch_host> with its IP or hostname

  • Add the elasticsearch user password configured during the Elasticsearch setup.



Restart Tomcat

• Restart OvalEdge application:

  sudo systemctl restart tomcat

• Ensure Elasticsearch is running and accessible before restarting Tomcat.

---
